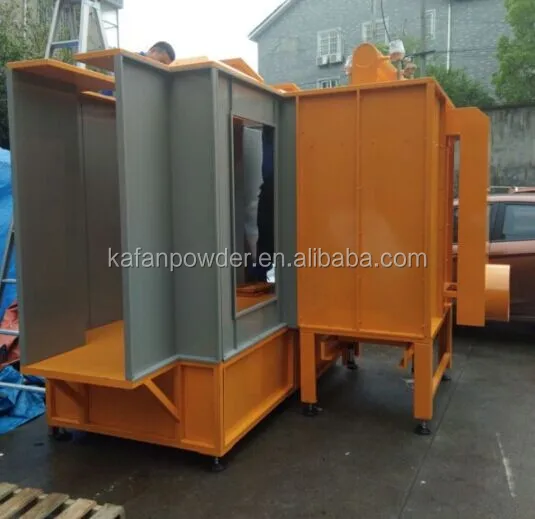

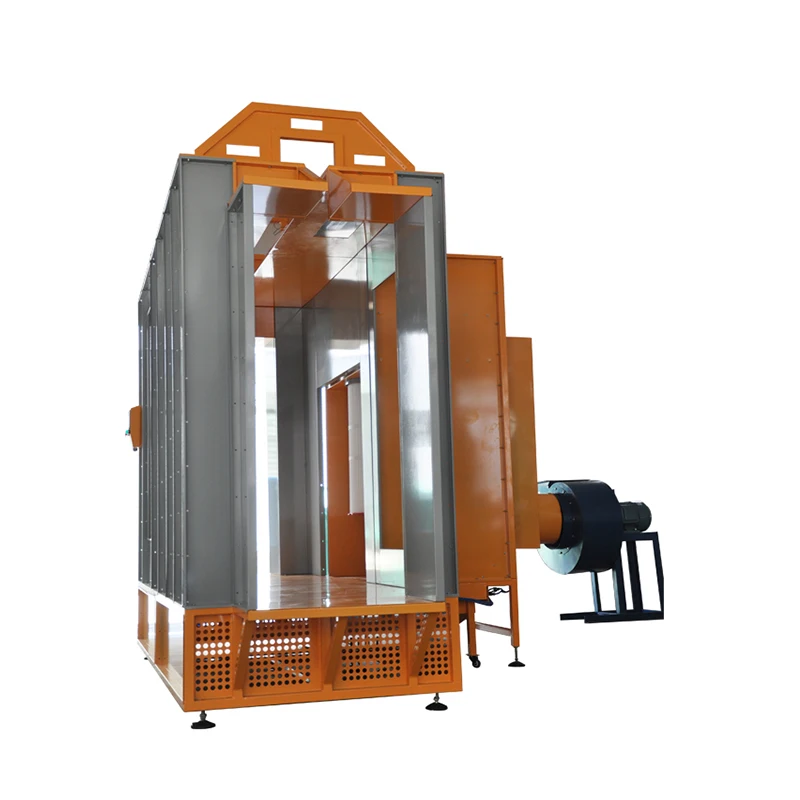

Auto Multi Cyclone Powder Spray Booth

1. The bottom of the large cyclone adopts an automatic recovery powder pump structure. The powder is recycled to the powder drum for recycling.

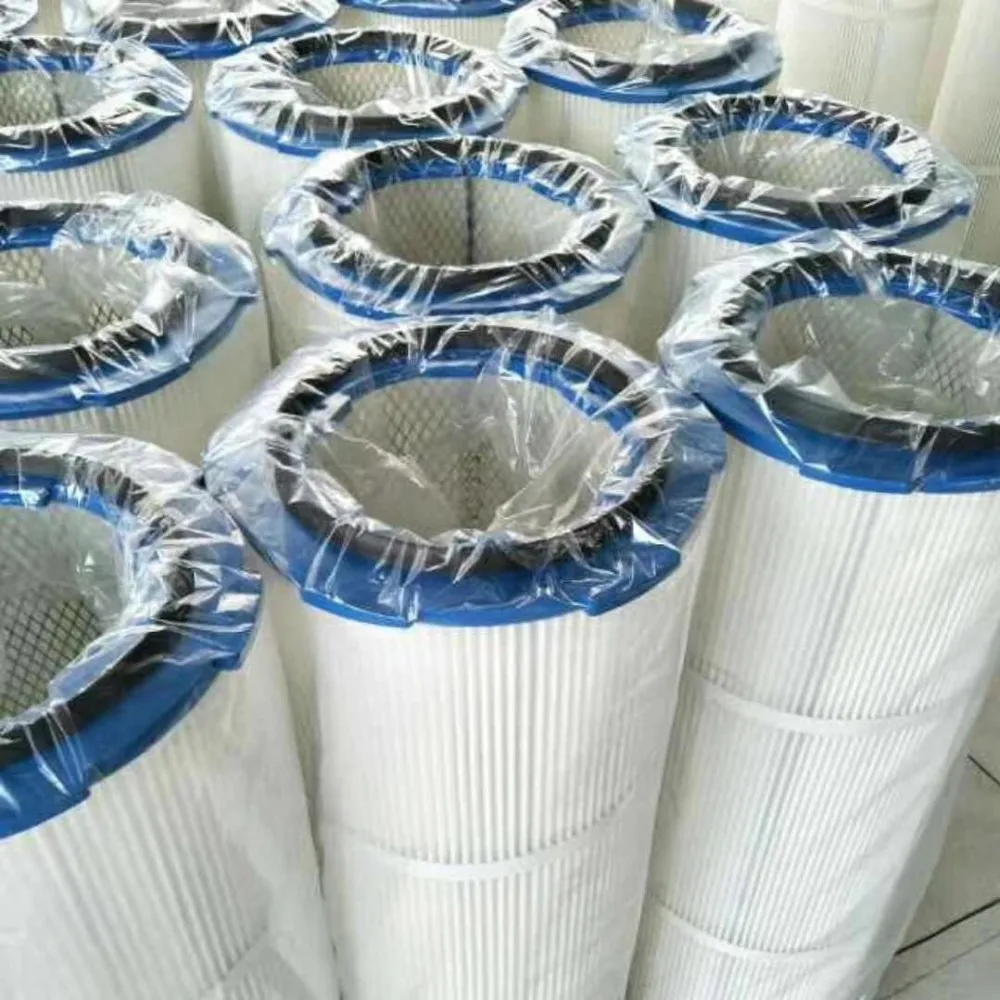

2. The filter adopts "rotary wing" filter cleaning system to recover the airflow homogenization design to ensure a more stable recovery airflow to ensure the cyclone separation function and prolong the working life of the over-layer. The filter element uses a high-quality, long-life nano-film filter, which lasts for several years.

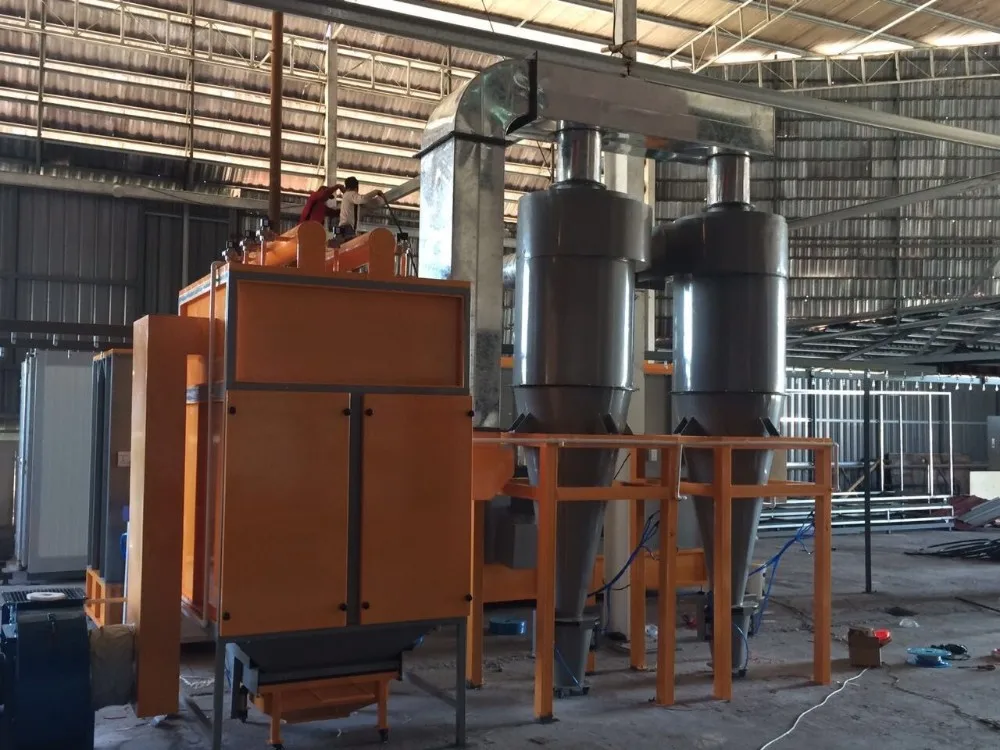

3. The high-efficiency large cyclone separation device can achieve a single separation efficiency of up to 98%. The large cyclone powder room can be made of stainless steel, engineering plastic or sandwich sandwich.

4. For the powder room with a large amount of hand spray, the unequal width design is adopted to facilitate the spraying of the hand spray personnel close to the workpiece.

5. The pulse airflow cleaning device can be arranged at the bottom of the spray booth. The top arc structure is designed for easy cleaning.

Filter

Filtration area: 24m2

Exhaust air volume: > 1500 m3/h

Filtration efficiency: > 99.9%

Cleaning method: intermittent vibration cleaning vibration

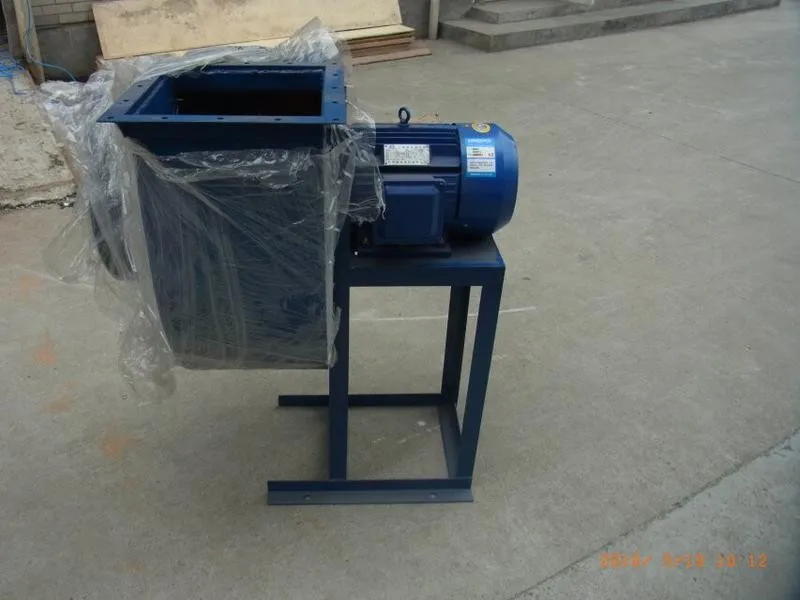

Centrifugal fan

3.5KW

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Related Products

For customized design upon your request , please kindly let us know the detailed info :

1. Workpieces Max weight and Max size (length ,width and high) and picture.

2. The material of the workpiece.

3. The anticipative output for the biggest size of the workpiece(how many pcs in 8 hours)

4. The length, width and height of the factory available for the coating line

5. The heating power: Liquefied Petroleum Gas, Liquefied natural gas, Diesel, Electric, Coal or Biomass particles.

6. If need to change colors in one day? How many colors do you have?

7. Need automatic paint or manual paint
