High Quality GPON FTTH Media Converter Optical Media Converter Multi Mode WDM ST Fiber Media Converter Fibre Optic Equipment
- Category: >>>
- Supplier: Nanjing Coecom Optoelectronic Equipment Co. Ltd.
Share on (62169686746):
Product Overview
Description
Product details
High Quality GPON FTTH Media Converter Optical Media Converter Multi Mode WDM ST Fiber Media Converter Fibre Optic Equipmentt
- Supports one 1000M optical port and one 10/100/1000M adaptive network port;
-
Optics default ST, FC/SC/LC (SFP) optional;
-
Adopts telecommunication-grade optical module, MTBF > 10,000 hours;
-
Adopts store-and-forward mechanism and supports automatic identification of network interface;
-
Adopts protection circuit, which can resist the electromagnetic surge, 1KV (10/700 s) surge.
-
External power supply with AC220V to DC5V power adapter;
-
Complete with 1U or 2U rack-type chassis, 4 or 14 module transceivers can be plugged in to support centralized management of multiple module transceivers;
-
Conforms to telecommunication standard, suitable for cabinet installation in room environment.

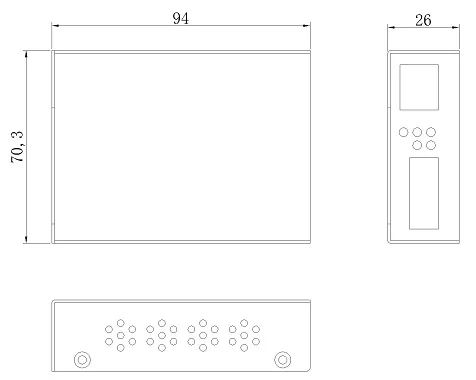

Dimension(mm)
Product parameters
High Quality GPON FTTH Media Converter Optical Media Converter Multi Mode WDM ST Fiber Media Converter Fibre Optic Equipment
|
Product name |
High Quality GPON FTTH Media Converter Optical Media Converter Multi Mode WDM ST Fiber Media Converter Fibre Optic Equipment 1*ST+1*RJ45 |
|
Product type |
COE-10/100/1000-ST/M.55-MC |
|
Fiber optic interface port |
1*ST multi mode dual-fiber 10/100/1000M |
|
Network interface port |
1*RJ45 10/100/1000M socket, MDI /MDIX Auto-Negotiation |
|
Wavelength |
850nm / 1310nm |
|
Fiber optic rate |
1.25Gbps |
|
Network rate |
10/100/1000M Adaptive Port Rate |
|
Optical transmission |
Multi mode≤550m, others can be customized |
|
Network transmission |
Cat5, Cat5e or higher frequency twisted pairs |
|
Outline dimension |
26*70.3*94(mm) |
|
Power supply |
AC220 to DC5V |
|
IEEE standard |
IEEE 802.3 i 10Base-T; IEEE 802.3 u 100Base-TX; IEEE 802.3 ab 1000Base-T; IEEE 802.3 z 1000Base-X |
|
Power consumption |
<5W |
|
Weight |
0.3kg |
|
MTBF |
> 10,000 hours |
|
Working environment |
Working environment: 0℃~+70℃,5~95%RH |
|
Storage temperature: 0℃~+70℃,5~95%RH |
|
|
Note |
We also supply other specifications and products, please contact with our sales. |
