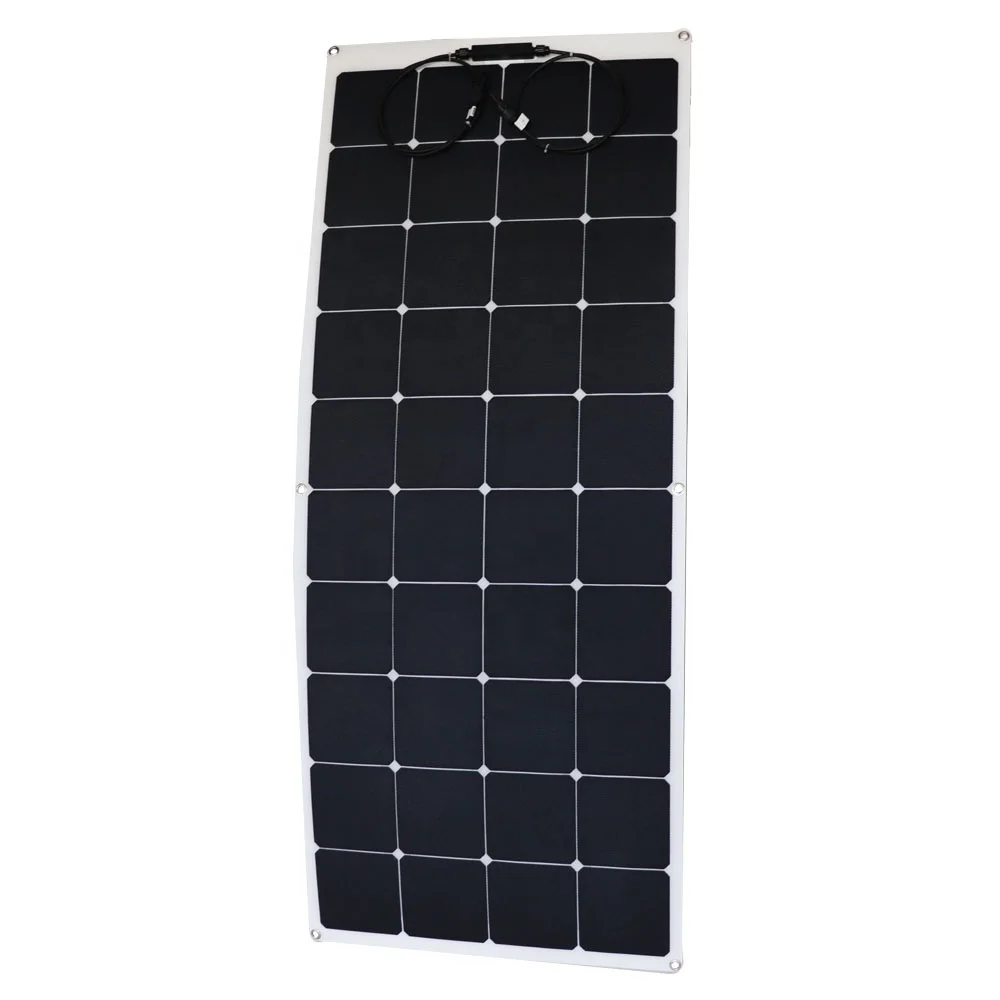

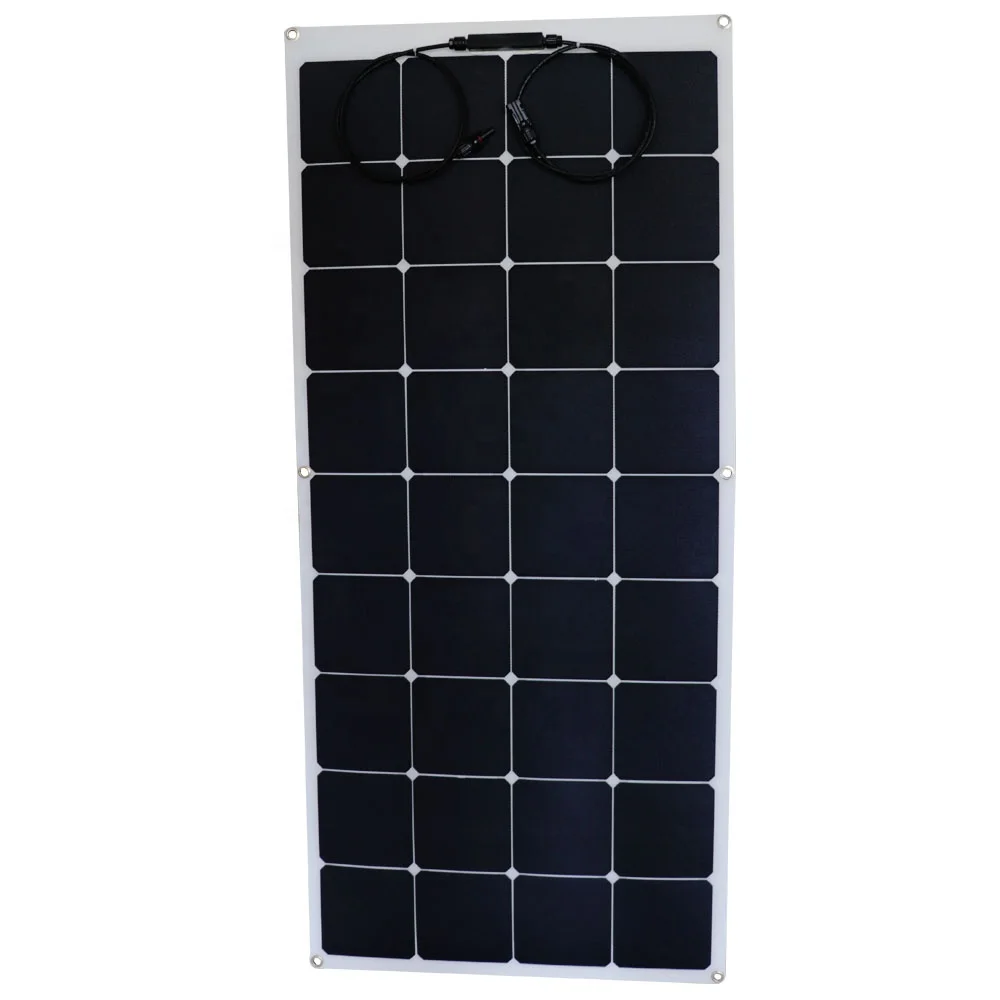

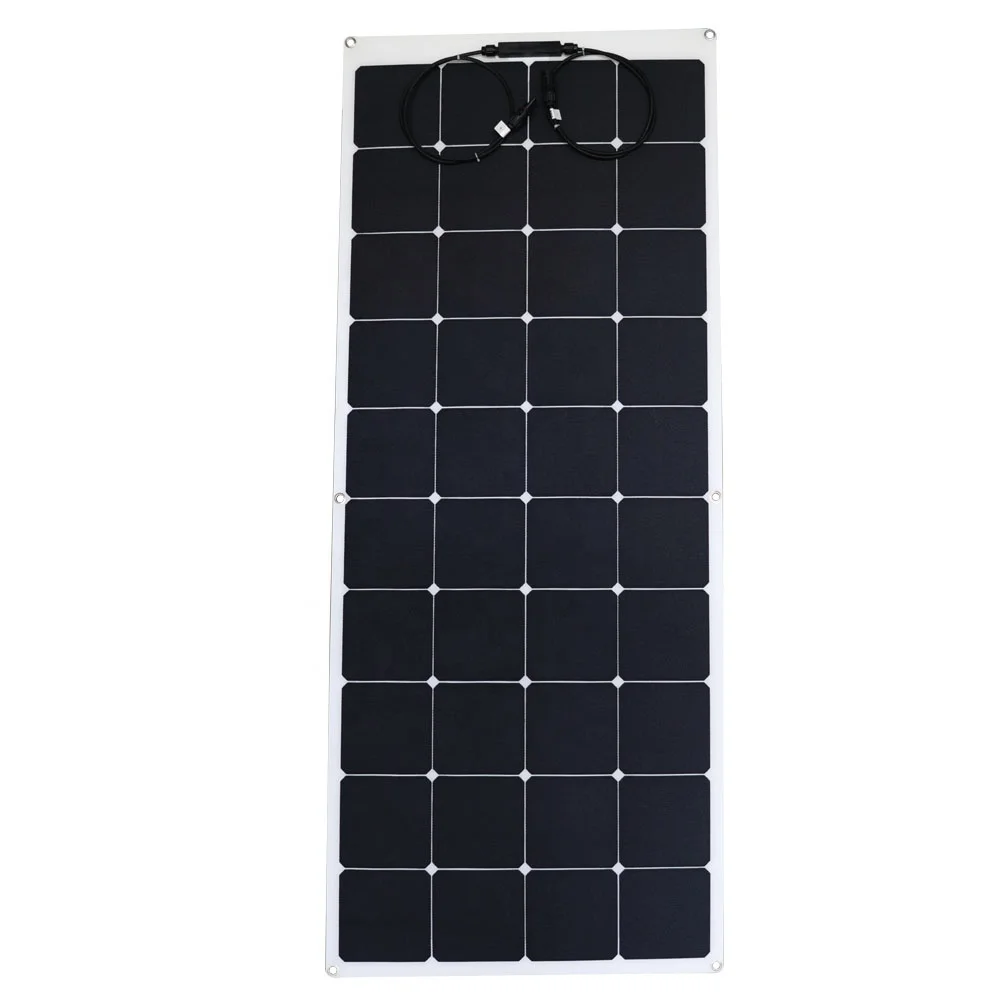

ETFE Solar Panels 100W 120W 130W 150W Flexible Solar Panel Kit Narrowboats For Boats Roof With Cables
- Category: >>>
- Supplier: Shenzhen Ahony Power Co. Ltd.
Share on (62169768549):
Product Overview
Description
Product Description
NO 201 tax to USA for 135w flexible solar panel!Hot sale for camping RV marine!
Welcome to enquiry,our sales representative will send you solar panel price soon!
Back contact solar cells,efficienty is up to 23.7%;
resilient,thin,light and aerodynamic design;

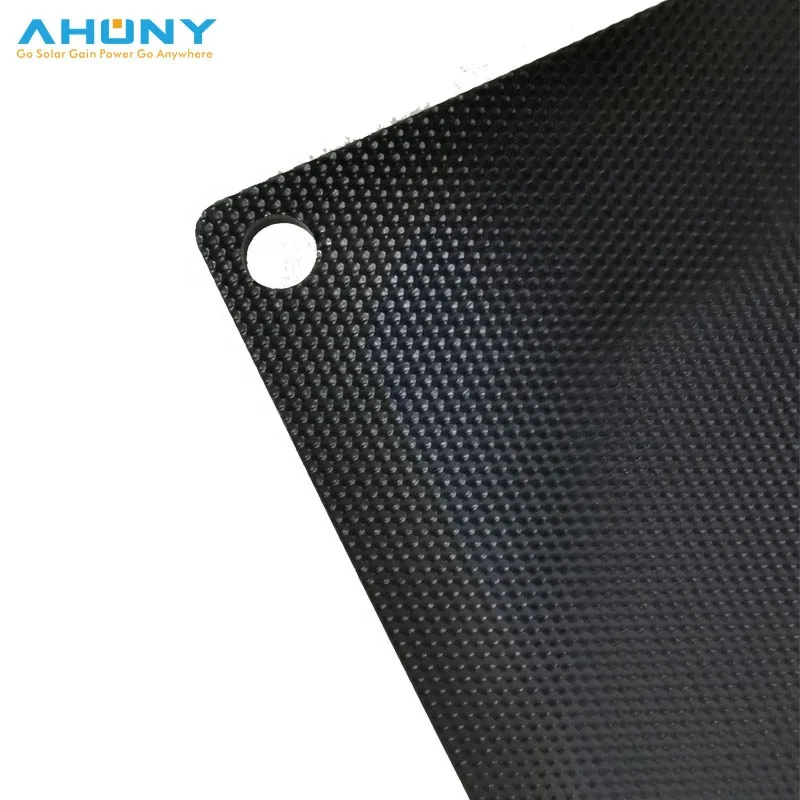

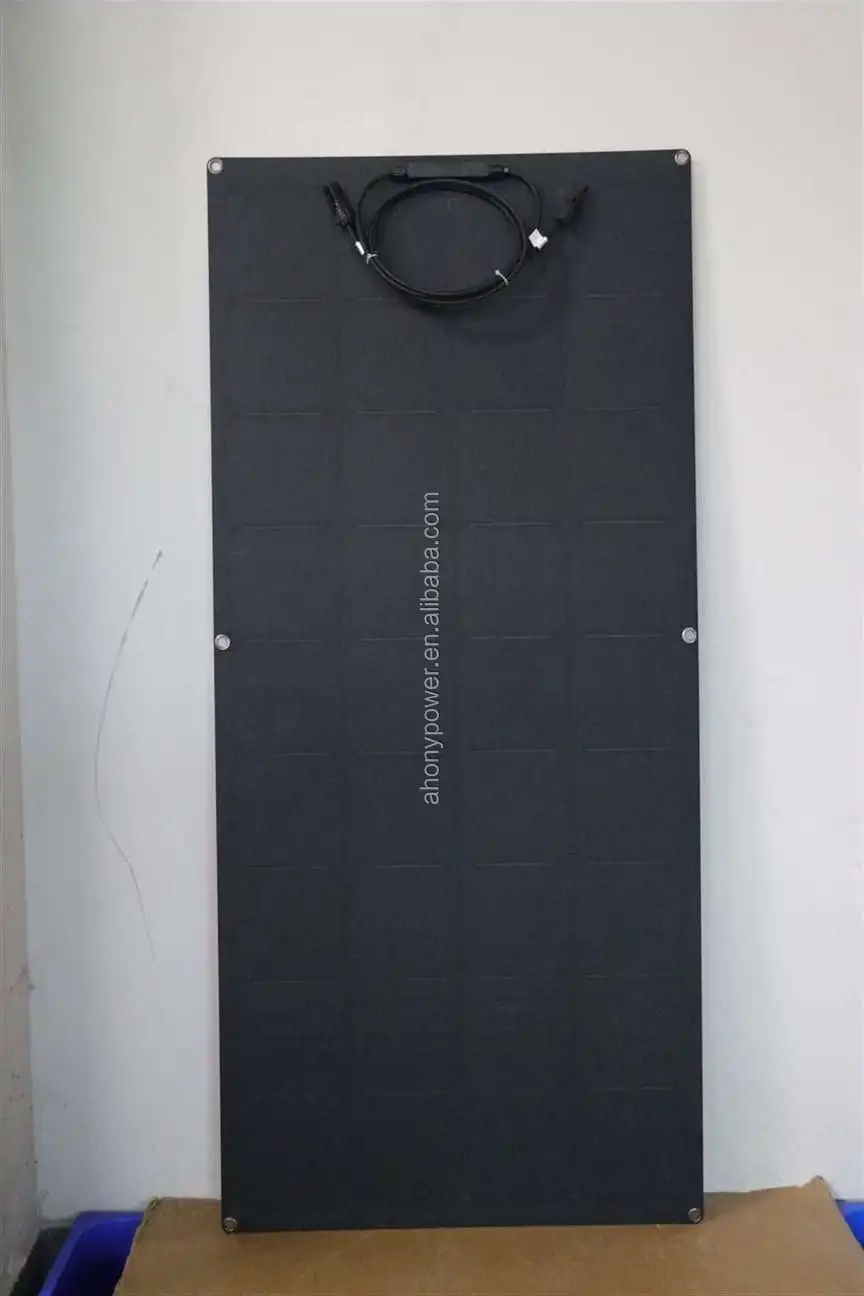

ETFE surface,more weather resistance;
Waterproof Jbox that is full of silicon gel;
Customize flexible solar panels is acceptable.
| Product Name | Semi-Flexible Solar Panel |
| Maximum Power[Wp] | 135 |
| Solar Cell | Back Contact Cell |
| Cell Array[Pcs] | 4*9 |
| Cell Efficiency | 22.60% |
| Size[mm] | 540x1200x3 |
| Max Power Voltage Vmp[V] | 22.60 |
| Max Power Current Imp[A] | 5.98 |
| Open Circuit Voltage Voc[V] | 26.00 |
| Short Circuit Current Isc[A] | 6.34 |
| Net.Weight[kg] | 3 |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.27 |
| Temperature Coefficient Voc[[%/℃] | -0.236 |
| Temperature Coefficient Isc[[%/℃] | 0.058 |
| Maximum System Voltage[V] | 100 V |
| Maximum Reverse Current[V] | IR<2A-0 |
| Certification | CE ROHS |
| Surface/Backsheet | ETFE/PET |
| Cables and Connectors | Jbox IP65,0.9m cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5g and cell temp 25°C |
Company Information
Packaging & Shipping
We off high quality packing for customer,OEM printing for flexible solar panel,customize boxes for order MOQ ocer 500pcs.
Our Services
AHONY offer a series of after sale service:
Install and debug products for customers;
According to the requirements of consumers, carry out technical guidance on the use and other aspects;
Process:
1.Report problem of exact solar products to the salesman you contact or sales manager.
2.After-service Respond, We will check order information (sequence number, model),
record problem, instruct client to inspect the problem by video. Confirm the necessary info if repairing or replacing is needed.
3.Follow up, We will follow up clients whether the problem is solved or whether any further service need.
4.Our sales person,engineer will follow up with customers need,regular feedback on products,to make sure customers are always satisfy with
products and service.
FAQ
Q:How many years lifespan is the flexible solar panel have?
A:more than 10 years.
Q:what is the warranty you offer?
A:1 year warranty free replacement.
Q:What is the bend angle of this flexible solar panel?
A:max bend angle 30degree,our company have reference size to guide customer to bend,
please do not over bending.
