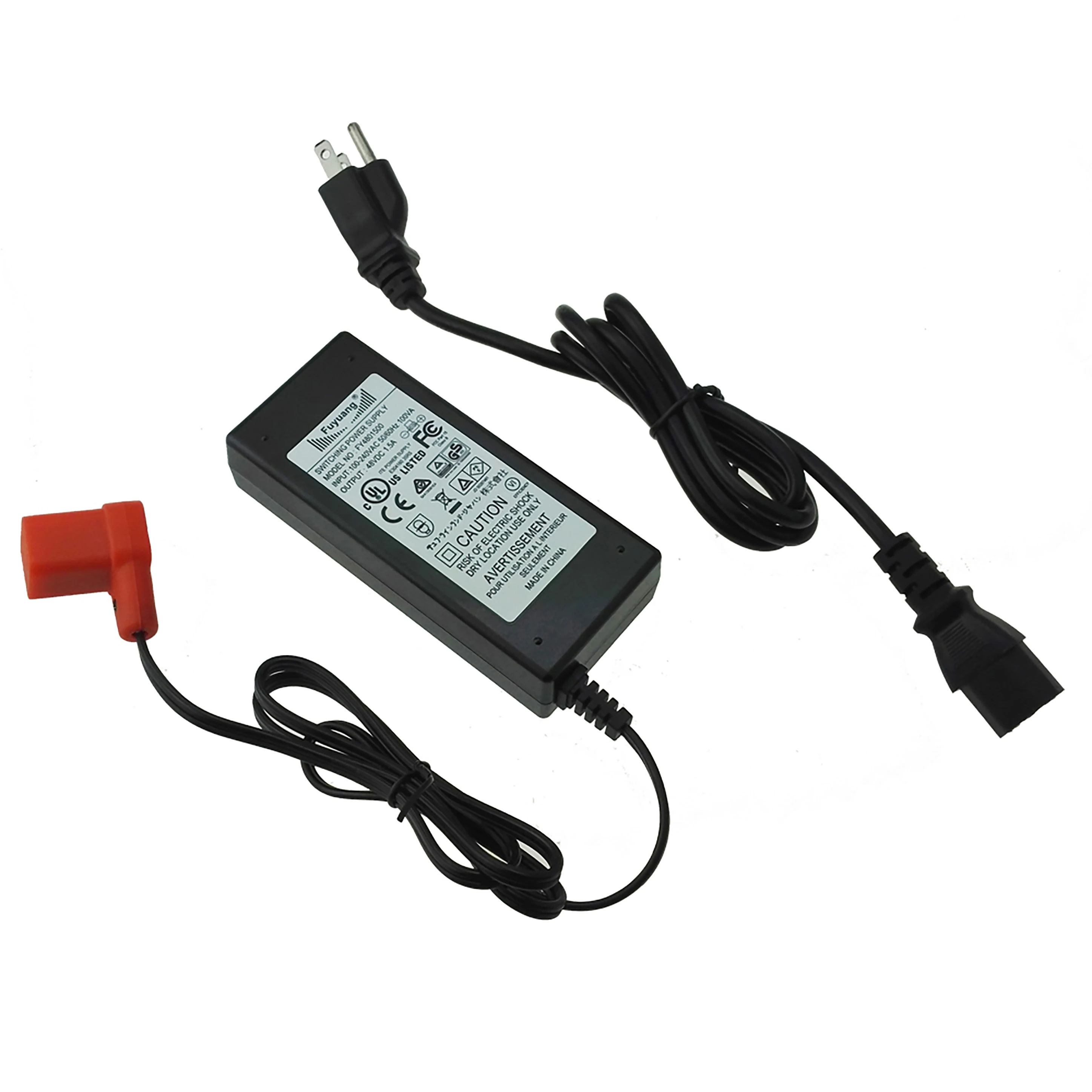

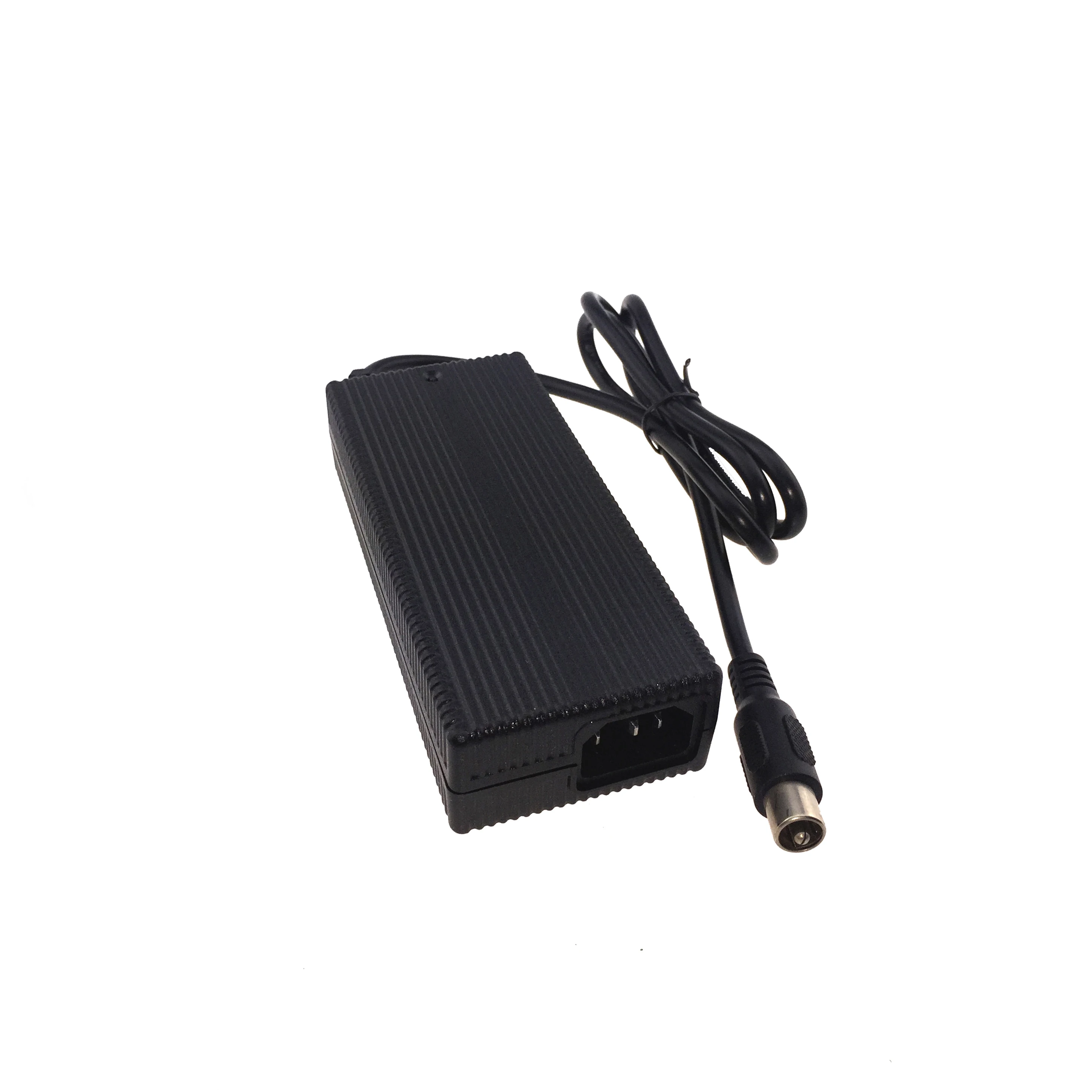

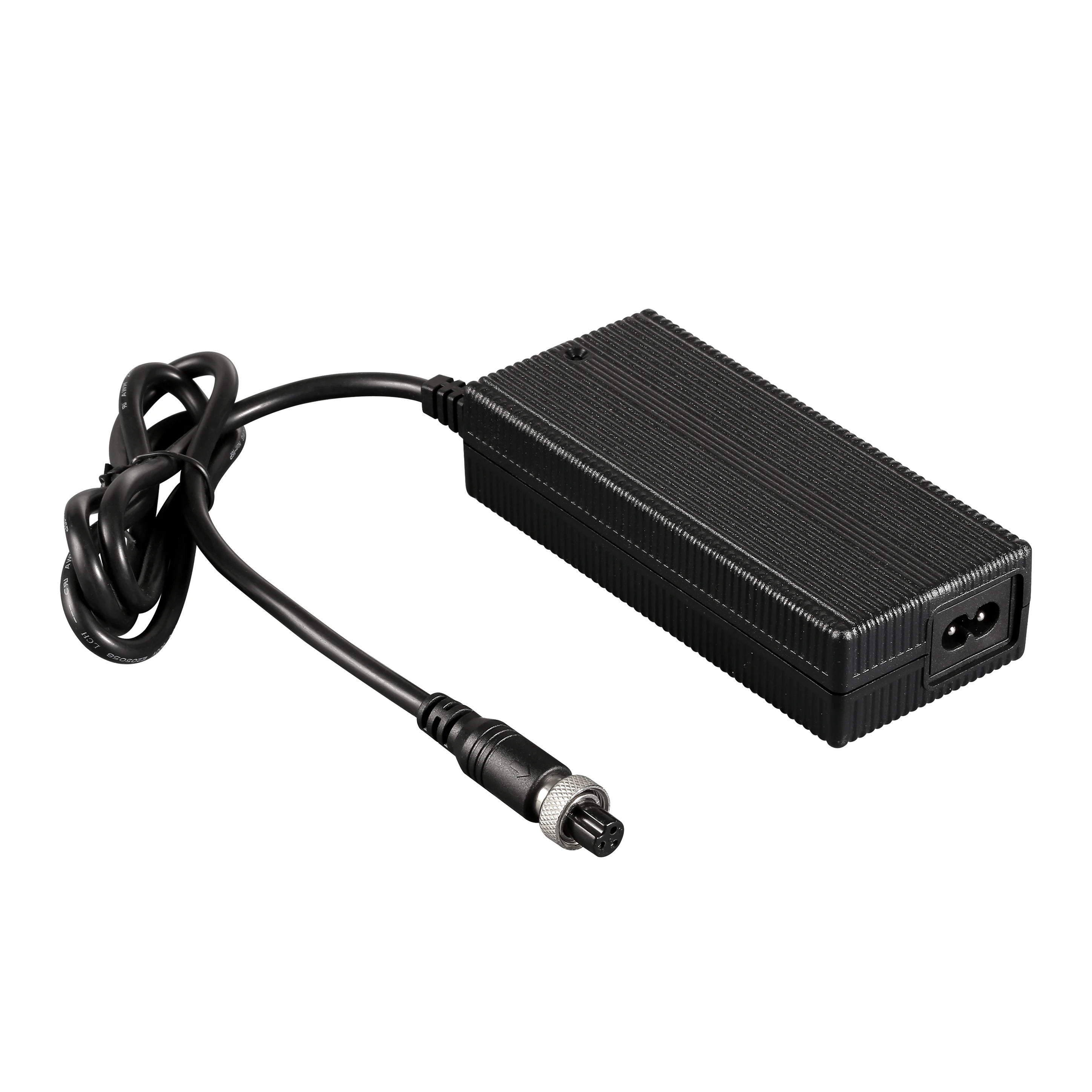

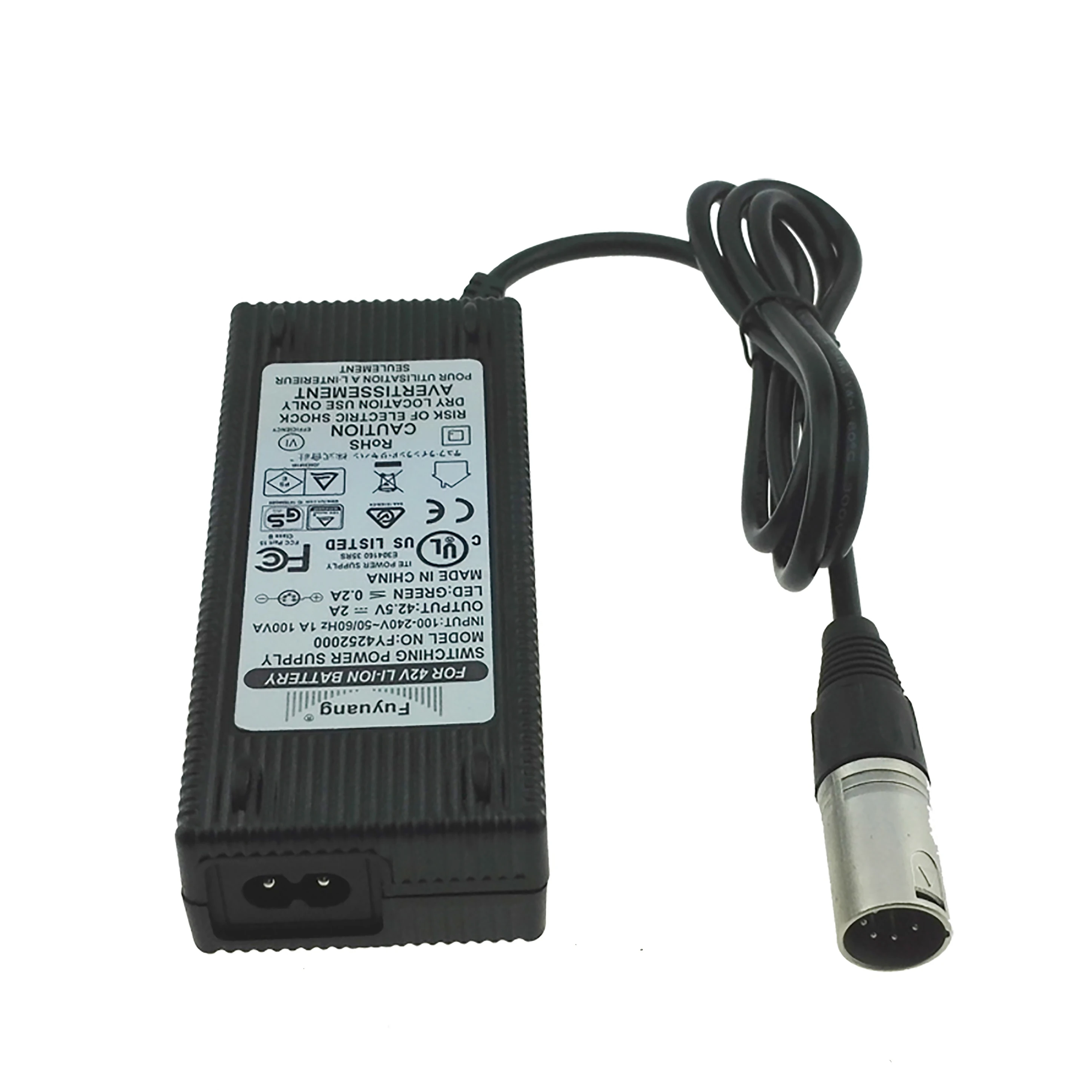

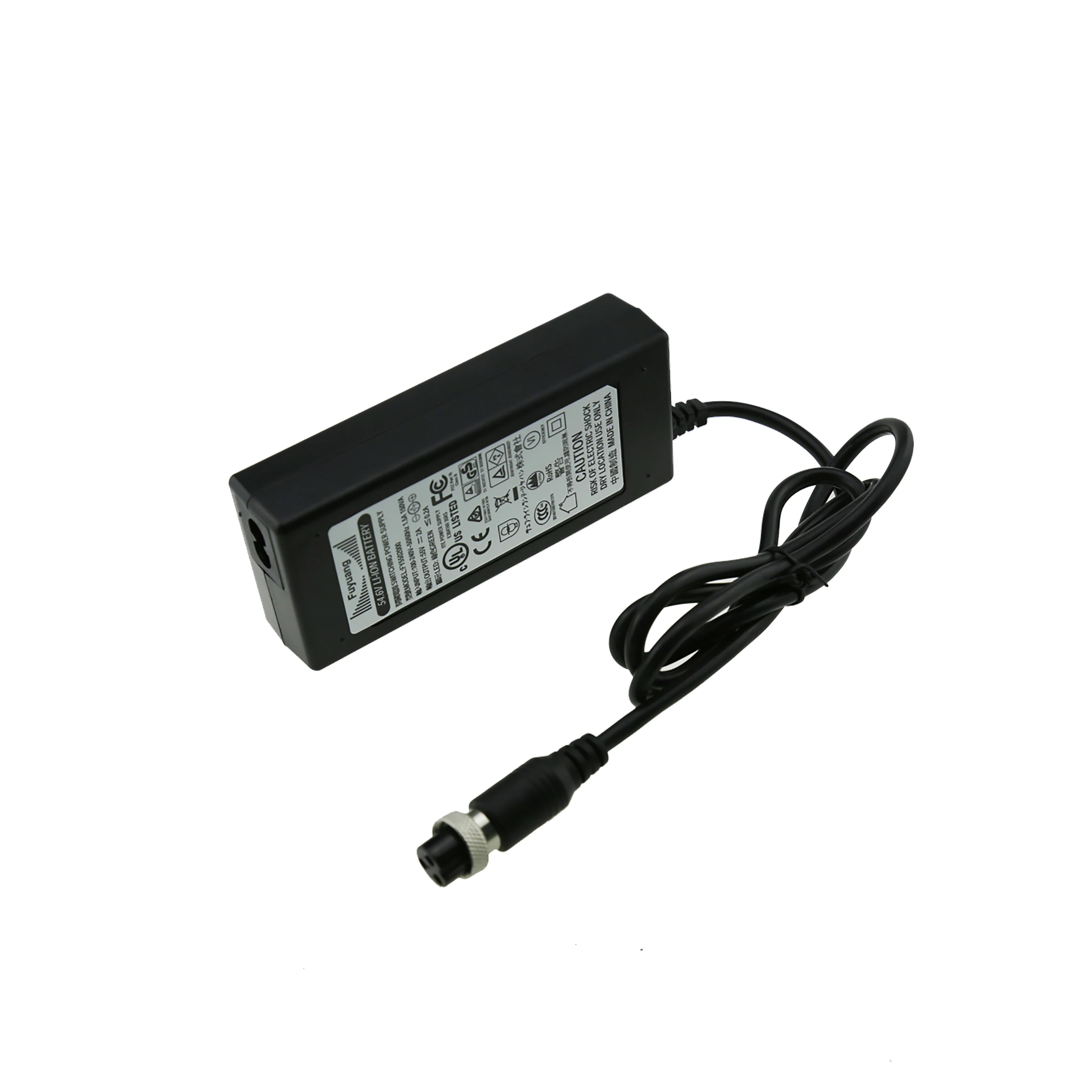

Universal mobile fast 42v 2a lithium battery charger for e rickshaw

Product Overview

Description

Product name	FuyuangUniversal mobile  fast 42v 2a lithium battery charger for e rickshaw
Certificate	CCC, UL, cUL, CE, GS, PSE, SAA,C-Tick RCM, KC, KCC, CB TUV ROHS, BS
Usage	Electric vehicle, Ebike, Electric Scooter, Mortor, Golf car, car jumper,Solar Systems, Home Application, UPS,LED Torch, headlight, Portable power bank, etc.
Package	PE bag+ White box+ Carton
Environmental Protection	RoHS, REACH, CPSIA or PAHs Compliant On Request
Protection Function	Over voltage protection Over current protection Over-load protection Short circuit protection
Energy Standard	MEPS CEC-V ERP V Energy Star: Level 6 Standby Power: <0.3W
Electrical Specification	Input Plug: EU US UK AU South Korea South Africa Power cords  Output Voltage Range of main products: 4.2~60V DC (Optional)  Output Current Range of main products: 0.5-100A (Optional)  Charge mode: CC--CV (Li-ion battery charger)
Operation And Storage Condition	Operation Temperature: -20°C to 40°C Operation Humidity: 20% to 90% R.H Storage Temperature: -20°C to 75°C Storage Humidity: 1% to 90% R.H. MBFT: > 50,000Hours

♦ AQL :MIL-STD-105E II CRI 0; MAJ 0.25; NIN 1.0

♦ MTBF:30000 hours full rated load at 25oC
♦ Drop Testing:Meet UL standard
♦ Working Mode:Constant Voltage



All Chargers for lithium ion battery pack
4.2V for 1S 3.7V lithium ion battey pack
8.4V for 2S 7.4V lithium ion battery pack
12.6V for 3S 11.1V lithium ion battery pack
16.8V for 4S 14.8V lithium ion battery pack
21V for 5S 18V lithium ion battery pack
25.2V for 6S 22.2V lithium ion battery pack
29.4V for 8S 24V lithium ion battery pack
42V for 10S 36V lithium ion battery pack
54.6V for 13S 48V lithium ion battery pack
67.2V for 16S 60V lithium ion battery pack
84V for 20S 72V lithium ion battery pack



♦ Led display: Red--in charging; Green--fully Charge

♦ Cut-off Current: 10-15% of Charge current

♦ Output Connector: 3pin Aviation Plugs, XLR socket, DC Jack, Alligator Clips, SAE connector, Anderson Plugs, RCA

♦ Ripple & Noise: 1% of Output Voltage
