Cashless Card Reader Automated Parking Payment System For Cashless Card System Arcade
- Category: >>>
- Supplier: Shenzhen Cardlan Technology Co. Ltd
Share on (62170063272):
Product Overview
Description
13.56Mhz RFID card reader 4G WIFI POS terminal NFC bus validator GPS bus fare box GPRS POS system with free SDK

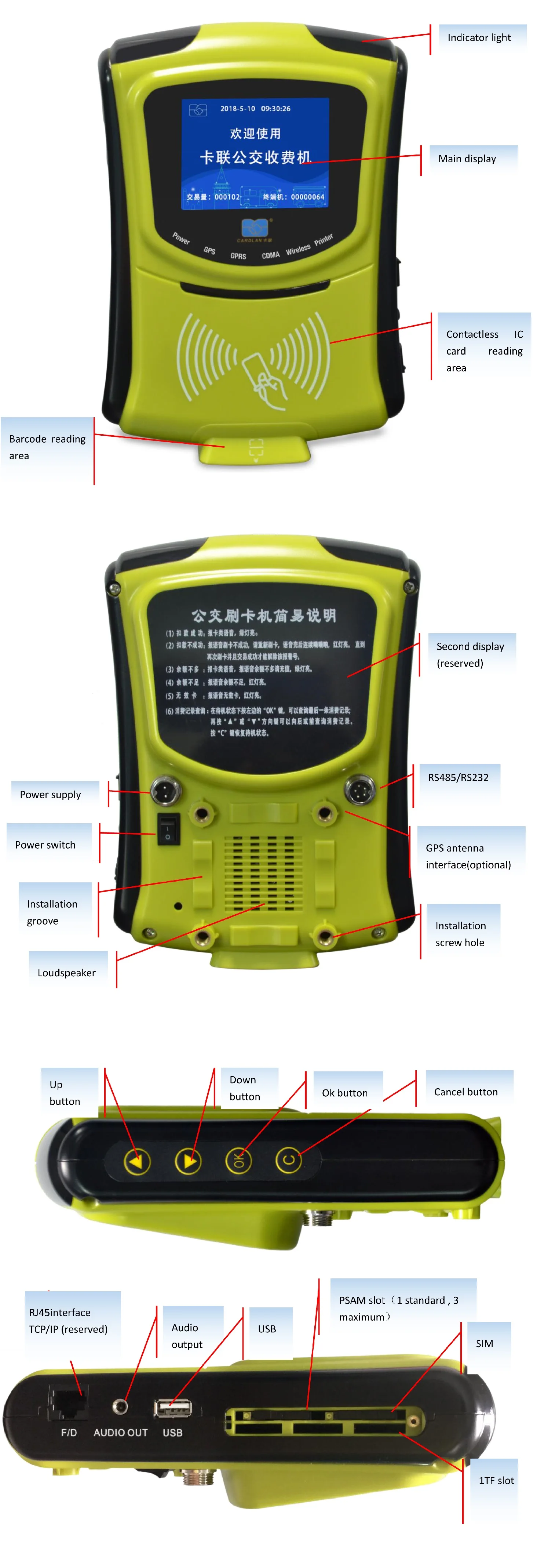

Detailed Images
Product Description
Technical specifications:
| Model: | CL-1306 card reader for public transportation | Data capacity: | 259840 pcs of detailed data for console storage, unlimited data at GPRS storage |
| Dimension: | 151*195*48 mm | Card capacity: | 91,880,000 pcs |
| Material: | Engineering Plastics(Anti static electricity coating design, be protected from high-frequency interference) | Black list: | 91,880,000 pcs (download thru PC with USB) |
| Display: | 3.5 inch LCD display, 320x240 | Working Voltage: | DC 8V-50V |
| Operating system: | Linux2.6.17.14 | Data collection: | WIFI/GPRS wireless collection and USB local collection |
| CPU: | ARM9 core processor,240Mhz | Operating temperature: | -40℃~75℃ |
| Memory: | 32MBytes SDRAM,128MB NAND Flash main memory | Storage temperature: | -40℃~85℃ |
Indicator light: | Red and green | Humidity: | 0-90% RH non condensing |
| Sound prompting: | Buzzer,Single channel loudspeaker | Keypad: | 4 operation button, on the rear side of the machine |
| Flash Memory: | 64 Mbyte, can be extended to 256 Mbyte | RFID: | Can read and write ISO14443 Type A B |
| Read card distance: | 0~50mm | Frequency: | 13.56MHz |
| Supporting card: | Mifare 1 card, Mifare DESfire EV1, CPU card | Interfaces/Connectors: | RS232, USB |
Printing module: | Support external POS58printer (need 5pinaviation plug turn DB9 cable) | Width of receipt: | Thermal paper, 58 mm |
| Power consumption: | ≤10 W | Communication Modules: | GPRS(900Mhz/1800Mhz), or 2GCDMA(800Mhz),4G,3G, WCDMA |
| WIFI: | Supporting 802.11n/b/g standards,150Mbps,2.4Ghz | Voice Prompt: | 16KHz,16bit single channel voice prompt |
| Upgrading: | Connect USB to PC, upgrade with GPRS | Position way: | GPS positioning |
Working Mode: | Stand-alone or connect to server | Warning Function: | Warning when card balance is insufficient or data memory is full |
PROVIDE FREE SDK, SUPPORT SECONDARY DEVELOPMENT TO TOPOLOGY YOUR OWN SPECIFIC FUNCTION !
Solution & Service
Packaging & Shipping
Package for Bus card reader:
1. Each device with foam into a box.
2. 1 unit / gift box; 21 boxes / carton, carton size 57*51*30 cm.
3. 60 set of cables / carton, 56 kgs / carton, carton size 58*38*51 cm.
4. Packed as customers' request.
Company Information
Shenzhen Cardlan Technology Co., Ltd
Shenzhen Cardlan Technology Co., Ltd (Be short for: Cardlan) was established in 2006, with registered capital of 10 million RMB, located in Shenzhen, China. We belong to national high-tech enterprises, double soft certified enterprise and the first batch of national MOHURD Interconnection certified enterprises. Our high-tech business structure is Hardware + SW + Network, we are engaged in developing, manufacturing and selling Smart City All-in-one system and matched high quality hardware devices. Cardlan is one of the earliest members on developing RFID IC card system throughout China and Asia. Adhering to the management spirit of Wisdom Creates Value, Quality Wins Respect, Cardlan is committed to technology innovation and developing of informatization industry, trying to build an international brand for Smart City all-in-one system.
Our Main high-tech Software products contains CL-CSP6 all-in-one-card charge management platform and CL-BSP8 smart city all-in-one-card platform, which both include more than 10 professional sub-systems among accounts settlement, public bus transit fare collection management, parking-lot IC card toll collection management, taxi meter fare collection management, Loyalty system management, Amusement park fare collection management etc. Our Hardware devices are including: E-hands handheld series, E-bey table-based series, Bus-bey installed series etc. So far, all our available high-tech products have intellectual property rights for management software, application programs and hardware designs, which all meet the of GB,CE and ISO standards.
Our products has been sold to more than 10 countries abroad, we enjoy good reputation and 100% positive feedback home and abroad by our great quality.Our core management team and key engineers are made up of MBA, EMBA, technicians and experts from related fields. Within 10 years continuous development and innovation, Cardlan has got over 40 types of patents and SW copyrights, we‘ve built up complete management systems among R&D management, quality control management and marketing management, as well as Independent intellectual property rights library. We’ve been cooperated with more than 6000 well-known enterprises in public transit and other fields such as: Beijing Benz, China Mobile, Bank of China, CNOOC and Shell petrochemical company limited, Beijing Capital International Airport etc.
YOU ARE WELCOME TO CONTACT US FOR ANY SOLUTION ANYTIME!
Factory information
Quality control
Strictly hightemperature/low temperature testing, Vibration testing, Waterprooof testing, to make sure all products can meet the extreme environment on bus.
Certifications
FAQ
A: Are you manufacturer?
-Yes, we are a manufacturer, which is focus on R&D(research and develop) bus pos system with hardware&software since 2000.
A: Would you provide SDK?
-Yes, we will offer free SDK for your own topology after (sample) order setted.
A: What warranty for the products?
-According to our warranty policy, we will provide 12 months warranty time from the shipment date for all products (Excluded the consumable parts).
A: What is the minimum order?
-We can accept one unit for standard products, for sample and manager system test.
A: Can I get the free sample?
-Sorry, generally we would not provide free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
A: Do you accept Paypal?
-Yes, PayPal is available. Besides, we accept Western Union, T/T, L/C, Secure payment (Escrow Service from Alibaba) and so on.
A: What's the delivery time?
-Generally, sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks, depends on exact quantity and model.
A: Which way to deliver the goods?
-By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
-By Sea: Inform us the Sea Port to check the ship line.
-By Air: Inform us the Airport to check the flight.
-Or pick up by the customers.
A: What the after sale service?
-a. Our all products will provide 12 months warranty;
-b. Enough stock spare parts for guarantee;
-c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
-d. As for the returned failure products, we will fix it and return to the customers in one week after we receive it;
-e. We can remoting control to helps you solve problems.
