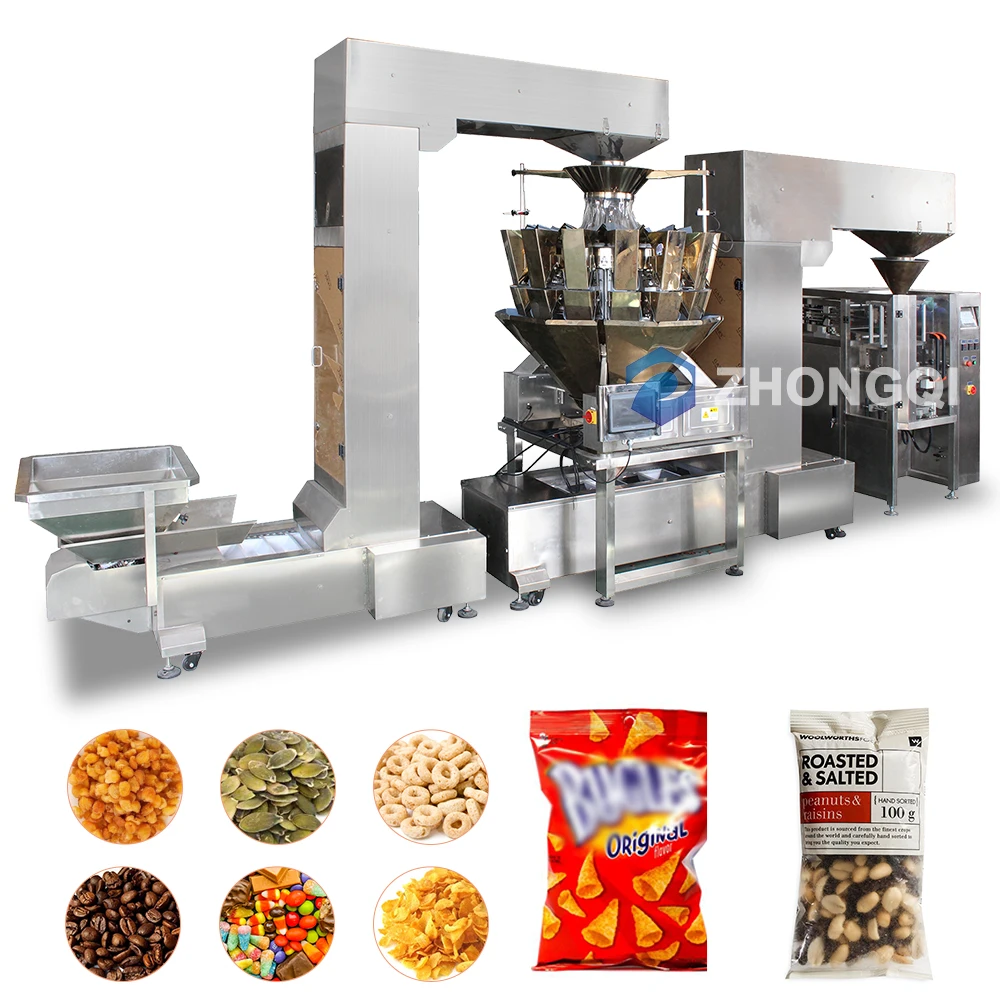

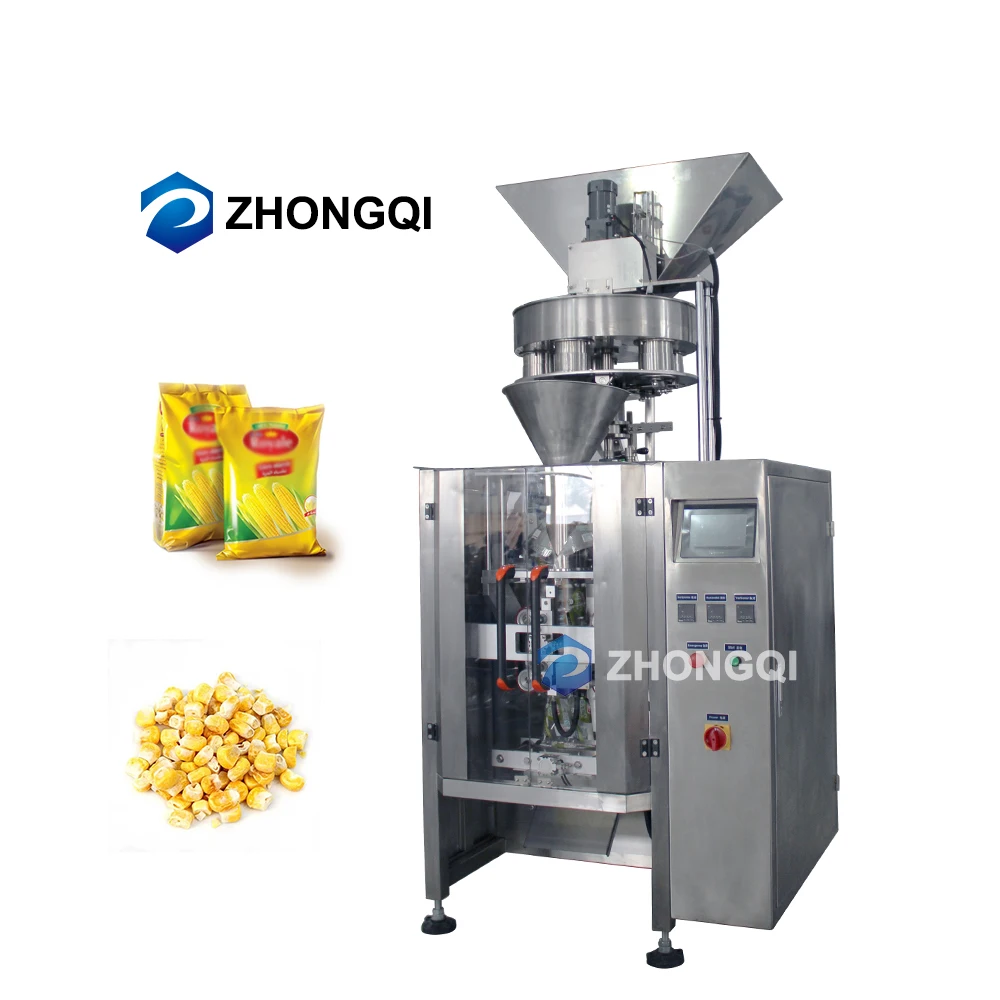

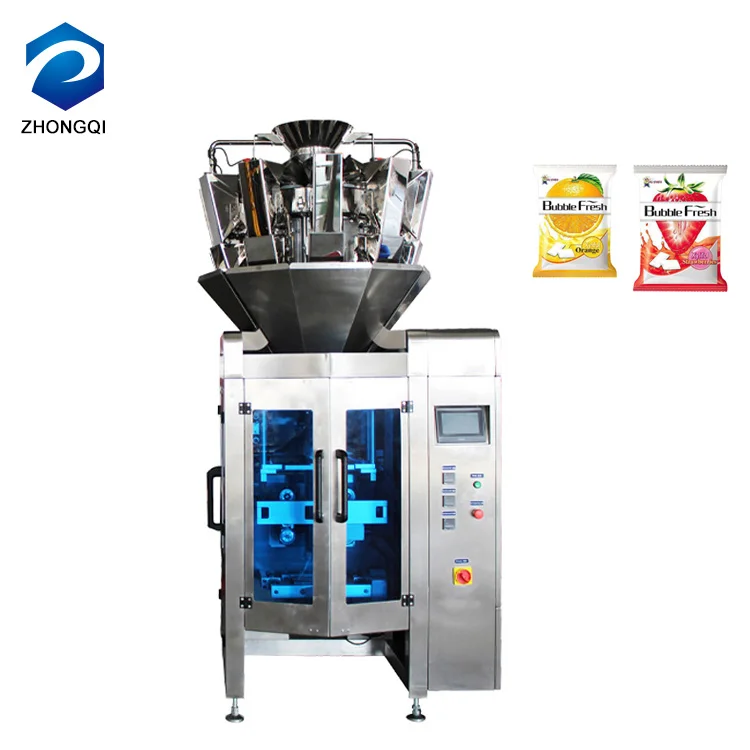

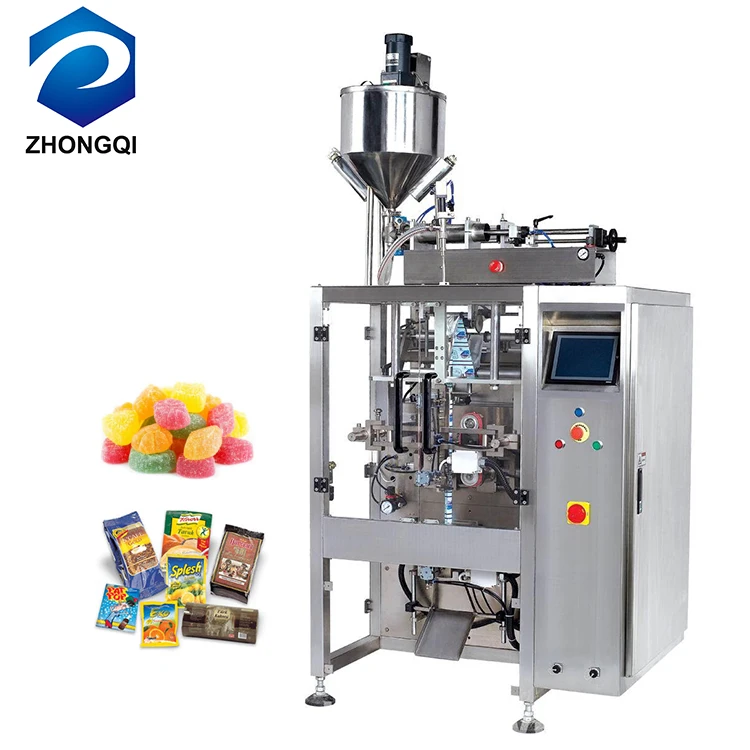

Multifunctional Line Food Stuff Vertical Packaging Machine
- Category: >>>
- Supplier: Foshan Zhongqi Packing Machinery Co. Ltd.
Share on (62170149602):
Product Overview
Description
Vertical Sealing Packing Machine For Meat
Product Description
| Parameter |
| Model No. | ZQ-420 | ZQ-520 | ZQ-620 | ZQ-720 | ZQ-820 |
| Product Name: | Foodstuff Vertical Packaging Machine | ||||
| Machine Material: | 201/304 Stainless Steel | ||||
| Voltage: | 220V, 50/60HZ | ||||
| Power: | 3KW | 4KW | 5KW | 6KW | 7KW |
| Packing Speed: | 30~80bags/min | 30~80bags/min | 5~60bags/min | 5~60bags/min | 5~60bags/min |
| Bag Width: | 100~200mm | 100~250mm | 100~300mm | 100~350mm | 100~400mm |
| Bag Length: | 100~280mm | 100~340mm | 100~380mm | 100~480mm | 100~550mm |
| Film Material: | OPP/CPP OPP/CE PET/PE NILO/PE PE | ||||
| Film Tickness: | 0.04~0.12mm | 0.04~0.12mm | 0.04~0.12mm | 0.04~0.12mm | 0.04~0.12mm |
| Warranty: | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years |
| Dimension: |
(L)1457mm (W)1130mm (H)1350mm |
(L)1630mm (W)1230mm (H)1470mm |
(L)1700mm (W)1290mm (H)1760mm |
(L)1780mm (W)1350mm (H)1950mm |
(L)1600 (W)1530 (H)2110mm |
| Machine Weight: | 500kg | 550kg | 600kg | 700kg | 800kg |

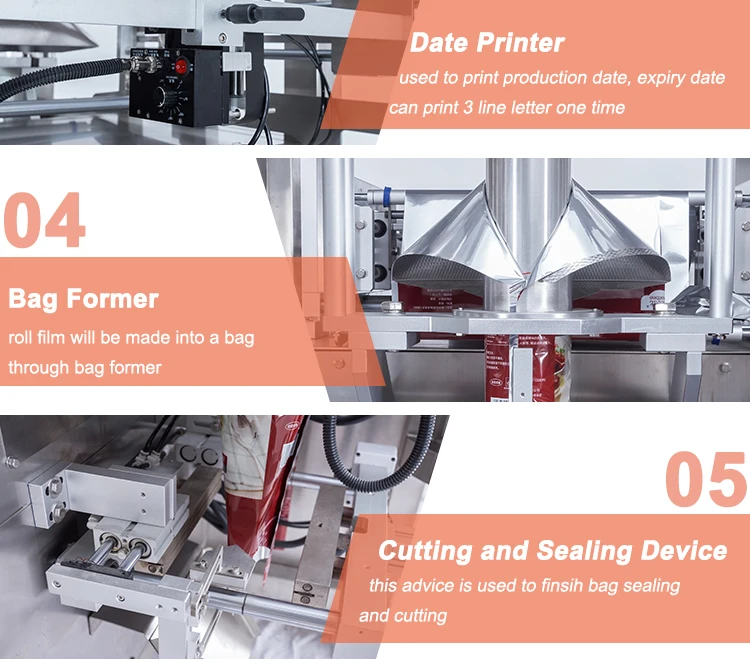

| Optional Device: | Date Coder/Air Exhaust Device/ Nitrogen Device/Inflatable Device/Punching Device/Tear Notch Device/Gusset Device/Linking Bag Device | ||||
Main Performance And Structure Features:
1. Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;
2. Intelligent: Packing speed and bag length can be set through the screen without part changes;
3. Profession: Independent temperature controller with heat balance enables different packing materials;
4. Characteristic: Automatic stop function, with safe operation and saving the film;
5. Convenient: Low loss, labor saving, easy for operation and maintenance.
Company Profile

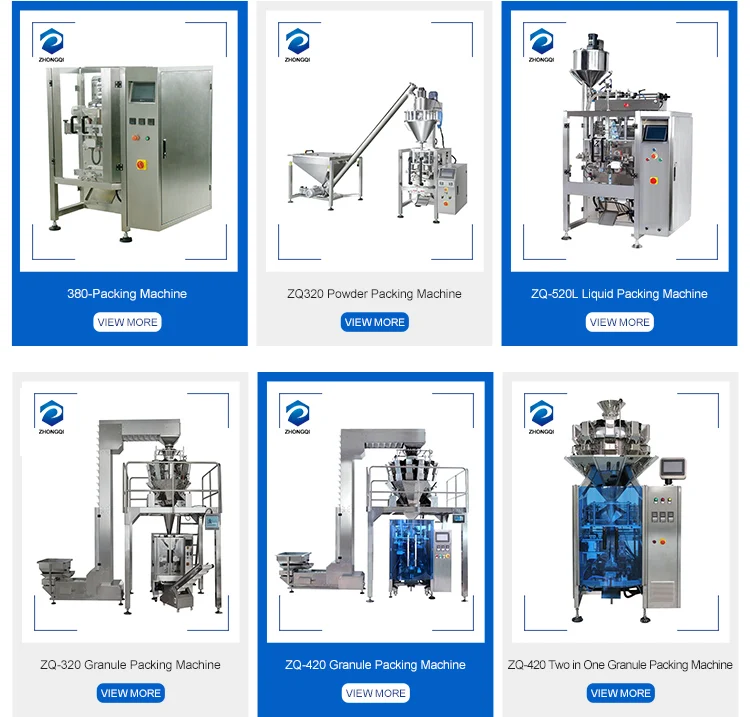

We Recommend
