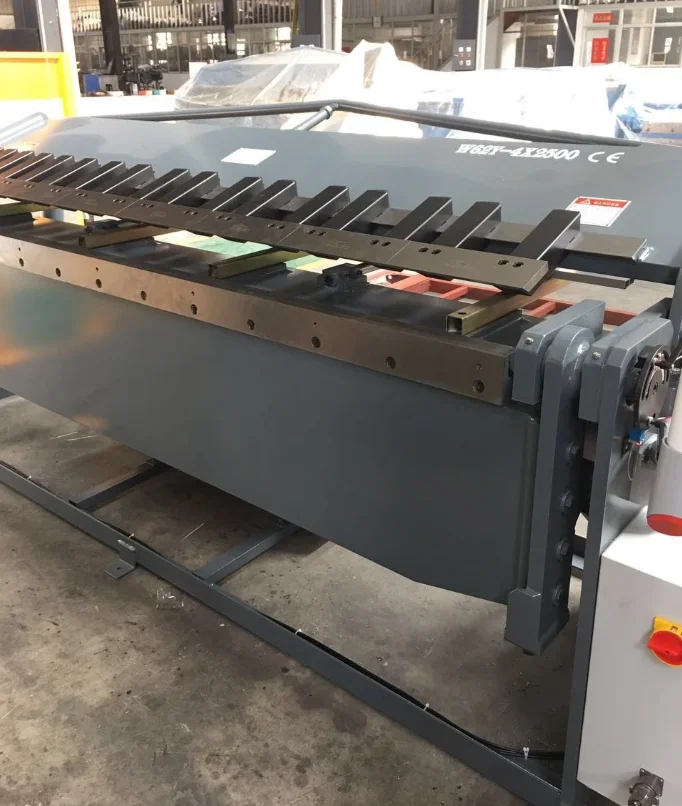

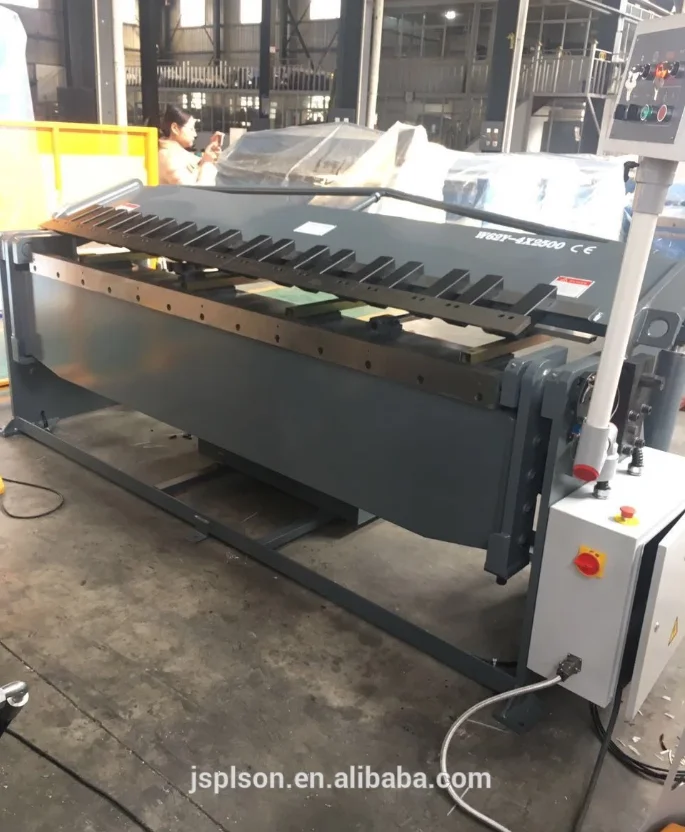

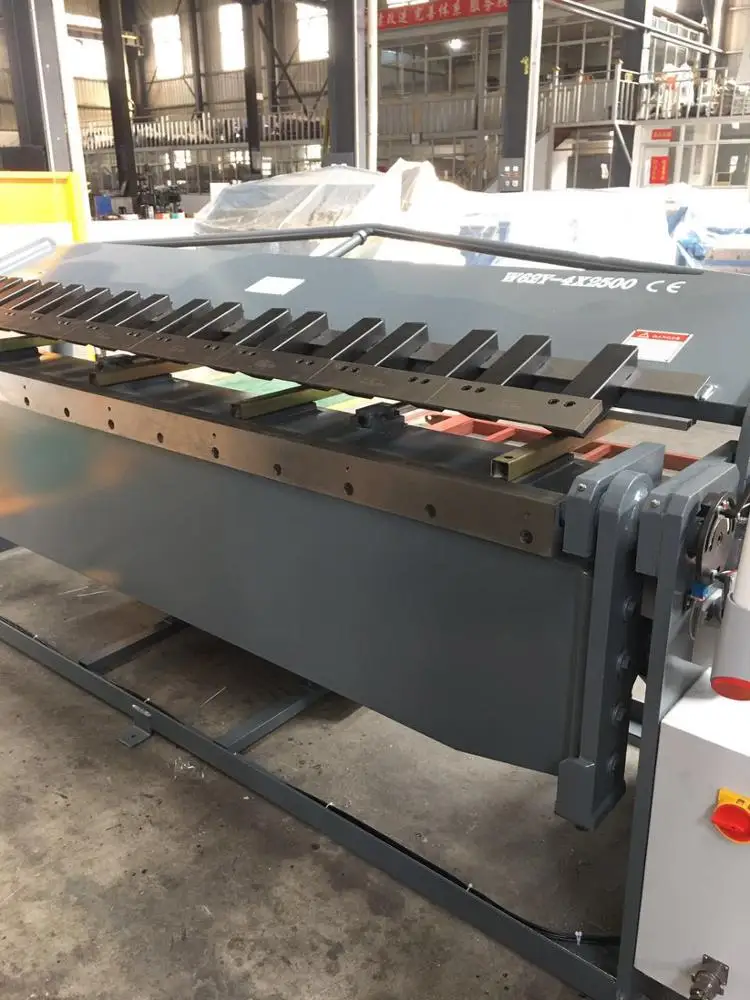

PLSON Factory Direct Folding Manual Machine Folding Machine Sheet Metal Folding Machine

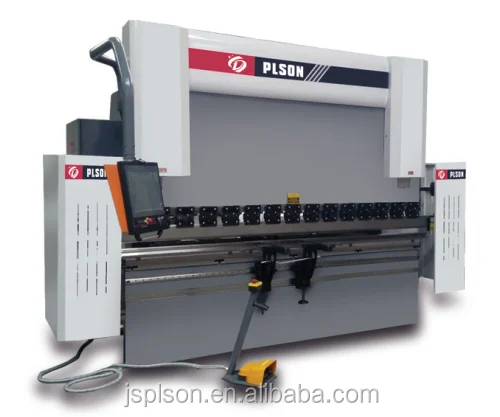

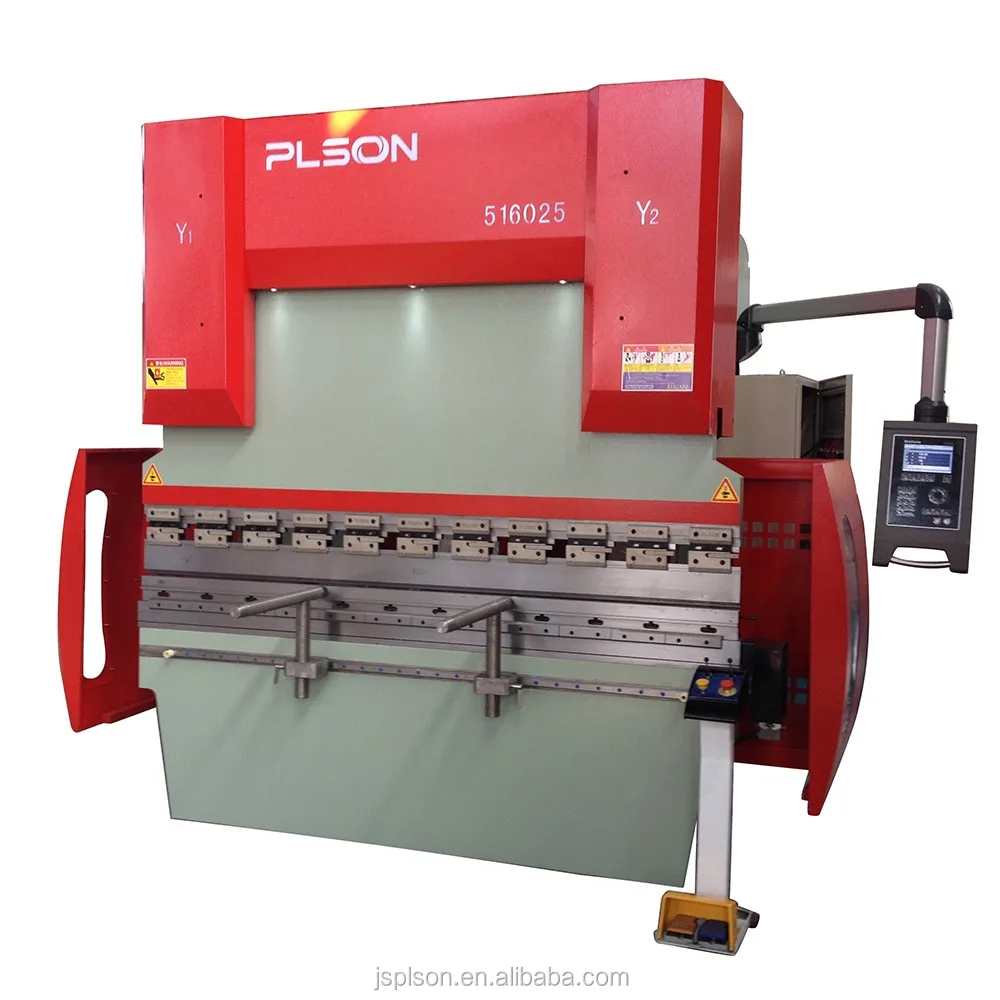

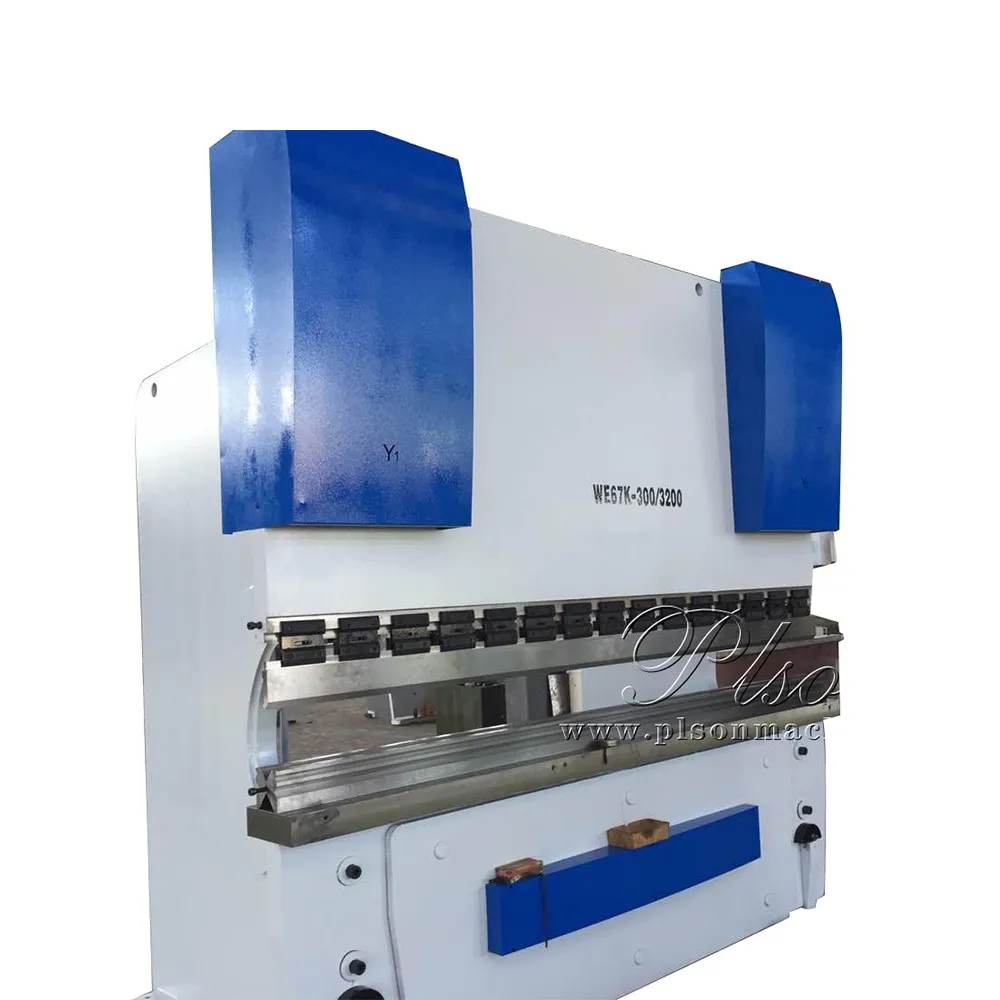

CNC Folding Machine Performance and Features:

1.All-steel welded structure and stress elimination by vibration with high machine strength and good rigidity

2.Hydraulic upper transmission, which is stable and reliable

3.Mechanical stopper and torsion axis synchronization with high accuracy

4.Electric adjustments for Back gauge distance and ram stroke, manual adjustment, digital display

5.The upper die is equipped with deflection compensation mechanism. Manual crowned bottom die holder is adopted for the machine above 250ton length 4000mm

Standard Equipment

1. 4- axis Delem DA52s programming mode CNC control

2. Full synchronisation of Y1 + Y2 axes with proportional hydraulic valve system and constant monitoring by CNC system to +/- 0.01mm accuracy

3. High precision linear scales for measurement of stroke depth mounted on side frames rather than top beam to prevent any distortion in accuracy as beam comes under load

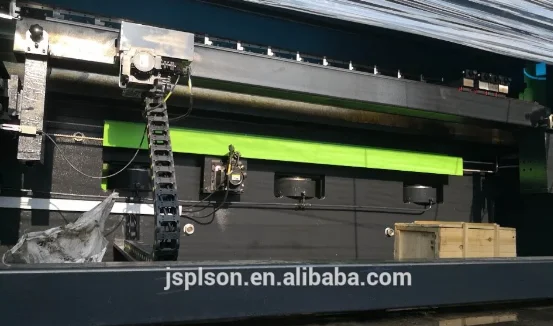

4. CNC-controlled X & R-axis as standard ballscrew back gauge with servo drive motors

5. Light guards

6. Two micrometric backgauge finger-stops with lateral adjustment

7. Steel mono-block construction

8. Polished chrome plated and ground cylinders

9. Long stroke and large open height dimensions

10. High approach and return speeds for production bending

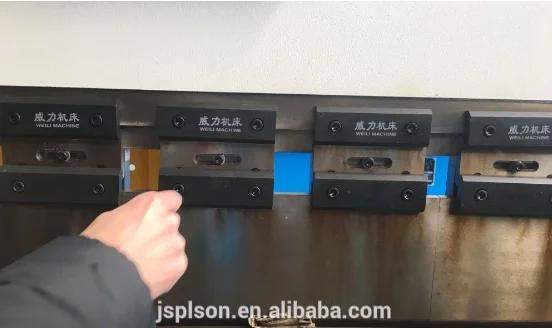

11. Euro style quick release top tool holders with intermediaries including wedges for crowning

12. 88 degree sectionalised goose neck top tool

13. 4 way sectionalised multi vee bottom tool

14. Double footswitch control and pendant type control arm

15. AKAS laser tooling guards

16. Electrically interlocked side guards

17. Electrically interlocked read access door

18. 2 sliding front support arms with linear guide rails for lateral adjustment and hand wheel for height adjustment, 1000mm long from centre of bottom tool vee

19. Side guard is standard meeting CE regulations

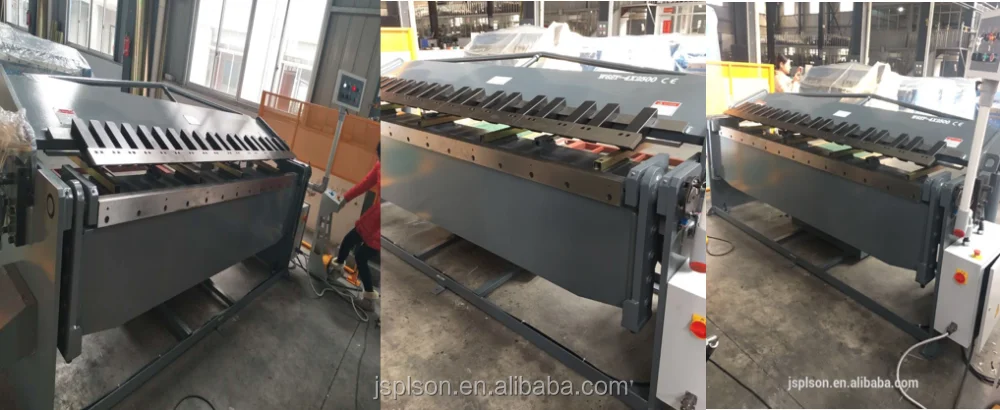

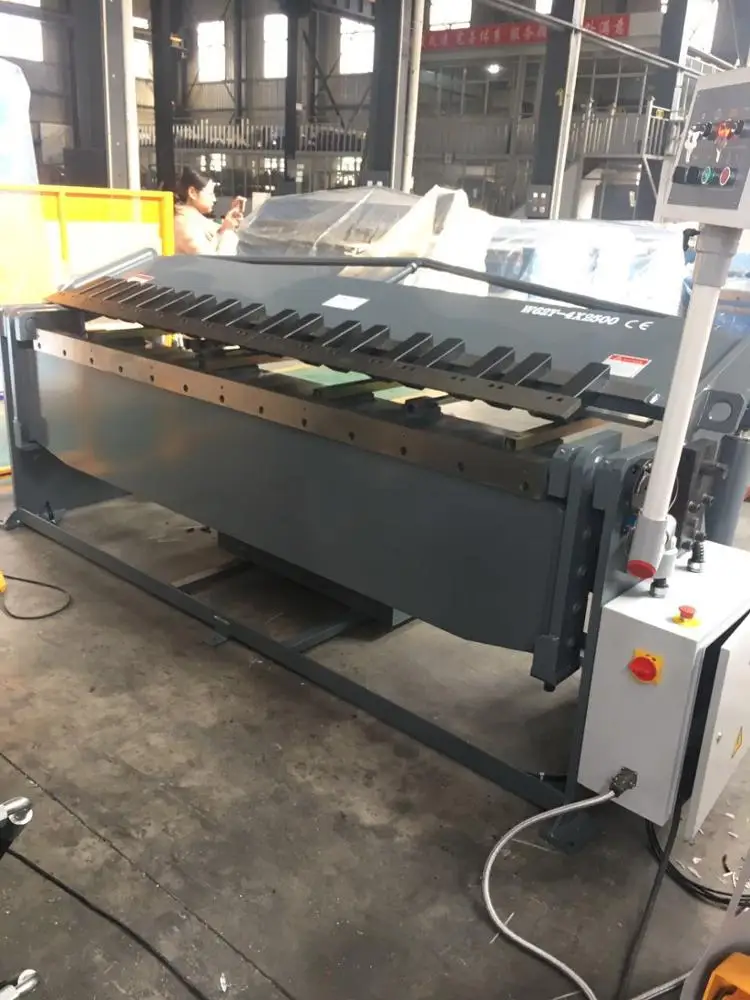

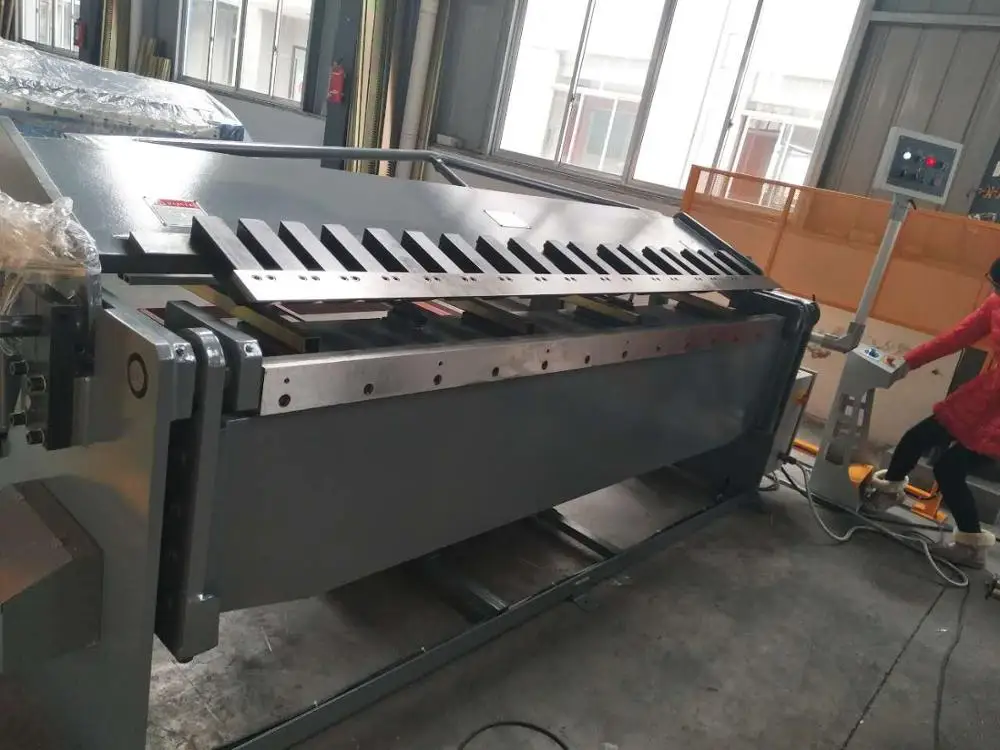

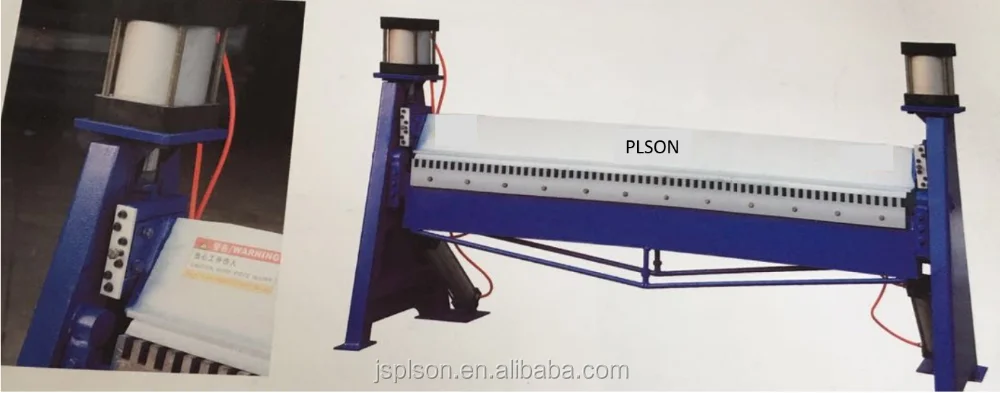

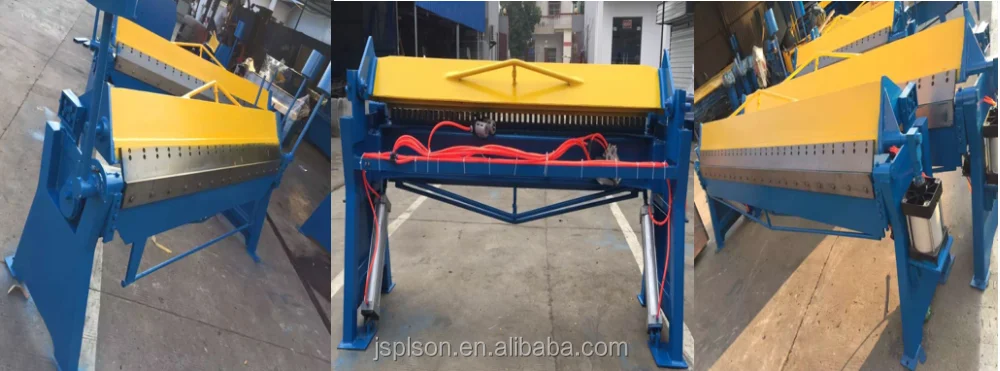

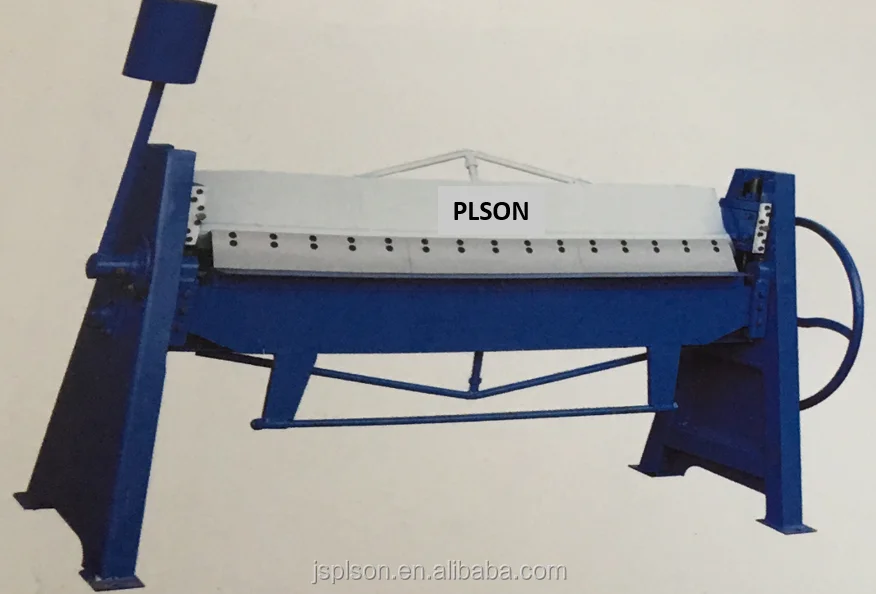

Common Manual Folding Machine

Manual folding machine is developed on the basis of years of production and use, it variety of different specifications, and advantages of the various types of models. Its biggest advantage is that it activities adjustable upper die or adjustable lower die can be adjusted according to the tool of the panel, and can be processed according to the different needs of different sizes, the sheet metal folded cuffs or the aggregate of the four sides of the bottom piece or plate pieces.

The hand folder sub lightweight,heavy-duty variety. Suitable for mobile site, ventilation ducts manufacturing, processing hardware disk pieces of white tin pieces. It is lightweight, energy-saving, high efficiency, fast output and a high rate of return, and widely welcomed by domestic and overseas. It is the ideal energy-saving equipment for businesses and households factory.

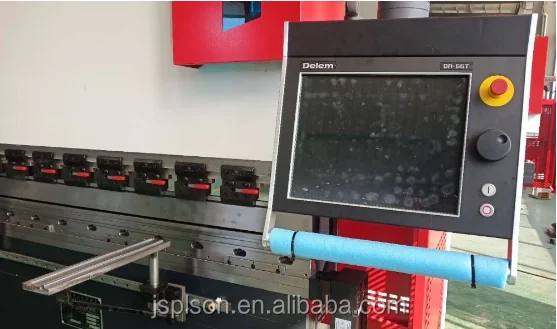

CNC System

CNC System from Dream Brand

Blade

The function of the die of the NC bending machine is: under the action of pressure, the bending forming of the preset workpiece can be completed smoothly according to the process programming.

Deflection compensation

By compensating, the deformation of the slider of the machine tool is offset, thus ensuring the accuracy of the machining joint surface and improving the accuracy of the workpiece.

Jiangsu PLSON Metalforming Equipment Co., Ltd.  is located in the Binhai Industrial Zone of Haian County, Jiangsu Province. The company mainly produces "Prison" brand series hydraulic press, press brake, shearing machine, rolling machine, etc. The products are manufactured according to German technical standards, and the performance of the machine has reached the advanced level in China.Some products have entered the international market, through Nantong, Southeast Asia, the Middle East, Africa and other areas of the product launch. Thanks for your business and welcome to visit our factory.
