plastic honeycomb board PP plastic hollow sheet making production machine
- Category: >>>
- Supplier: Qingdao Tongsan Plastic Machinery Co. Ltd.
Share on (62170255441):
Product Overview
Description
Product Description

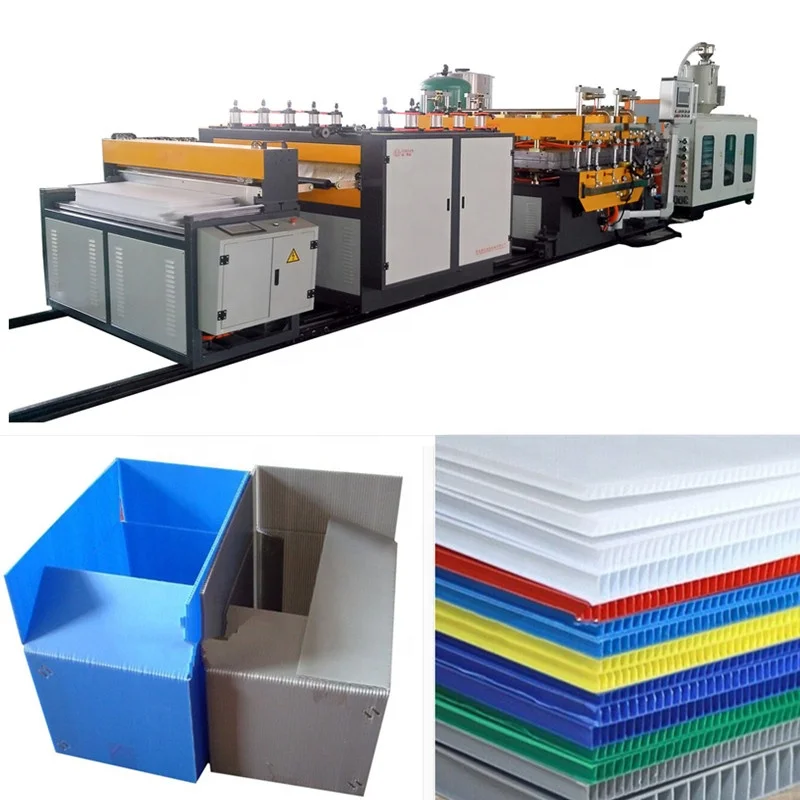

plastic honeycomb board PP / PE plastic hollow sheet making production machine

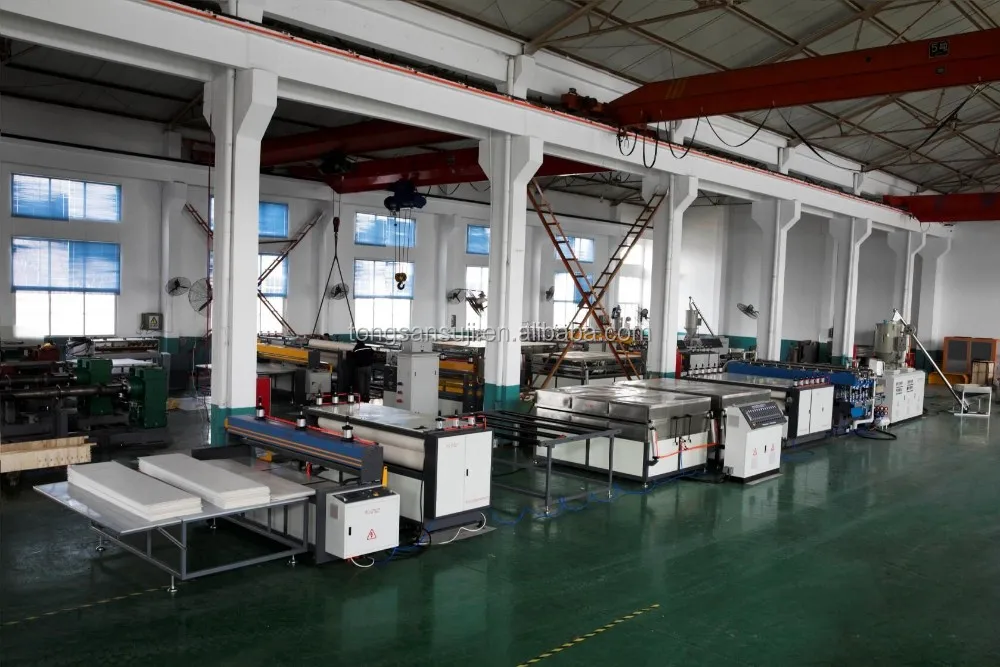

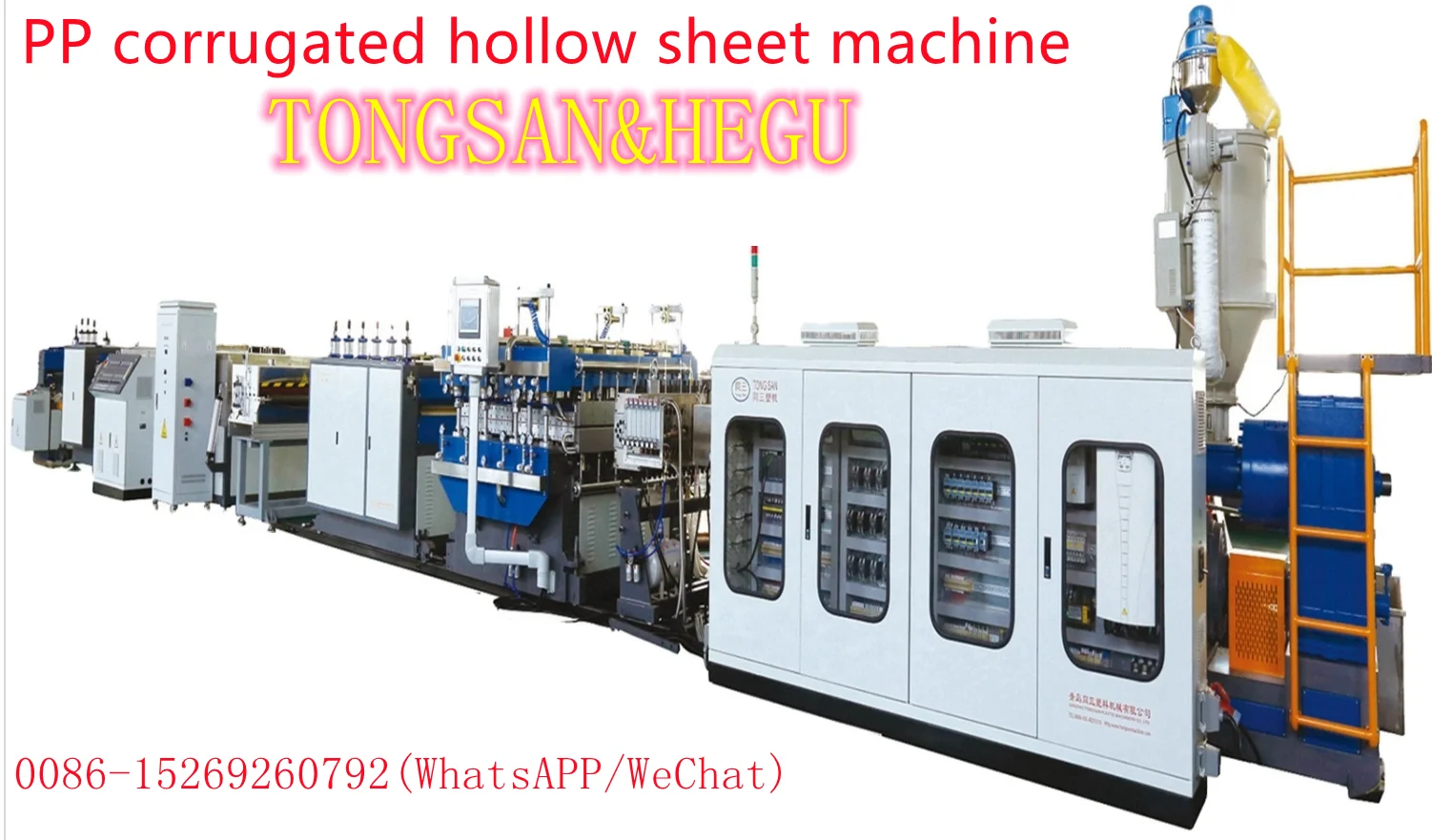

PP hollow sheet making machine
PP corrugated plastic board making production line
Plastic PP hollow sheet making machine
PP hollow plastic corrugated board production line can produce the sheet with the width of 1000-2800mm.We can provide the all auxilairy machine for plastic PP hollow sheet to make box.The PP hollow sheet/corrugated sheet is widely used in fileds of machinery,electron,appliance,food,advertising,interior decoration material,glass, agricultural product etc packing and transporting.
Model | Sheet width | Sheet thickness | Extruder Model | Motor Power |
TSGZB-1400 | 1250mm | 2-6,8-12mm | 100/36 | 55-75kw |
TSGZB-1800 | 1700mm | 2-6,8-12mm | 120/36 | 75-90kw |
TSGZB-2300 | 2150mm | 2-6,8-12mm | 120/36 | 90-110kw |
TSGZB-2600 | 2450mm | 2-6,8-12mm | 120/36 | 90-110kw |
TSGZB-3000 | 2800mm | 2-6,8-12mm | 150/36 | 132kw |
TSGZB-2600(F） | 2450mm | 2-6,8-12mm | 120/36&80/36 | 110+37kw |
Detailed Images

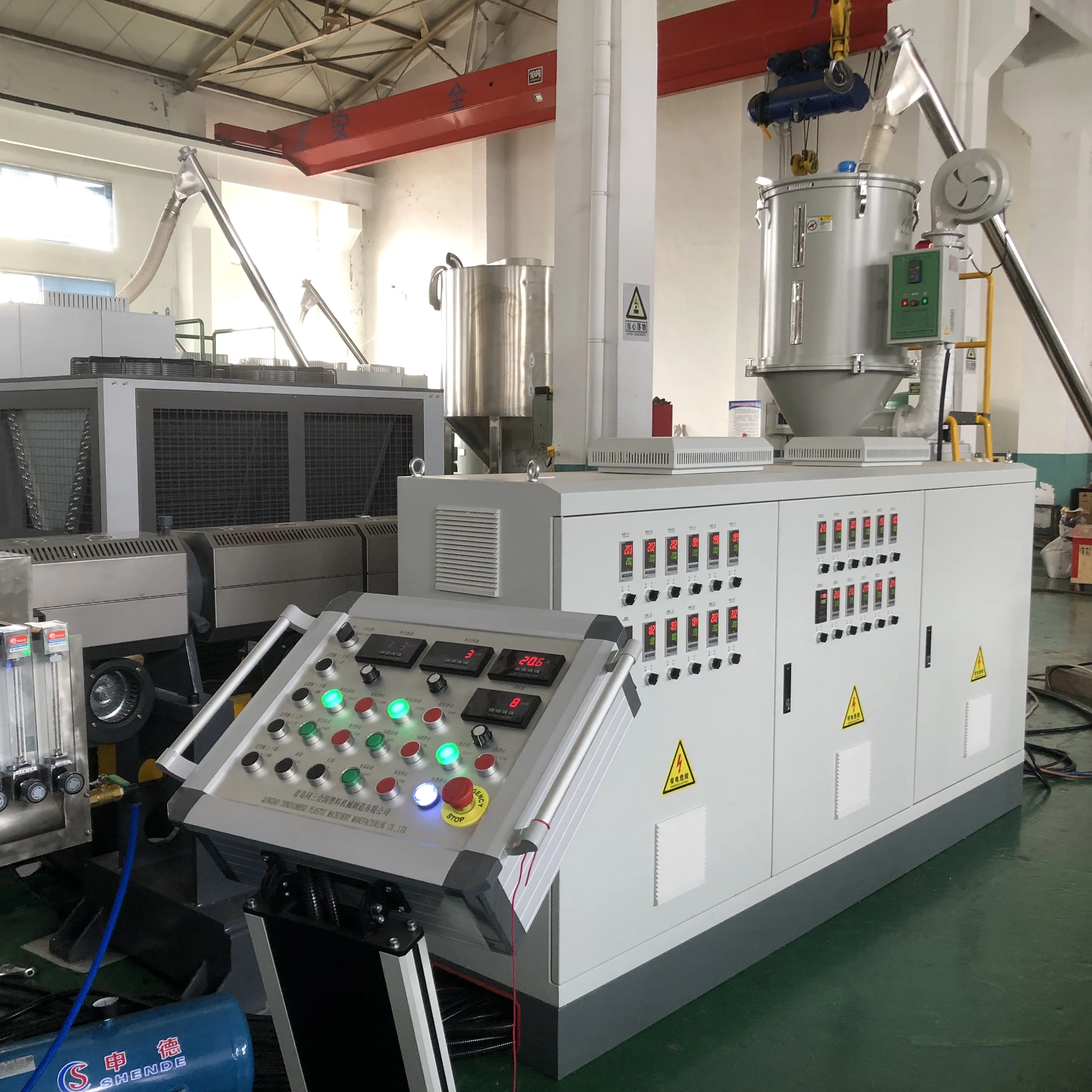

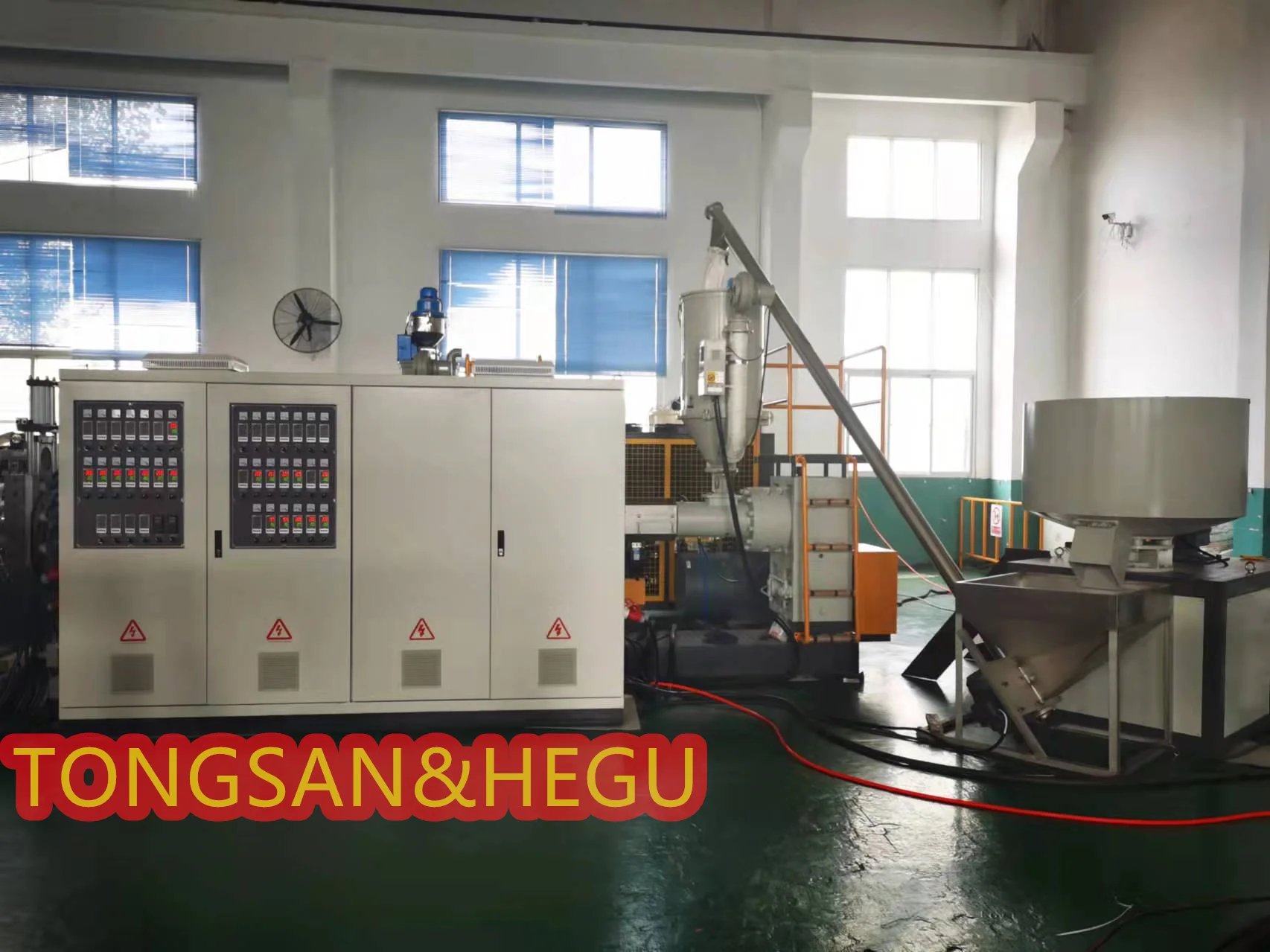

High-efficiency Extruder
High quality single screw extruder
Equipped with:
Automatic loader
Dryer
SIEMENS motor
ABB inverter

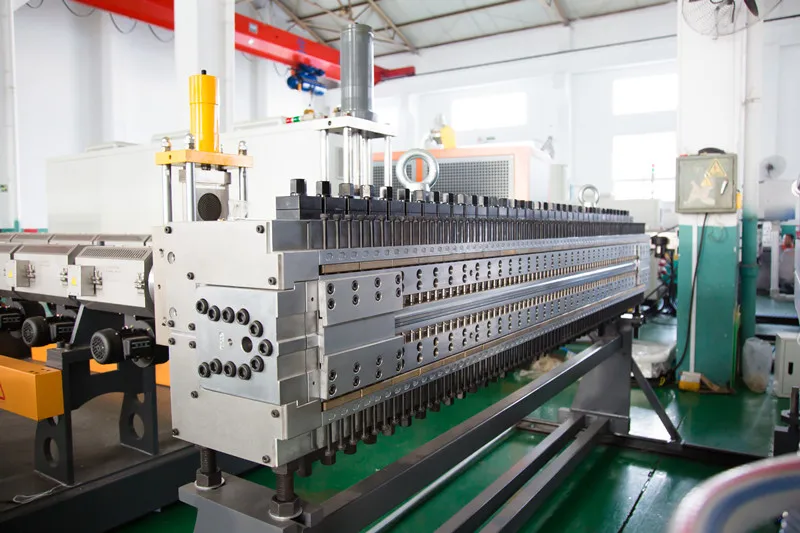

High quality mould
Material:high quality alloy steel
Equipped with :
Screen changer
Melting pump
Accuracy control device
Size can be customized by requirement

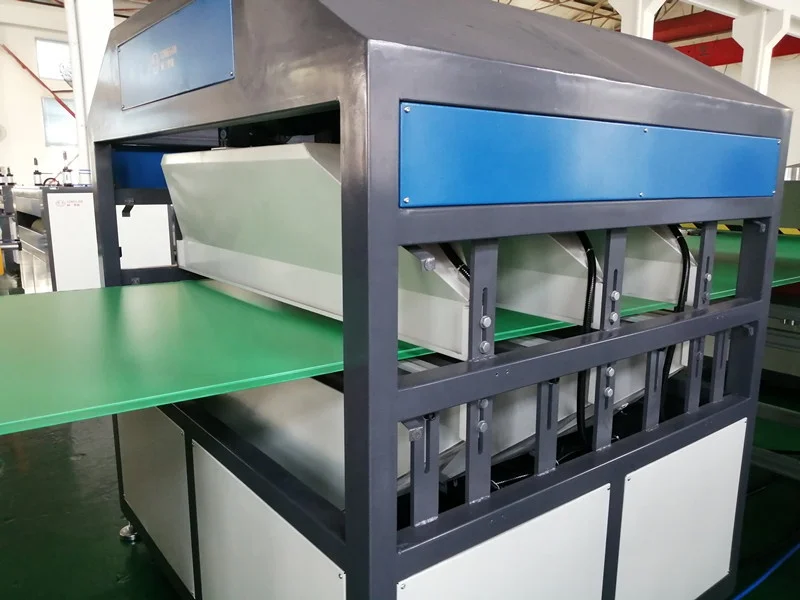

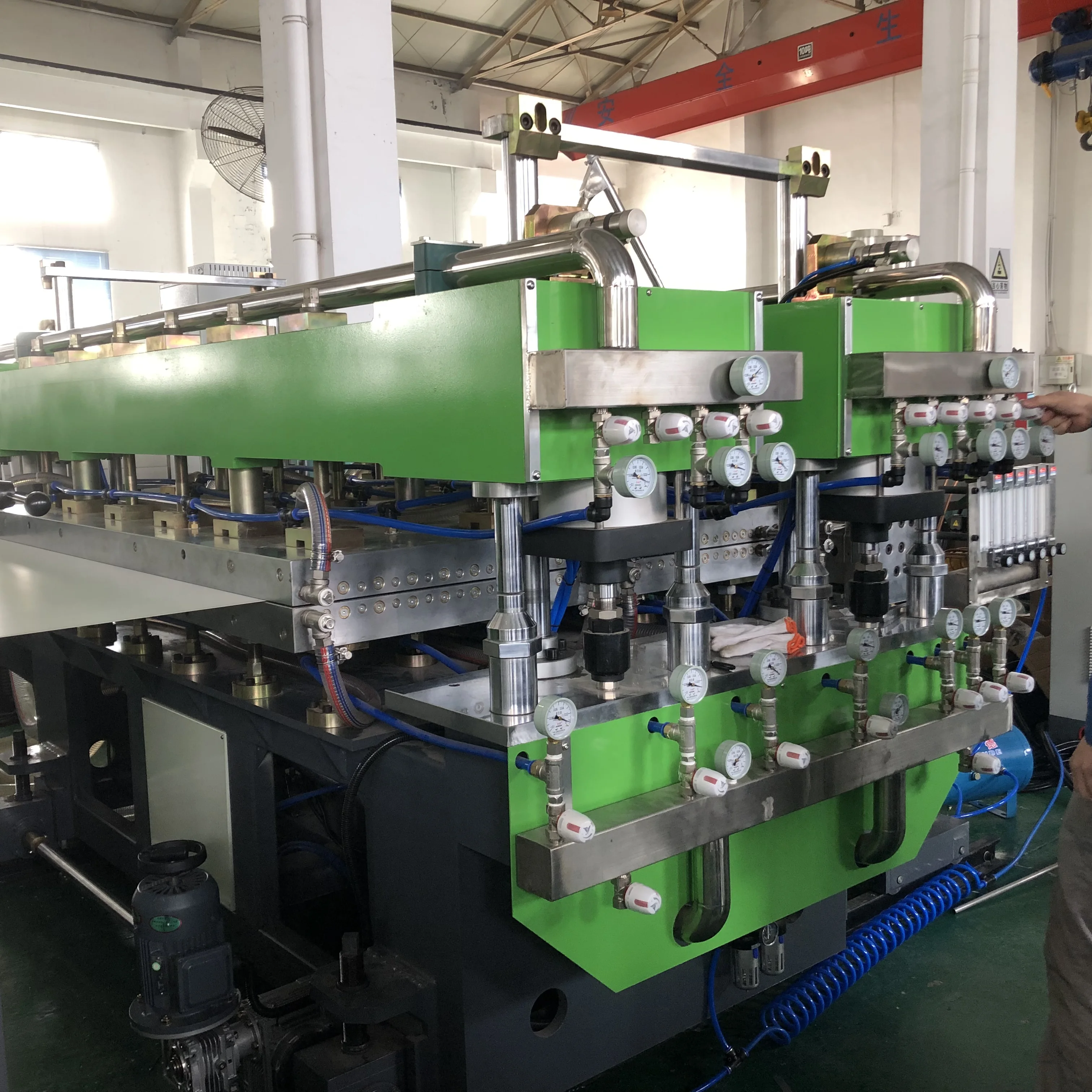

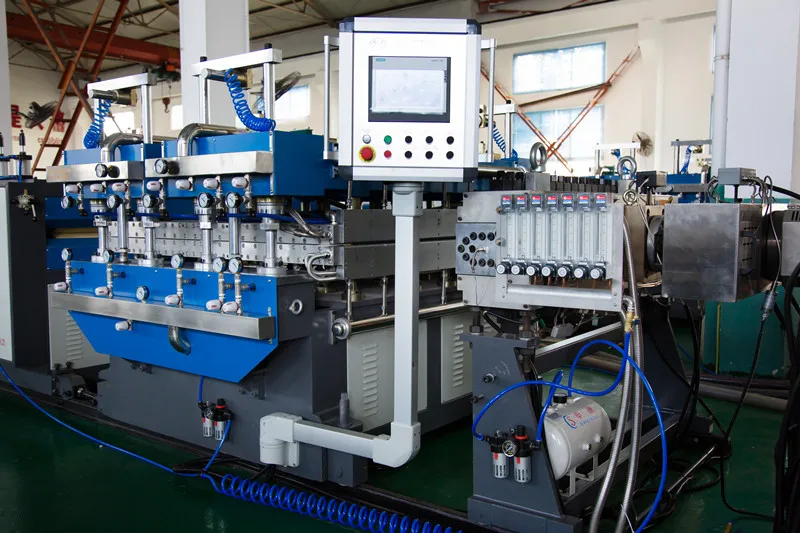

Calibrating table/Sizing platform
Pneumatic lift control
Vaccum system
Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type.
Haul-off device
There are 2 sets of haul-off device in the line.
Adopt the Nitrile rubber roller.

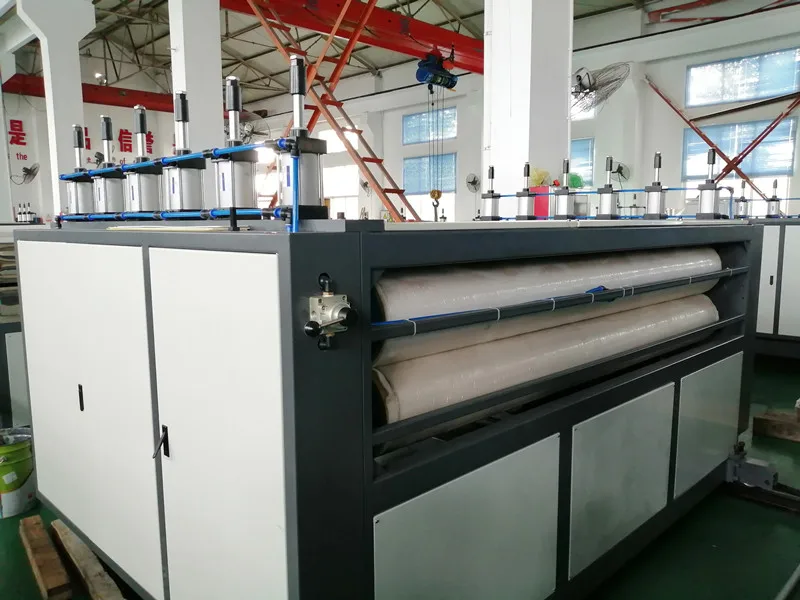

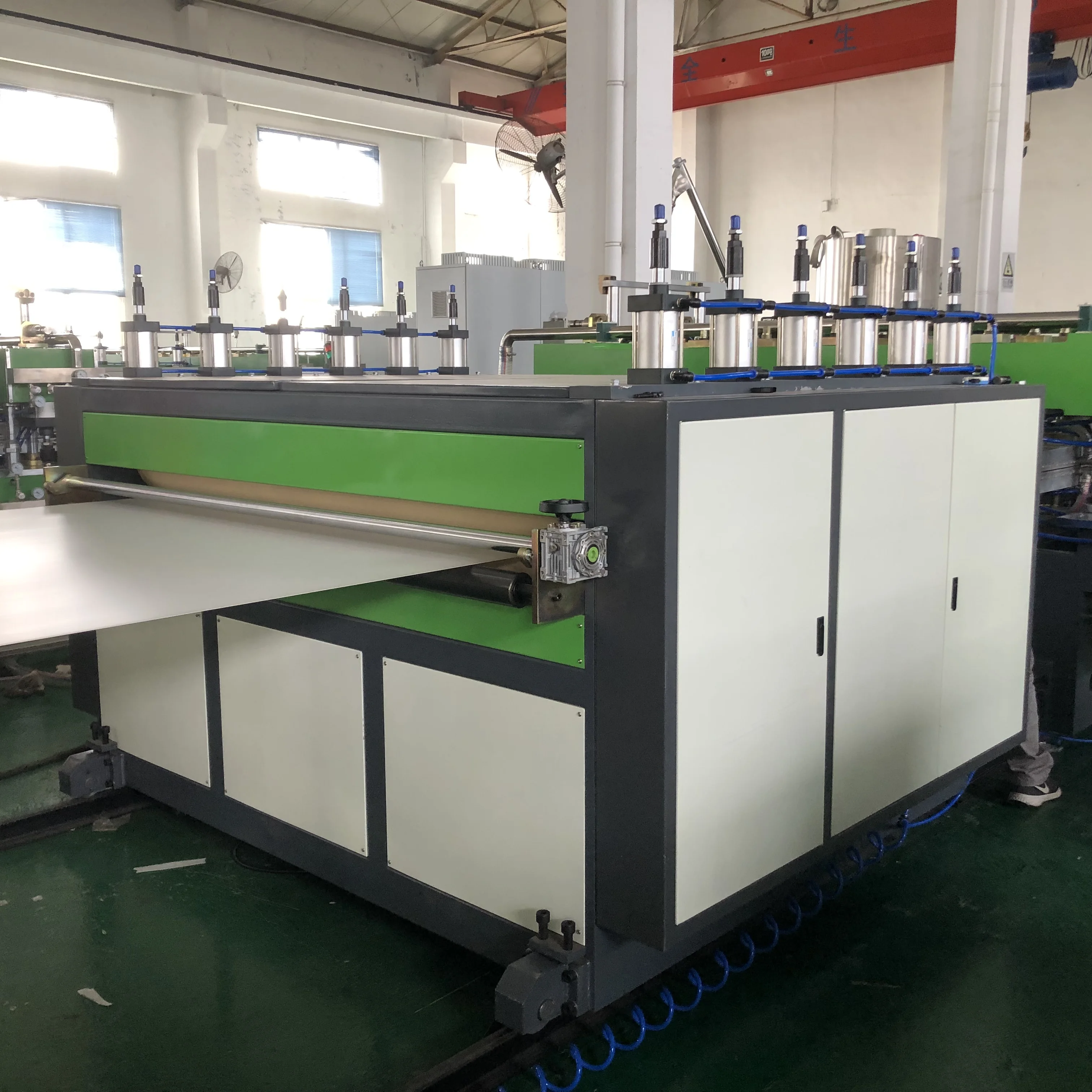

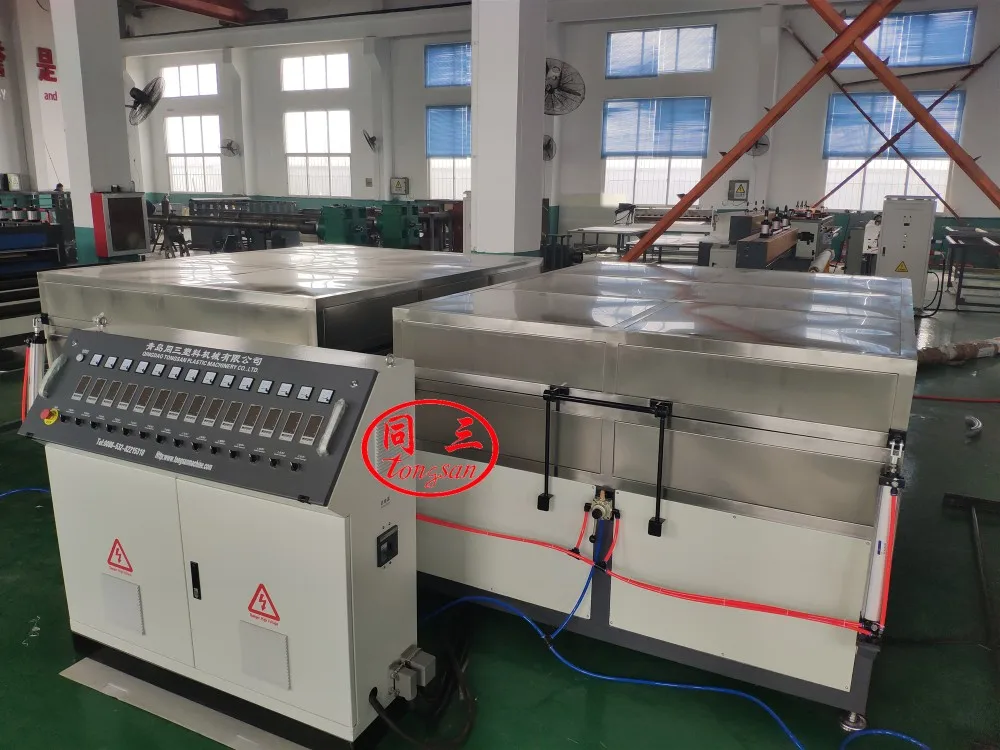

Heating Oven
Material:304 sainless steel
separately temperature control system
Cooling system
Place in the middle of between oven and second haul-off device.
Make the sheet more flat and harder
.

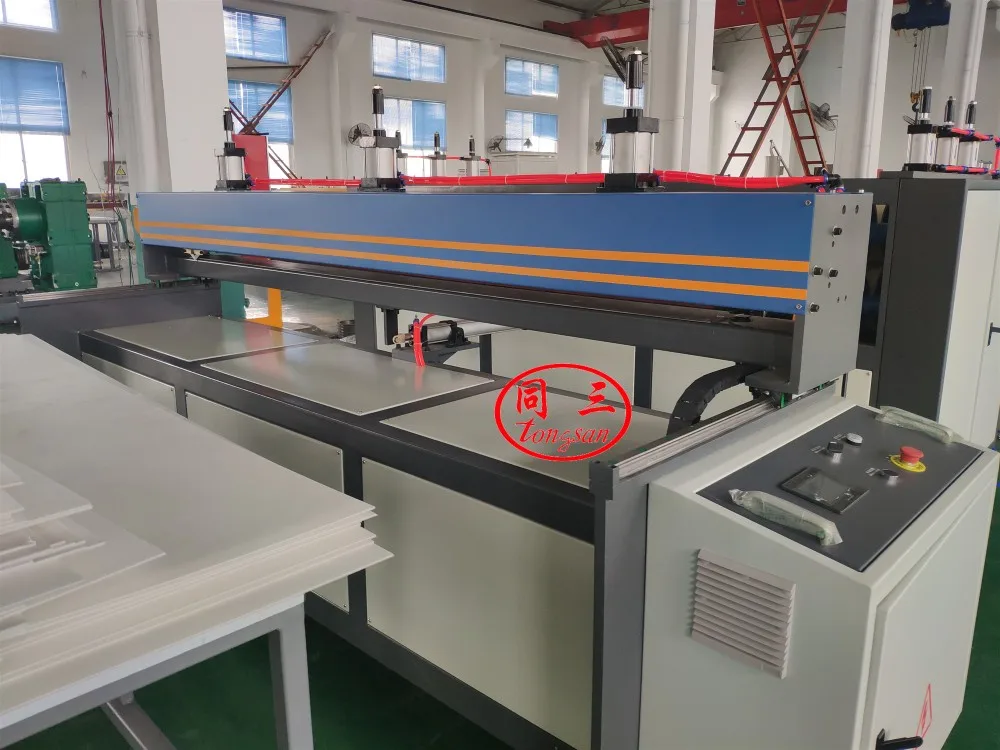

Automatic cutter
For side cutting and length cutting
The waste scrap can be recycled.
PLC&HMI control

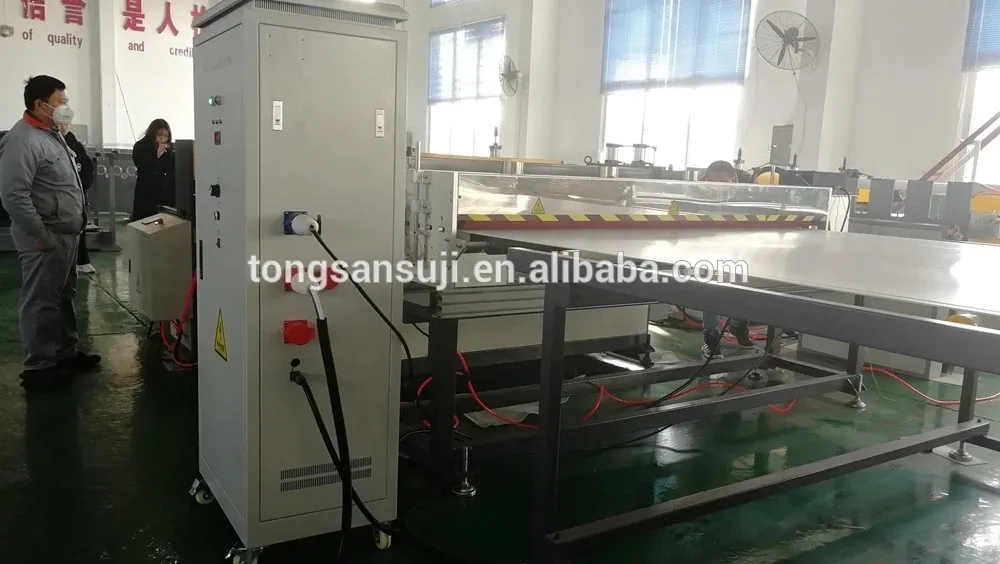

Corona treatment device
Remove the stress of plate and further improve planeness of the plate.
(Option part)

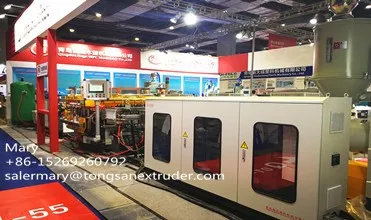

Machine in ChinaPlas
We run PP hollow sheet making machine in ChinaPlas every year.
The machine keep continuous running 8 hours in exhibition.

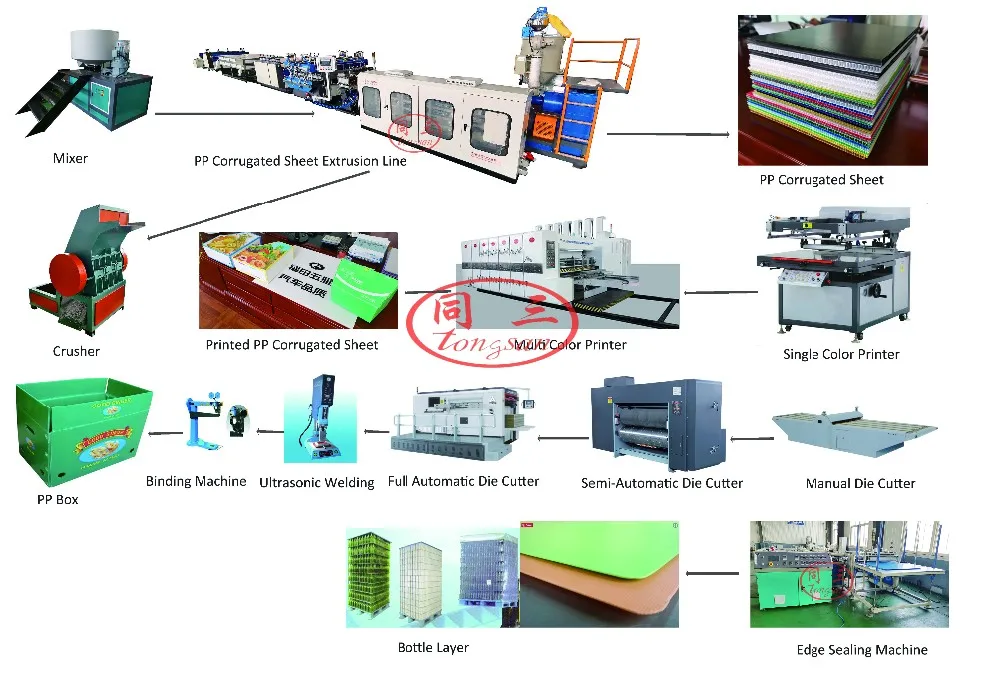

KEY POINT
We can provide the turn-key project.
From PP hollow sheet making to packaging box(pass box) making.
.

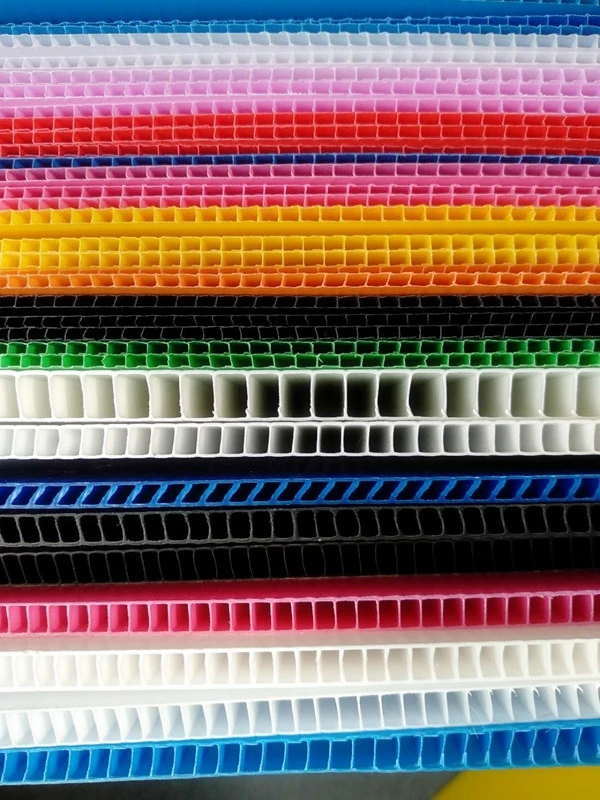

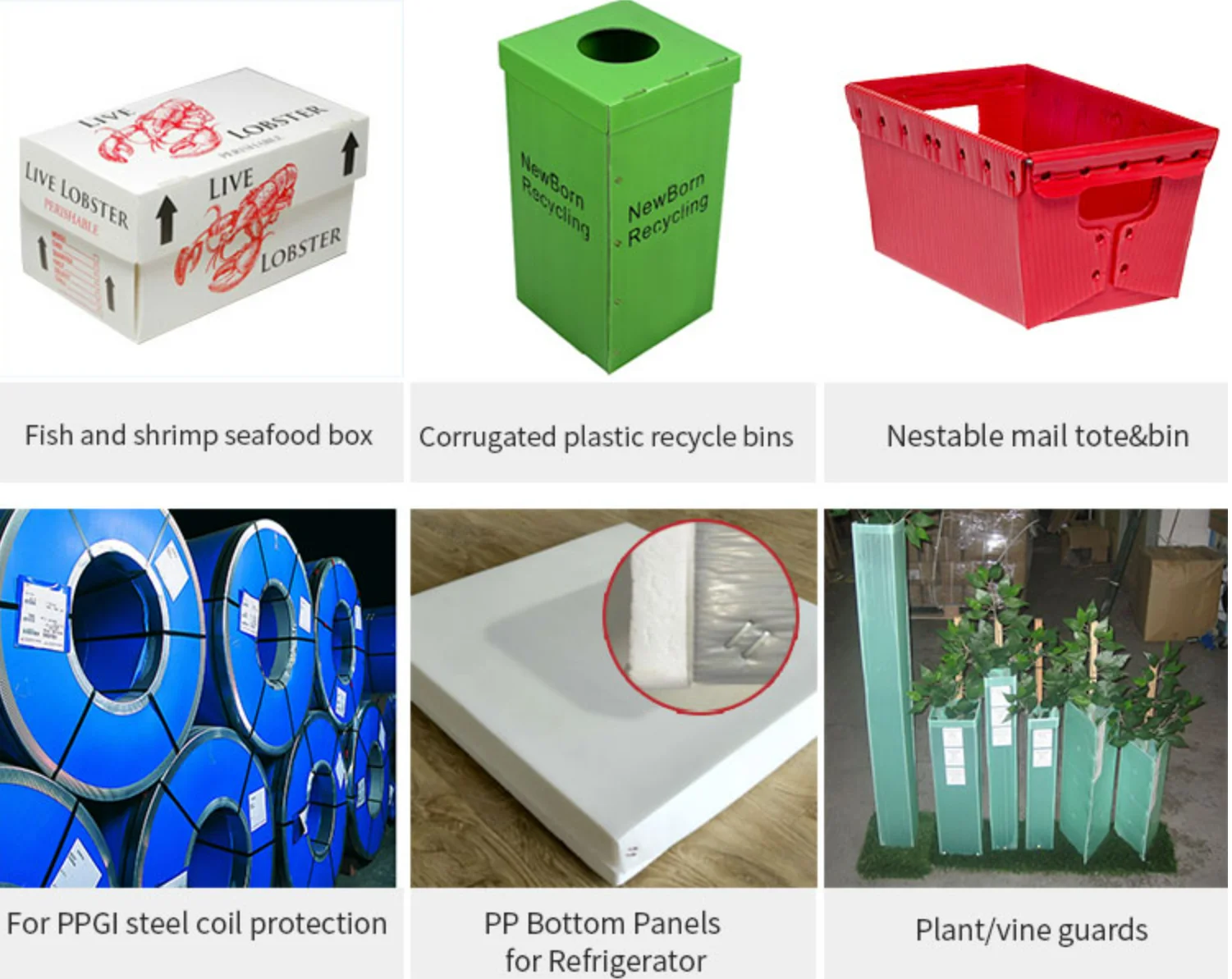

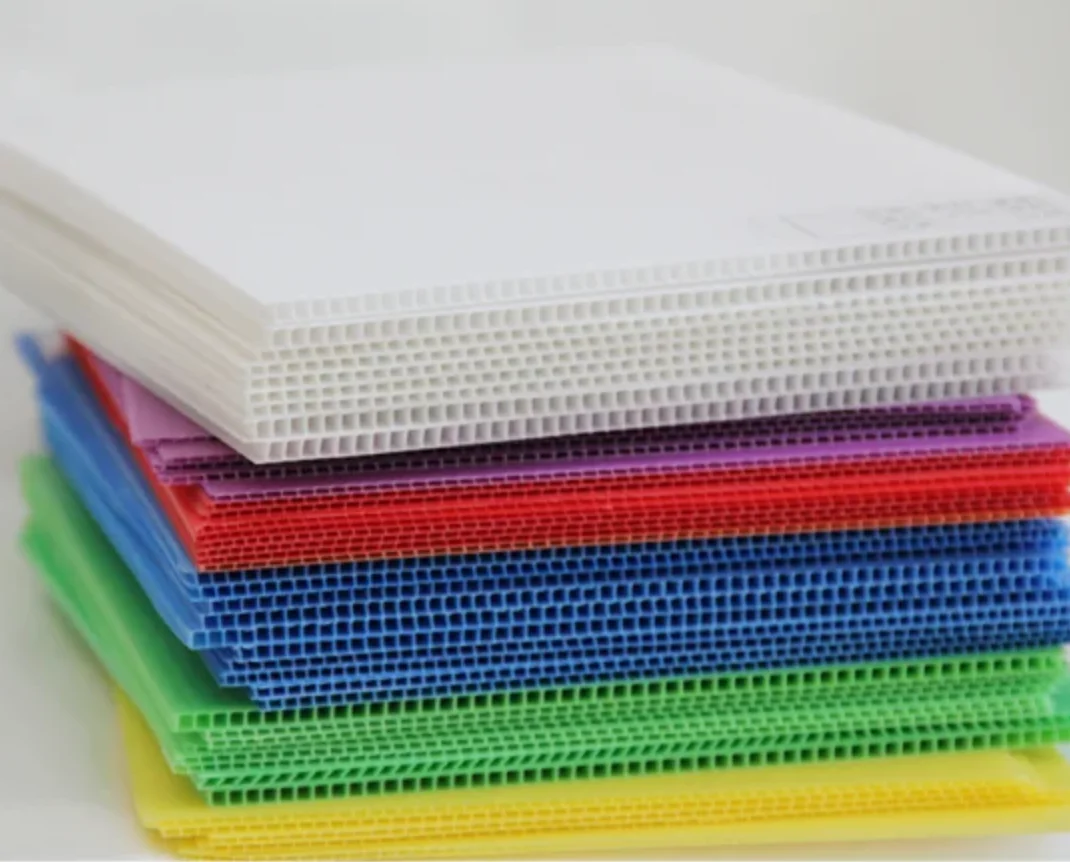

1, Application of PP Plastic Hollow Corrugated sheet/Plate in Fruit,Vegetable and Food Packaging
PP plastic hollow packing box has excellent moisture resistance, water resistance, low temperature resistance, light and high strength, non-toxic, environmentally friendly, recyclable and reusable features, etc.Products: Apple Store Packing Box, Ginger Packing Box, Asparagus Packing Box, Grape Packing Box, Milk Packing Box, Variety Packing Box, Dairy Packing Box, etc.

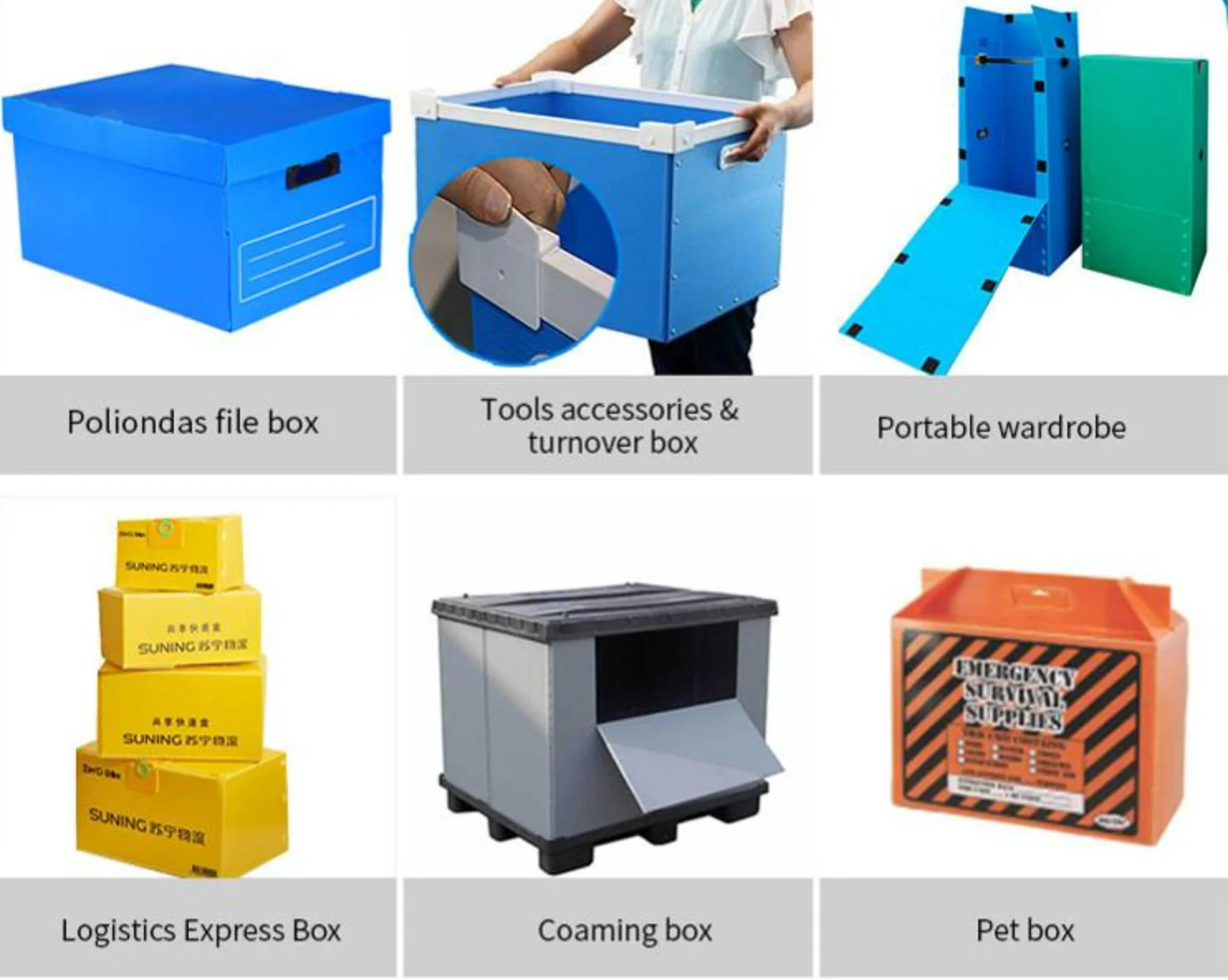

2, Application of PP Plastic Hollow Corrugated sheet/Plate in Industrial Packaging
PP plastic hollow plate is widely used in the field of industrial packaging, because of its light and high strength, good buffer performance, good weather resistance, environmental recyclable reusable.PP plastic hollow plate industrial logistics turnover box product line is very rich, there are double-layer fixed turnover box, single-layer fixed turnover box, single-layer folding turnover box, matching knife card pad, storage cage enclosure, etc. According to the function can be divided into electronic turnover box, auto parts turnover box, logistics turnover box and so on; can meet the logistics turnover needs of all kinds of enterprises.
3, Application of PP Plastic Hollow Corrugated sheet/Plate in Packaging of Glass Bottles
With the continuous improvement of the quality requirements of glass bottles, the traditional packaging of sacks cannot meet the needs of production and market. Tray packaging can overcome the drawbacks of sack packaging, can reduce the packaging and transportation of glass bottles broken, but also to avoid the sack after a long time on the bottle ash and even adhered to the bag of decay.PP plastic hollow plate according to the customer's requirements, sealing edge, sealing angle to produce a variety of high strength and size of glass tray packaging plate.
4, Application of PP Plastic Hollow Corrugated sheet/Plate in Advertising Decoration and Advertising Printing
PP Plastic is dedicated to improving the quality of hollow plate, research and development of plastic hollow plate deep
processing. develop different processes according to different products. Made of indoor and outdoor advertising exhibition display board, publicity posters, dairy drinks and wine display box and other products, this product has waterproof and moisture-proof, anti-aging, exquisite printing, long use time, beautiful and generous, overall vision and other characteristics.
5, Application of PP Plastic Hollow Corrugated sheet/Plate in Refrigerator and Washing Machine
PP plastic hollow plate is a new type of environmental protection products, no pollution, no harm, meet the requirements of green environmental protection. The product has large internal quality, flat surface, high breaking strength, flame retardant, good moisture-proof performance, zero surface water and steam penetration, heat insulation, good energy saving effect. Especially the refrigerator with external condenser has excellent adiabatic effect. The company can make all kinds of refrigerator, freezer, washing machine back and base according to customer's request
PP plastic hollow packing box has excellent moisture resistance, water resistance, low temperature resistance, light and high strength, non-toxic, environmentally friendly, recyclable and reusable features, etc.Products: Apple Store Packing Box, Ginger Packing Box, Asparagus Packing Box, Grape Packing Box, Milk Packing Box, Variety Packing Box, Dairy Packing Box, etc.
2, Application of PP Plastic Hollow Corrugated sheet/Plate in Industrial Packaging
PP plastic hollow plate is widely used in the field of industrial packaging, because of its light and high strength, good buffer performance, good weather resistance, environmental recyclable reusable.PP plastic hollow plate industrial logistics turnover box product line is very rich, there are double-layer fixed turnover box, single-layer fixed turnover box, single-layer folding turnover box, matching knife card pad, storage cage enclosure, etc. According to the function can be divided into electronic turnover box, auto parts turnover box, logistics turnover box and so on; can meet the logistics turnover needs of all kinds of enterprises.
3, Application of PP Plastic Hollow Corrugated sheet/Plate in Packaging of Glass Bottles
With the continuous improvement of the quality requirements of glass bottles, the traditional packaging of sacks cannot meet the needs of production and market. Tray packaging can overcome the drawbacks of sack packaging, can reduce the packaging and transportation of glass bottles broken, but also to avoid the sack after a long time on the bottle ash and even adhered to the bag of decay.PP plastic hollow plate according to the customer's requirements, sealing edge, sealing angle to produce a variety of high strength and size of glass tray packaging plate.
4, Application of PP Plastic Hollow Corrugated sheet/Plate in Advertising Decoration and Advertising Printing
PP Plastic is dedicated to improving the quality of hollow plate, research and development of plastic hollow plate deep
processing. develop different processes according to different products. Made of indoor and outdoor advertising exhibition display board, publicity posters, dairy drinks and wine display box and other products, this product has waterproof and moisture-proof, anti-aging, exquisite printing, long use time, beautiful and generous, overall vision and other characteristics.
5, Application of PP Plastic Hollow Corrugated sheet/Plate in Refrigerator and Washing Machine
PP plastic hollow plate is a new type of environmental protection products, no pollution, no harm, meet the requirements of green environmental protection. The product has large internal quality, flat surface, high breaking strength, flame retardant, good moisture-proof performance, zero surface water and steam penetration, heat insulation, good energy saving effect. Especially the refrigerator with external condenser has excellent adiabatic effect. The company can make all kinds of refrigerator, freezer, washing machine back and base according to customer's request
Our Service: One year warranty, Lifelong Free Follow-up Services
1, we will provide all the machines for the complete production according to customer's requirements.
2, we will provide complete service for factory layout and other informations to help customer to build the factory.
3, we can also provide the raw material to the customer if you need.
4, we will provide good service for machine installation and trainning, until the customers can run the machines and make stably production.
5, Except one year quality guarantee,we will provide after-sell service for all the life.
6, for long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. let us do win-win business together.

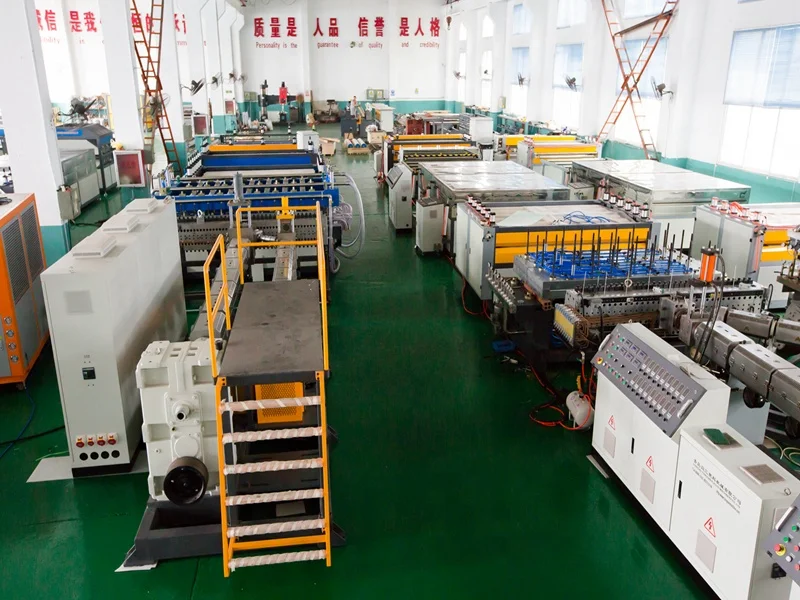

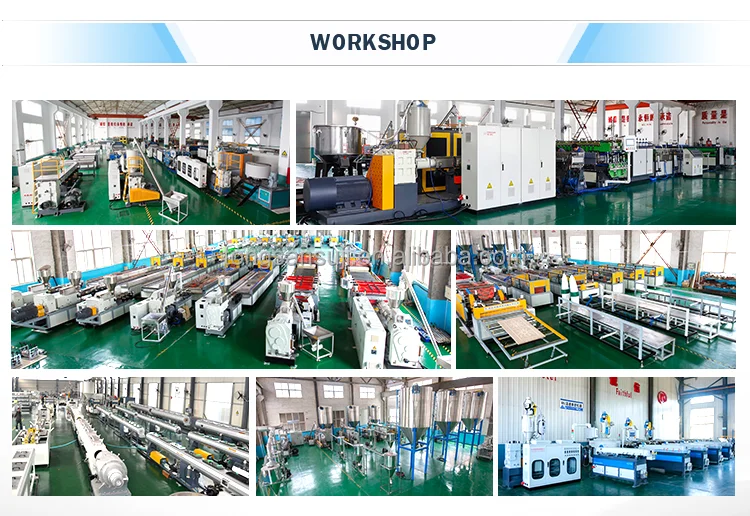

Now we have ready made machine in the factory,we sincerely invite you visit our factory.
We can run the machine for your checking.
