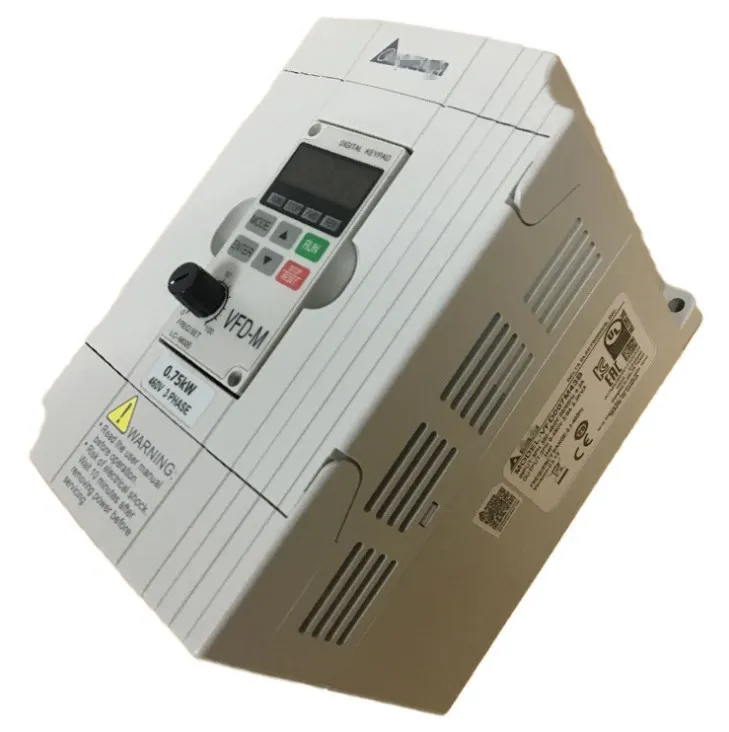

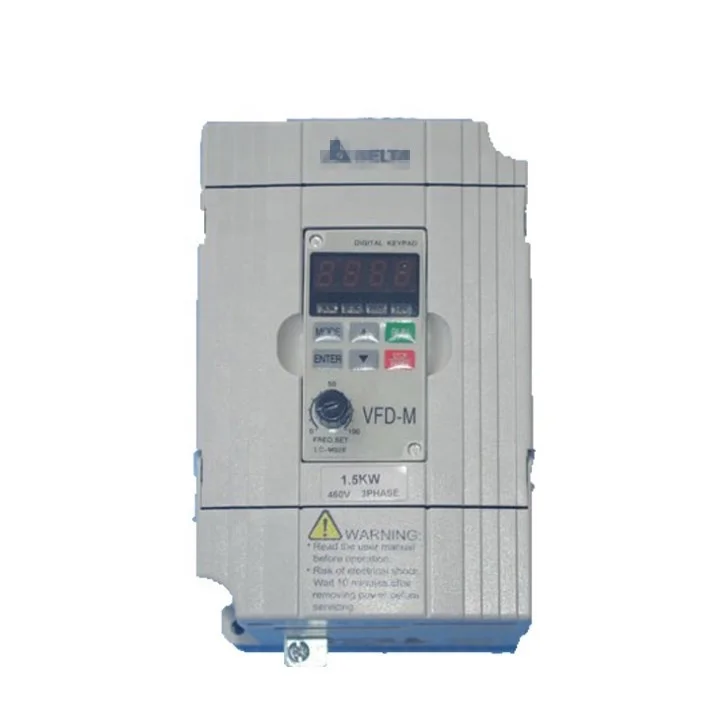

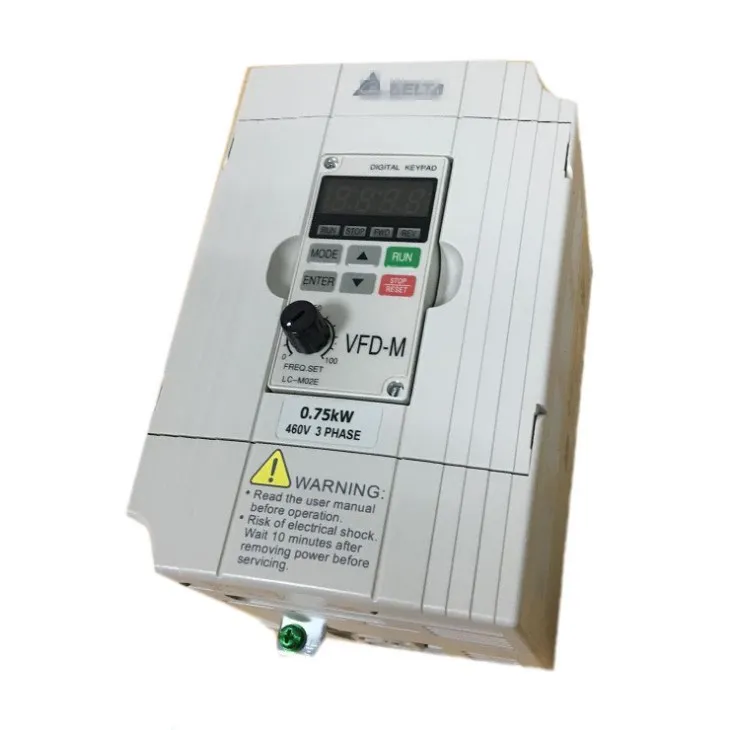

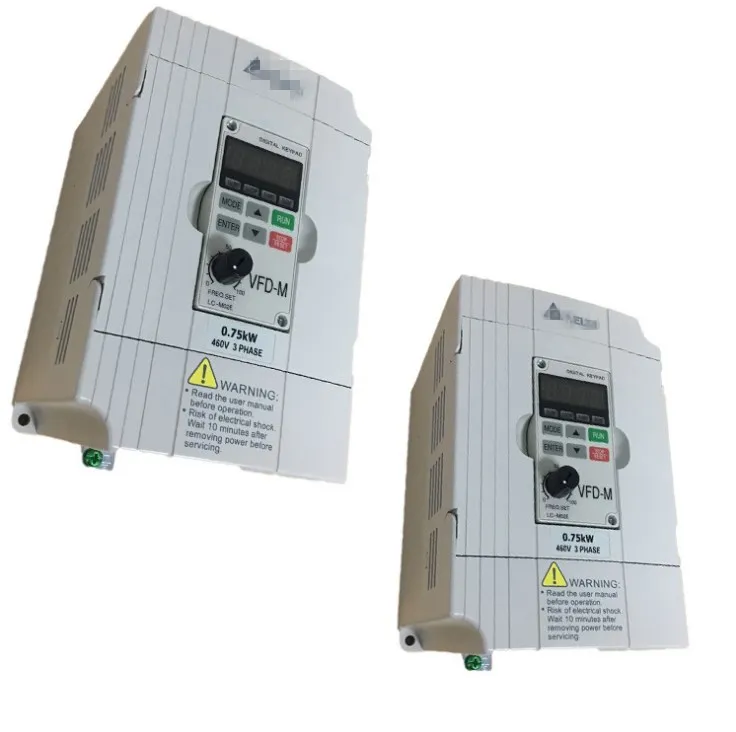

Discount price VFD M series VFD015M21A 1.5kw 2hp inverter 220v 380v three phase converter

VFD-M Series Universal vector type

A variety of AC voltage specifications of the model selection,in addition to providing a wide range of I / O functions,and according to the external load torque,to provide the appropriate current and voltage vector values to meet the industry's most practical needs.

1.Output frequency 0-400Hz.

2.Adjustable V / F Curve and Vector Control.

3.Main frequency / auxiliary frequency,1ST / 2ND frequency source selection.

4.16 segments can be preset speed and 15 segments can be programmed to run.

5.Optional PG card,do speed closed-loop control.

6.Built-in PID feedback control.

7.Automatic torque and slip compensation.

8.Radiator temperature detection function.

9.Built-in Modbus (RS-485 baud rate up to 38400bps).

10.Support field communication module: DN-02, LN-01, PD-01.

Application:Building air conditioning,wood carving machine,machine tools,waste water treatment system,XY axis of crane,washing machine,ironing machine,air compressor,cargo elevator,escalator,circular loom,flat knitting machine,noodle machine,four woodworking planer, Textile machinery.

VFD M Series 115V Single Phase

VFD002M11A     0.2kW  (0.25HP)  115V  1phase

VFD004M11A     0.4kW  (0.5HP)   115V  1phase

VFD007M11A     0.75kW (1HP)     115V  1phase

VFD M Series 230V Single Phase

VFD004M21A     0.4kW  (0.5HP)  230V    1 phase

VFD004M21B     0.4kW  (0.5HP)   230V   1phase

VFD007M21A     0.75kW  ( 1 HP )  230V   1 phase

VFD007M21B     0.75kW (1HP)     230V   1phase

VFD015M21A     1.5kW  ( 2 HP )   230V   1phase

VFD015M21B     1.50kW (2HP)     230V   1phase

VFD022M21A     2.20kW (3HP)     230V   1phase

VFD M Series 230V Three Phase

VFD004M23A     0.4kW  (0.5HP)  230V   3 phase

VFD007M23A     0.7kW  ( 1 HP )  230V   3 phase

VFD015M23A     1.5kW  ( 2 HP )  230V   3phase

VFD022M23B     2.20kW (3HP)     230V  3phase

VFD037M23A     3.70kW (5HP)     230V  3phase

VFD055M23A     5.50kW (7.5HP)    230V  3phase

VFD M Series 460V Three Phase

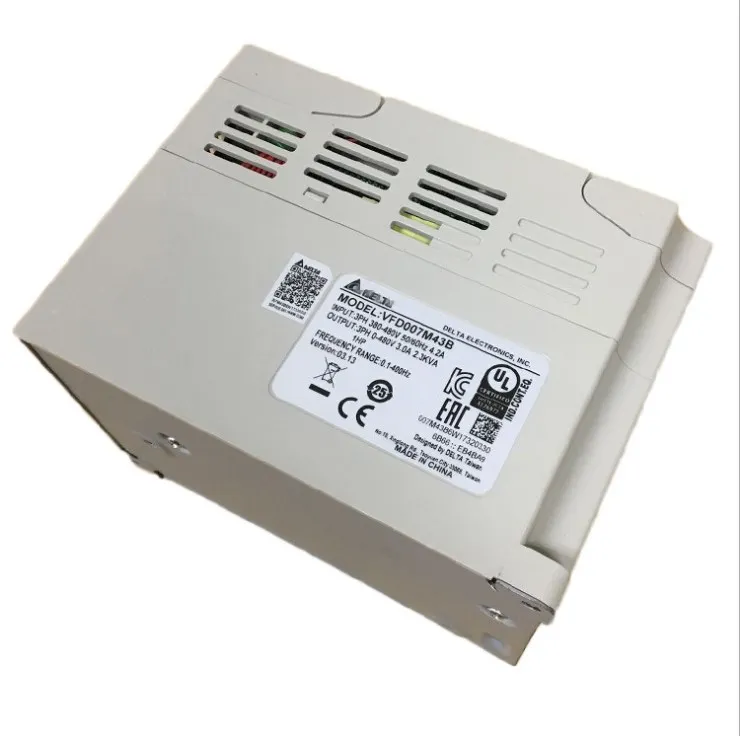

VFD007M43B     0.75kW (1HP)     460V  3phase

VFD015M43B     1.50kW (2HP)      460V  3phase

VFD022M43B     2.20kW (3HP)      460V  3phase

VFD037M43A     3.70kW (5HP)      460V  3phase

VFD055M43A     5.50kW (7.5HP)    460V  3phase

VFD075M43A     7.50kW (10HP)     460V  3phase

VFD M Series 575V Three Phase

VFD007M53A     0.75kW (1HP)     575V  3phase

VFD015M53A     1.50kW (2HP)     575V  3phase

VFD022M53A    2.20kW (3HP)      575V  3phase

VFD037M53A    3.70kW (5HP)      575V  3phase

VFD055M53A    5.50kW (7.5HP)   575 V  3phase

VFD075M53A    7.50kW (10HP)    575V  3phase

Please click the pictures to get the detailed of the other brands of the inverters.

a. Reply your inquire in 24 working hour.

b. Technical and professional guidance.

c. Best quality and best price.

We maintain excellent products and strive for 100% customer satisfaction. A good feedback is very important, we welcome for your kind suggestion or feedbacks on goods and our service.

Packing Details       Standard packing

Delivery Time           Shipped in 5-15 days after payment
