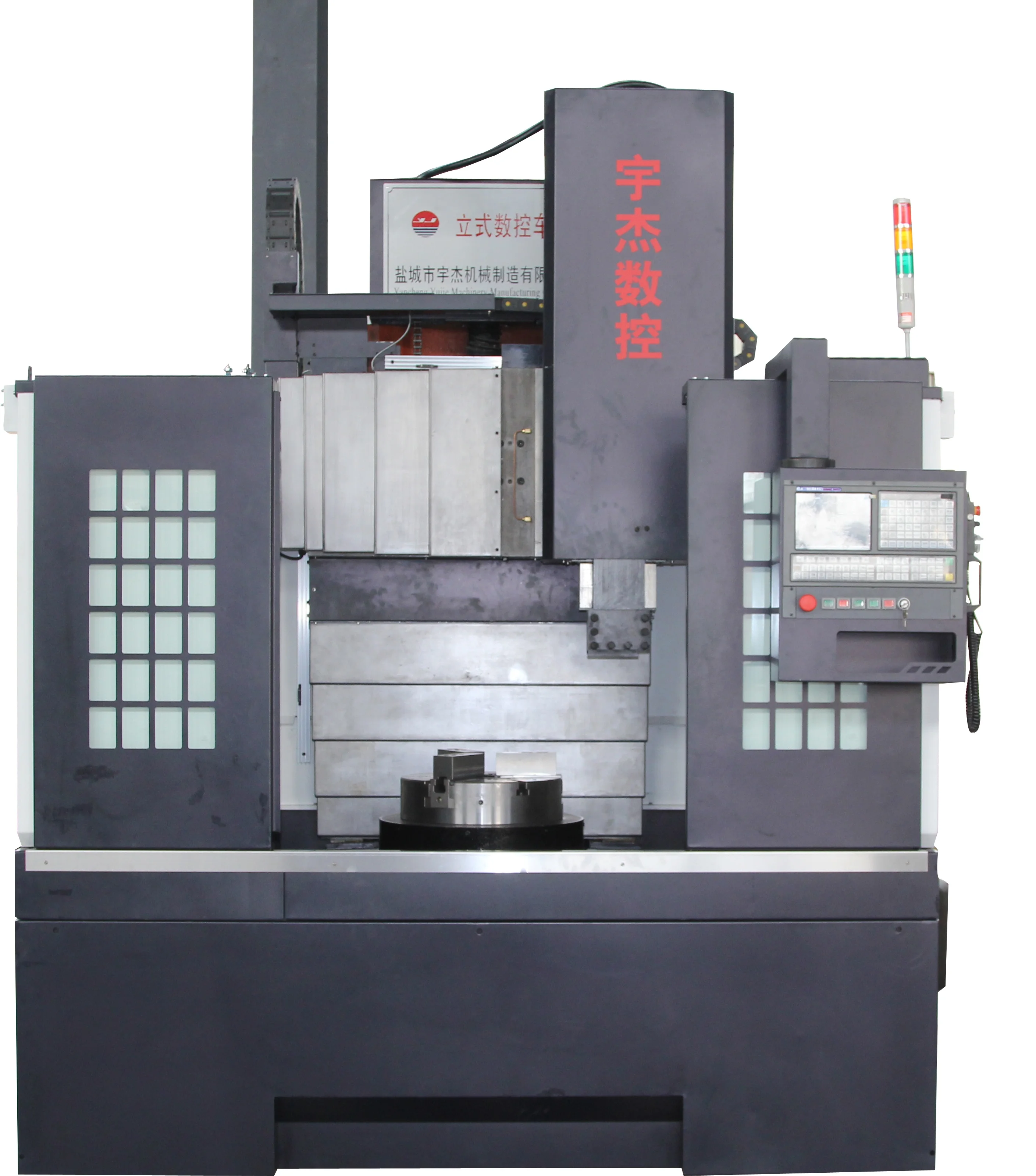

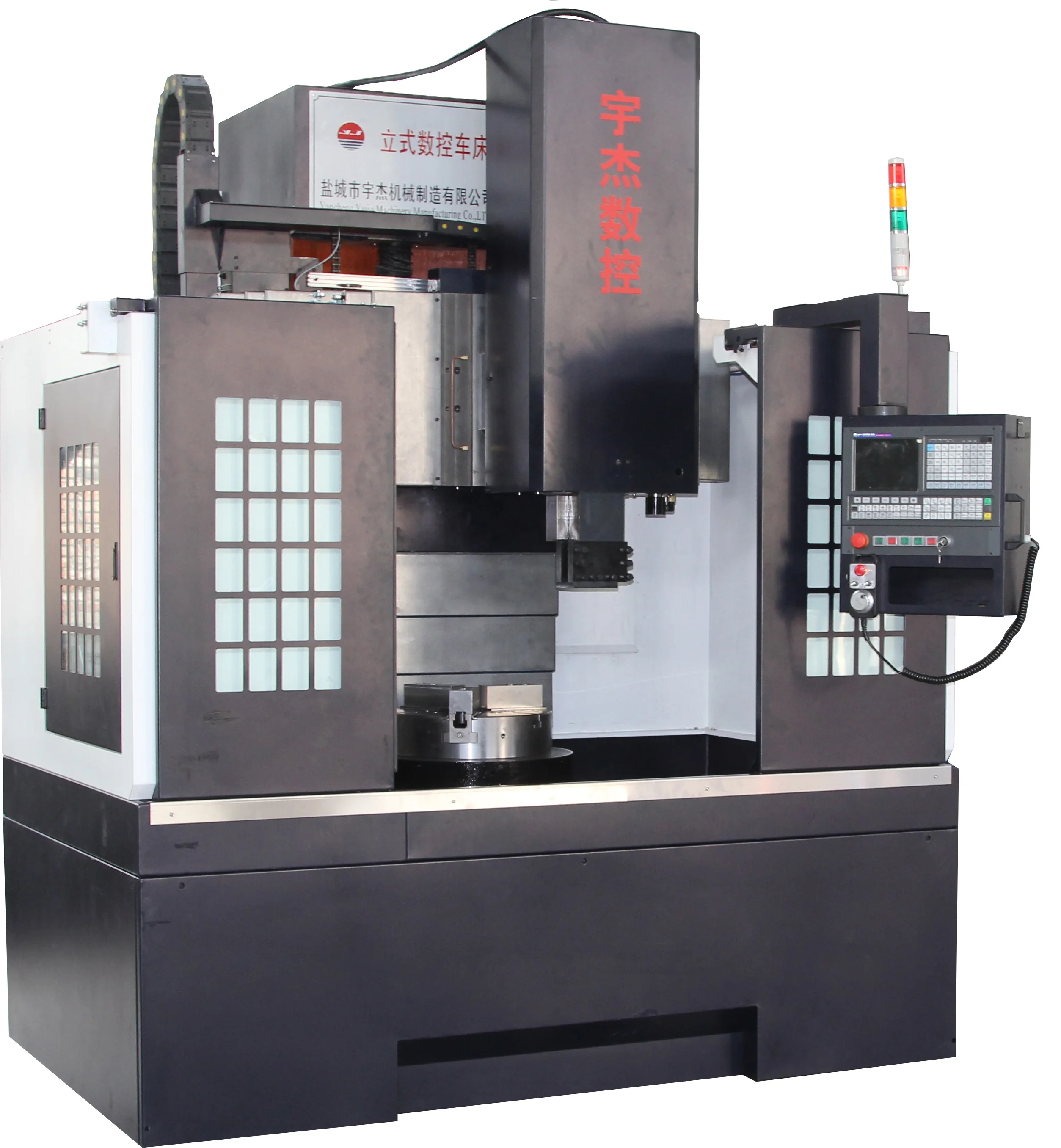

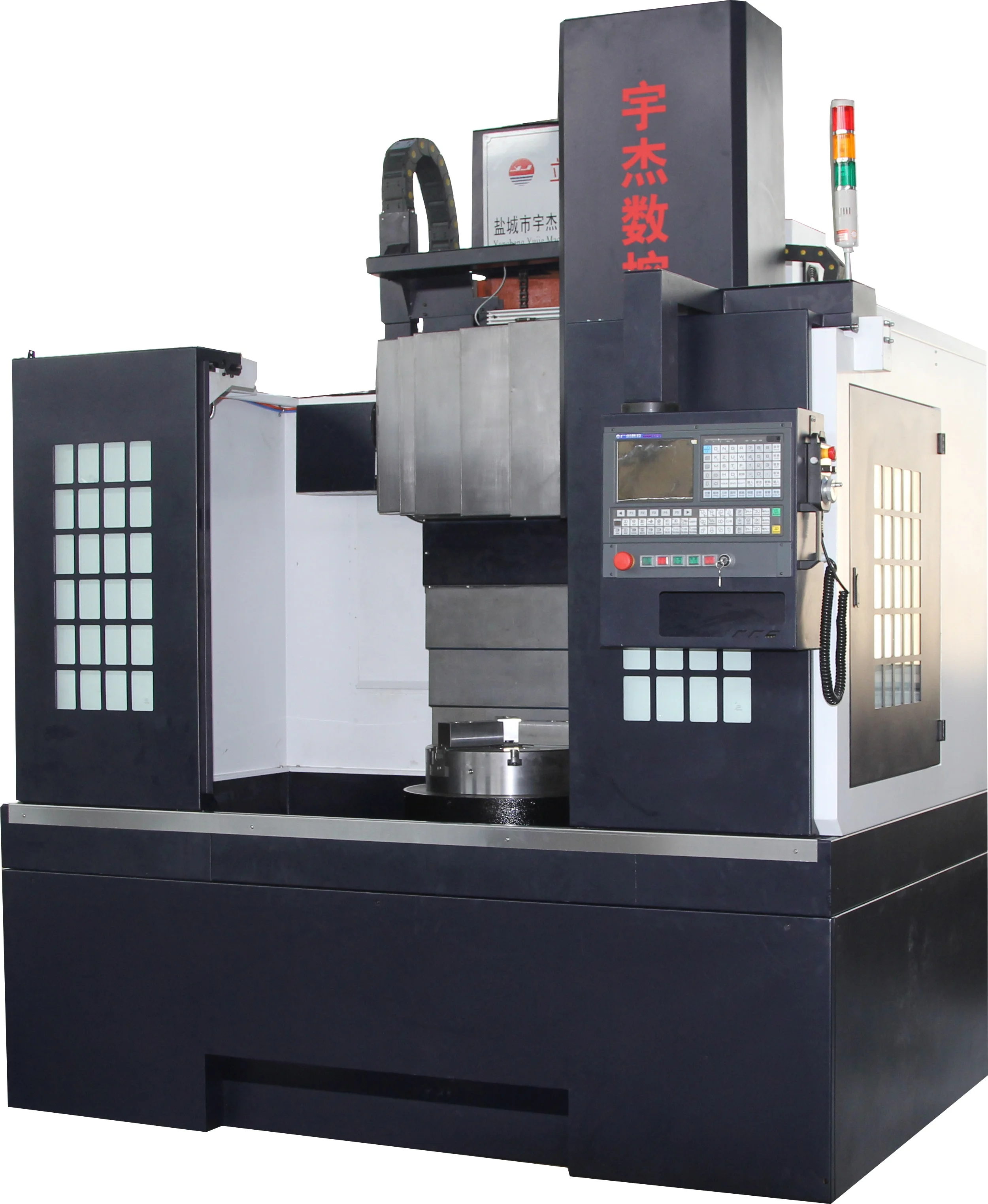

Direct sales by manufacturer vertical CNC lathe with 15kw motor for processing disc parts

Direct sales by manufacturer vertical CNC lathe with 15kw motor for processing disc parts

Price:RUB 782,820.00 - RUB 4,696,920.00

Quantity:

Product Description

SPECIFICATIONS FOR CK5110 VERTICAL LATHE
Model		CK5110
Max. Swing over bed		1200mm
Max. Turning diameter		1100mm
Max. Cutting length		550/850mm
Table diameter		1000mm
Spindle bore dia		120mm
Tool shank size		□32,ø50mm
Spindle nose		A2-15
Spindle speed range		20-300r/min
Main motor power		15kw
X/Z Axis rapid feeding speed		1.2/0.8m/min
X/Z Axis Re-positioning Accuracy		0.01/0.015mm
X/Z Axis Travel		600/550(850)mm
X/Z Axis Servo motor torque		15/15N·m
Overall dimension(L x W x H)		2950x2150x2300mm
Max. Workpiece weight		2000kg
Weight		5200kg

1. Easy to clamping work piece, suitable for high precision machining disk type parts of complex shape.

2. Double rectangular hard facing rail in column , rail width 100mm,good abrasion resistance, long service life.

3. Square box closed structure base, thin-wall ribbed arrangement; symmetric section form; stable structure.

4. Rigid structure, Large torque can meet the demand for heavy cutting.

5. Integrated automatic lubrication system making the maintenance more easier.

6. Vertical structure, small occupation area, convenient to installation and repair.

7. Can form a production unit, used for automatic production line.

8. Fully enclosed safety space design, excellent protective function, Ensure accuracy and its long service life.

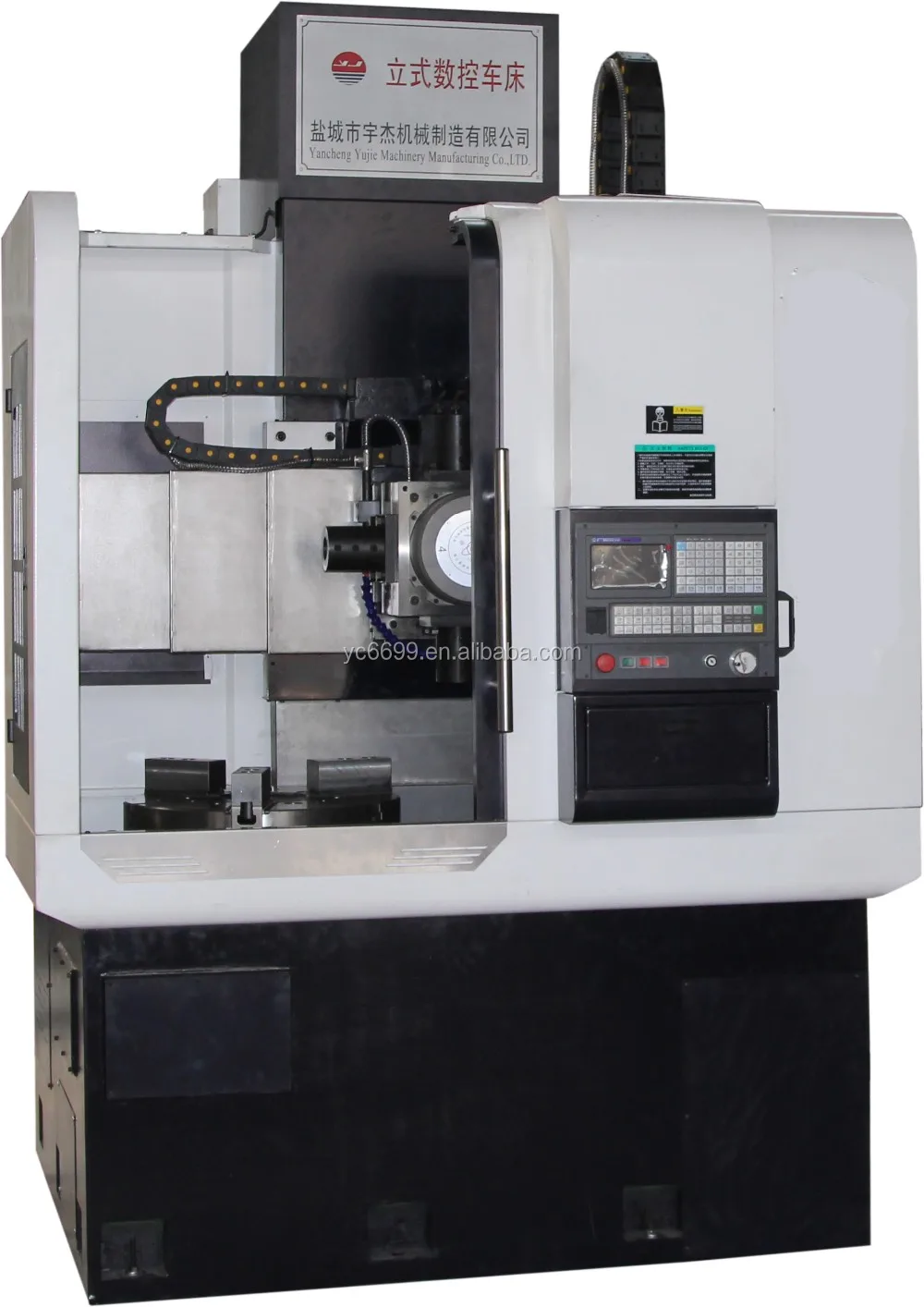

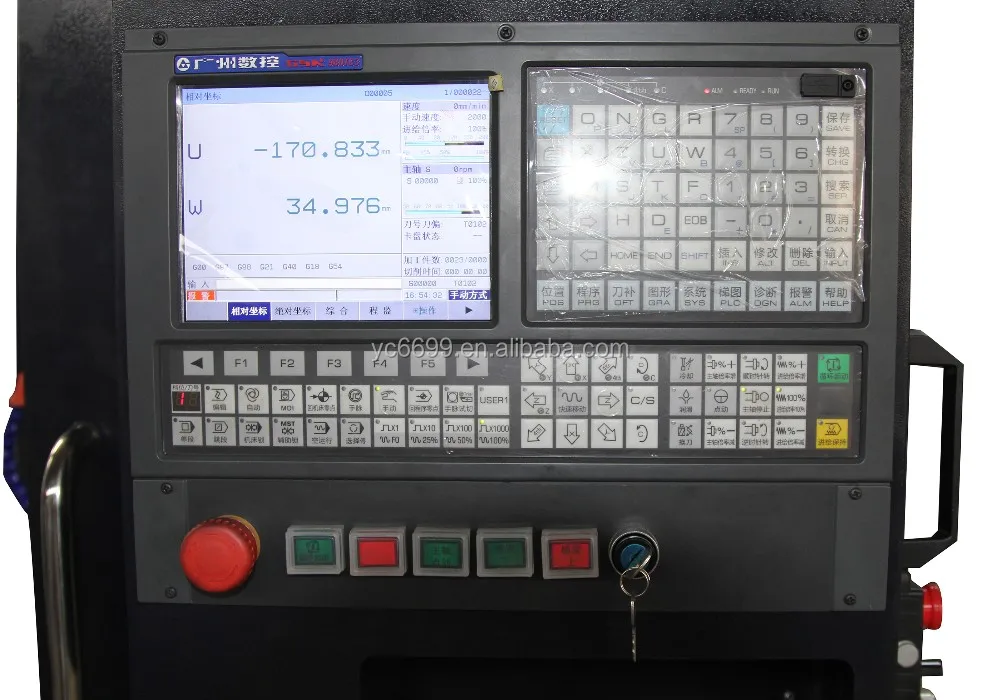

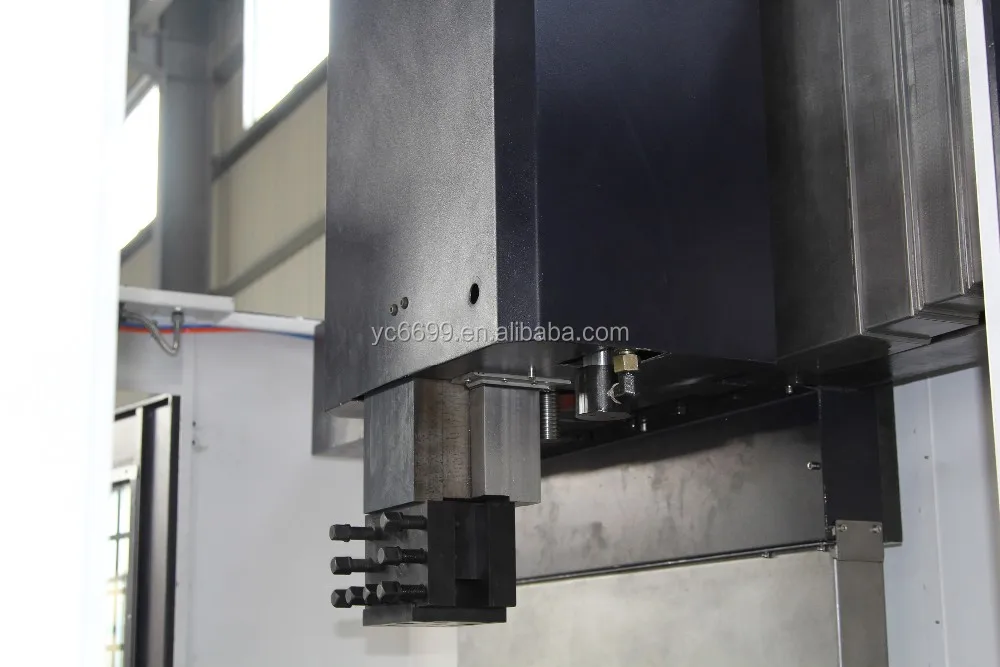

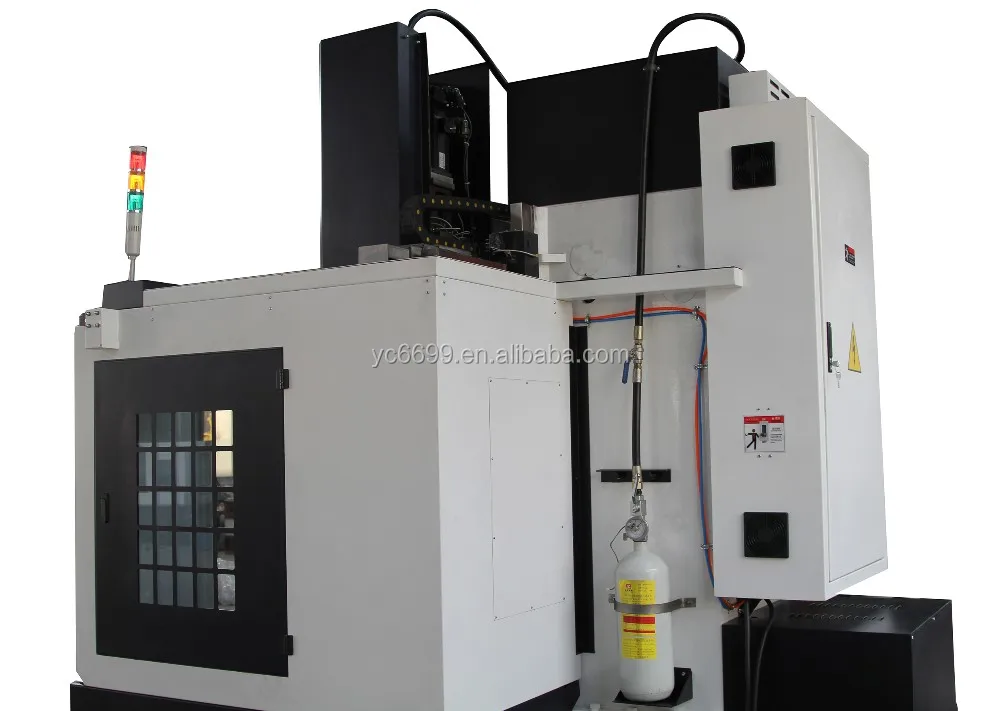

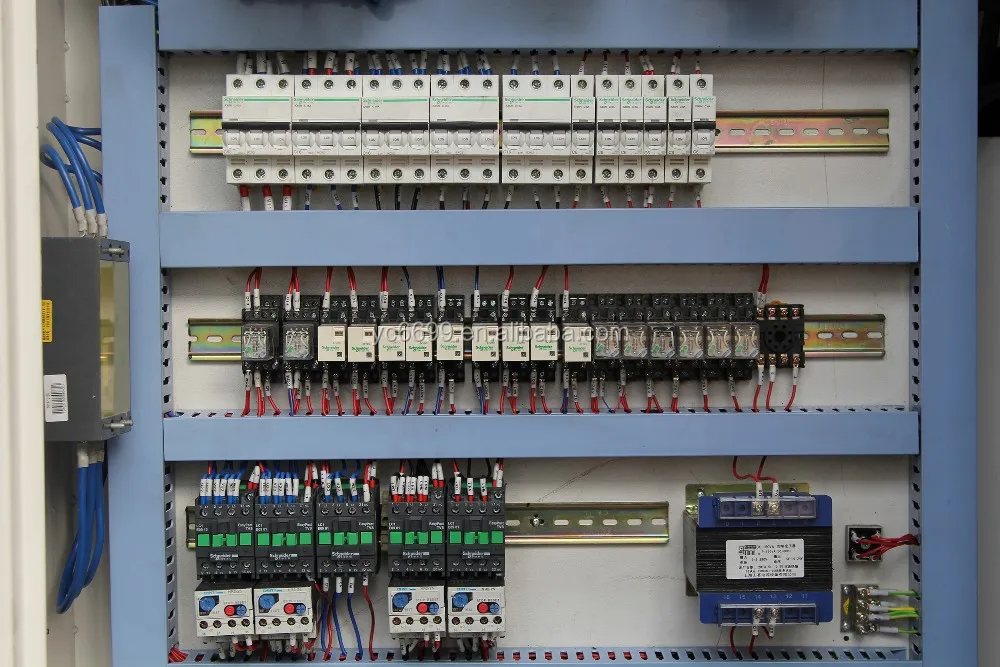

Detailed Images
