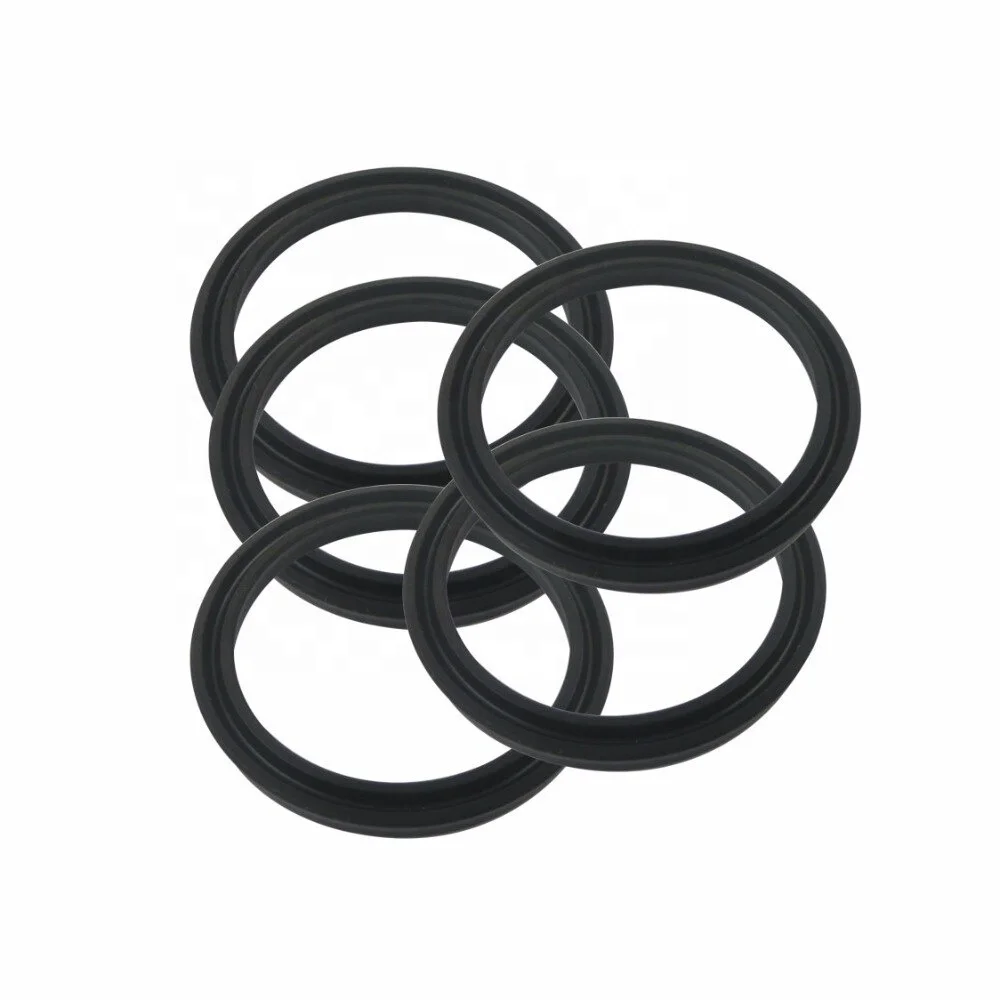

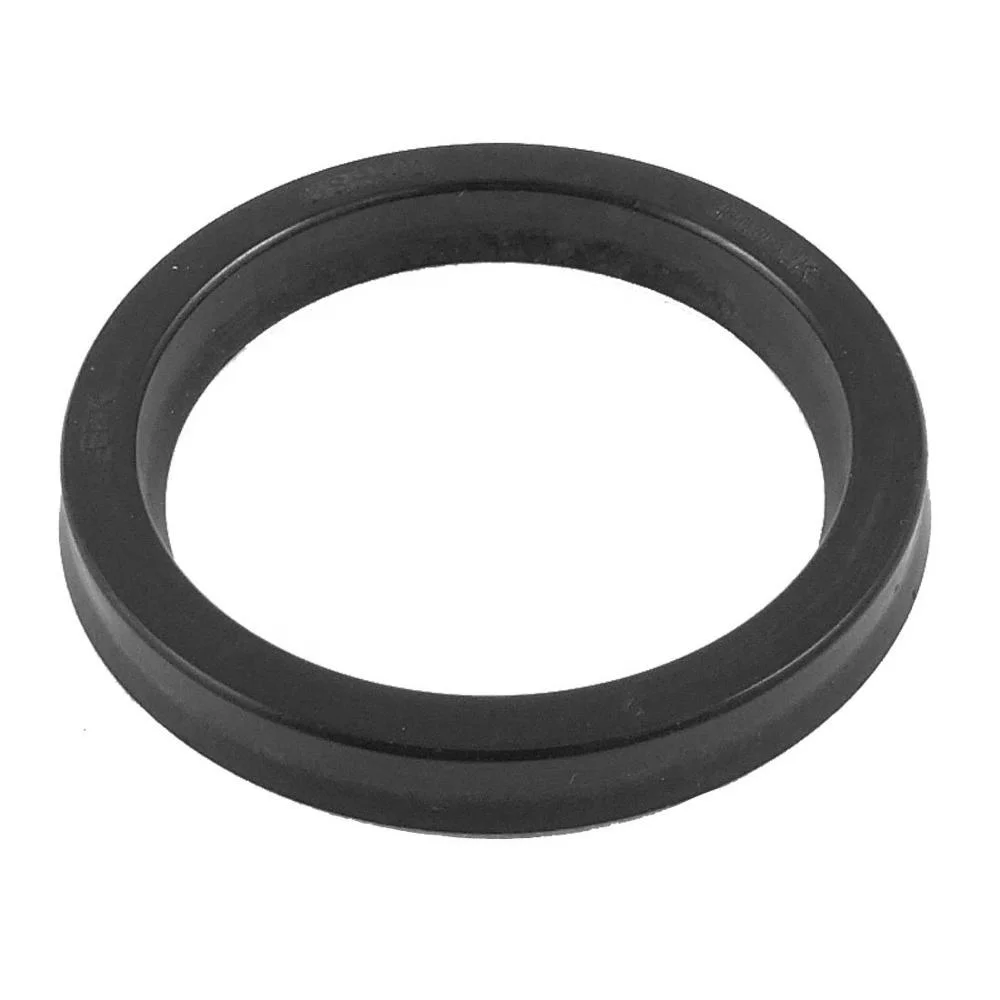

USH Hydraulic Cylinder Rubber Piston Rod Seal
- Category: >>>
- Supplier: WENZHOU YILIN RUBBER & PLASTIC PRODUCT. LTD
Share on (62170416343):
Product Overview
Description
Products Description

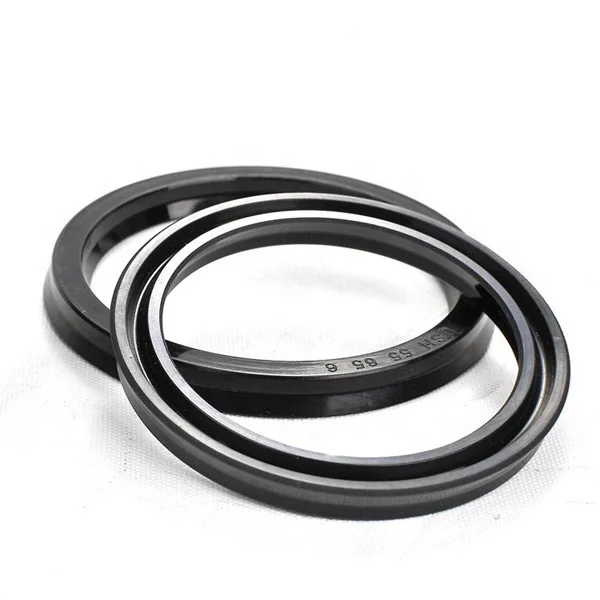

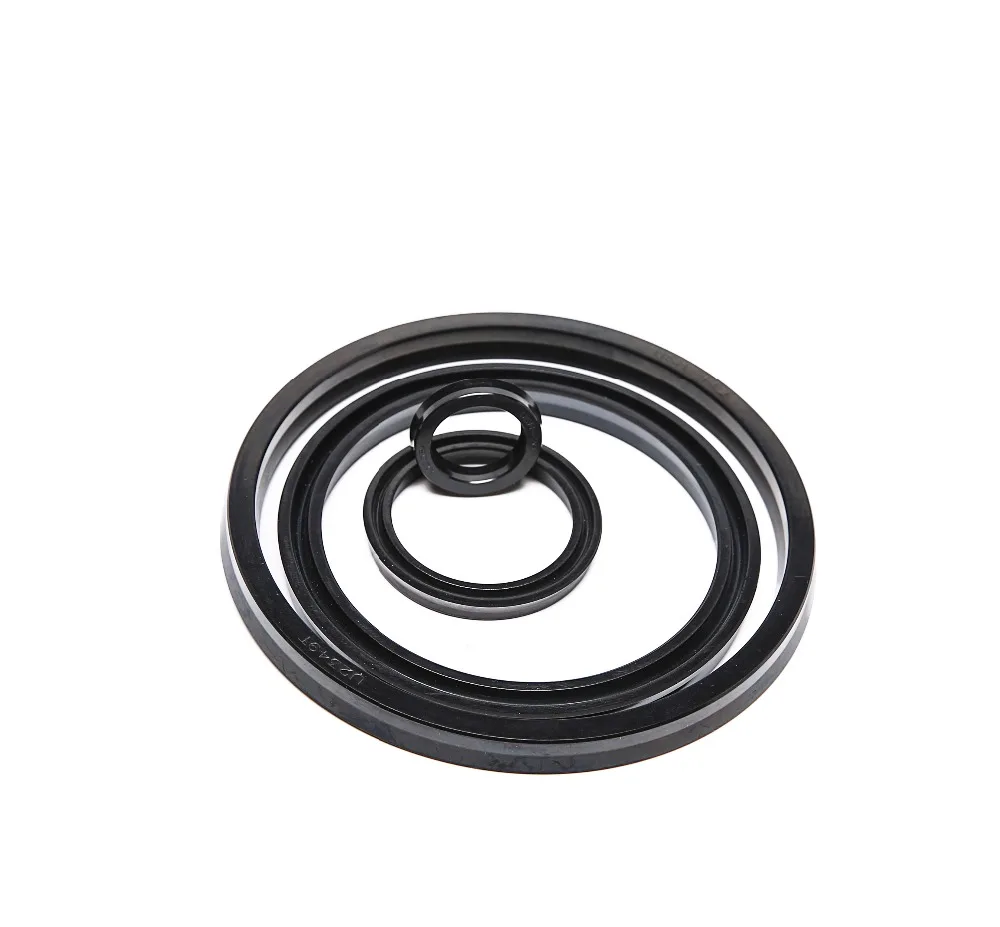

USH 40mm x 50mm x 6mm Hydraulic Cylinder Rubber Oil Seal
USH is a shaft hole universal sealing ring, which is generally used in hydraulic cylinders and general-purpose hydraulic cylinder CPUs for the sealing of pistons in reciprocating hydraulic cylinders.
Advantages:
High resistance to high temperature
High abrasion resistance
Low compression set.
Easy installation
High resistance to high temperature
High abrasion resistance
Low compression set.
Easy installation
MATERIAL COMPARE
Material | Advantages | Temperature range | Hardness |
NBR | 1.Excellent resistance to oils ; 2.Good abrasion resistance ; 3.often used in the manufacture of all kinds of oil resistant gaskets, seals and so on | 40-90 Shore A | |
1.High chemical stability,Good oil resistance; 2. excellent resistance in mineral oils and fats; 3. use in mechanical devices requiringmaximum resistance to elevated temperatures,and many special medium,high vacuum applications, such as automobile, vacuum equipment and so on; | 52-92 Shore A |
Material | NBR, FKM |
Color | Black Brown |
Function | piston and rod seal,oil seal,U sharp seal |
Media | Hydraulic oils (mineral oil-based) |
Pressure | ≤ 21Mpa ,over 21Mpa use a back-up ring |
Temperature | NBR:-40°C~100°C FKM:-20~+200°C |
Application | Pump, Car, motor,Electrical equipment, Bearings,machinery, Hydraulic Cylinder |
Different materials and different model number have different application scenarios and performances.
For details, please click Send Inquiry!
Introduction of other products
Click the corresponding product picture to jump to the corresponding product.
For more products, please click >>> HOME
TC Oil Seal
TC skeleton oil seal is a mechanical component used to seal oil. It isolates the parts of the transmission component that need to be lubricated from the output components so that lubrication and leakage are not allowed.
Material:NBR / FKM +Metal
Technical Data
Temperature range: -30℃ to +200℃
Speed: ≤25m/s
Medium:Lubricating Oil, Grease, Water
Advantage:
●The structure is simple and easy to manufacture.
●Lightweight and low consumables.
●The oil seal has a small axial dimension, is easy to machine, and makes the machine compact.
●The sealing machine has good performance and long service life.
●The oil seal has certain adaptability to the vibration of the machine and the eccentricity of the spindle.
●Easy to disassemble and easy to test.
Temperature range: -30℃ to +200℃
Speed: ≤25m/s
Medium:Lubricating Oil, Grease, Water
Advantage:
●The structure is simple and easy to manufacture.
●Lightweight and low consumables.
●The oil seal has a small axial dimension, is easy to machine, and makes the machine compact.
●The sealing machine has good performance and long service life.
●The oil seal has certain adaptability to the vibration of the machine and the eccentricity of the spindle.
●Easy to disassemble and easy to test.
O RING
Types of O-ring compounds
FKM (Viton )
BUNA-N (NBR)
Hydrogenated BUNA-N ( HNBR)
Chloroprene ( Neoprene ) EPDM
FFKM
Sllicone Fluosilicone Natural Aflas
More compounds
We offer standard O- RINGS(AS568),
Metric O-rings, JIS 0- rings, BS O-rings,
Spliced or Vulcanized O-rings,
O-rings by material, Custom Molded O-rings, 0-ring kits.
Our operational application temperature limits:
EPDM 70:-45 "Cto +130。
CFKM:-15 °C to +200。
CHNBR70: -30 °C to +150*
CNBR: -30°C to +100°
CVMQ70: -55 °C to +200°C
FKM (Viton )
BUNA-N (NBR)
Hydrogenated BUNA-N ( HNBR)
Chloroprene ( Neoprene ) EPDM
FFKM
Sllicone Fluosilicone Natural Aflas
More compounds
We offer standard O- RINGS(AS568),
Metric O-rings, JIS 0- rings, BS O-rings,
Spliced or Vulcanized O-rings,
O-rings by material, Custom Molded O-rings, 0-ring kits.
Our operational application temperature limits:
EPDM 70:-45 "Cto +130。
CFKM:-15 °C to +200。
CHNBR70: -30 °C to +150*
CNBR: -30°C to +100°
CVMQ70: -55 °C to +200°C
KDAS Piston compact seal
Material
Profile seal: NBR /Back-up ring: polyester elastomer / Guider ring: POM
Color: Profile seal: Black / Back-up ring: Blue / Guider ring: Black
Technical Data
Pressure:s 35Mpa
Temperature: -35 ~ +100*C
Speed:s0.5m/s
Media: Hydraulic oils (mineral oil-based)
Profile seal: NBR /Back-up ring: polyester elastomer / Guider ring: POM
Color: Profile seal: Black / Back-up ring: Blue / Guider ring: Black
Technical Data
Pressure:s 35Mpa
Temperature: -35 ~ +100*C
Speed:s0.5m/s
Media: Hydraulic oils (mineral oil-based)
