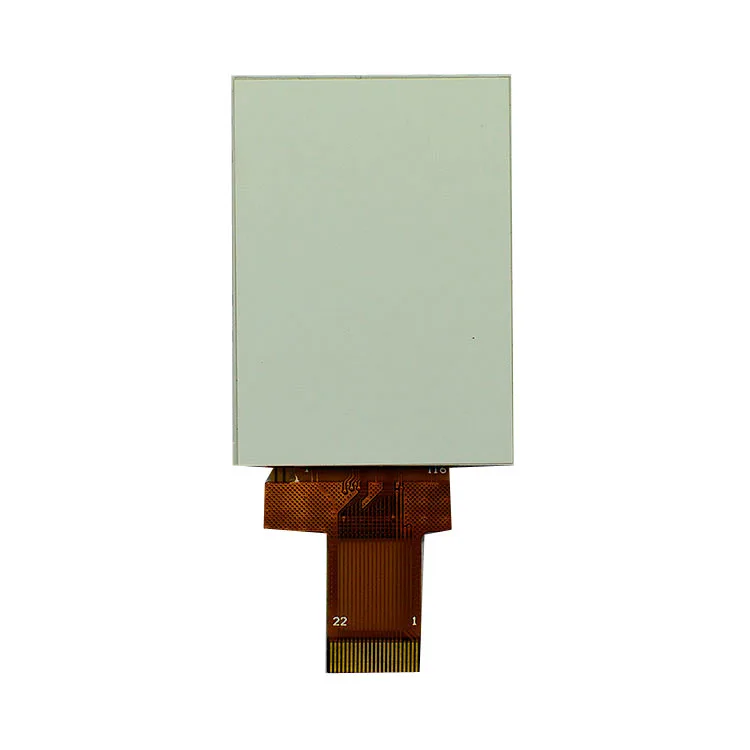

2.0 Inch IPS TFT LCD Display resolution 240*320 RGB interface 22 Pin LCM Touch Screen
- Category: >>>
- Supplier: Shen Zhen Smart Science Technology Limited
Share on (62170526909):
Product Overview
Description
2.0 Inch IPS TFT LCD Display resolution 240*320 RGB interface 22 Pin LCM Touch Screen
Technical Specifications
| Model No.: | SH20I2201 |
| Screen Diagonal | 2.0" |

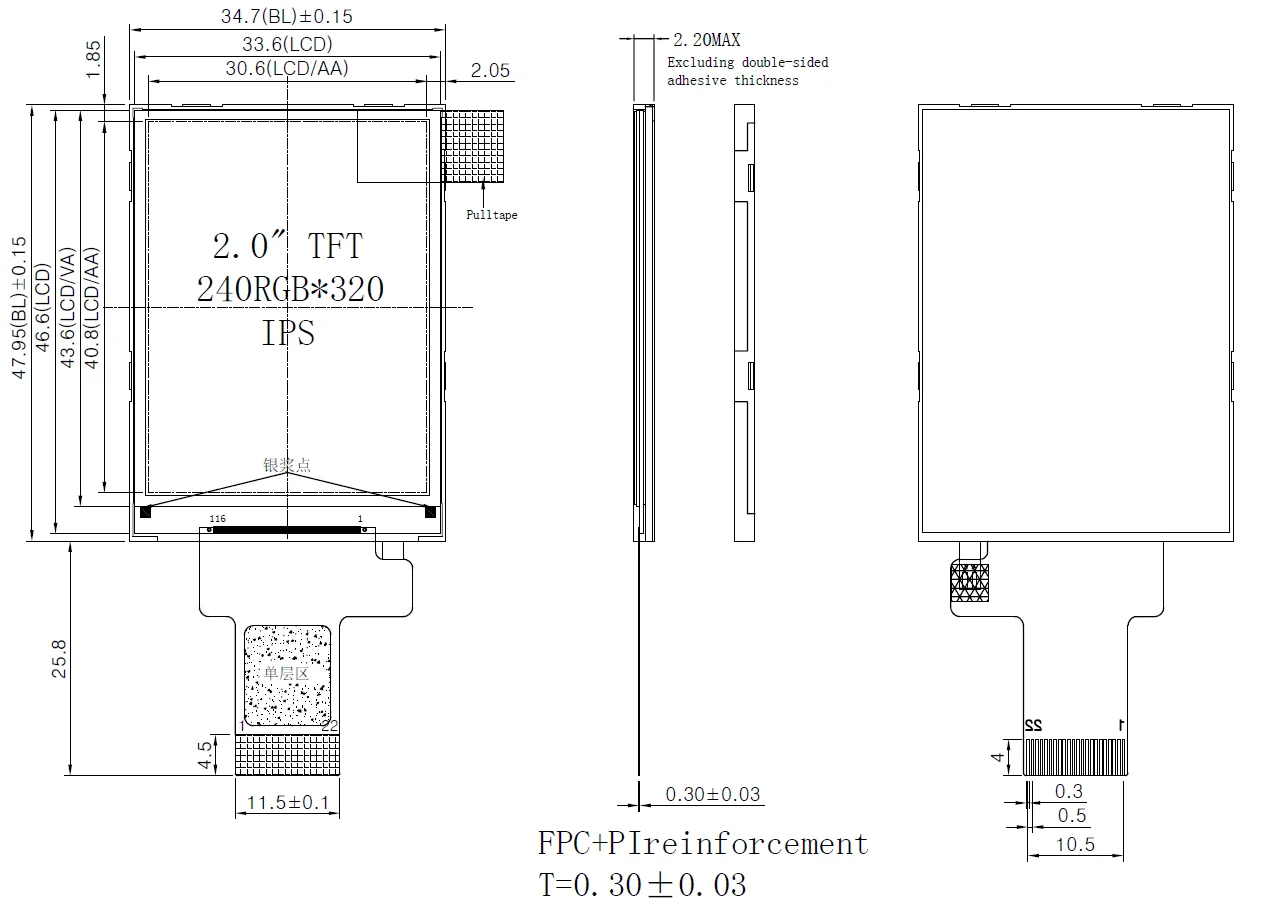

| Module area (W*H*T): mm | 34.7(W) * 47.95 (H) * 2.2(T) |
| Active area (W*H):mm | 30.6 (W) * 40.8 (H) |
| Resolution | 240 * RGB * 320 |
| Driver IC | ST7789V |
| Recommended Viewing Direction | ALL |
| Interface Type | MCU |
| Backlight Type | WHITE LED |
| Operating temperature | -20ºC~+70ºC |
* It is composed of a TFT LCD panel, driver IC, FPC, backlight
* IPS or 12 o'clock display screen
* Backlight with different brightness options from 200 - 1500cd/m2 are available.
* Specific display screen can be designed & customized.
* RoHS & REACH compliant.
Application
Production Flow
Certifications
Adhering to the principle of customer first,quality first,Smart has a well-established rigorous quality management systerm accredited with ISO9001 ,Smart is firmly committed to its environmental responsibilities all products are RoHS & REACH compliant.
Company Information
Our Services
1.Reply your inquiry in 24 working hours,
2.Customized design is available,OEM and ODM are welcomed,
3.Delivery the goods to our customer all over the world with speed and precision,
4.Offer customer the competitive price with high LCD Modules product.
FAQ
Q: 1. Can I have a sample order?
A: Yes, welcome sample order to test and check quality.
Q: 2. Do you have any MOQ limit?
A: MOQ is 500~1000pcs
Q: 3. Which payments are acceptable?
A: Western Union, T/T are acceptable.
Q: 4. Which shipping methods are available?
A: Sea,. Fedex, DHL, TNT, UPS, EMS, BY ARI(door to door) all are available.
Q: 5. How about the lead time and delivery time of my order?
A: Lead time is 7-20 work days according to the detail order.
Q: 6. How to order ?
A: Pls contact us online or send us email, we will send you PI. After Payment, we will arrange produce your goods.
