CDD 80 24V Marine Electronic Flute / DC24V 80W Marine Electronic Horn CDD 80/ Electro siren Of Ship/Tsunami Tornado of CDD 80

Product Overview

Description

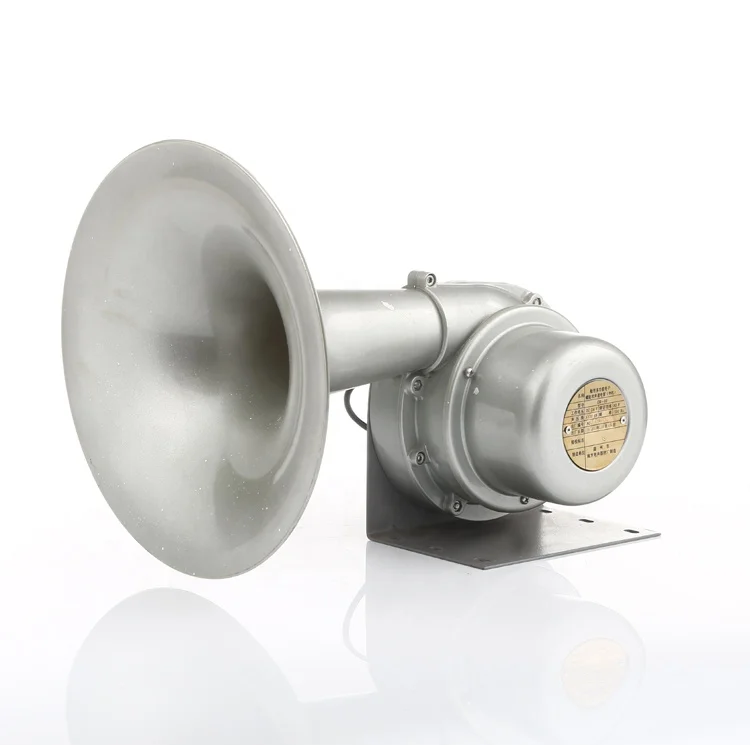

CDD-80 24V Marine Electronic Flute

The CDD-80 marine multi-function electric flute has the characteristics of various functions, high power, clear sound and long sound transmission distance. The tone is generated by using single-chip software, and the frequency is more stable.
The speaker is filled with an imported magnetic fluid protection voice coil, which overcomes the shortcomings of the prior art electroacoustic speakers.
This greatly increases the life of the speaker. This product is widely used in water transportation, docks and related places.



Product Standards:
This product is developed in accordance with GB/T 12303-90.

Technical Parameters:
1. Rated power: 80W
2. Impedance: 8Ω
3. Operating voltage: DC 24 V (±10%)
4. Frequency: 750-850Hz
5. Harmonic distortion: ≤5%
6. Sound pressure level: ≥125dB
7. Operating ambient temperature: -25°~+55°
Features:
1. Spiral channel for maximum signal release
2. The horn is made of white gold fiberglass synthetic material: high strength, corrosion resistance and long life.
3. The host has high power and small size.

1.The product is suitable for medium and large ship.

2.With a multi-function, signal stability, sound propagation far less signal distortion

3.Widely used in water all modes of transport, port and other places.



parameters

Type	CDD-80
Rated voltage	DC24V
Power	80W
Sound pressure	>125dB
Frequency range	750-850Hz
