High Speed Double Pulse MIG/MAG 500A Welders Aluminum Welding Machine
- Category: MIG Welders >>>
- Supplier: Shandong Yomi Intelligent Science And Technology Co. Ltd.
Share on (62170615631):
Product Overview
Description
High Speed Double Pulse MIG MAG 500 Welders Aluminum Welding Machine
MIG MAG 500 Welders
Product Description
1. Splash-free welding for non-ferrous metals,such as aluminum magnesium alloy,pure aluminium,aluminum Silicon alloy, stainless steel,carbon steel, Silicon bronze,Aluminum bronze and ect.

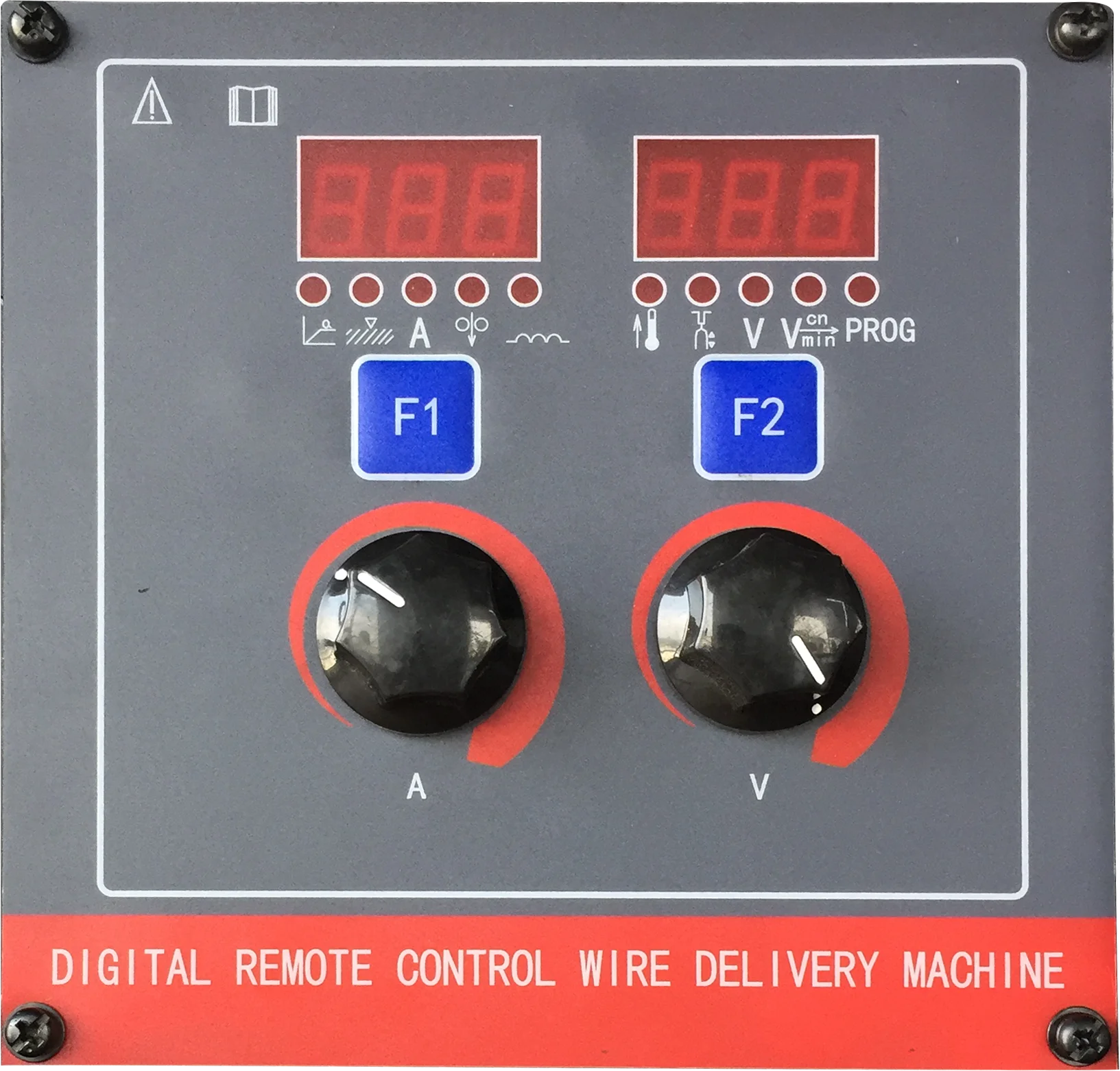

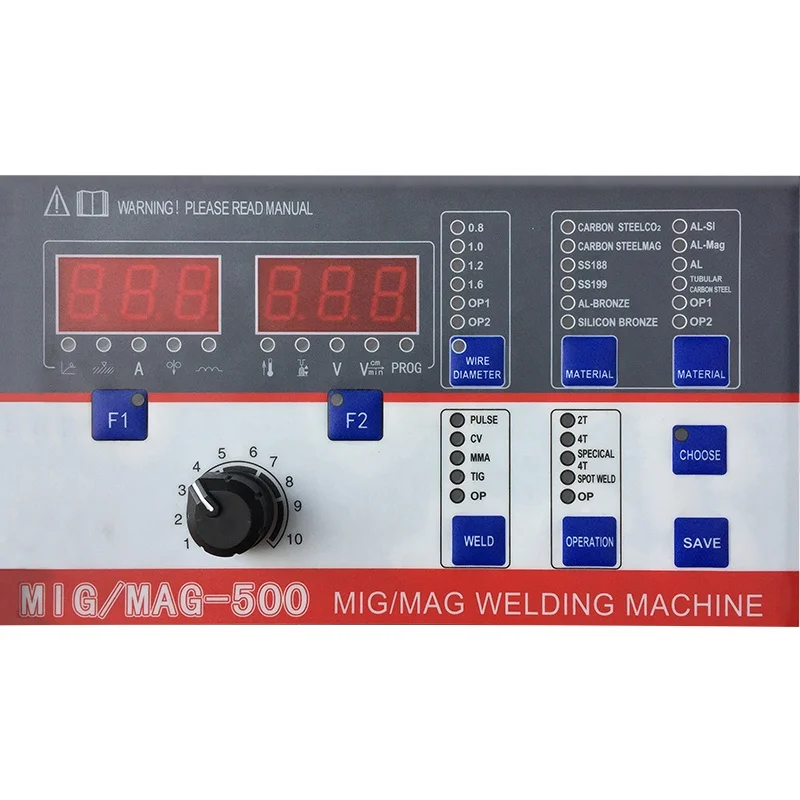

2.Digital Panel operating Interface

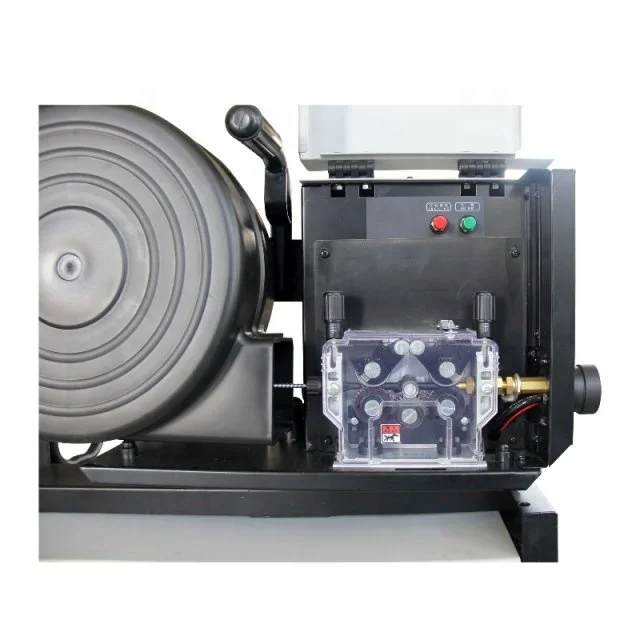

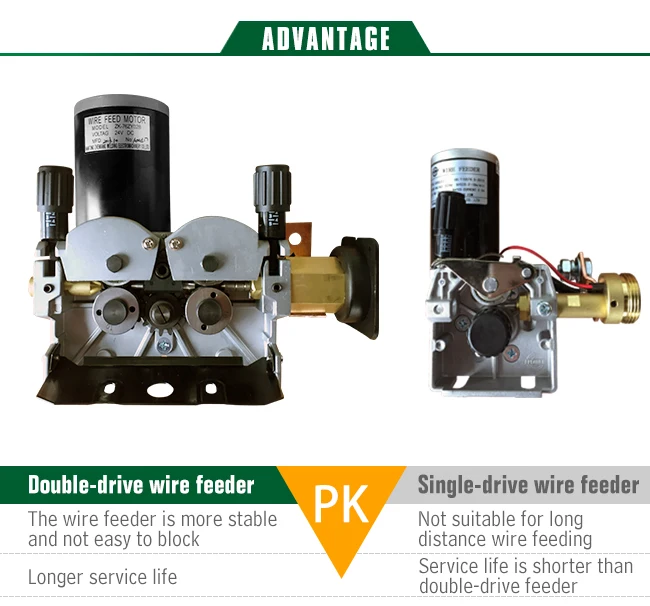

3.Unique double-drive four-wheel wire feeding system
4.With unified regulation, 2T Non-automatic 4T Automatic
5.Ful digital double CPU control technology and soft switching IGBT inverter technology
6.Integrated wire feeding tray, suitable for 5KG~20KG
7.Ten channel storage database, control software can be modified and upgraded.

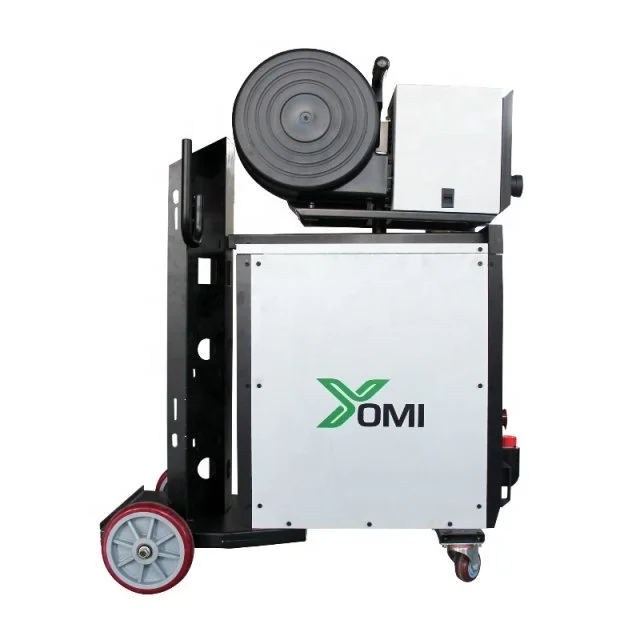

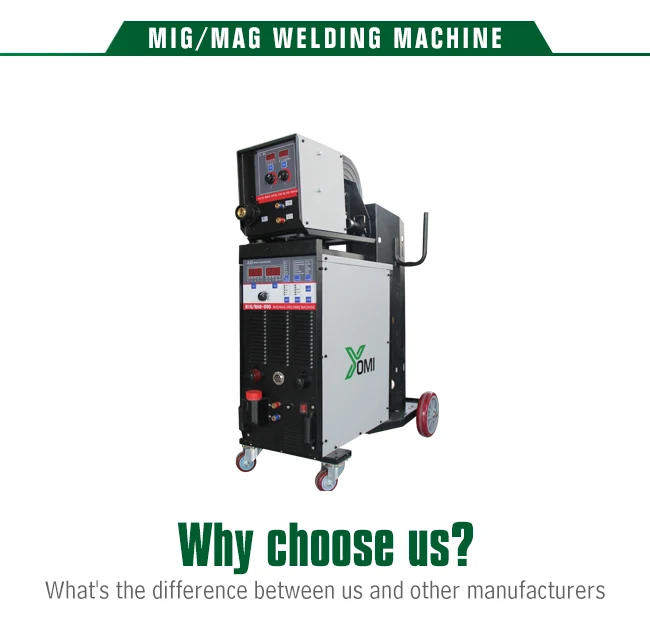

High Speed Double Pulse MIGMAG 500 Welders Aluminum Welding Machine

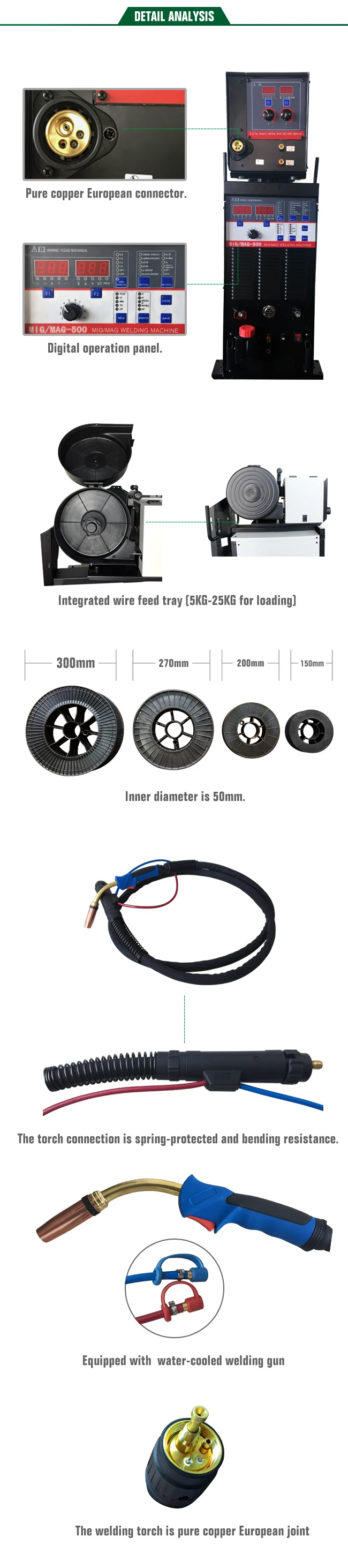

Detailed Images

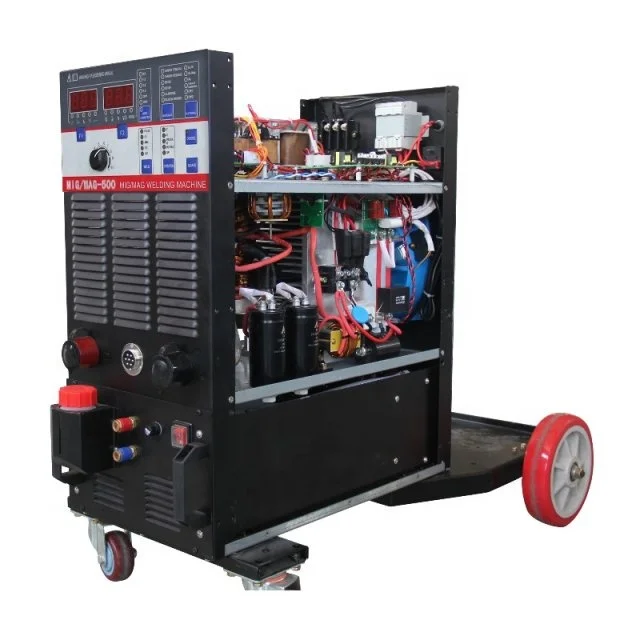

High Speed Double Pulse MIG MAG 500 Welders Aluminum Welding Machine Inner
High Sd Double Pulse MIG MAG 500 Welders Aluminum Welding Machine
Technical Parameter
Model | MIGMAG-200 | MIGMAG-400 | MIGMAG-500 |
Voltage range(V) | Three phase 380±15% | ||
Frequency(HZ) | 50HZ or 60HZ | ||
Rated input power (KVA) | 10.6 | 16.3 | 24.5 |
Rated input current(A) | 16.5 | 25.2 | 38 |
No load voltage(V) | 66 | 66 | |
working current range(A) | 20-280 | 20-400 | 20-500 |
Working voltage range(V) | 15.7-29 | 15.7-34 | 15.7-39 |
Wire feeding speed(m/min) | 18 | ||
Efficiency(%) | 90 | ||
Power factor | 0.89 | ||
Rated duty cycle(%) | 60 | ||
Weight(kg) | 60 | 65.5 | 67.5 |
Size(mm) | 945*513*1040 | ||
High Speed Double Pulse MIG MAG 500 Welders Aluminum Welding Machine
Company Information
YOMI focus on whole range of welding machines development and manufacturing. It is established in 2006. Now it has growed up to Leading company in welding machine field and also supply OEM for some famous brand in the world.
Our factory has the most advanced workmancraft and processing machine ,such as YAMAHA SMT ,Automaticg glue sprayer, Large wire terminal machine, Computer double wave soldering and insertion wave soldering machine and also some testing machines, which greatly ensure the high automation and quality of our welding machines.
Our welding machines include MMA, MIG/MAG,TIG, CUT, SAW, RSR,RSN,Spot Weld and Stud Welding Machines. We are customer-leading company. We are sincerely invite all partners from worldwide to join us and develop the market together!
FAQ
1.What kinds of material can double MIG MAG weding machine weld?
Double pulse MIG MAG welder can weldaluminum magnesium alloy,pure aluminium,aluminum Silicon alloy, stainless steel,carbon steel, Silicon bronze,Aluminum bronze and ect,
2. What kinds of after-sales service can your company supply?
One year's warranty for whole welding machine. We will send spare parts for free during warranty period. About main board, we can supply life long service.
3.Can you supply OEM Service?
Yes, we can supply OEM service.
4.What is the available shipping way?
Small quantity will choose DHL, Fedex, UPS,TNT, and EMS etc.
Bulk order will choose sea or air shipping.
5. What is deliver time?
If there are welding machines at stock, we will delivery the goods within 3-7 work days after received payment.
6. What is your payment term?
We can accept T/T,Western Union,L/C,Aliexpress Escrow, Credit Card.
High Speed Double Pulse MIGMAG 500 Welders Aluminum Welding Machine
