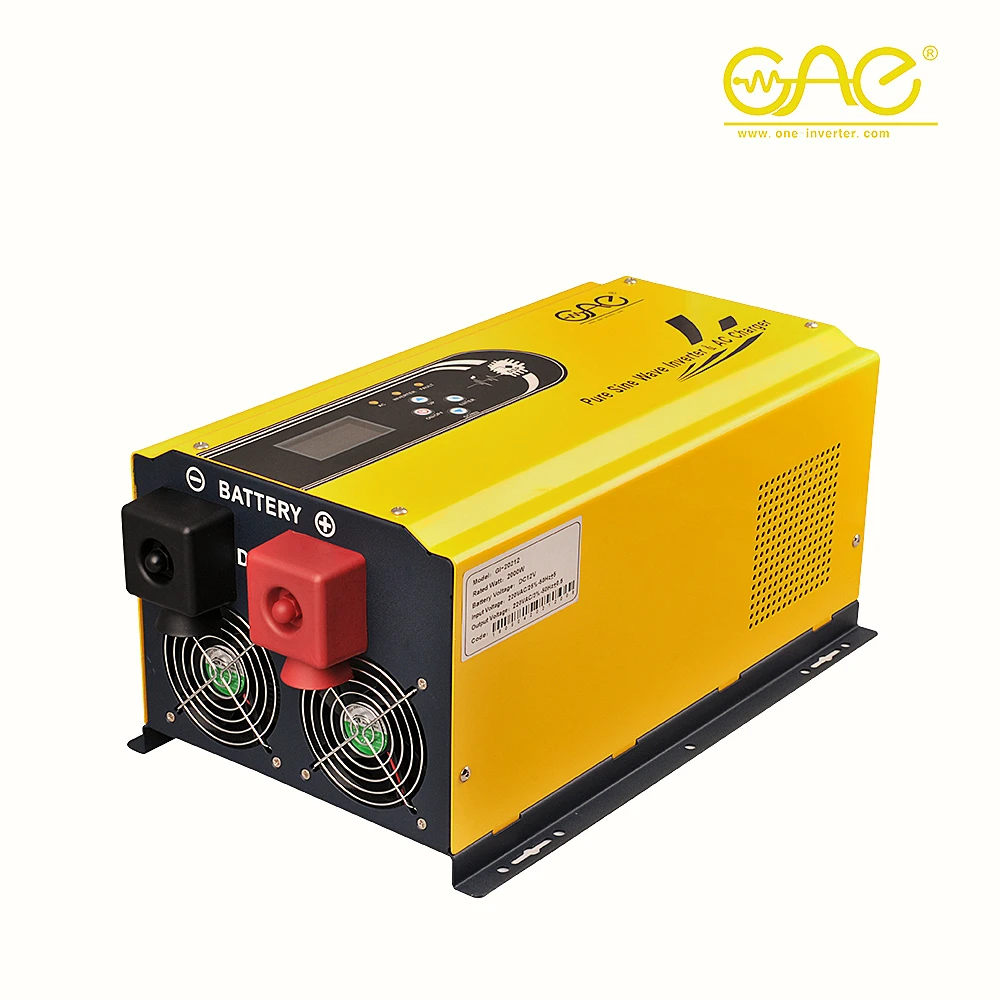

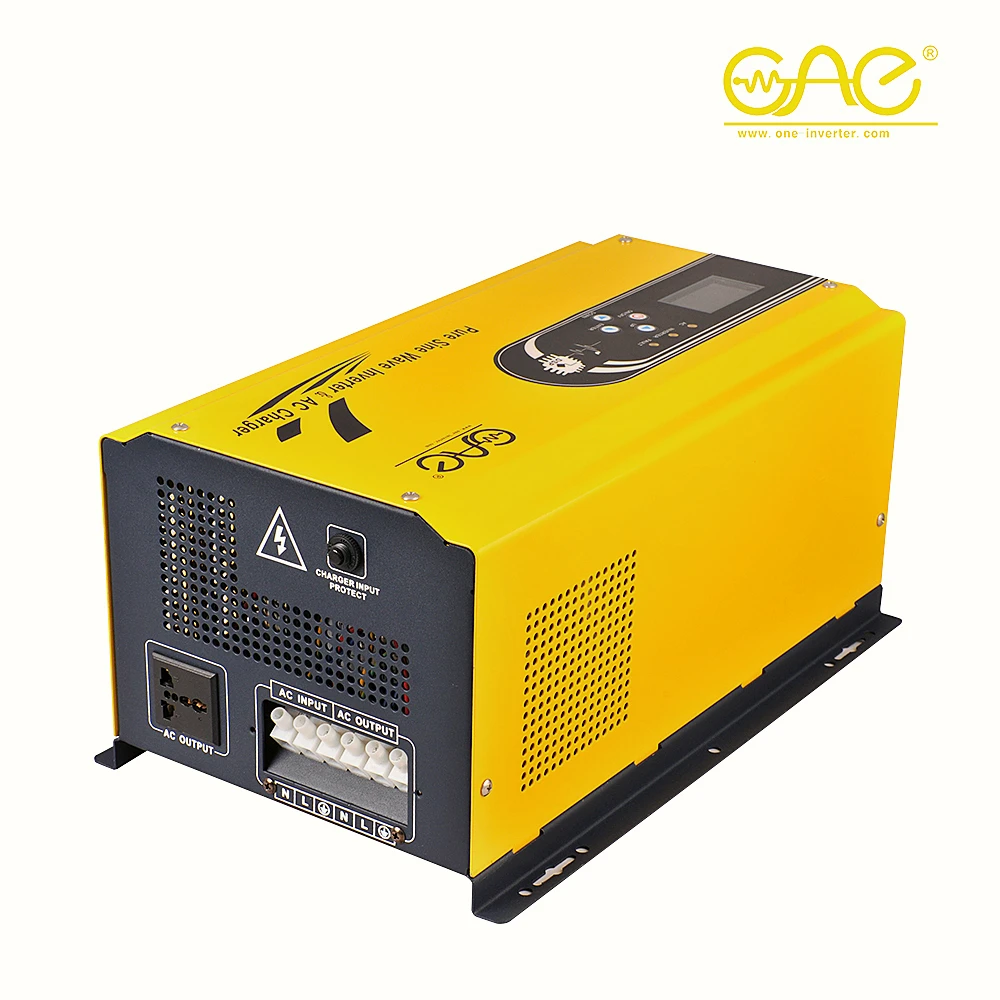

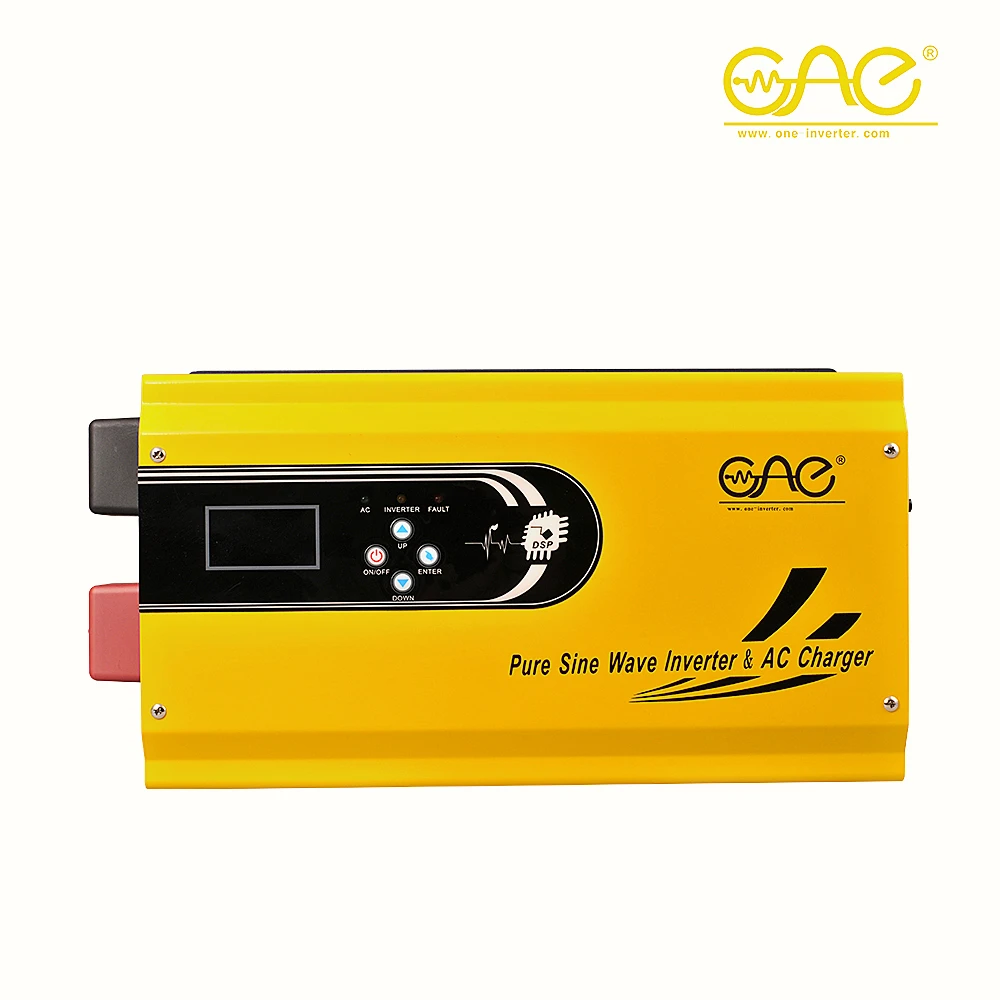

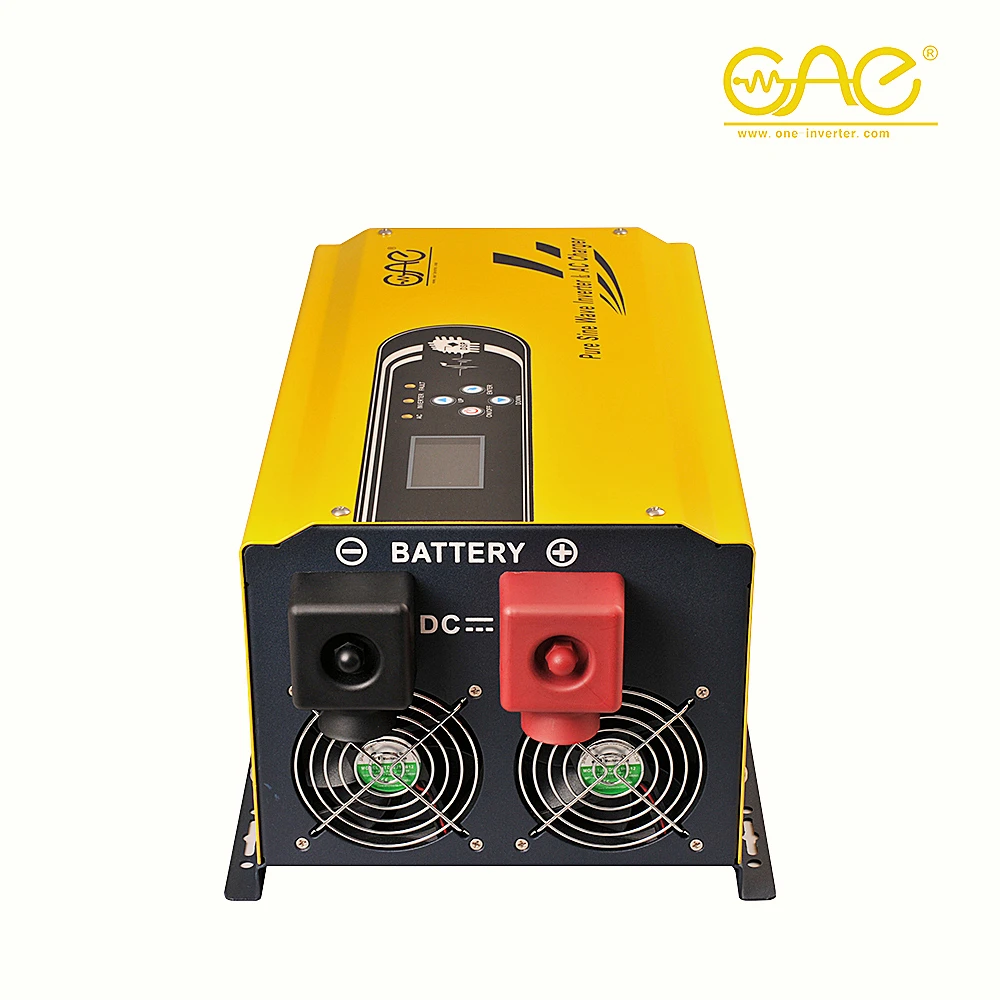

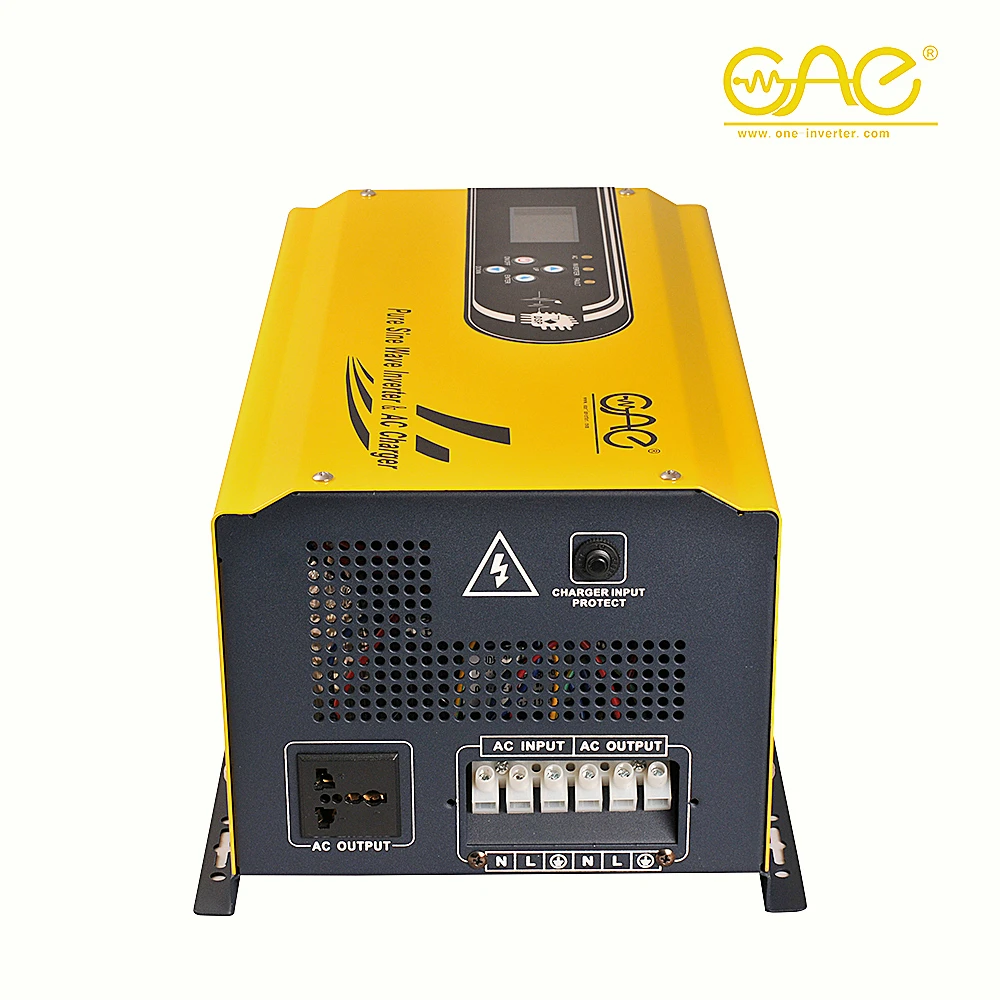

3000w 3000va 12V 220V DC to AC solar power invertor off grid pure sine wave inverter low frequency
- Category: >>>
- Supplier: Foshan Top One Power Technology Co. Ltd.Foshan Ltd.
Share on (62171100446):
Product Overview
Description
Product parameter
1000w 3000va 12V 220V DC to AC solar power invertor off grid pure sine wave inverter low frequency
GI series off grid low frequency Pure sine wave UPS inverter, it range from 1kw ~6kw, transfer efficiency >90%, switch time <4ms, inbuilt 35A AC charger / AVR stablizer / intelligent cooling system, using latest toroidal tranformer, triple surge power, 64-Bits DSP control chipset.
Product Description
Details data sheet
| MODEL | GI-102 | GI-152 | GI-202 | GI-302 | GI-402 | GI-502 | GI-602 | GI-702 |
| RATED POWER | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | 7KW |
| SURGE POWER | 3KW | 4.5KW | 6KW | 9KW | 12KW | 15KW | 18KW | 21KW |
| INPUT | ||||||||
| VOLTAGE | 220VAC | |||||||
| SELECTABLE VOLTAGE RANGE | 145-265VAC | 170-265VAC | ||||||
| FREQUENCY RANGE | 50HZ/60HZ±5HZ | |||||||
| OUTPUT | ||||||||
| AC VOLTAGE REGULATION(BATT. MODE) | (DC BATT.MODE)220VAC±3% | |||||||
| TANSFER TIME | ≤5ms | |||||||
| WAVE FORM | PURE SINE WAVE | |||||||
| BATTERY | ||||||||
| BATTERY VOLTAGE | 12V/24V | 24V/48V | ||||||
| FLOATING CHARGE VOLTAGE | 13.8V(12V)/27.6V(24V)/55.2V(48V) | |||||||
| OVERCHARGE PROTECTION | 17V(12V)/34V(24V)/68V(48V) | |||||||
| AC CHARGER | ||||||||
| STANDBY POWER COMSUMPTION | 15W | |||||||
| MAXIMUM AC CHARGE CURRENT | 35A | |||||||
| PHYSICAL | ||||||||
| DIMENSION,D*W*H(MM) | 530*335*250MM | 740*335*275MM | ||||||
| G.W.(KGS) | 12 | 14 | 15.6 | 20.3 | 26.9 | 30 | 34.4 | 35 |
| ENVIRONMENT | ||||||||
| HUMIDITY | 0~95%(NO CONDESNSATION) | |||||||
| OPERATING TEMPERATURE | 0~60℃ | |||||||
| STORAGE TEMPERATURE | 0~60℃ | |||||||
| *PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT FURTHER NOTICE | ||||||||
