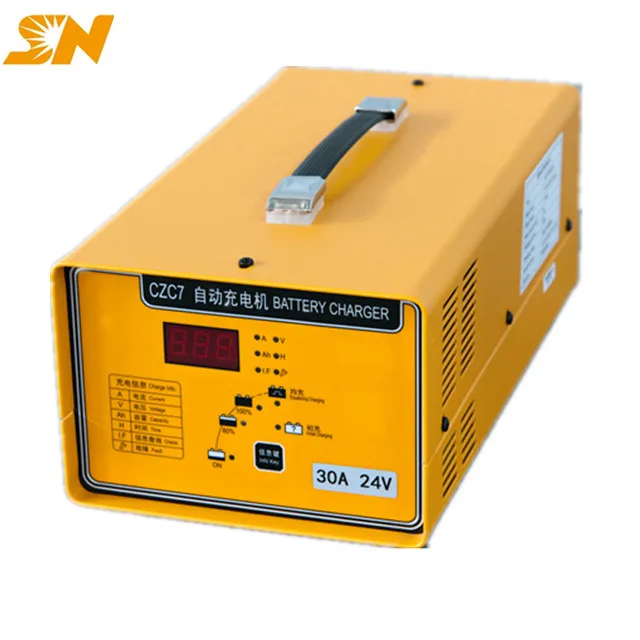

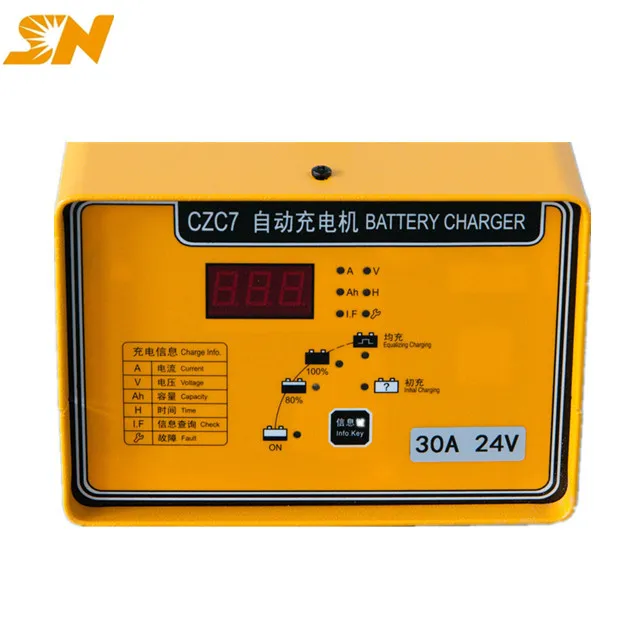

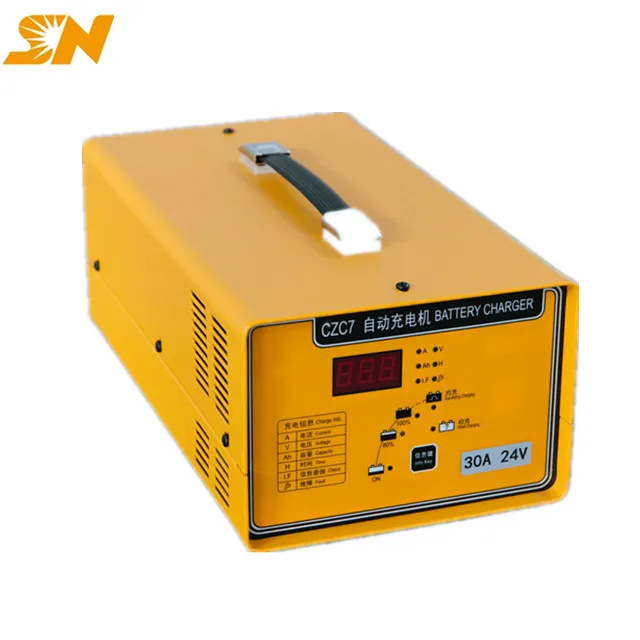

Shineng CZC7 12v 10 amp high frequency battery charger for nissan leaf forklift agv ev golf cart and so on
- Category: >>>
- Supplier: Shanghai Shineng Electrical Equipment Co. Ltd.
Share on (62171107574):
Product Overview
Description
Introduction
♦ Combine the high frequency switch mode with micro-processor in one unit to reach the best charging effect.
♦ Effectively prolong the working life period of the battery.
♦ Automatically ccontrol harging process according to the program without operator
♦ Using IWUIa or IWUUa multi-stage charging curve which is suitable for liqud added or free maintance lead acid battery.
♦ Protect function such as open circuit, over load, short circuit and over temperature.
♦ Be able to enquire past 20 times charging record.
♦ Balanced charging to ensure the consistency of battery cell capacity.
♦ Initial charging function for new and long no-used batteries.
♦ It have the function of self starting again if the power interrupted.
♦ Apply to electrical pallet, electric lift, electric truck, electric tour car and various kinds of small size electric vehicles.
♦ Parameters:
| Type(A/V) | Rated input power supply(V) | Rate charging current(A) | Charger input power(KW) | Chargeable battery voltage(V) | Changed battery range(AH) | Size(mm) | Weight(KG) |
| CZC7-20A/24V | Single phase 50/60HZ | 20 | 0.72 | 24 | 130-165 | 200*365*140 | 6.6 |
| CZC7-25A/24V | 25 | 0.9 | 24 | 165-205 | |||
| CZC7-30A/24V | 30 | 1.08 | 24 | 200-250 | |||
| CZC7-35A/24V | 35 | 1.26 | 24 | 230-290 | |||
| CZC7-20A/48V | 20 | 1.44 | 48 | 130-165 | |||
| CZC7-40A/24V | 40 | 1.44 | 24 | 265-330 | 220*405*140 | 8.3 | |
| CZC7-50A/24V | 50 | 1.8 | 24 | 330-415 | |||
| CZC7-30A/36V | 30 | 1.62 | 36 | 200-250 | |||
| CZC7-25A/48V | 25 | 1.8 | 48 | 165-205 | |||
| CZC7-30A/48V | 30 | 2.16 | 48 | 200-250 | |||
| CZC7-30A/72V | 30 | 3.24 | 72 | 200-250 | 300*430*180 | 11.0 |
Related Products
Company Information
Packaging & Shipping
FAQ
Q1: Are you trading company or factory?
We are a professional battery manufactuer since 1984. More than 30 years history.
Q2: Do you have warranty of the battery charger?
All the products have warranty of one year, and we will always offer technical support.
Q3:Do you have certificate?
We have CE ISO certificate and will apply other certificate if necessay.
Q4: What does your products apply to?
The charger is apply to different kinds of batteries such as lead acid and lithium battery.
Also we are the nominated supplier for most of the forklift brand such as LINDE, HYSTER,NOBLIFT,HELI,HC etc.
Q5: How do you control the quality?
We have professional technical team who will always test the stability of the products and develop new products. Each kinds of new products will be tested for thousands of times before publish.
And Every product will be inspected before delivery.
