china inverter solar Cheap price 10kw inverter single phase Tier 1 on grid solar inverter for south east asia countries
- Category: >>>
- Supplier: Nantong Gamko New Energy Co. Ltd.
Share on (62171241941):
Product Overview
Description
Product details

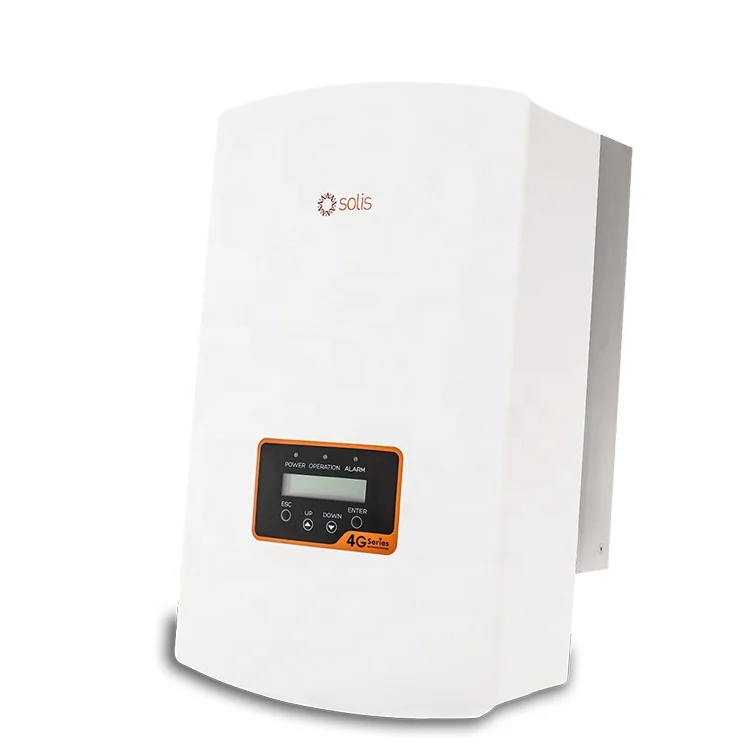

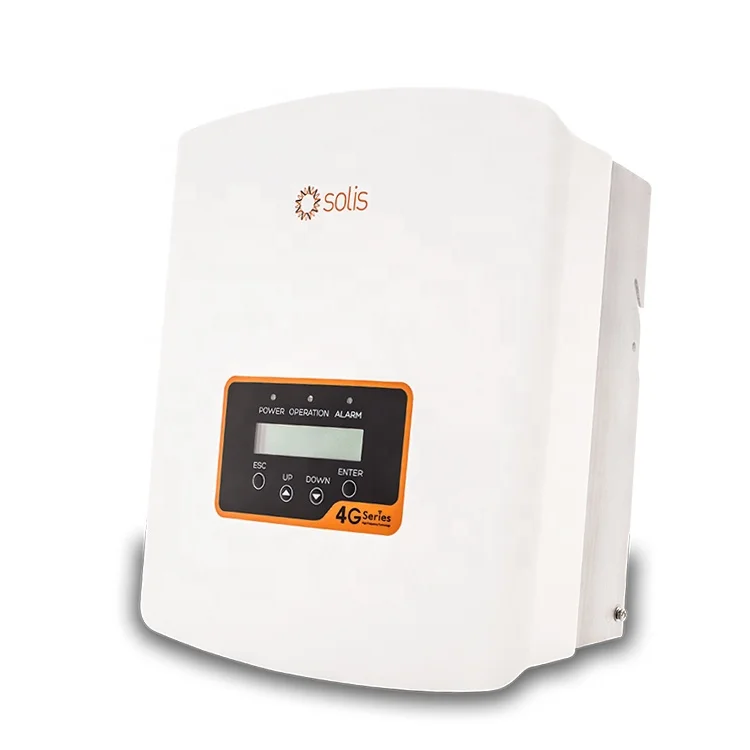

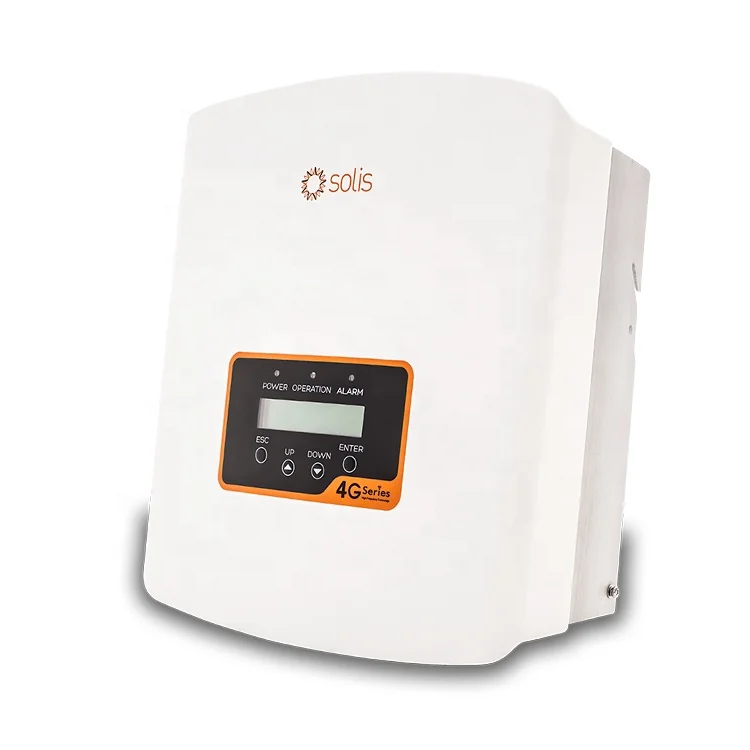

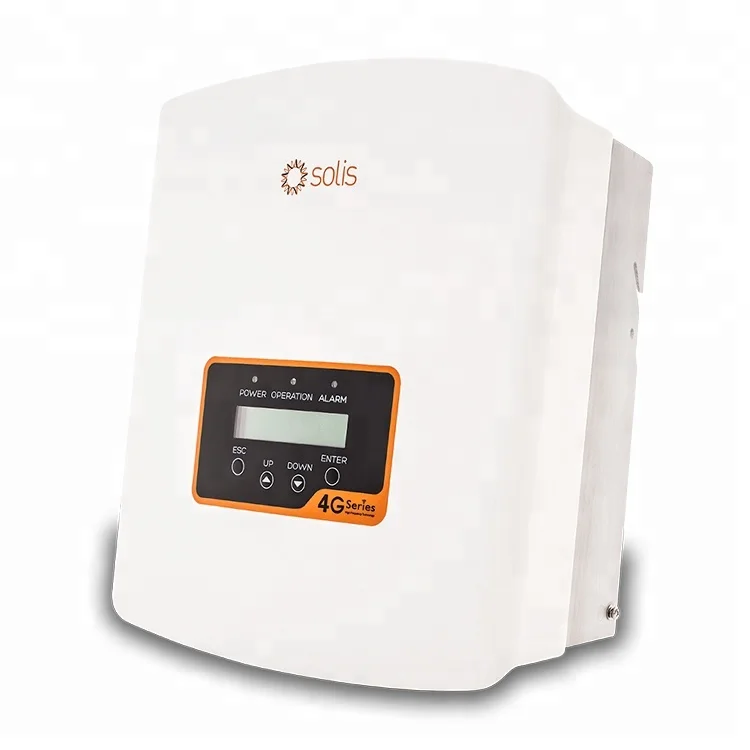

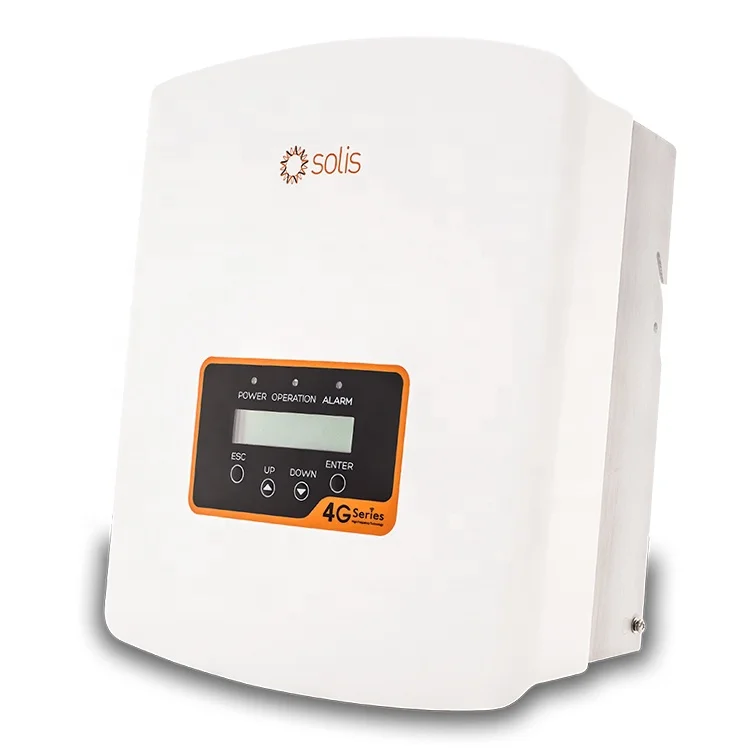

Solis-1P(7-10)K-4G
Features:
▶ Solis 1P 4G Single Phase Range
▶ High frequency switching technology - Smaller, smarter
▶ Three MPPT design with precise MPPT algorithm
▶ Over 98.1% Max. effciency
▶ RS485, WiFi/ GPRS (optional) interface
▶ WiFi monitoring available - plus access to Android and Apple apps
Model:
Solis-1P7K-4G
Solis-1P8K-4G
Solis-1P9K-4G
Solis-1P10K-4G
Datasheet | ||||||||||||||
Model Name | Solis-1P7K-4G | 1P3K-4G | Solis-1P8K-4G | 1P4K-4G | Solis-1P9K-4G | Solis-1P10K-4G | 1P6K-4G | |||||||
Input DC | ||||||||||||||
Max. DC input power(kW) | 8 | 3.5 | 9.2 | 4.6 | 10.8 | 11.5 | 6.6 | |||||||
Max. DC input voltage(V) | 600 | 600 | ||||||||||||
Start-up voltage(V) | 120 | 120 | ||||||||||||
MPPT voltage range(V) | 100-500 | |||||||||||||
Max. input current(A/B) | 10A+10A+10A | |||||||||||||
Max. Short Circuit current for each MPPT | 15.6A+15.6A+15.6A | |||||||||||||
MPPT number/Max input strings number | 3/A:1; B:1; C:12/A:1; B:1 | |||||||||||||
Output AC | ||||||||||||||
Rated output power(kW) | 7 | 3 | 8 | 4 | 9 | 10 | 6 | |||||||
Max. apparent output power(kVA) | 7.7 | 3.3 | 8.8 | 4.4 | 9.9 | 10 | 6 | |||||||
Max. output power(kW) | 7.7 | 3.3 | 8.8 | 4.4 | 9.9 | 10 | 6 | |||||||
Rated grid voltage(V) | 220/230 | |||||||||||||
Rated grid frequency(Hz) | 50/60 | |||||||||||||
Operation phase | Single Phase | |||||||||||||
Rated grid output current(A) | 31.8/30.4 | 13.6/13 | 36.4/34.8 | 18.2/17.4 | 40.9/39.1 | 45.5/43.5 | 27.3 | |||||||
Max. output current(A) | 33.7 | 15.7 | 36.6 | 21 | 41.3 | 45.9 | 27.3 | |||||||
Power Factor (at rated output power) | 0.8leading ... 0.8lagging | |||||||||||||
THDi (at rated output power) | <1.5% | |||||||||||||
DC injection current | <0.5%In | |||||||||||||
Efficiency | ||||||||||||||
Max. efficiency | 98.1% | 98.1% | ||||||||||||
EU efficiency | 97.6% | 97.3% | ||||||||||||
MPPT efficiency | >99.5% | |||||||||||||
Protection | ||||||||||||||
DC reverse-polarity protection | Yes | |||||||||||||
Short circuit protection | Yes | |||||||||||||
Output over current protection | Yes | |||||||||||||
Output over voltage protection | Yes | |||||||||||||
Insulation resistance monitoring | Yes | |||||||||||||
Residual current detection | Yes | |||||||||||||
Surge protection | Yes | |||||||||||||
Grid monitoring | Yes | |||||||||||||
Islanding protection | Yes | |||||||||||||
Temperature protection | Yes | |||||||||||||
Integrated DC switch | Optional | |||||||||||||
General Data | ||||||||||||||

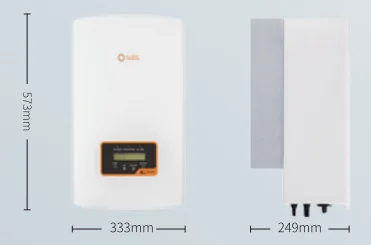

Dimensions (mm) | 333W*573H*249D | |||||||||||||
Weight (kg) | 18 | |||||||||||||
Topology | Transformerless | |||||||||||||
Self consumption (night) | <1W (Night) | |||||||||||||
Operating ambient temperature range | -25~60°C | |||||||||||||
Relative humidity | 0~100% | |||||||||||||
Ingress protection | IP65 | |||||||||||||
Noise emission(typical) | <30dBA | |||||||||||||
Cooling concept | Natural convection | |||||||||||||
Max. operation altitude | 4000m | |||||||||||||
Designed lifetime | >20 years | |||||||||||||
Grid connection standard | EN50549, AS4777.2:2015, VDE0126-1-1, IEC61727, VDE N4105, G98, G99 | |||||||||||||
Safety / EMC standard | IEC62109-1/-2, NB/T 32004, EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 | |||||||||||||
Features | ||||||||||||||
DC connection | MC4 | |||||||||||||
AC connection | IP67 rated plug | |||||||||||||
Display | LCD, 2×20 Z. | |||||||||||||
Communication connections | 4 Pin RS485 connector | |||||||||||||
Monitoring | WiFi or GPRS | |||||||||||||
Warranty | 5 Years /10 Years /15 Years /20 Years | |||||||||||||
Company Profile
Production Process
FAQ
GAMKO ENERGY FAQ
Q: We like to buy your panels, cause the price is good, but the price is not most
important, I don’t like to buy the trash, how do I know your solar panel have a
good quality, everybody say they are A grade panels, how I can trust you?
A: the first, we make new panels not stock panel, we will providing the flash test report as below:
Series number, Power rates , voltage, current at this flash test report for individual solar panel,
The stock panel have no any database. You don’t know if they are defective or broken panels.
But its not enough.
Please ask Gamko provide the flash test photo and EL photo for each panel. The flash test photo
and EL test photo as below:
The stock panel have no any database. You don’t know if they are defective or broken panels.
But its not enough.
Please ask Gamko provide the flash test photo and EL photo for each panel. The flash test photo
and EL test photo as below:
As a manufacturer, we are obliged to provide those report.
These report can provide after produce, before you make the rest payment.
These report can provide after produce, before you make the rest payment.
Q: I am also worry about my payment safe, How can you guarantee me 100%
payment security?
A: Not only the buyer worry about the payment safe, the supplier also worry about that.
We were use 30% advanced as deposit, rest against BL copy, some of our customer pick up the
cargo with BL copy(So many country can do this way now) Some of our customer refuse to
make the rest payment cause they can waiting until customs auction. (The consignee has title to
the goods and the goods cannot be transshipped or returned without consignee's consent).
So if you do worry about the payment safety so either I, lets do “Alibaba Trade Assurance
Payment” for both safety.
The Trade Assurance service as below:
1, Payment protection
Trade Assurance will cover all payments made during the ordering process up to 30 days after
you receive the goods.
2, Product‐quality protection
Your order will be covered in the event that the product(s) do not match the details outlined in
your contract with the supplier*.
3.Shipping protection
Your order will be shipped on time according to the details of your contract with the supplier. In
the event of a delay, you will be eligible for a refund.
4.Protection period
Your order will be protected up to 30 days after you receive the goods.
Link: https://tradeassurance.alibaba.com/
Of cause we also take TT 30% advanced and rest before delivery, letter of credit.(LC at sights)
Q: How do you comply with your warranty terms if the solar products broken or
defective?
A: It's a hard question to answer. After all, we are not a big company like Trina or Jinko , so we
buy the quality insurance, After 10th October 2018, you buy the panels from GAMKO, bar code
number from GK20181010 ‐ GK20191010 , if there is any problem, in the case of my company
does not undertake, can take a loss by insurance company, however, we believe our quality, and I
believe if any quality problem, you can get the refund from our company directly. The warranty
with Stamp come with the cargoes.
The insurance as below:
We were use 30% advanced as deposit, rest against BL copy, some of our customer pick up the
cargo with BL copy(So many country can do this way now) Some of our customer refuse to
make the rest payment cause they can waiting until customs auction. (The consignee has title to
the goods and the goods cannot be transshipped or returned without consignee's consent).
So if you do worry about the payment safety so either I, lets do “Alibaba Trade Assurance
Payment” for both safety.
The Trade Assurance service as below:
1, Payment protection
Trade Assurance will cover all payments made during the ordering process up to 30 days after
you receive the goods.
2, Product‐quality protection
Your order will be covered in the event that the product(s) do not match the details outlined in
your contract with the supplier*.
3.Shipping protection
Your order will be shipped on time according to the details of your contract with the supplier. In
the event of a delay, you will be eligible for a refund.
4.Protection period
Your order will be protected up to 30 days after you receive the goods.
Link: https://tradeassurance.alibaba.com/
Of cause we also take TT 30% advanced and rest before delivery, letter of credit.(LC at sights)
Q: How do you comply with your warranty terms if the solar products broken or
defective?
A: It's a hard question to answer. After all, we are not a big company like Trina or Jinko , so we
buy the quality insurance, After 10th October 2018, you buy the panels from GAMKO, bar code
number from GK20181010 ‐ GK20191010 , if there is any problem, in the case of my company
does not undertake, can take a loss by insurance company, however, we believe our quality, and I
believe if any quality problem, you can get the refund from our company directly. The warranty
with Stamp come with the cargoes.
The insurance as below:
If any more question, Contact us!
