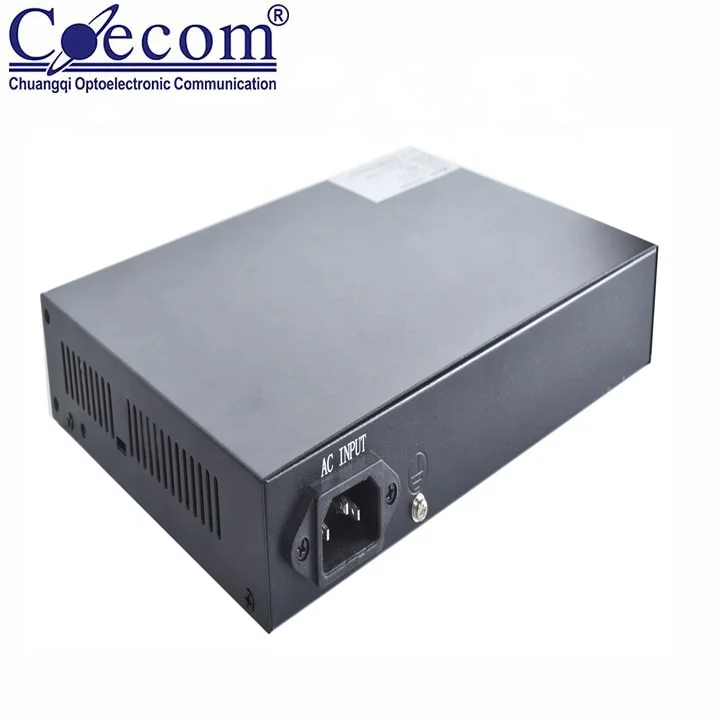

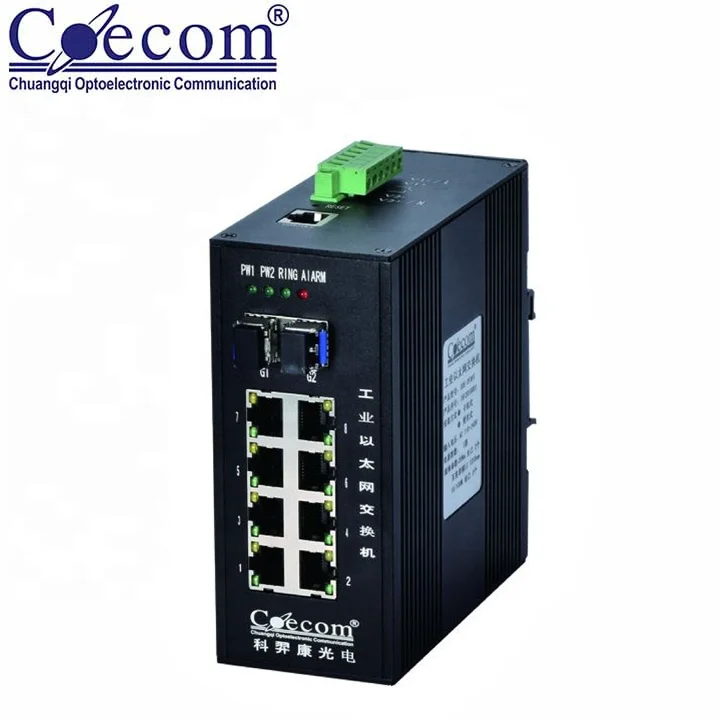

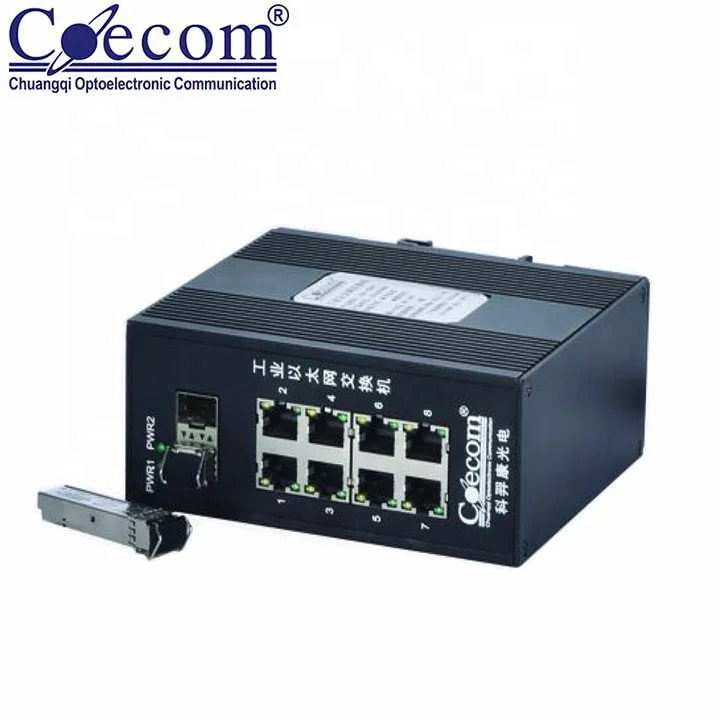

10/100/1000M Industrial Ethernet Switch Optical Fiber LC Gigabit Ethernet Switch for Optical Fiber Equipment
- Supporting two 1000M optical ports and eight 10/100M adaptive network ports;
- Setting optics defult LC(SFP);
- Using industrial grade optical module and chip to keep long-term running in extreme temperature environment;
- Equipping with strong surge protection on (2KV) per port;
- Adopting the “store&forward” mechanism to handle packet transfer and support MDI-MDIX Auto-Negotiation function;
- Reserving POE module interface to support POE power supply;

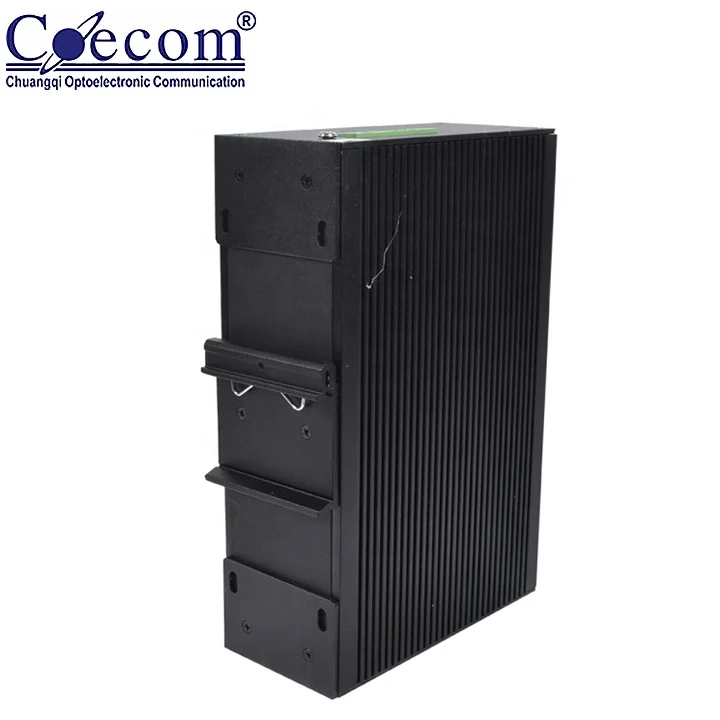

- Having two installation ways DIN-Rail and Wall-Mount;
- Conforming to FCC, CE, ROHS, etc.
Packing

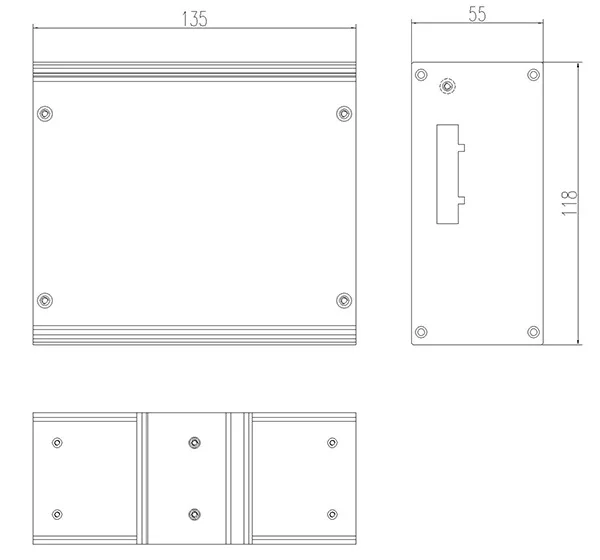

Dimension(mm)

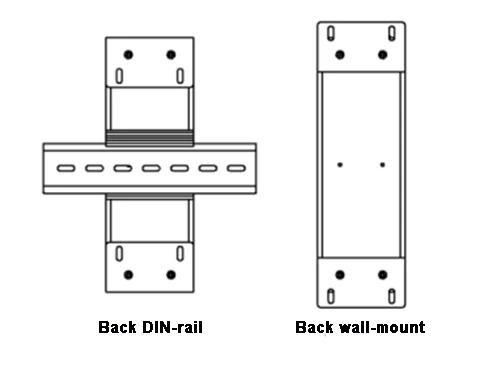

Mounting
Product parameters
10/100/1000M Industrial Ethernet Switch Optical Fiber LC Gigabit Ethernet Switch for Optical Fiber Equipment
|
Product name |
10/100/1000M Industrial Ethernet Switch Optical Fiber LC Gigabit Ethernet Switch for Optical Fiber Equipment 2*LC+8*RJ45 |
|
Product type |
COE-2G8FE-LC/S20-KI-ADC110- 265V |
|
Fiber optic interface port |
2*LC single mode duplex |
|
Network interface port |
8*RJ45 socket, MDI /MDIX Auto-Negotiation |
|
Wavelength |
850/1310/1550nm(Optional) |
|
Fiber optic rate |
1.25Gbps |
|
Network rate |
10/100/1000M Adaptive Port Rate |
|
Optical transmission |
Single mode≤20km, others can be customized |
|
Network transmission |
Cat5, Cat5e or higher frequency twisted pairs |
|
Outline dimension |
55×135×118(mm) |
|
Power supply |
ADC110- 265V |
|
IEEE standard |
IEEE802.3i 10Base-T;IEEE802.3u 100Base-TX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X ; IEEE802.3x; |
|
Power consumption |
5W |
|
Indicator light |
2pcs (PWR1,PWR2) |
|
Weight |
0.45kg |
|
Working environment |
Working environment:-40℃~+85℃,5~95%RH |
|
Storage temperature: -40℃~+85℃,5~95%RH |
|
|
Installation method |
DIN-Rail mounted / Wall-mounted optional |
|
Note |
We also supply other specifications and products, please contact with our sales. |
