Беспроводной модуль приемопередатчика 2,4G RTL8188FTV 802.11n USB
- Category: WiFi Modules >>>
- Supplier: Shenzhen Ofeixin Technology Limited
Share on (62171518267):
Product Overview
Description
Product Description
Introduction

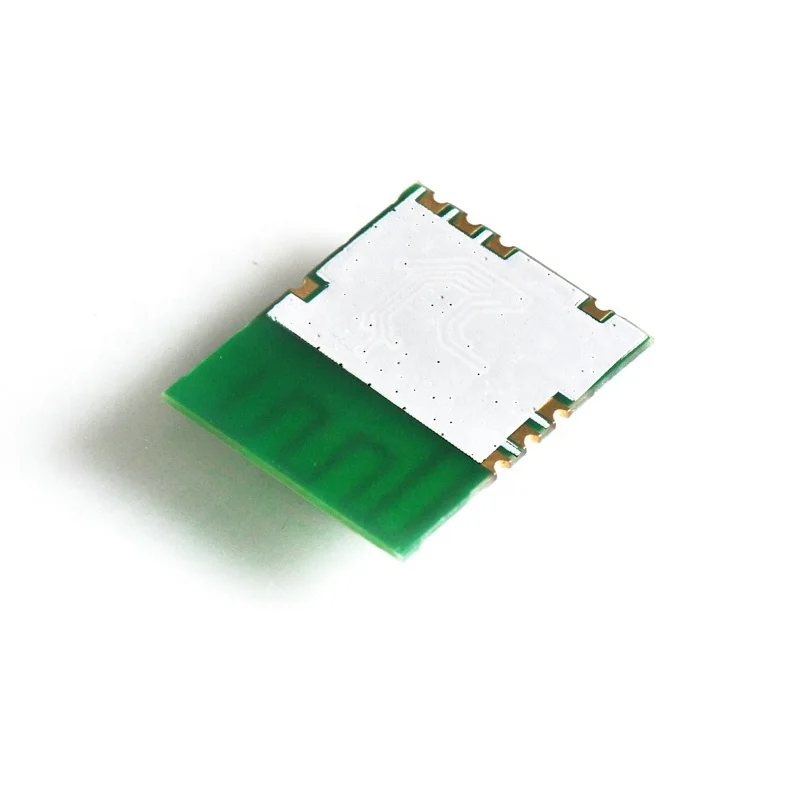

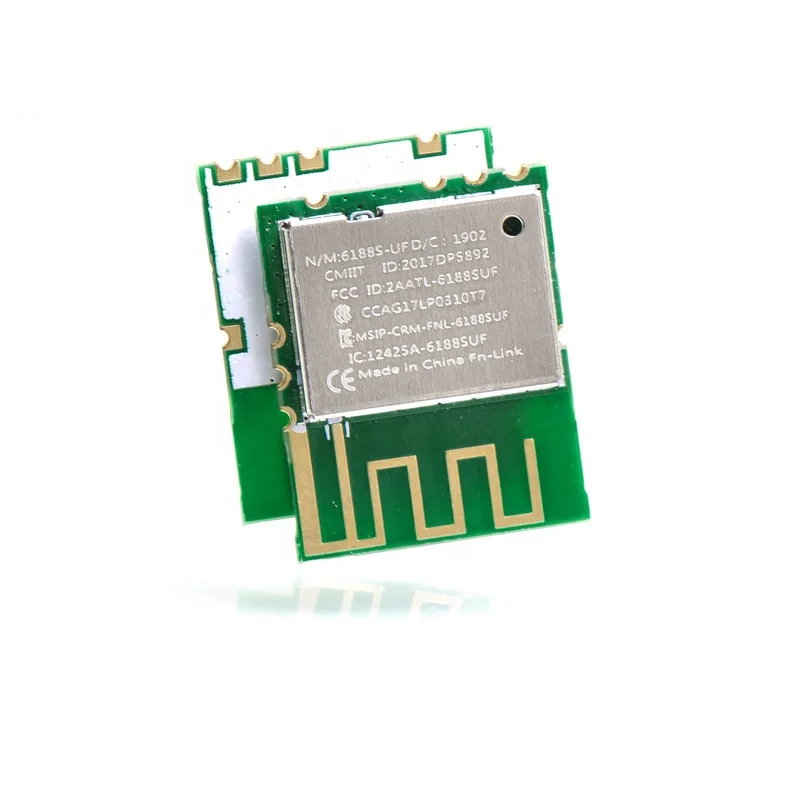

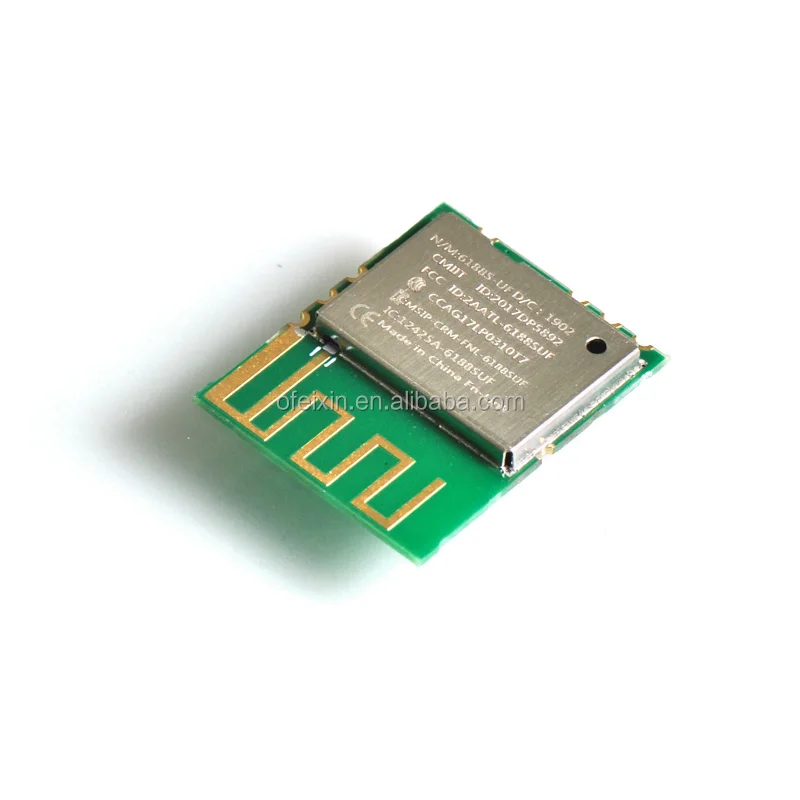

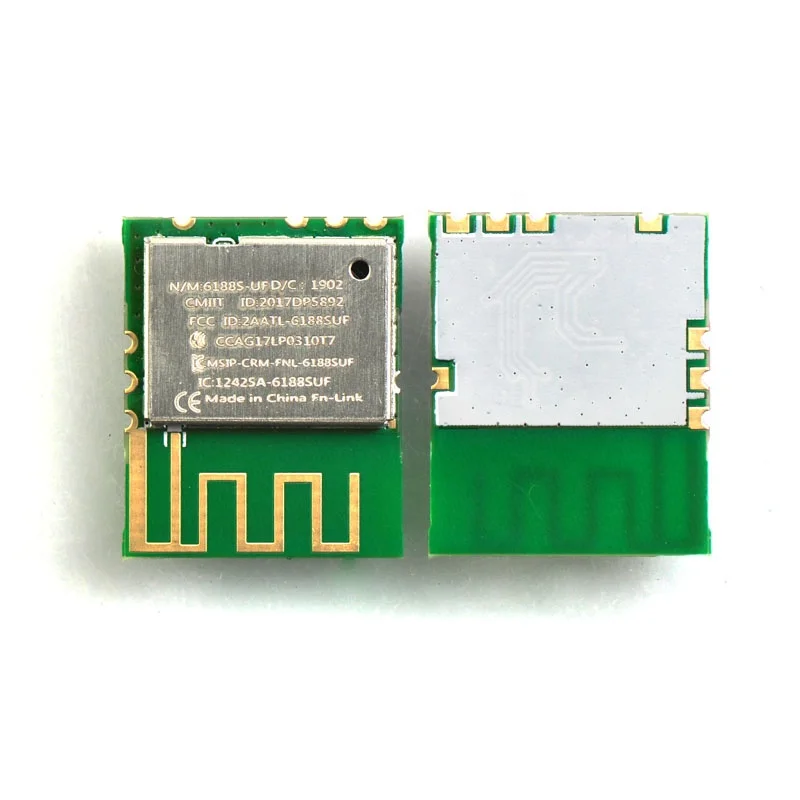

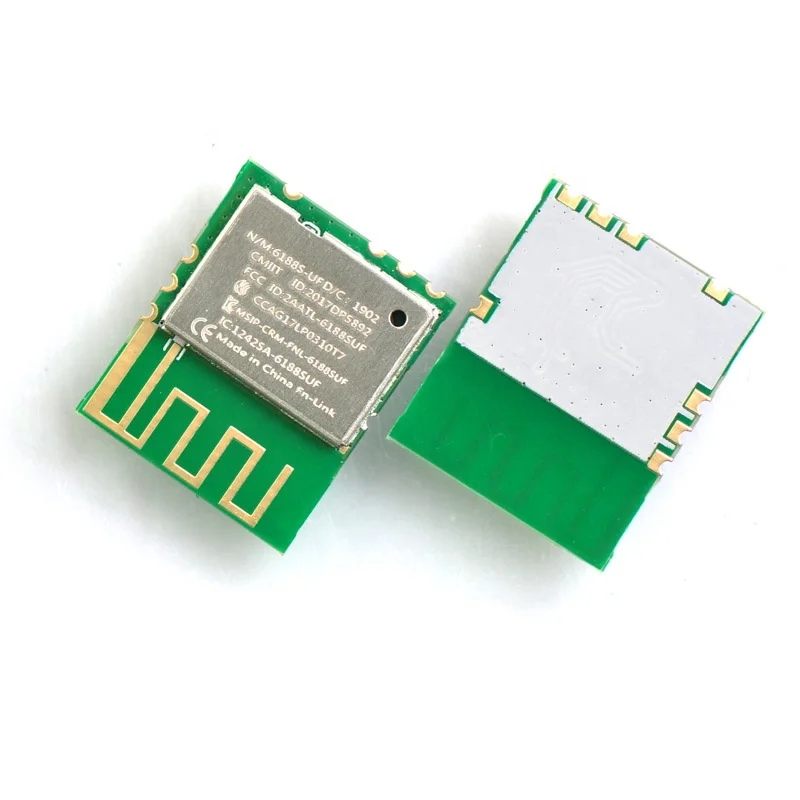

6188S-UF is a small size and low profile of WiFi module, board size is 14.8mm*18.2mm with module thickness of 1.9mm. It can be easily manufactured on SMT process and highly suitable for tablet PC, ultra book, mobile device and consumer products. It provides USB interface for WiFi. The module provides simple legacy and 20MHz/40MHz co-existence mechanisms to ensure backward and network compatibility.
6188S-UF uses highly integrated Wi-Fi single chip based on advanced COMS process. 6188S-UF integrates whole Wi-Fi function blocks into a chip, such as USB/PCM, MAC, BB, AFE, RFE, PA, EEPROM and LDO/SWR, except fewer passive components remained on PCB.
This compact module is a total solution for Wi-Fi technology. The module is specifically developed for Smart phones and Portable devices.
Features
Operate at ISM frequency bands (2.4GHz)
USB for WiFi
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i
Enterprise level security which can apply WPA/WPA2 certification for WiFi.
WiFi 1 transmitter and 1 receiver allow data rates supporting up to 72.2 Mbps downstream and 72.2 Mbps upstream PHY rates.
Application Range:
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
& Commercial And OA Application
Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
& Industrial And Vehical Application
Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile
& Medical Application
Medical equipments/Medical instruments
& Other Consumer Electronic Products
Detailed Parameters
Model No | 6188S-UF | Main Chipset | RTL8188FTV |
WIFI/BT Interface | USB | WIFI Standards | IEEE802.11b/g/n |
Date Rates | 150Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Supported | Android /Linux/ Windows |
Operating Frequency | 2.4GHz | Operating Voltage | 3.3V |
Dimensions | L x W : 14.8x 18.2 mm | RF Chains | 1T1R |
Operating Temperature | 0℃~+70℃ | Storage Temperature | -40°C to 85°C |
Layout Recommendation
Block Diagram
Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
