High quality IP66 metal BCH Explosion proof pull box With CNEx ATEx IECEx Certificate
- Category: Conduit & Fittings >>>
- Supplier: Dewei Electric Jiangsu Co. Ltd. [Jiangsu China]Dewei Ltd.
Share on (62171837486):
Product Overview
Description
Our certificates are true and effective. Please contact us to get more information!
• Outdoor or indoor use.
• With oil resistance, acid resistance, corrosion resistance, aging resistance, explosion proof, waterproof, dust proof performance, good flexibility, compact structure, strong connection.
• According to user requirements, the pipe joint thread can be configured with ISO, G and NPT thread.
Technical Date
• Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.
• Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-7 and IEC/EN 60079-31.
• Ingress Protection: IP66, IP67 and IP 68.
• Operating Temperature Range: -60°C to +140°C.
• Material: stainless steel ,casting steel (galvanized) ,marine grade copper free aluminium light alloy.
• Ex-marking:II 2 GD
Ex e IIC Gb Ex tb IIIC Db IP68

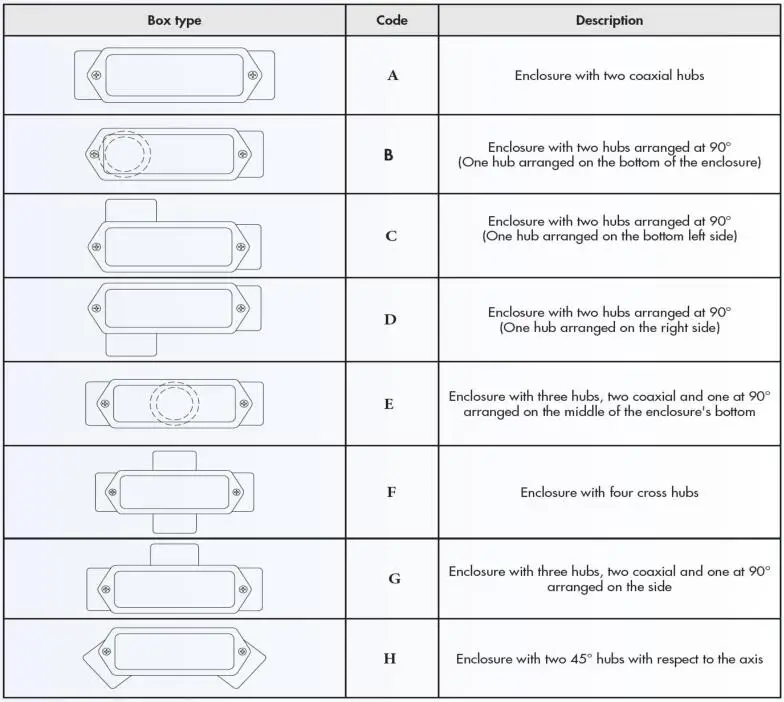

Drawings

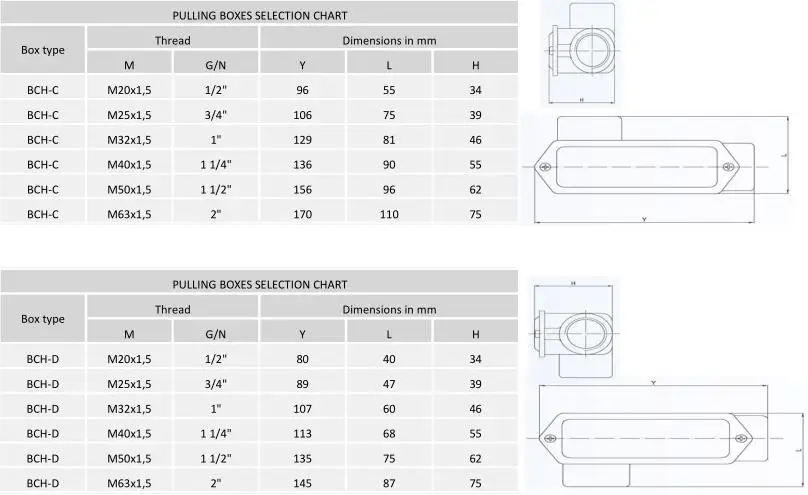

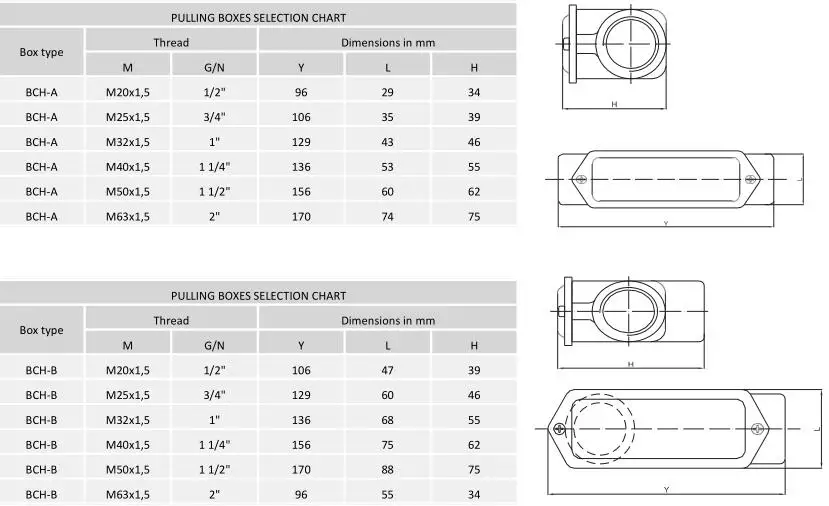

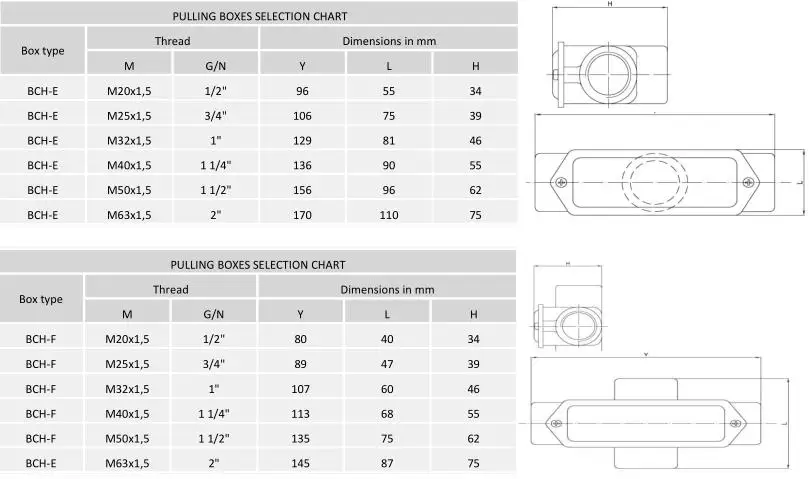

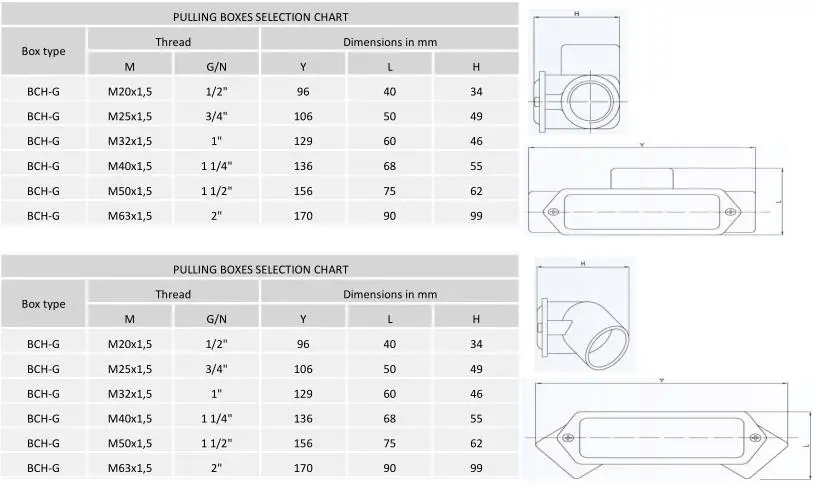

Ordering information
