25 Years Solar Panel Warranty 340w 350w 360w Pv Solar Panels Home Solar Cell Price

Share on (62171935483):


Price:$0.18-0.23

Quantity:


Product Overview

Description


25 Years Solar Panel Warranty 340w 350w 360w Pv Solar Panels Home Solar Cell Price



Product Description

m 60cells

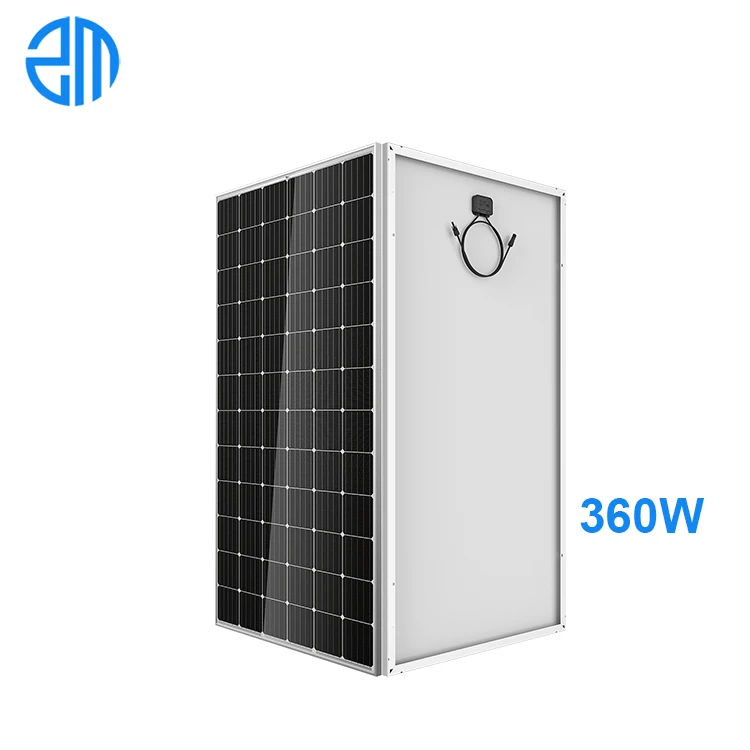

360W Mono-crystalline silicon data sheet






















































































































Model Type



ZM-A-M-360



Nominal Maximum Power (Pmax)



360W



Optimum Operating Voltage (Vmp)



39.74V



Optimum Operating Current (Imp)



9.06A



Open Circuit Voltage(Voc)



47.16V



Short Circuit Current(Isc)



9.67A



Cell Type:



156mm x 156mm



Cell Arrangement



72 cells in series



Dimensions(mm)



1956 x 992 x 35 mm



Frame(Material Corners,etc.)



Anodized aluminium alloy



Maximum Series Fuse Rating



20A



Number of Bypass Diode



3



Module Efficiency



18.60%



Cell Efficiency(%)



20.50%



Weight (KG)



22.00KG



Power Tolerance



0 to +6W



Maximum System Voltage



DC 1500V



Front Glass Thickness(mm)



3.2mm

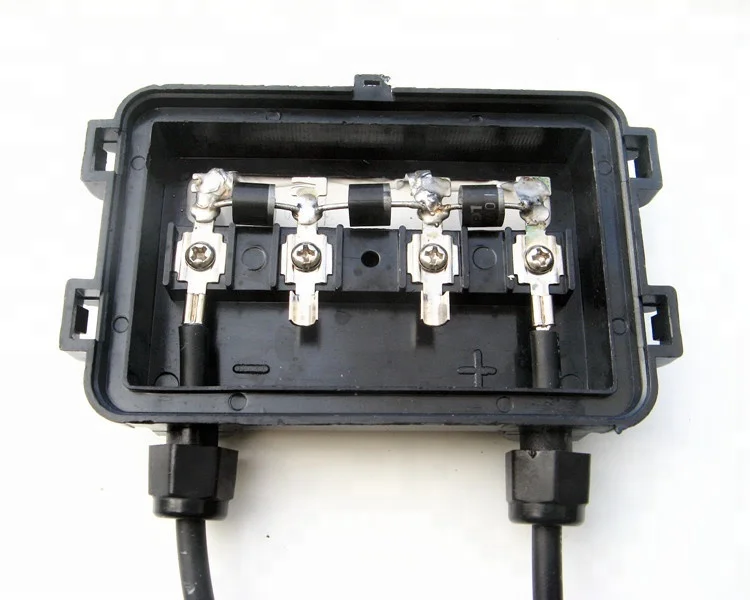

Junction- Box



IP65, 3 diodes



Cable



4mm2 (IEC) / 12AWG (UL), 900mm (650mm is optional)



Connectors



MC4 or MC4 compatible



Temperature Coefficient (Pmax)



-0.420% / ℃



Temperature Coefficient (Voc)



-0.346% /



Temperature Coefficient (Isc)



0.065% /



Norminal Operating Cell Temperature



45.3 ± 2



Temperature Range



-40°C to +85



Warranty



90% of 10 years,80% of 25 years.



Packing



carton or pallet

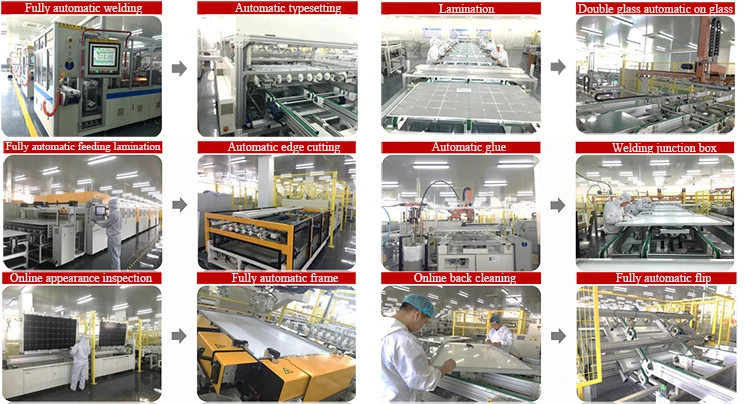

Production Flow








Related Products

















 More detailed infomation or latest catalogue,send enquiry now.



Company introduction


Yangzhou Zhongming Technology Co.,ltd is a professional manufacture of new energy products,


Mainly including solar street lights,solar battery,solar panel,solar power system,etc.


We insist on quality first,customer first.


Our products are qualified with CE,ROHS,IEC,FCC,TUV,CCC,ISO,SONCAP,SASO certification.

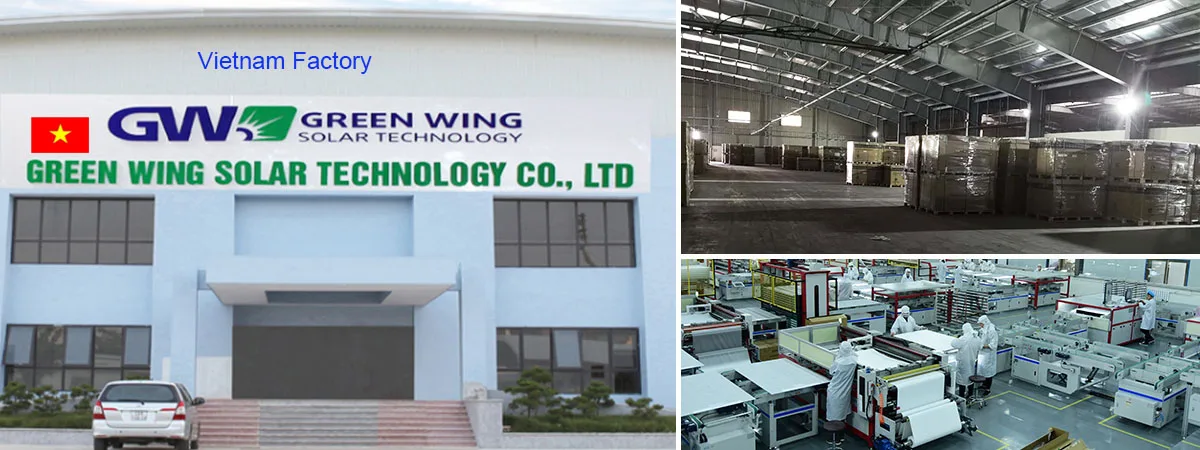

We also have a factory in Vietnam, specialized in solar panels, annual output:1000MW Your satisfaction is our goal!









_03.jpgcase






Payment terms


































Payment Term












T/T



EXW






30% T/T in advance, the balance before shipment



FOB



CFR(C&F)



 30% T/T in advance,  the balance before shipment or against copy of B/L.



CIF



L/C



L/C amount above USD50,000, we can accept L/C at sight



West Union






Amount lower than USD5000






Delivery Time



15~20days after receiving down payment






We welcome use Trade Assurance order, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount





Packaging & Shipping
















FAQ




Q1. Can I have a sample order?


A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. How to proceed an order?


A: Firstly let us know your requirements or application.


Secondly We quote according to your requirements or our suggestions.


Thirdly customer confirms the samples and places deposit for formal order.


Fourthly We arrange the production.


Q3. Is it OK to print my logo on product?


A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q4. Do you offer guarantee for the products?


A: Yes, we offer 3-5 years warranty to our products.










 More detailed infomation or latest catalogue,send enquiry now.
