New RichAuto Plasma Cutting machine CNC Controller A12e A12S Handle DSP remote Controller For CNC Router A1x Machine
- Category: Woodworking Machinery Parts >>>
- Supplier: Beijing RichAuto S&T Co. Ltd.
Share on (62172069848):
Product Overview
Description
Company Information
COMMENT --- RichAuto products are widely accepted and received praise by the customers both in China and abroad.
HONOR --- China high-quality supplier in engraving CNC machine industry .
Mr. Huang the President of RichAuto is also the Vice President of Engraving Machines Association of China.
SERVICE --- Offer full range numerical control solutions.
DESIGN PRINCIPLE --- Specialized & Practical
RichAuto is CNC motion control system independently developed by Beijing ruizhitianhong and it can be widely applied to machinery,
advertisement, woodworking,moldengraving machine, laser, flame, plasma cutting machine, and so on in the machine control field.
RichAuto make DSP as the core control system, High-speed processing operation is the microcontroller, PLC systems can’t match;
Use embedded structure, High degree of integration, Strong stability, easy to installation and operation;
U disk support, Removable storage card reader, With USB Interface, High speed transfer,Plug and play the full realization of all work offline.
AutoNow A1X Motion Control System | Model | Name |
Three-axis Linkage Motion Control System | ||
Plasma Cutting Motion Control System | ||
A14 | Dispensor Motion Control System | |
Multi-spindle Motion Control System | ||
A115 | Double Z Motion Control System | |
A16 | Side-spindle Motion Control System | |
Four-axis Linkage Motion Control System | ||
A123 | Four-axis Linkage+ Multi-spindle Motion Control System | |
A132 | Lathe Motion Control System |
RichAuto B1X series model
| AutoNow B1X motion control system | Model | Name |
| B11 | 3 axis linkages motion control system | |
| B15 | Multi-spindle motion control system | |
| B18 | 4 axis linkages motion control system |
RichAuto F1X series model
| AutoNow F1X motion control system | Model | Name |
| F131 | 3 axis carving motion control system | |
| F135 | 3 axis cylinder+ Multiple Spindlemotion control system | |
| F141 | 4 axis 3D carving control system | |
| F1410E | stone specialized Motion Control System |
Product Description
Features:
1. Adopting position control mode,support 3-axis and 4-axis linkage motion control,double Y drive.
2. Standard with 8 Input/Output interface board.
3. Support various processing format, such as G code, PLT, bitmap and DXF etc.
4. Intelligent memory function,support power failure protection and breakpoint processingfunction.
5. Support portable storage mode function.
6. Multi-coordinate memory function. Provide 9 work coordinates system, the user can switch among the 9 coordinates, each coordinate system can save a process origin information.
7. Support adjusting spindle frequency during processing. The spindle frequency from 0 to maximum frequency is divided into 8 gears, 1 - 8 gear can be processed directly adjust upand down without suspend processing.
8. Support adjusting speed ratio during processing. Users can adjust the speed ratiofrom 0.1-1,ascending or descending per 0.1 numerical.
9. Simple manual operation mode.Including-Continue,Step,Dist, manual operation becomes more simple and convenient.
10. SupportM,F code and otherexpandedcodes,special code can be customized according to actual request.
11. Built-in 512 Mbmemory.Communication by USB interface.

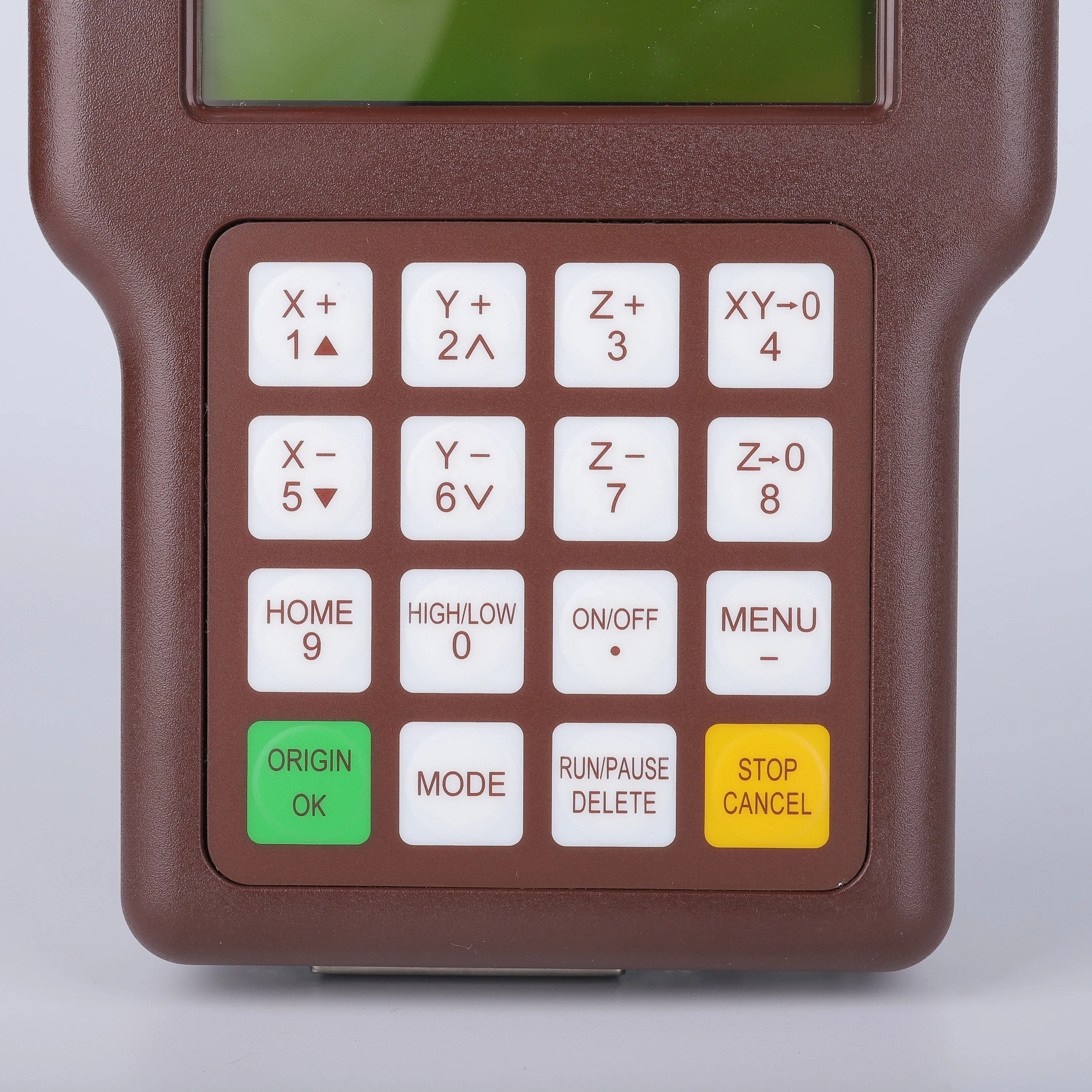

12. Unique handheld form to realizeholding by one hand.Liquid crystal display and 16 buttonsmake operating intuitive and flexible.No longer dependent on the computer to realize off-line operation.
13. Self-testfunction,systemsupports I/O signal detectioncapabilities to make remote maintenance easy.
14. Support multiple languages, such as Spanish, French, Arabic, etc.
15. System supports automatically dynamic upgrading that make remote operationandremote maintenanceconvenient.
2. Standard with 8 Input/Output interface board.
3. Support various processing format, such as G code, PLT, bitmap and DXF etc.
4. Intelligent memory function,support power failure protection and breakpoint processingfunction.
5. Support portable storage mode function.
6. Multi-coordinate memory function. Provide 9 work coordinates system, the user can switch among the 9 coordinates, each coordinate system can save a process origin information.
7. Support adjusting spindle frequency during processing. The spindle frequency from 0 to maximum frequency is divided into 8 gears, 1 - 8 gear can be processed directly adjust upand down without suspend processing.
8. Support adjusting speed ratio during processing. Users can adjust the speed ratiofrom 0.1-1,ascending or descending per 0.1 numerical.
9. Simple manual operation mode.Including-Continue,Step,Dist, manual operation becomes more simple and convenient.
10. SupportM,F code and otherexpandedcodes,special code can be customized according to actual request.
11. Built-in 512 Mbmemory.Communication by USB interface.
12. Unique handheld form to realizeholding by one hand.Liquid crystal display and 16 buttonsmake operating intuitive and flexible.No longer dependent on the computer to realize off-line operation.
13. Self-testfunction,systemsupports I/O signal detectioncapabilities to make remote maintenance easy.
14. Support multiple languages, such as Spanish, French, Arabic, etc.
15. System supports automatically dynamic upgrading that make remote operationandremote maintenanceconvenient.
Packaging & Shipping

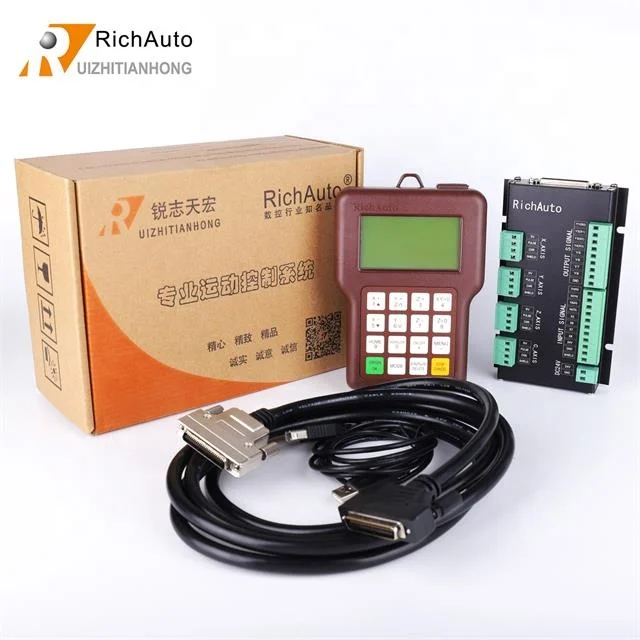

Package including :
(1)DSP Handle;

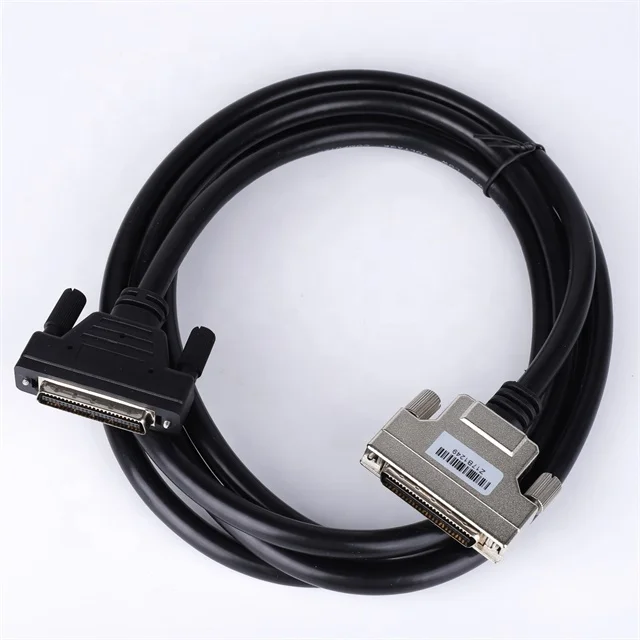

(1)50 Core Cable
(1)USB Cable;

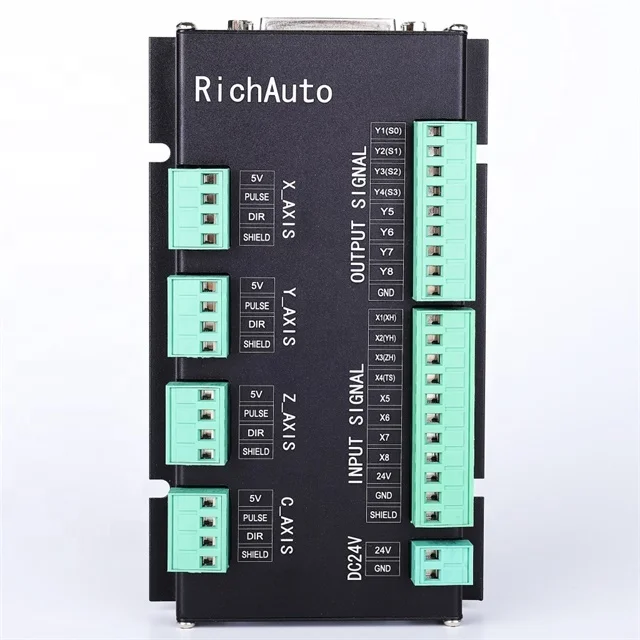

(1)8 I/O Wiring board;
(1) Instruction manual
