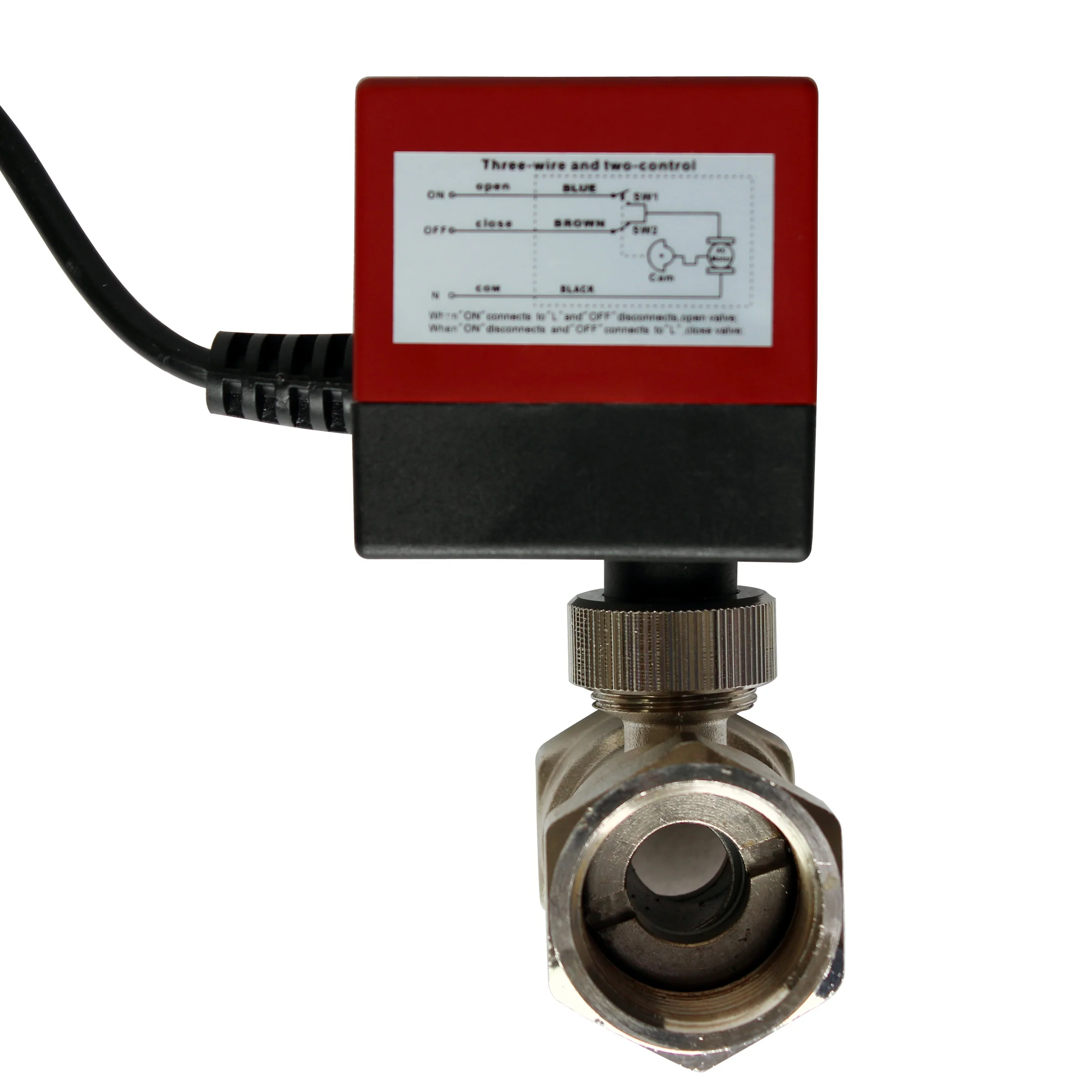

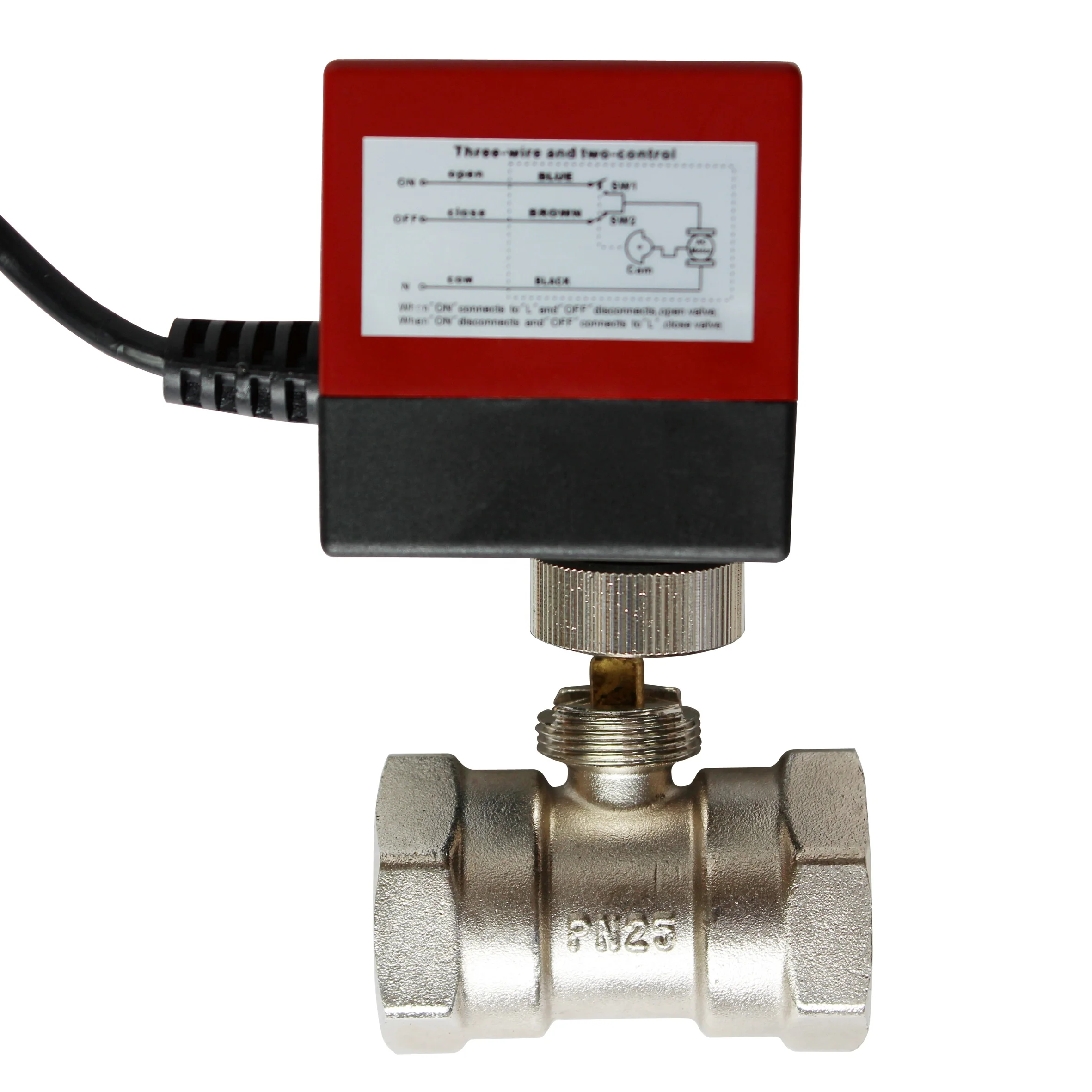

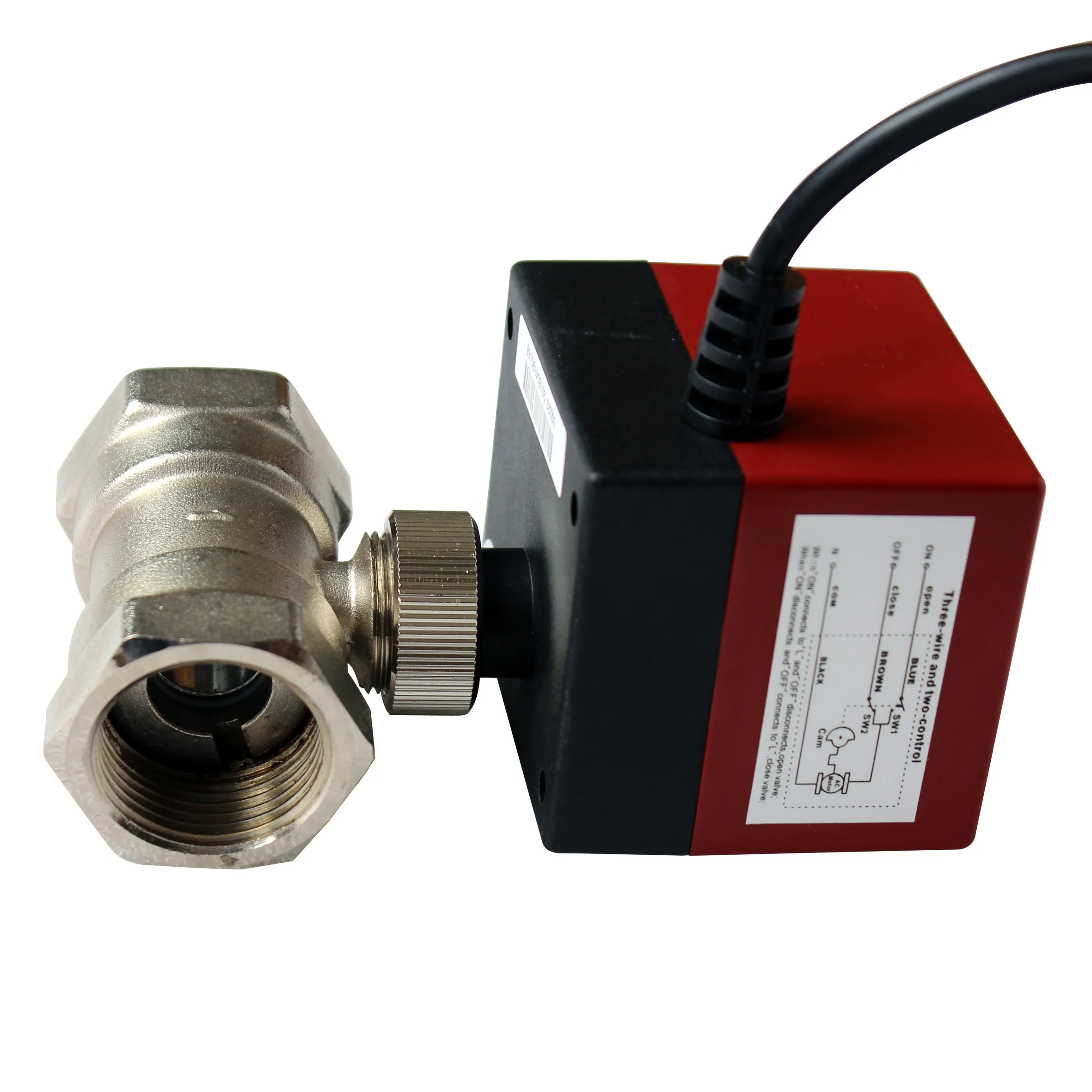

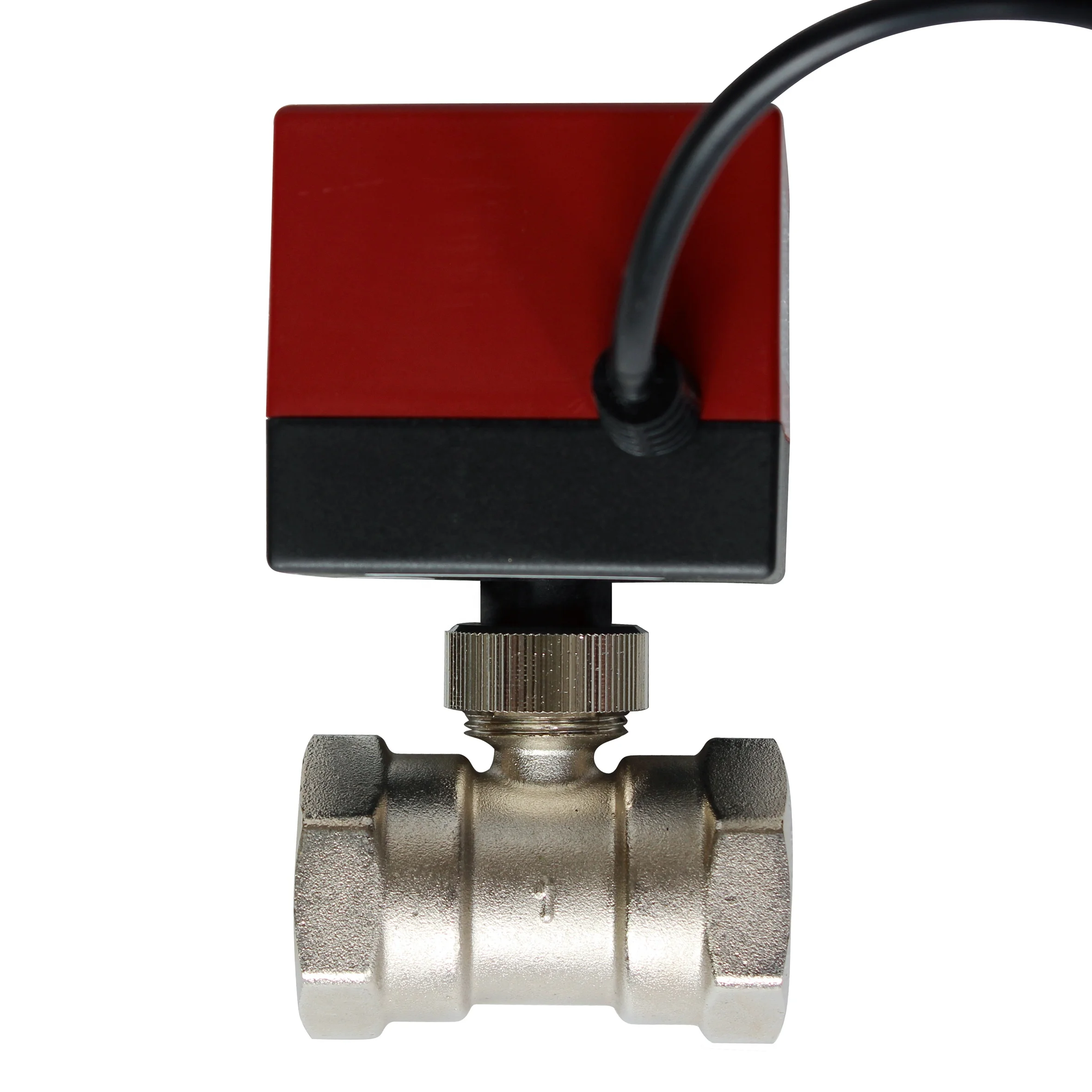

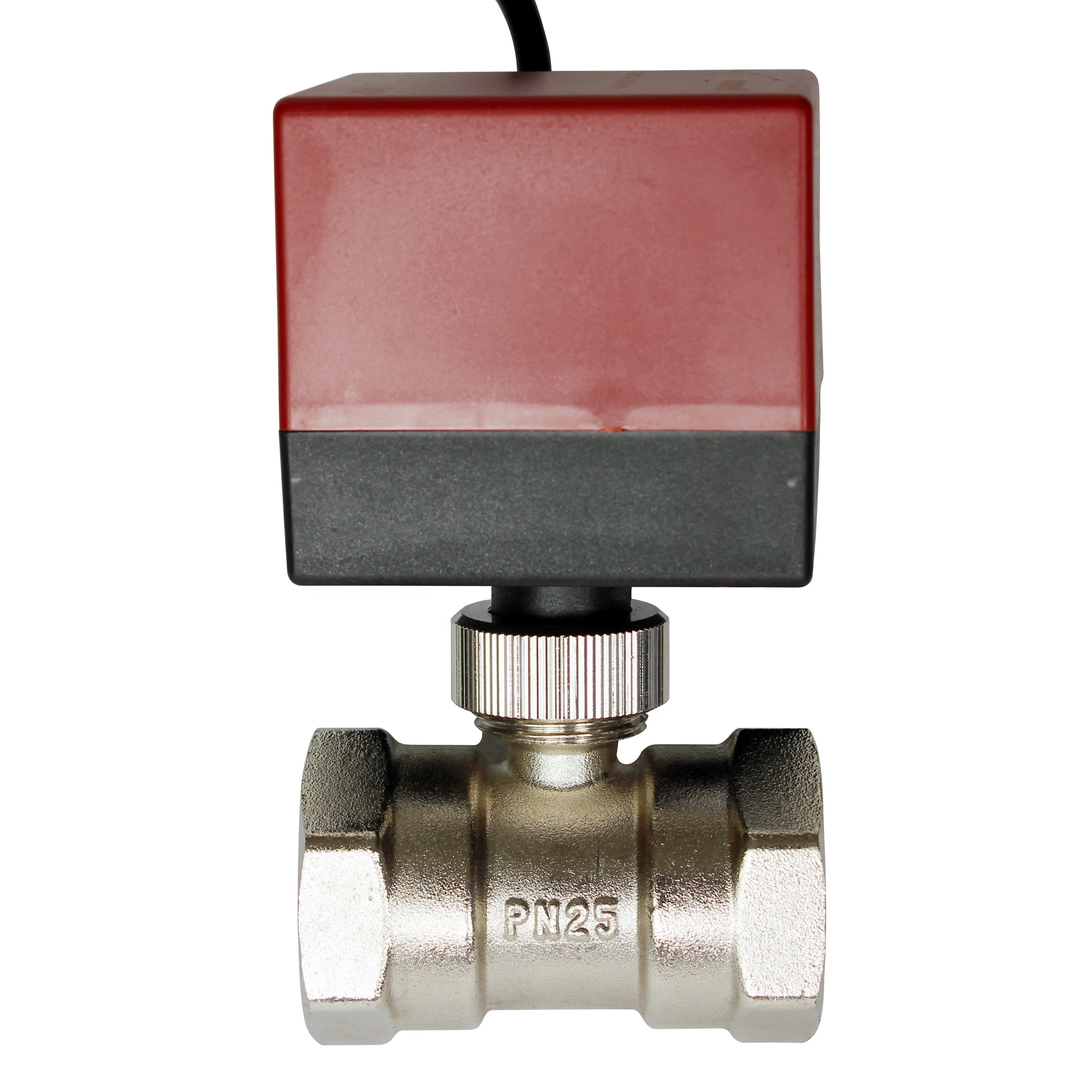

DQ2025 DN25 two way air conditioning HVAC electric actuator motorized ball valve

Product Overview

Description

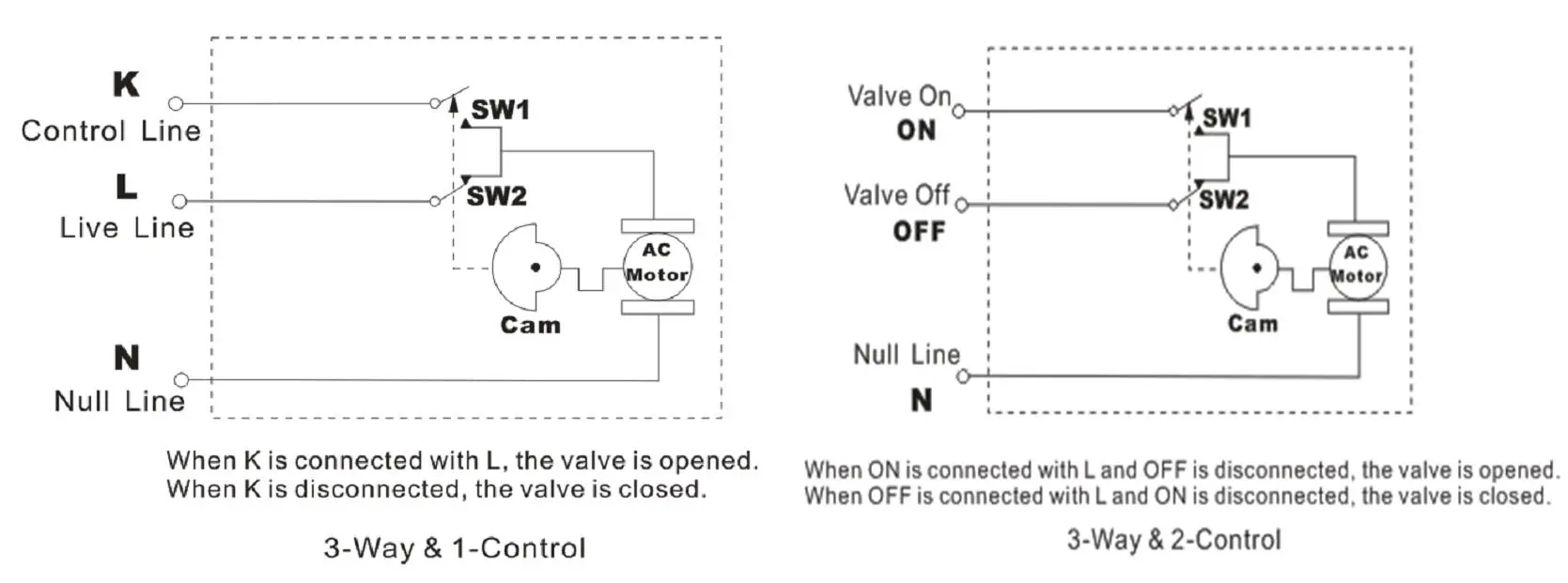

Principle Diagram:



Feature:

Working Voltage: AC220V±10% (Special-Made: 24VAC), 50/60Hz

Power Consumption: 6W (only when you open and close the valve)

Running Time of Each Action: ≤20S (Valve-On); ≤30S (Valve-Off)

Nominal Pressure: 2.5Mpa

Applied Medium: cold or hot water, ethylene glycol liquor (≤50%).

Medium Temperature: 2℃~90℃

Working Environment Temperature: -5℃~+50℃

Grade of protection: IP54

Security class: II (double insulation)

Material of Valve Body: Precision forging brass (Surface is plated with nickel)

Material of Actuator: Outer Cover: ABS+PC Engineering Plastic

Base: Enhanced PBT (fire-resistant)
