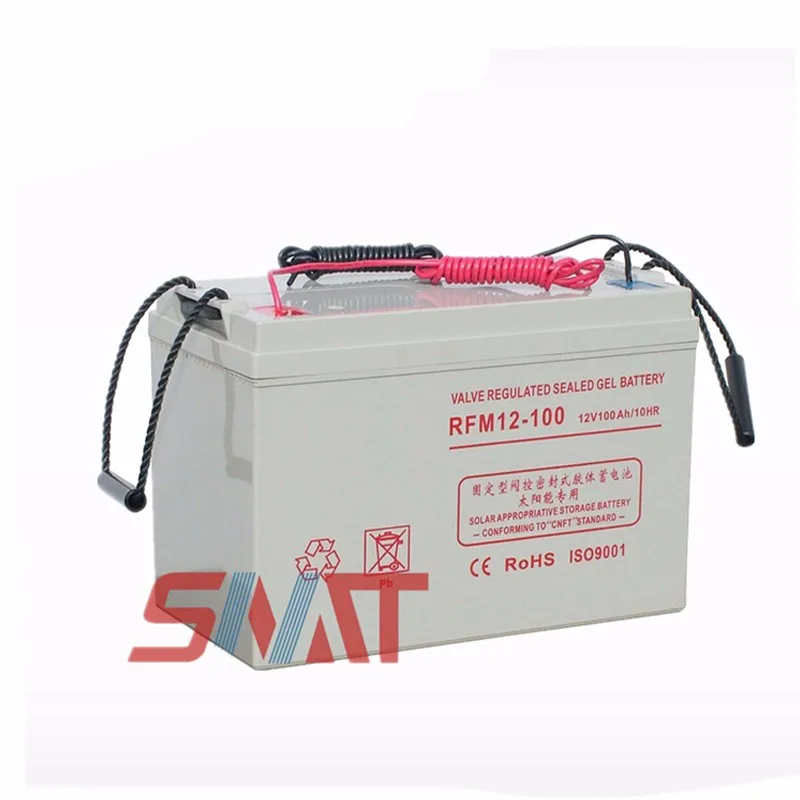

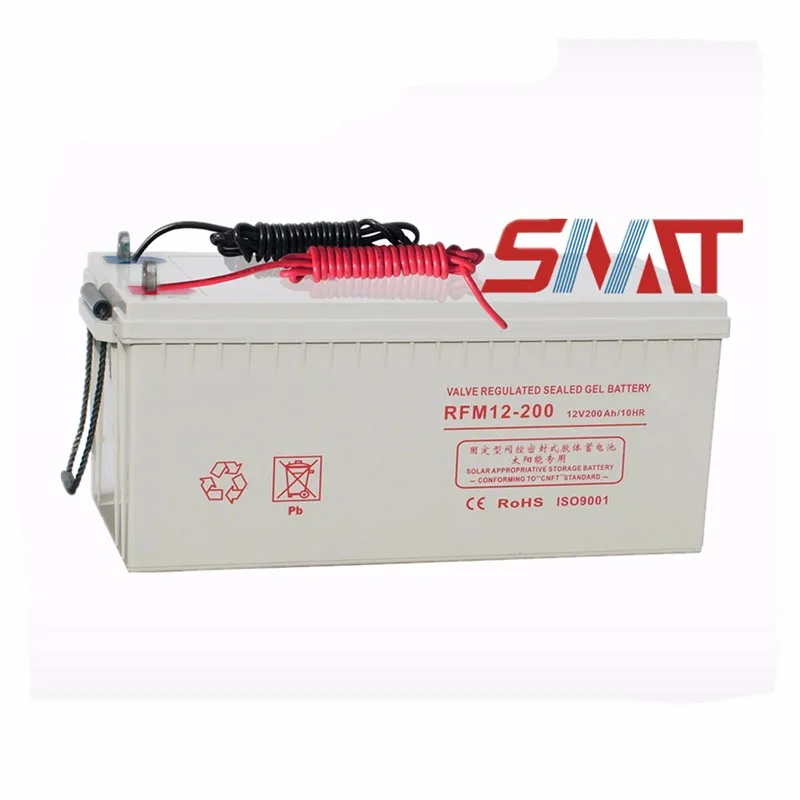

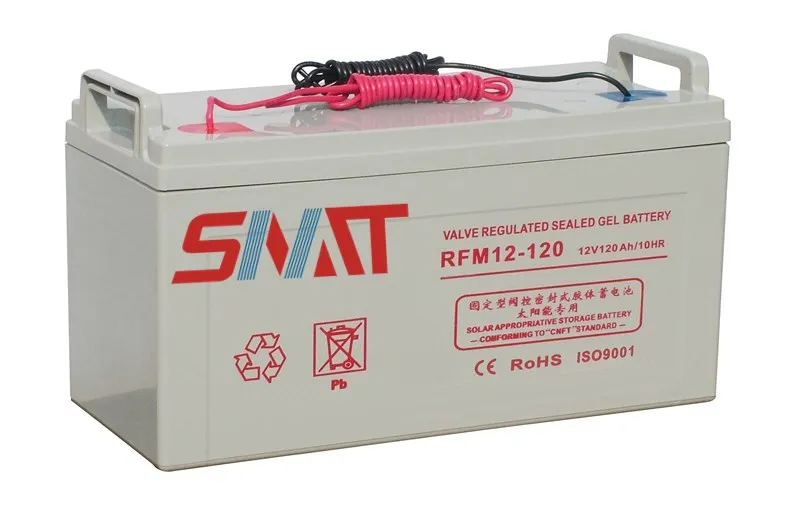

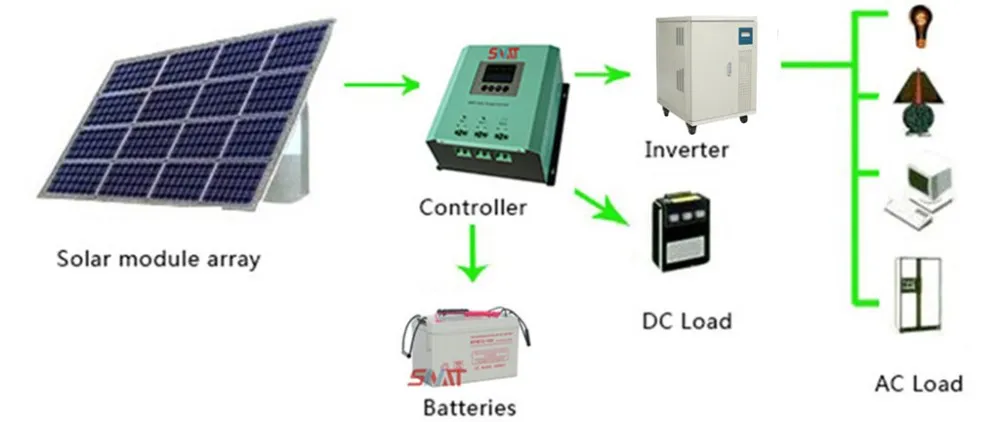

Active polymer gel batteries are special supporting products for solar power systems, wind power generation systems, uninterruptible power supplies (UPS), inverters, EPS, street lamps and more.
Main features
Great charge and discharge bearing capacity. It can bear large-current charge (0.8C-1C) and large-current discharge (30C discharge current within eight seconds) without damage
High safety and reliability, provided with a automatic safety valve
Long service life
Low self-discharge rate
Great conductivity
Great directionality
Environment friendliness
A longer life and deep cycle

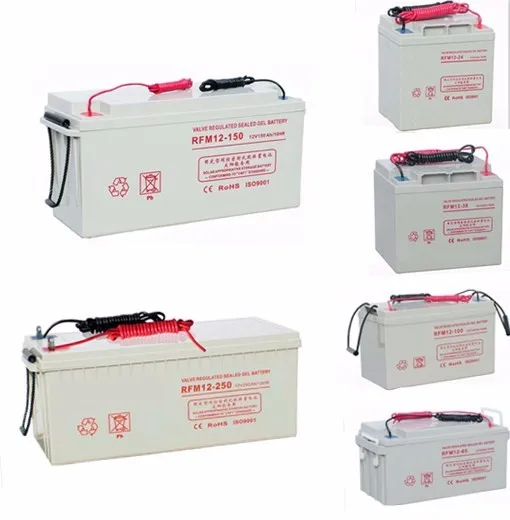

All models 24AH/38AH/65/100AH/120AH/150AH/200 technical indexes
Model
24AH
38AH
65AH
100AH
120AH
150AH
200AH
Voltage
12V
Internal resistance of battery
After the battery is fully charged (25℃)
≤10mΩ
Battery capacity at different temperatures
60℃
104%
25℃
100%
0℃
95%
-50℃
86%
Rated capacity (Ah) at different hours
10hr
100%C10
30hr
110%C10
Storage capacity of battery
One month (25℃)
95%
Three month (25℃)
90%
Six month (25℃)
88%
Maximum charge current
02.5C10 (A)
Charge voltage limit
Voltage of equalizing charge
14.4V/12V-25mV/C
Voltage of floating charge
13.5V/12V-20mV/C
External dimension (L*W*H mm)
165*126*126
198*166*170
350*166*179
329*172*214
406*173*208
483*170*239
522*239*218
Net weight (KG)
8.5KG
12.5KG
20.5KG
31KG
36KG
49KG
62KG
Package/material
Carton package

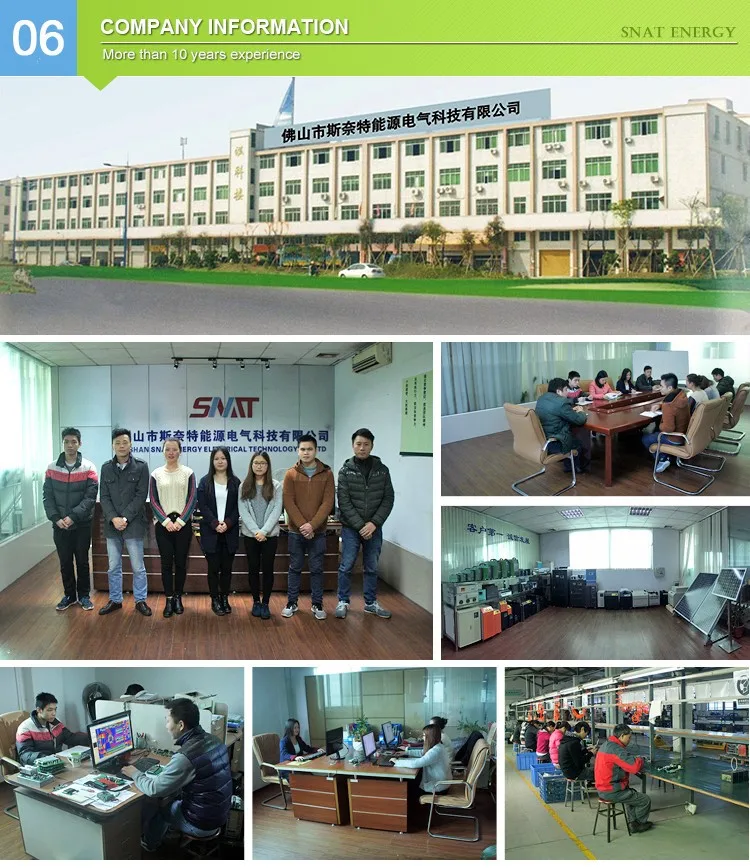

Company Information

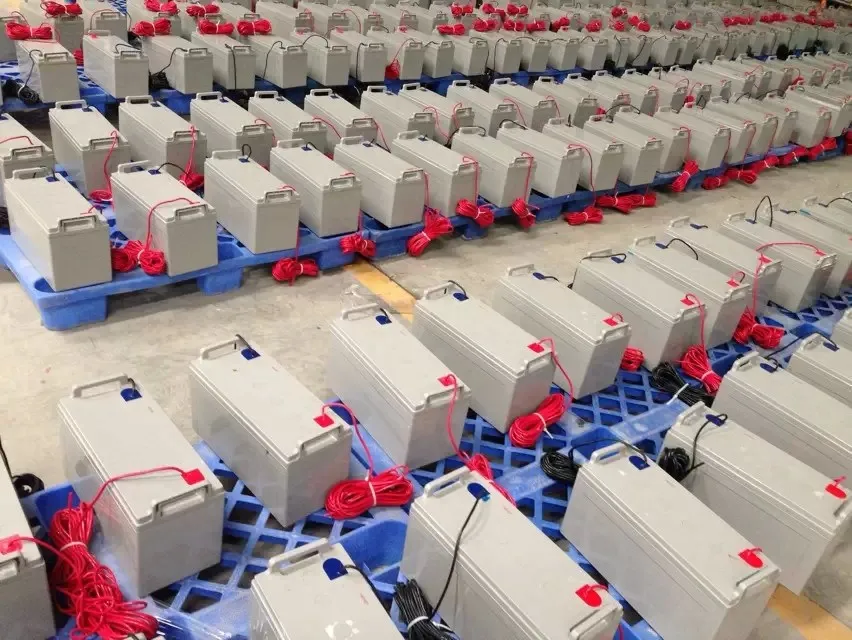

Foshan SNAT energy electrical technology Co.,Ltd has already 10 years professional experience in solar power system,inverter,controller,UPS and batteries. Our factory passed CE,ISO. Customers come from Thailand & Vietnam are very satisfied with our inverter for many years.
FAQ
Q1: Are you a manufacturer or trading company?
A: We are a factory main supply solar power system,inverter,controller,UPS,battery manufacturer.
Q2: Can you accept to use our logo?
A: We accept OEM production.
Q3:How can i get the after-service?
A:We' have more than 10 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.
Q4: What is your terms of payment ?
A:We accept T/T, L/C,paypal, western union,etc.The details you can discuss with us.
Q5:Do you provide warranty for the goods?
A: Yes, we provide 12 months of warranty for all the goods from us.
Q6: How about your products quality inspection?
A: We have professional QA and QC teams, 100% quality inspection is performed before goods out of factory.
