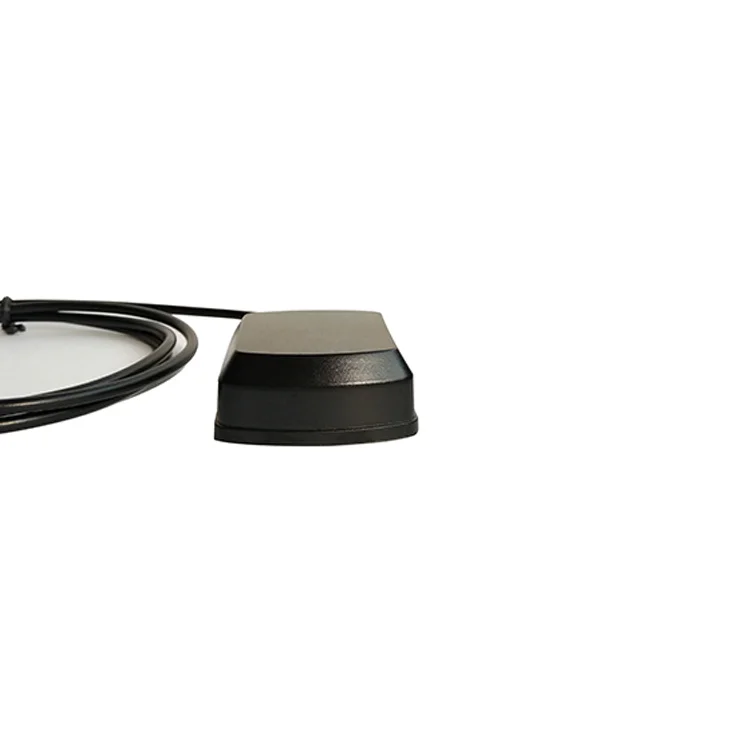

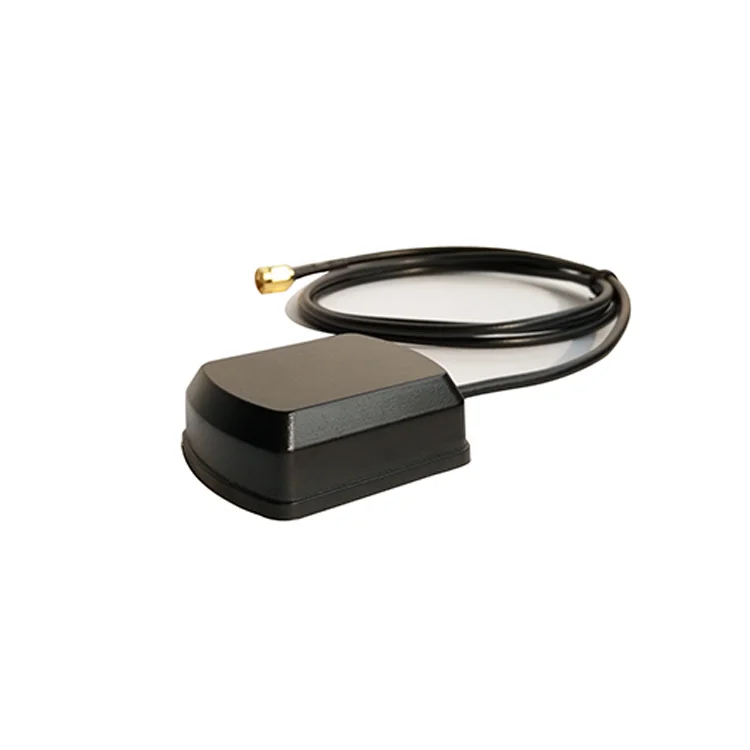

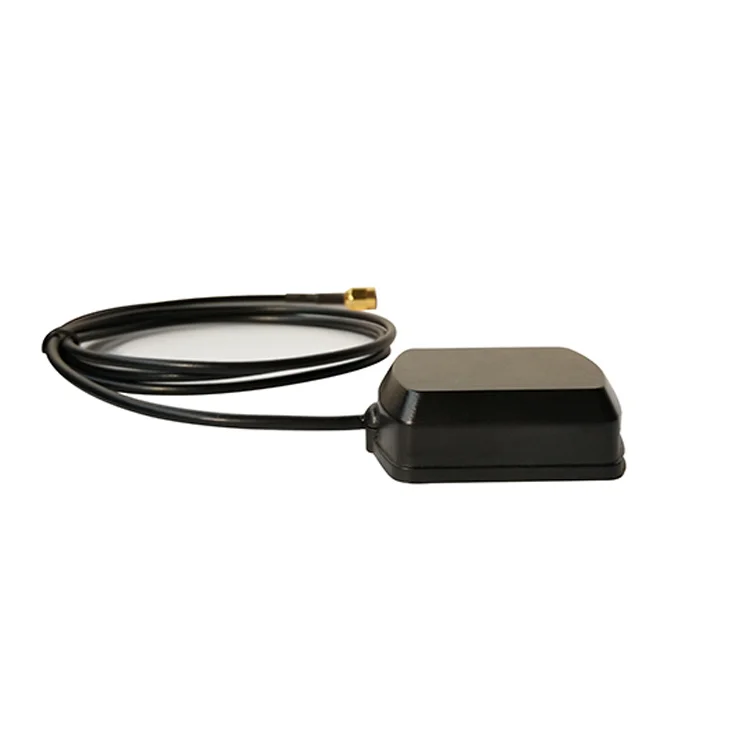

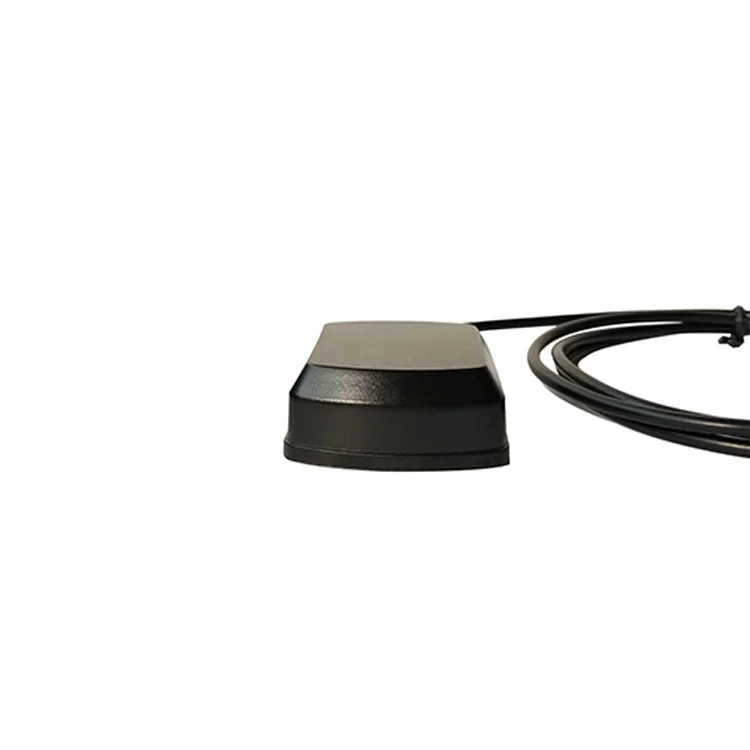

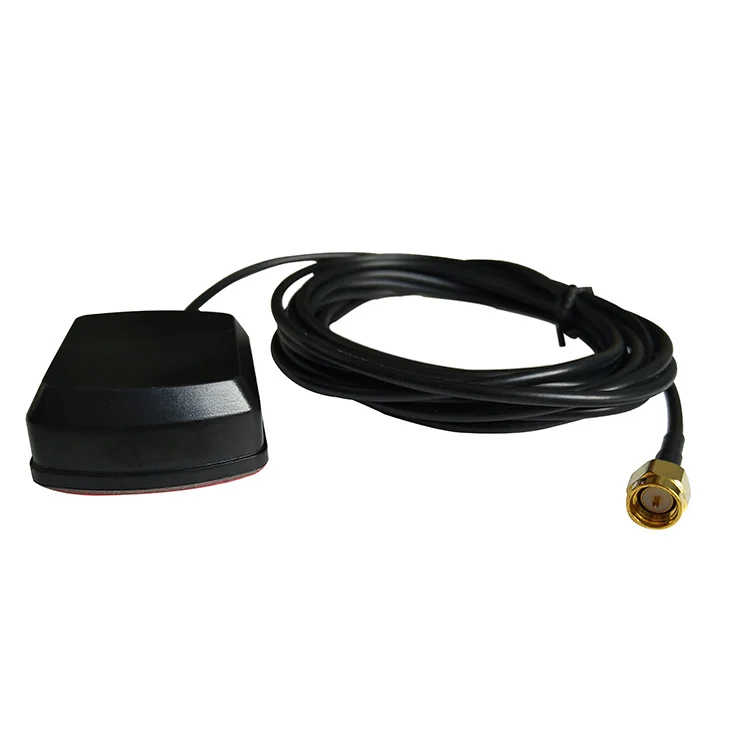

Hot sale ! New Combines GPS Mimo Antenna Screw Mount Antenna,Ip67 Waterproof External M2M Antenna For Telematics

Product Overview

Description

GSP/GLONASS Antenna FL-P002G
1)Dielectric Antenna
Frequency	1575.42MHz±5 MHz
	1610MHZ±8MHZ
V.S.W.R	1.5:1
Band Width	10 MHz for GPS
	20MHZ for glonass
Impedance	50 ohm
Polarization	R.H.C.P
LNA Gain(w/o cable)	4.5dBic  Based on 7×7cm ground plane
2) LNA
Frequency Range	1595MHz±25 MHz
DC Voltage	3-5V
Gain(Typical)	29dB (Without cable +25℃±10℃)
Output VSWR(Typical)	2
Noise Figure(Typical)	1.6(+25℃±10℃)
DC current(Typical)	12mA(At3.0V)
3)Mechanical
Size	43*35*14mm
Mounting	Magnetic/adhesive
Housing	Black

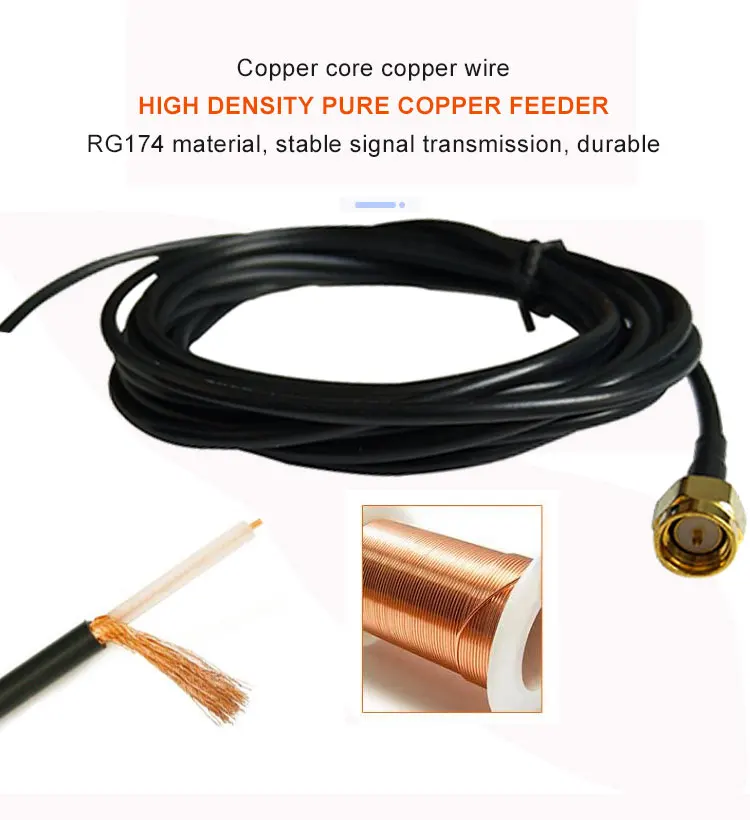

Cable	RG174, 3m or others
Connector	SMA/MCX/Fakra or others
4)Environmental
Working Temp	-40℃~+85℃
Storage Temp	-45℃~+100℃
Vibration	Sine sweep 1g(0-p)10~50~10Hz
	each axis
Humidity	Humidity95%~100%RH
Weatherproof	IP67~IP68



Q: Can I get one sample?

A: Yes, sample is for free.

Q:Payment term:
A:T/T(50% deposit as place order, 50% before shipment), Western Union, MoneyGram, Paypal

Q: What's the delivery time?
A: 1-2 working days for the sample, 7-10 working days for quantity below 5K, 15-30 working days for the quantity below 20K.

Q: Have antenna 100% assembles well in stock?
A: No, all antenna will be newly assembled according to your orders including the samples.

Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.

Q:How can you guarantee the product quality?
A: All of our items are manufactured unter RoHS directive and CE certified. Before shipment, we'll 100% inspect the commodity.

Q: What should customers do when you get the bad quality products?
A: If there are any damaged items, please kindly contact us for after-sale service. Generally, we'll pay for it in customer's next orders.
