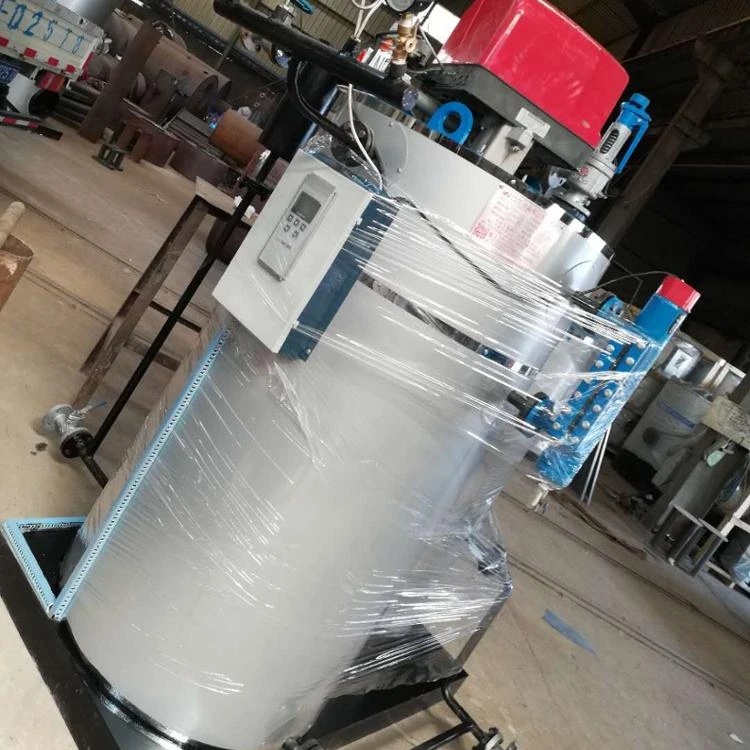

Puyang boiler steam boiler zhongshi group LSS model boiler 0.5t/h Vertical steam generator
- Category: >>>
- Supplier: Puyang Zhongshi Group Co. Ltd.
Share on (62172504002):
Product Overview
Description
Model | Unit | LSS0.5-0.8-YQ |
Rated steam | kg/h | 500 |
preset pressure | Mpa | 0.8 |
Rated steam temperature | ℃ | 175 |
Water volume | L | 48.2 |
Thermal efficiency design
| Natural gas % | 100.1 |
Liquefied gas % | 98 | |
0#diesel % | 94.1 | |
Fuel design consumption
| Natural gas Nm3/h | 35.3 |
Liquefied gas kg/h | 27.8 | |
0#diesel kg/h | 30.1 | |
Steam production time | m | 5 |
Rated pressure time | m | 10 |
Dimensions L*W*H | Fuel:OIL mm Fuel:GAS mm | 1750x1048x2400 1966x1048x2400 |
Total Weight | Fuel:OIL Kg Fuel:GAS Kg | 1100 1500 |
Inlet diameter | mm | DN25 |
Steam outlet diameter | mm | DN32 |
Sewage diameter | mm | DN40 |
Chimney diameter | mm | 219 |
