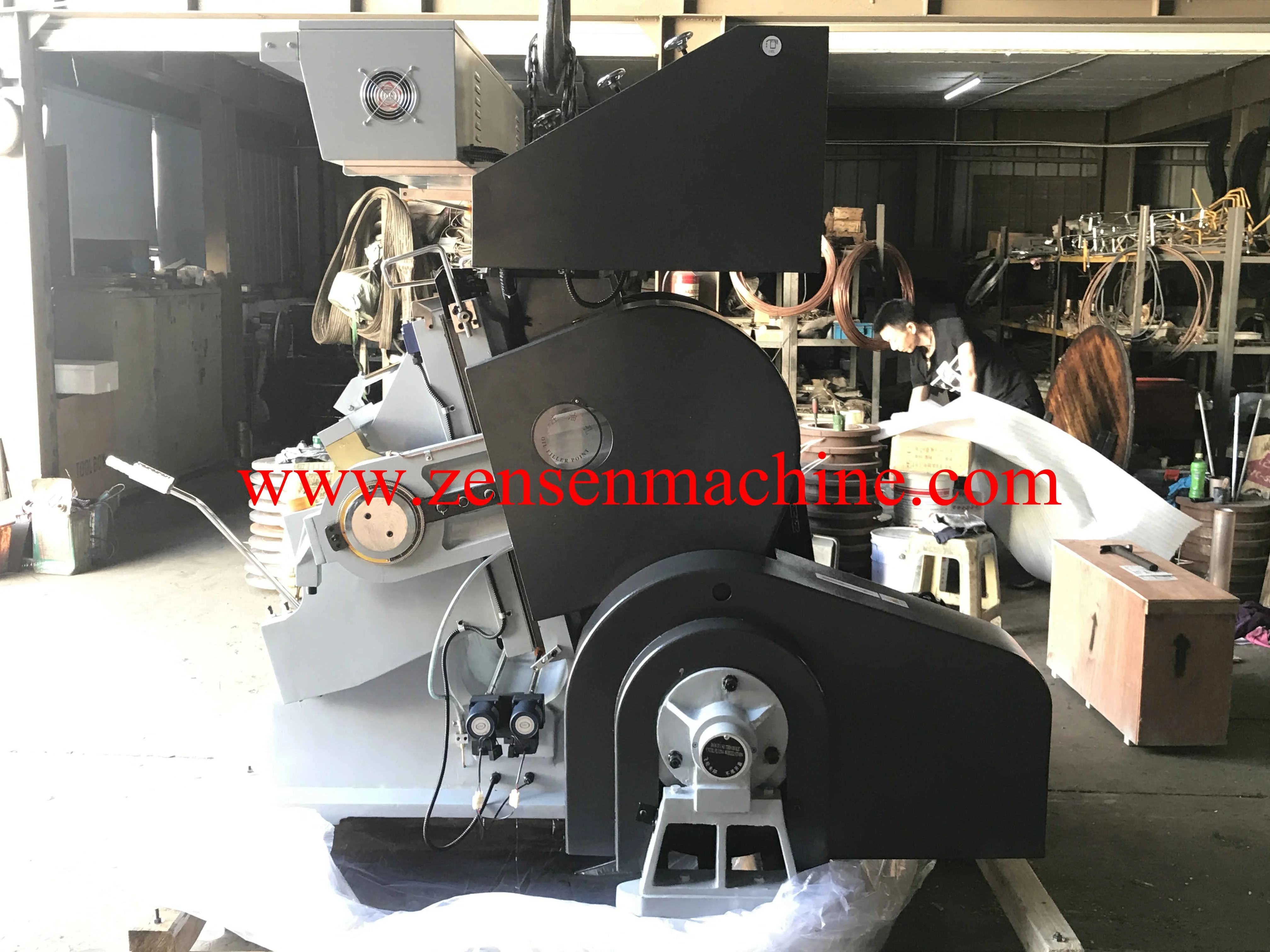

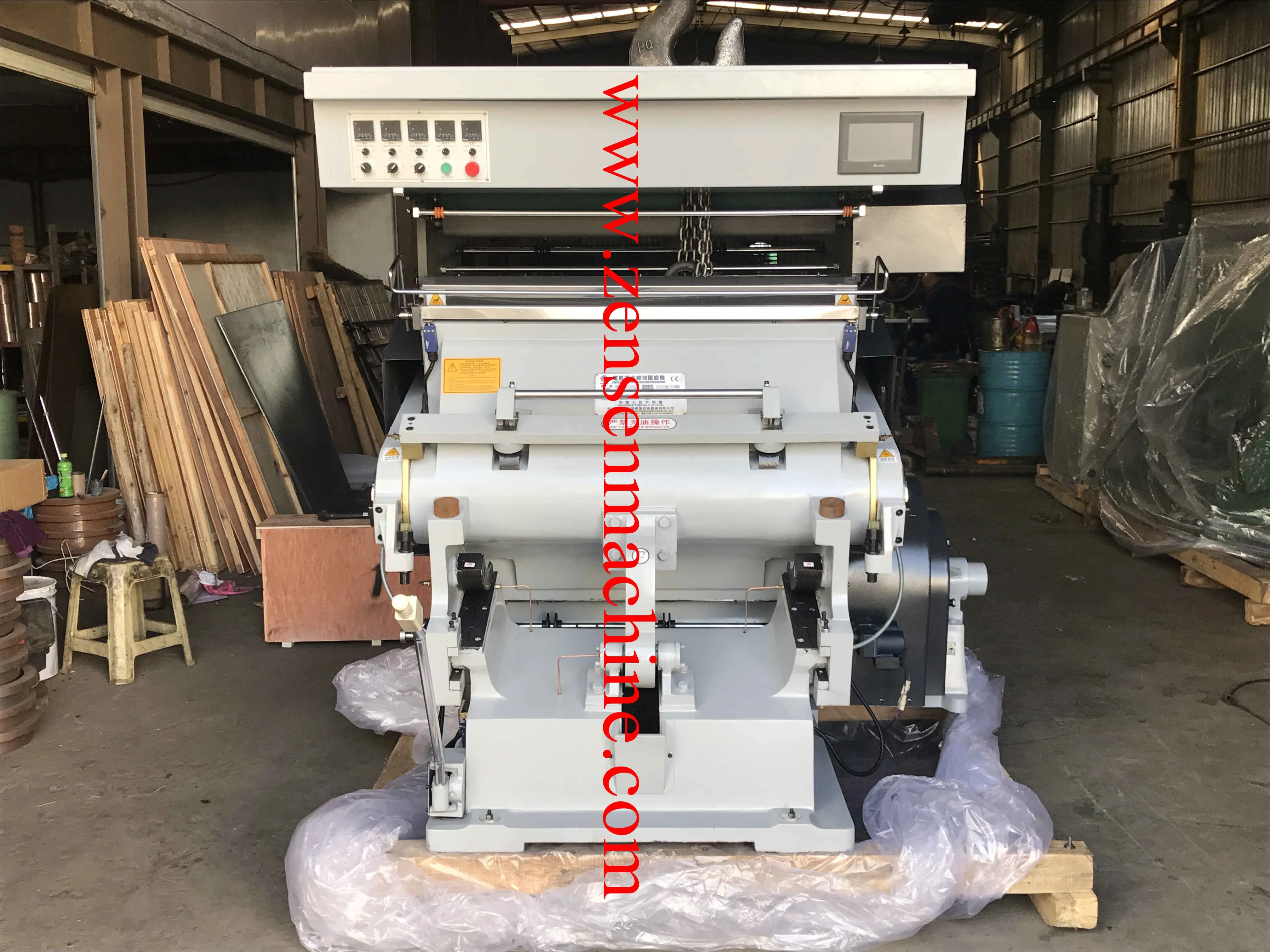

Wenzhou hot sales CE Standard paperboard Hot stamping foil machine TYMC 1100
- Category: >>>
- Supplier: Wenzhou Zensen Machinery Co. Ltd.
Share on (62172598076):
Product Overview
Description
Product Description
Manual hot foil stamping and die cutting machine is the ideal equipment for stamping and die cutting all kinds of paperboard, leather, and plastic and so on. This machine is the ideal equipment for printing factories.
Manual Foil Stamping Machine is one kind of basic stamping machine for sampling and customized product. Increasing and decreasing temperature accurately, changing stamping plate easily, operating easily and perfect protection system are the main reason which can win the market. it is also the perfect model in embossing and creasing, suitable for many kinds of different weight cardboard.
Specification | ||
Model | TYMC-1100 | |
Max. inside chase size (mm) | 1100× 800 | |
Max. stamping size (mm) | 1100× 800 | |
Speed (sheets/min) | 23± 2 | |
Groups of feeding foil | 3 | |
Max. foil advance (mm) | 800 | |
Leapfrog frequency | 0-99 | |
Adjustable temperature (℃) | 10-200 | |
Zones individually heated | 5 | |
Heating capacity (kw) | 15 | |
Total power (kw) | 20.5 | |
Motor power (kw) | 5.5kw | |
Gross weight (kg) | 5000 | |
Dimensions(L× W× H) (mm) | 2050×2050×2100 | |
Main Features
-Machine frame is of high-grade iron
-Helical drive gears for added strength
-PLC controlled foil settings and temperature management
-Control panel with touch screen HMI
-Two or three draw foil feed device driven by step motors, provide accurate foil feeding
-Pull out foil holder for easy foil load and change
-5 independent controlled heating zones
-Single speed with four modes of operation including continuous, single, dwell etc
-Honeycomb base for convenient stamping block lock
-Double micrometer impression adjustment
-Electromagnetic clutch
-Automatic impression counter
-Impression throw off for easy operation
-Covers on gears and flywheels
-Platen edge safety
-Auto central oil lubrication
-self-central cutting mould chase
Detailed Images
Highest strength casting iron HT-250
2 shafts transmit ensure the high working pressure
2-3 groups foil axis controlled by step motor

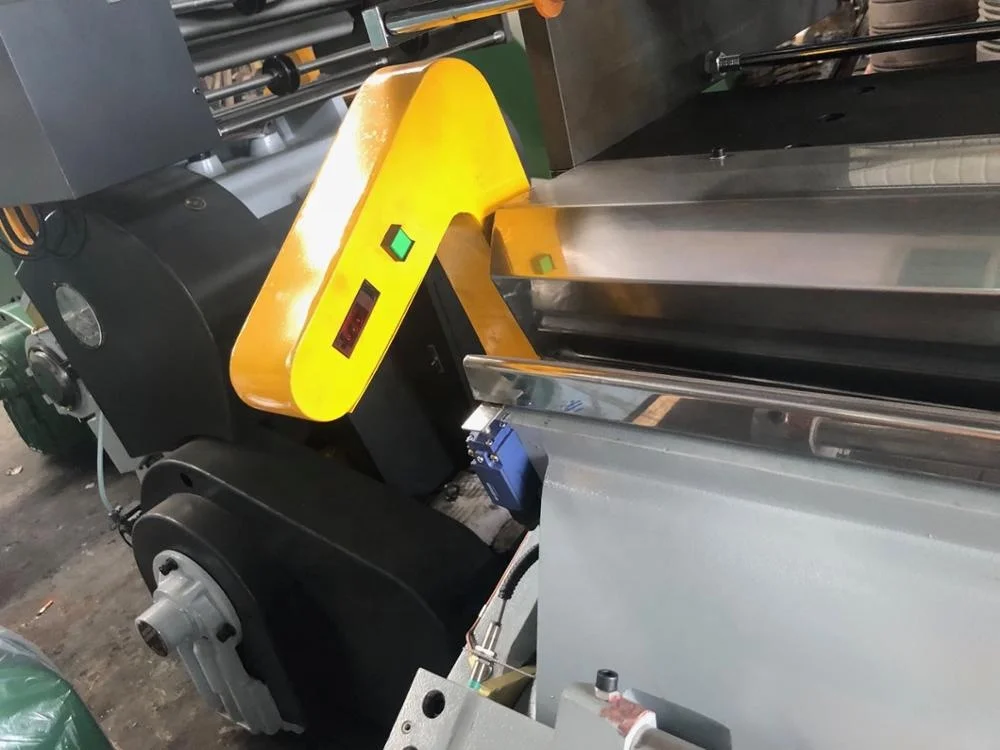

Inferred sensor to protect the operator safety, it is sensitive and reliable.
Micro adjustment device in connect rod, fast for setup.
CE standard electric system
All the electrical components are from world famous supplier

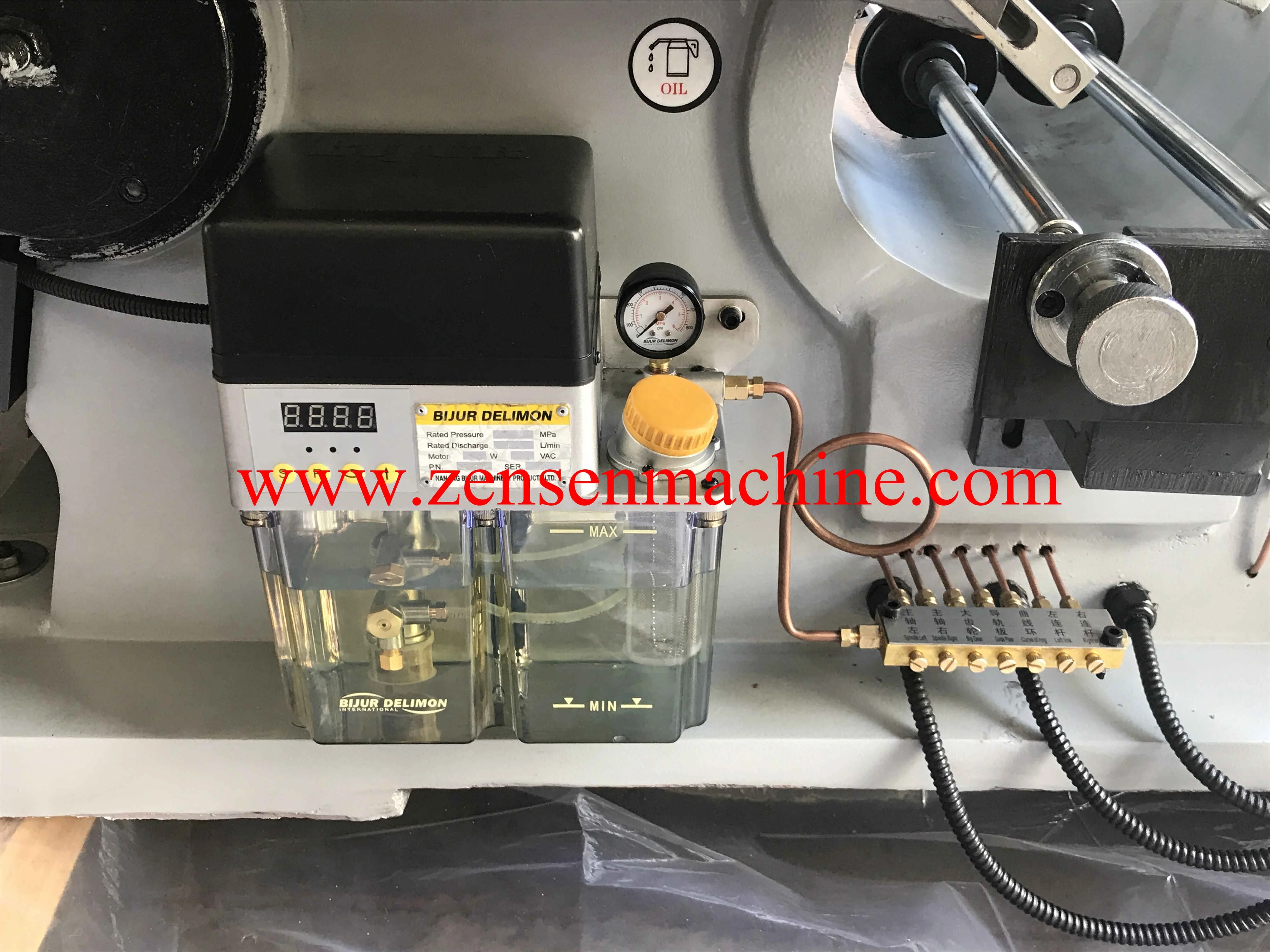

Automatic centralized lubrication system
The frequency of lubricate can be adjusted according to your working.
Easier for maintenance
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Testing support in our factory
* Inspect machine in our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Our Company
Wenzhou Zensen Machinery Co., Ltd. as a professional printing and packaging machines manufacturer,was established in 2003. More than 15 years of experience in Post-press die cutting &hot foil stamping, and Flexo & Roto Printing machinery industry.
Our main products include:
Automatic Foil Stamping and Die Cutting Machine, Automatic Web-Fed Hot Foil Stamping Machine, PLC Control Foil Stamping&Die Cutting Machine ,Flatbed Press Creasing&Die Cutting Machine; Adhesive label production line,(AdhesiveLabel Flexo Printing Machine,Label Die Cutting Machine,Label slitting Machine; Rotogravure Printing Machine ,Coating and laminating machine, Slitting Machine.
Zensen consists of Technical Development Department, Manufacturing Department, Domestic and International Sales Department and After-Sales Service Department. We have more than 90 employees, including 30 senior engineers in the R&D center. Over the past 15 years, Zensen has been committed to the R&D of high and new technologies and manufacturing of products, constantly introducing the most advanced foreign technologies, and combining with the rich experience and leading manufacturing techniques of domestic senior engineers to build and launch a new generation of high-efficient pre and post-printing equipment.
Zensen is a very good quality supplier in Chinese Printing and Package machinery industry.Especially, Automatic Foil Stamping And Die Cutting Machine, Automatic Web-Fed Hot Foil Stamping machine Are very popular over the world.
Through our continuous research and developing advanced skills, Zensen has firmly established itself as a dependable supplier of China. No matter whether you are looking for a single machine or a whole production line, you can get outstanding machines. As every Zensen machine is quality proved, superior indesign and produced as per the highest quality standards. Before leaving our factory, it is tested and retested for performance,productivity and durability. Because of good quality and service, we have won a good reputation among domestic and international customers.
Now, we have successively passed the ISO9001 system certification, CE certification and other professional quality certifications.Our products sell well in America, Spain, Asia (such as India, Thailand, Vietnam, Indonesia,Malaysia, Sri Lanka), the Middle East, Europe (Russia,Bulgaria, Croatia, Romania, Spain, Italy), Africa (Nigeria, Guinea, Congo) and South America.
We hope to establish good and long-term business cooperation with customers from all overthe world. If you have any inquiries about our machines, please feel free tocontact us.We sincerely welcome Clients from China and abroad to join hands with Zensen and march towards successful together!
