Borche BS120 III automatic plastic spoon making machine, all kinds of Plastic Moulding machine,engrgy saving and half price

Injection Unit

Double-injection cylinder
Double-carriage cylinder
Nozzle purge cover
Linear guide rail
Three kinds screw as option for every machine
Nozzle contact force adjustment function
Nozzle central device
Barrel cover
Low-speed high-torque Hydraulic motor
RPM sensor (4 times / 1 round)
Removable hopper rail

Clamping Unit
Mould fixing designation referring Euromap 2
Robot mechanical interface referring Euromap 18
Ejection distribution referring Euromap 2
Big operation room for ejection
Anti-pitch slider (above BT150)
Clamp transducer connect directly to cross head of toggle
Central oil lubrication

Hydraulic Unit
Variable displacement pump
One set sets core puller
Oil temperature alarm
Oil level meter and oil temperature indicator
Low pressure clamping function
Quick-clamping
Mould height adjustment by gear mechanism
Back-pressure control function
Suckback
Pressure relief valve for carriage moving (below BT650)
Oil cooler
High-precision bypass filter (above BT480)
Fiter block alarm (above BT800)
Self-sealing filter (above BT800)
Nozzle moving function √

Electric and Control Part
KEBA controller
Language (Chinese and English)
Data lock and operation password
SPC quality management
Alarm and parameter resetting record
PID temperature control
Screw protection function
Support current/voltage analogue output
Clamping force auto-adjust
CAN interface
Injection 6 stage/pressure holding 5 stage/charge 5 stage
Mold clamp/open 5 stage /ejection 2 stage

Certifications

Detailed Images

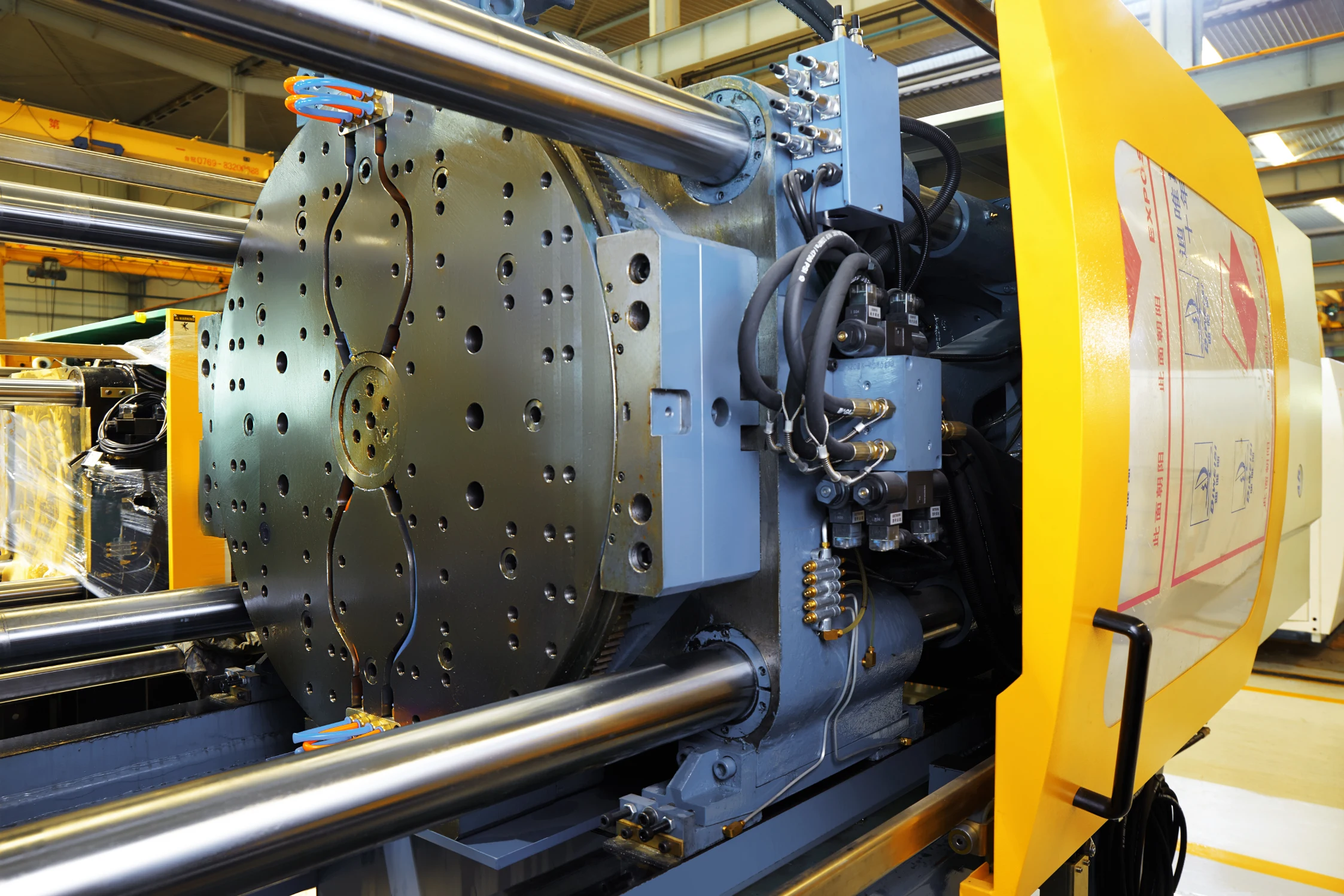

MOVING PLATEN CLAMPING

.1-Tie bars move across clamping cylinder, no touch with
seals, lessen pressing leakage; Module type clamping
cylinder, can be assembled and disassembled together,
easy for maintenance.
2-Pistons of four cylinders are controlled separately, which can adjust the locking position precisely, and assure fast
and precise locking.
3-Clamping cylinder assembled in the moving platen can
balance the load of mold, avoiding mold forward, improve
stability of moud open and clamping movement.

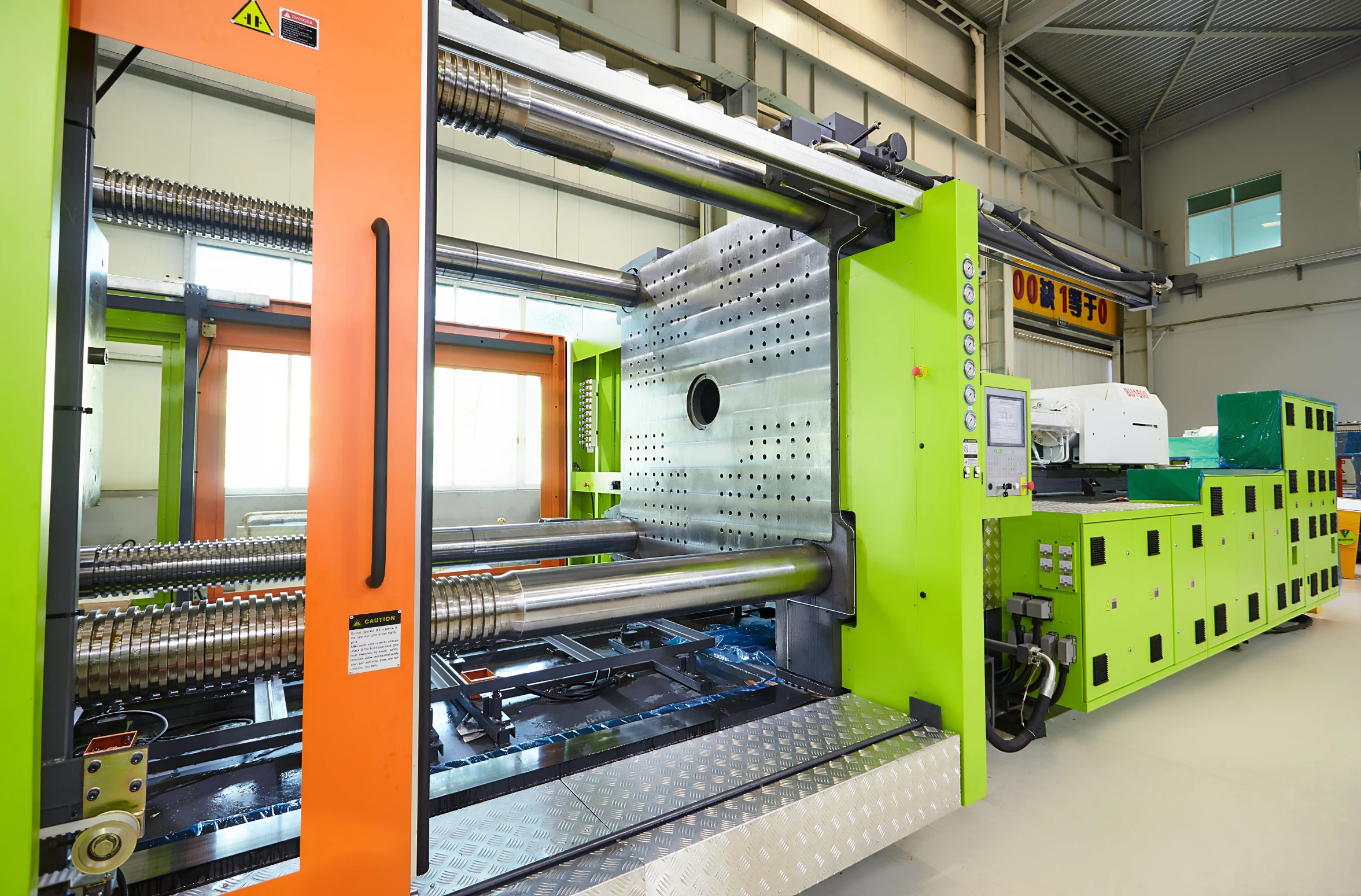

SUPER LONG LASTING TIE BAR

During high pressure locking, four tie bars under equal
force, no unbalance loading occured, avoiding tie bar
broken theoretically.

INNOVATED INJECTION STRUCTURE

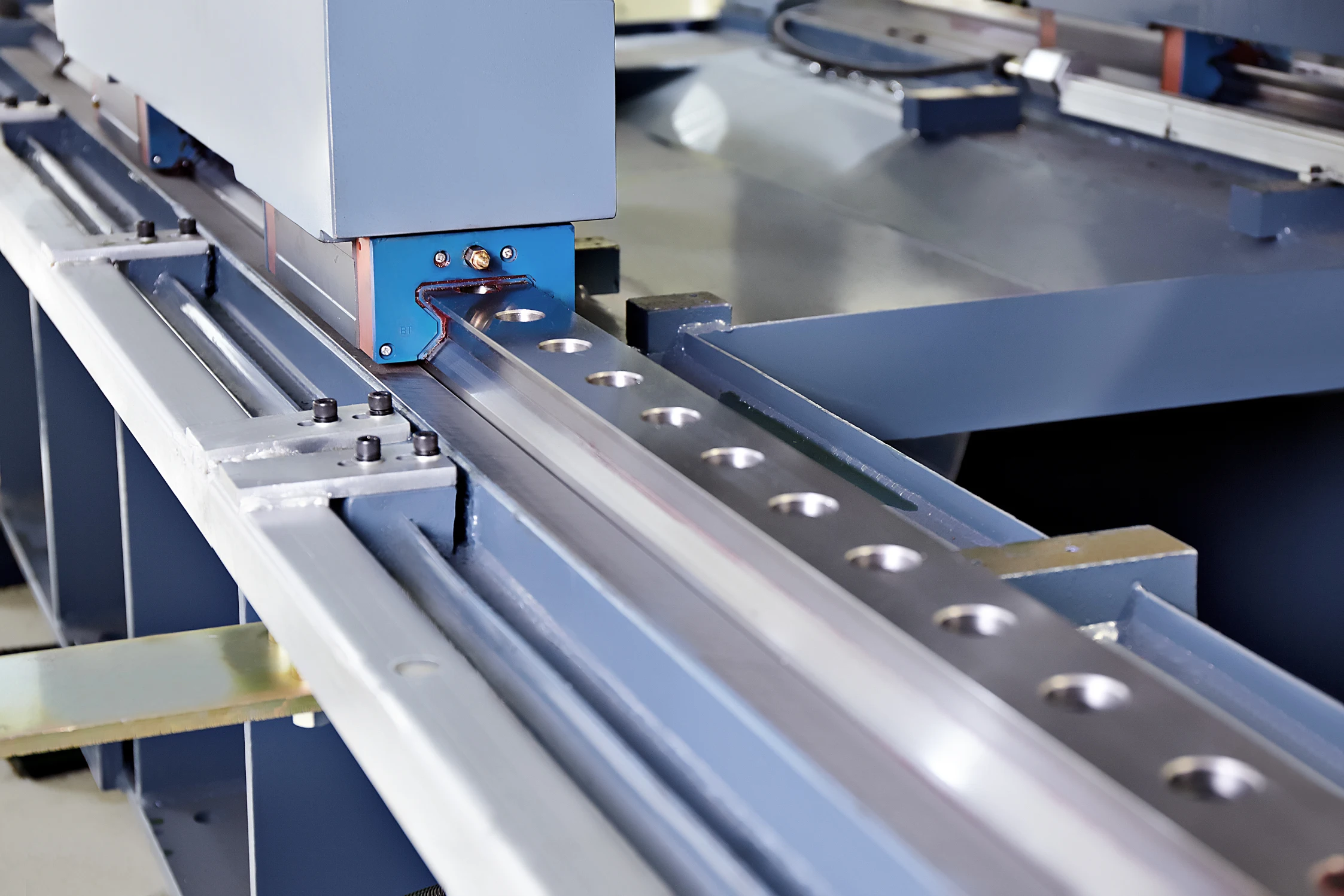

1-Both carriage cylinder and injection adopt linear guider, which guarantee stable and fast movement, injection
supporting made by one piece casting, is rigid and
compact.
2-Double carriage cylinder insures injection unit better
centering, and movement stable.

                                       Mold platen Drawing

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	710×240×210
Weight	1.9 T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	710×240×210
Weight	1.9 T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
