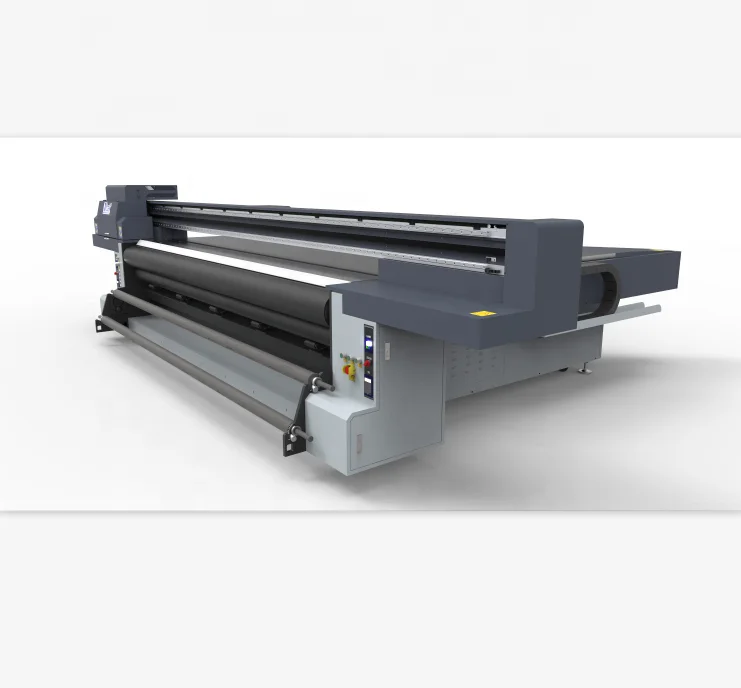

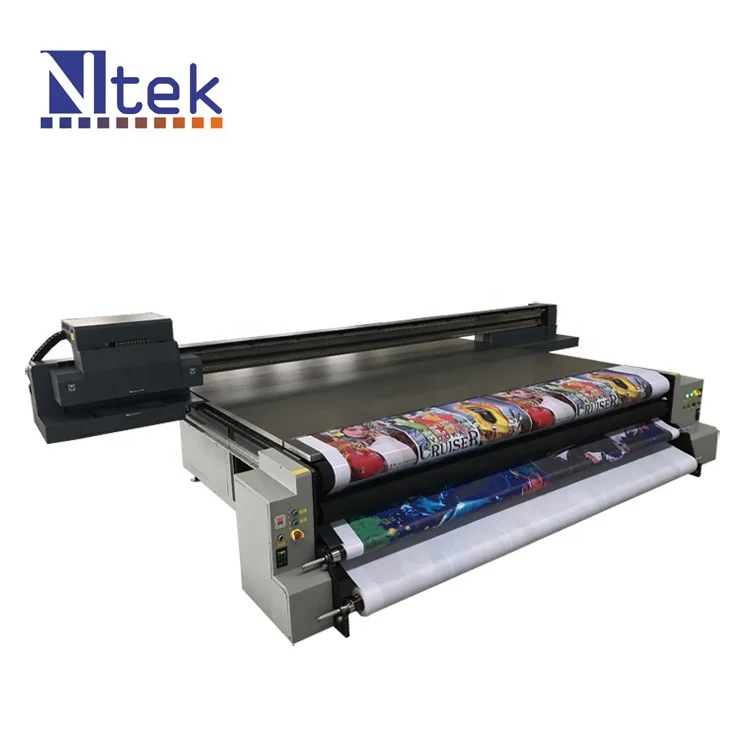

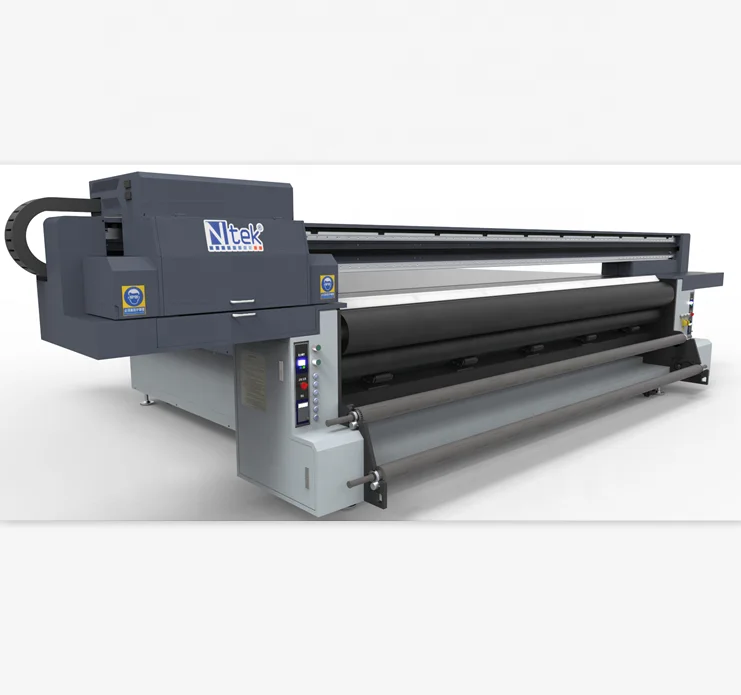

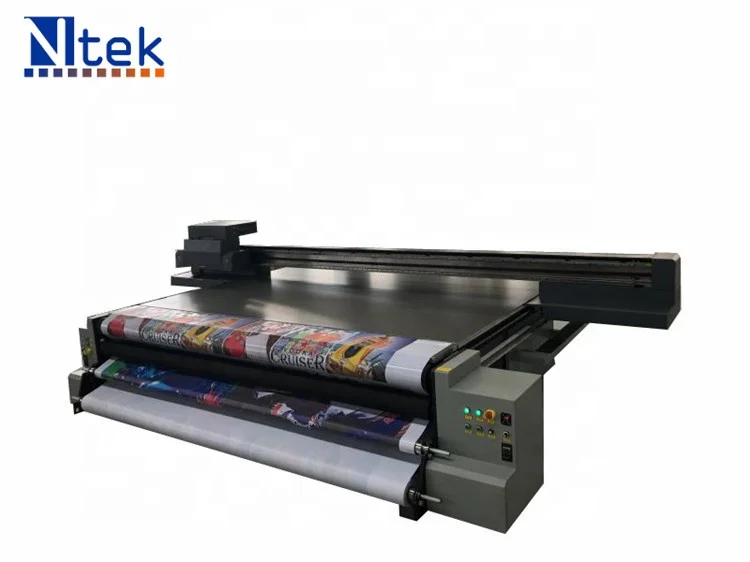

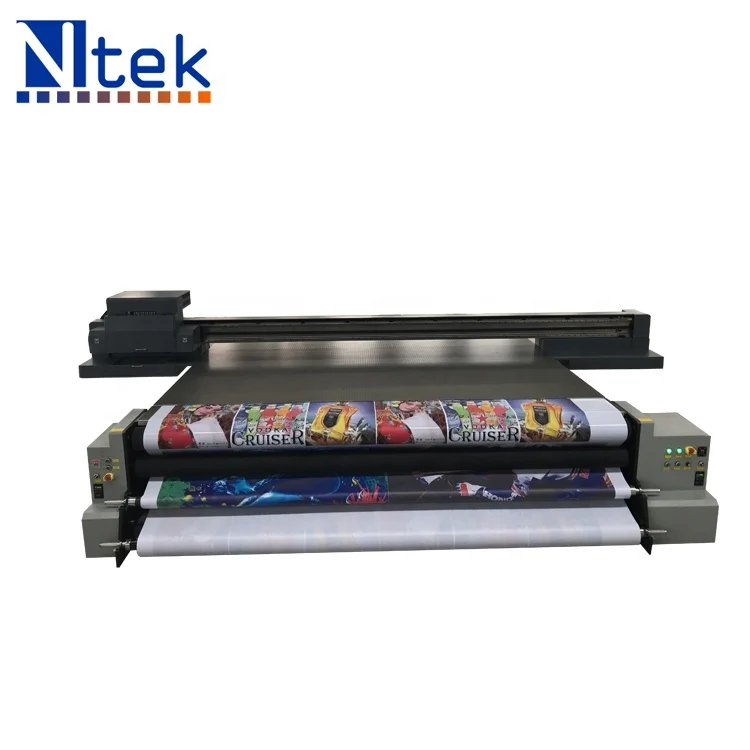

Large Format Roll and Flat Hybrid 3D Wall Printer

  Product Model

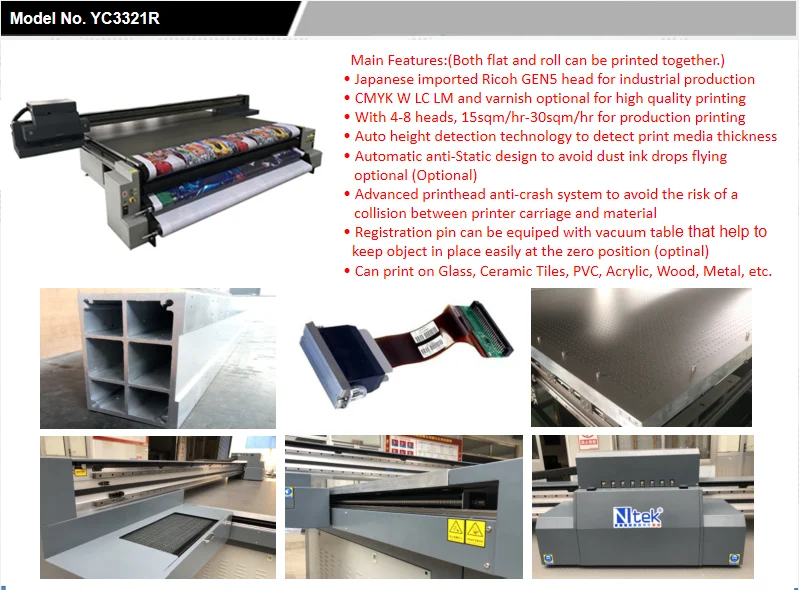

   YC3321R

  Control Board

   Hoson/ UMC optional

  Printhead Technology

   Drop-on demand piezo electric

  Printhead Control

   Printhead voltage is software adjustable

  Printhead Type

   RICOH GEN5

  Printhead Number

   2/3/4/5/6/8

  Ink Characteristics

   UV Curing Ink

  Ink reservoirs

   Refillable on the fly while printing/1000ml per color

  Lamp

   UV LED lamp

  Color Control

   ICC based color, curves and density adjustment

  Printhead Arrangement

   C M Y K LC LM W varnish optional

  Cleaning System

   Positive Pressure Cleaning

  Guide Rail

   Taiwan HIWIN

  Working Table

   Vacuum Sucking

  Printing Size

   3300*2100mm  Roll material print width 3300mm

  Print Interface

   USB2.0

  Media Thickness

   0-100mm, higher can be customized

  Print Resolution

   720*360dpi,720*720dpi,360*1080dpi,720*1080dpi,

   720*1440dpi,1440*1440dpi,360*2160dpi

  Printing Speed

   15sqm/h-30sqm/h

  Life of Printed Image

   3 years(outdoor),10years(indoor)

  File Format

   TIFF,JPEG,Postscript3,EPS,PDF etc.

  RIP Software

   UltraPrint/ Photoprint optional

  Power Supply

   220V 50/60Hz(10%) >15A

  Operation Environment

   Temperature 20 to 28℃, Humidity 40% to 60%

  Machine Dimension

   5370*3780*1460mm

  Weight

   2000kg

  Warranty

   12 months exclude the consumables
