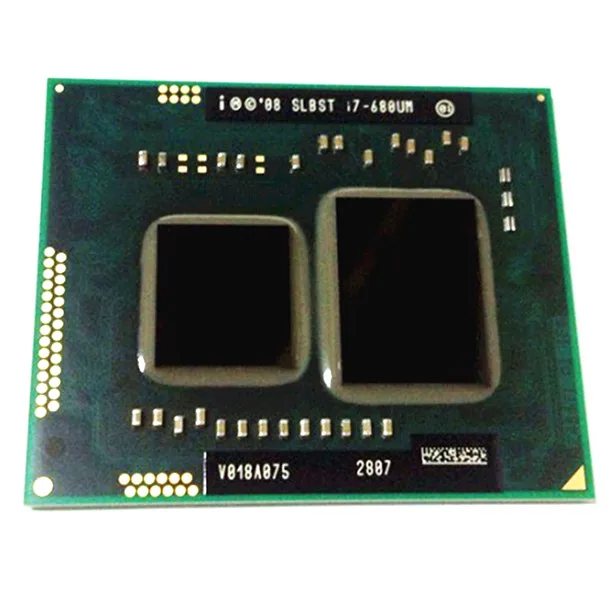

Intel BGA CPU Core i7 680UM 4M 1.46GHz SLBST
Intel BGA CPU Core i7-680UM 4M 1.46GHz SLBST

Intel BGA CPU Core i7 680UM 4M 1.46GHz SLBST

Share on (62172979301):


Price:

Quantity:


Product Overview

Description


Welcome wholesale !!!



if need the more QTY ,have best price .



my skype :lian.linda5





we selling more model :








Intel Core I7-680UM specifications



The specs can be used for short-term
listings on auction and classifieds sites


General information
TypeCPU / Microprocessor
Market segmentMobile
Family

Intel Core i7 Mobile
Model number  ?

i7-680UM
CPU part number

  • CN80617004860AA is an OEM/tray microprocessor
Frequency  ? 1467 MHz
Maximum turbo frequency2533 MHz (1 core)
2133 MHz (2 cores)
Low power frequency667 MHz
Bus speed  ? 2.5 GT/s DMI
Clock multiplier  ? 11
Package1288-ball micro-FCBGA10
SocketBGA1288
Size1.34" x 1.1" / 3.4cm x 2.8cm
Introduction dateSep 26, 2010
End-of-Life dateLast order date is April 5, 2012
Last shipment date is October 8, 2012
Price at introduction$317
S-spec numbers
Part numberProduction processors
 SLBST
CN80617004860AA+
Architecture / Microarchitecture
MicroarchitectureWestmere
PlatformCalpella
Processor core  ? Arrandale
Core stepping  ? K0 (SLBST)
CPUID20655 (SLBST)
Manufacturing process0.032 micron
382 million transistors (CPU die)
177 million transistors (IMC / graphics die)
Die81mm2 (CPU die)
114mm2 (IMC / graphics die)
Data width64 bit
The number of CPU cores2
The number of threads4
Floating Point UnitIntegrated
Level 1 cache size  ? 2 x 32 KB 4-way set associative instruction caches
2 x 32 KB 8-way set associative data caches
Level 2 cache size  ? 2 x 256 KB 8-way set associative caches
Level 3 cache size4 MB 16-way set associative shared cache
Physical memory8 GB
MultiprocessingNot supported
Extensions and Technologies
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4  ?
  • AES / Advanced Encryption Standard instructions
  • EM64T / Extended Memory 64 technology / Intel 64  ?
  • NX / XD / Execute disable bit  ?
  • HT / Hyper-Threading technology  ?
  • TBT / Turbo Boost technology  ?
  • VT-x / Virtualization technology  ?
  • VT-d / Virtualization for directed I/O
  • TXT / Trusted Execution technology
Low power featuresEnhanced SpeedStep technology  ?
Integrated peripherals / components
Integrated graphicsGPU Type: HD (Westmere)
Base frequency (MHz): 166
Maximum frequency (MHz): 500
The number of supported displays: 2
Memory controllerThe number of controllers: 1
Memory channels: 2
Supported memory: DDR3-800
Maximum memory bandwidth (GB/s): 12.8
Other peripherals
  • Direct Media Interface
  • PCI Express 2.0 interface
Electrical / Thermal parameters
Maximum operating temperature  ? 105°C
Thermal Design Power  ? 18 Watt
Notes on Intel Core I7-680UM
  • Graphics and memory controllers are located on a separate die, which is manufactured on 0.045 micron technology
  • The processor has the following security, data protection and/or software features: Intel vPro technology.
  • The CPU is compatible with Shader Model 4, along with DirectX 10.1 and OpenGL 2.1 APIs. OpenCL API is not supported.
  • The graphics unit has the following software features enabled: Intel Clear Video HD technology.






















1. Shipping way: DHL/UPS/EMS/TNT/Fedex
2. All the products are 100% original and tested before shippment.
3. when you order, we will ship as soon as possible to you, within 72 hours.
4. If the product has any problem, we provide the buyer within 15 days
from the receipt of free replacement, 1 years warranty, please rest assured to buy
5. Your satisfaction and positive feedback is very important to us. Please leave
positive feedback and 5 stars if you are satisfied with our items and services.
6 .If you have any problems with our items or services, please feel free
to contact us first before you leave negative feedback. We will do our best
to solve any problems and provide you with the best customer services.
