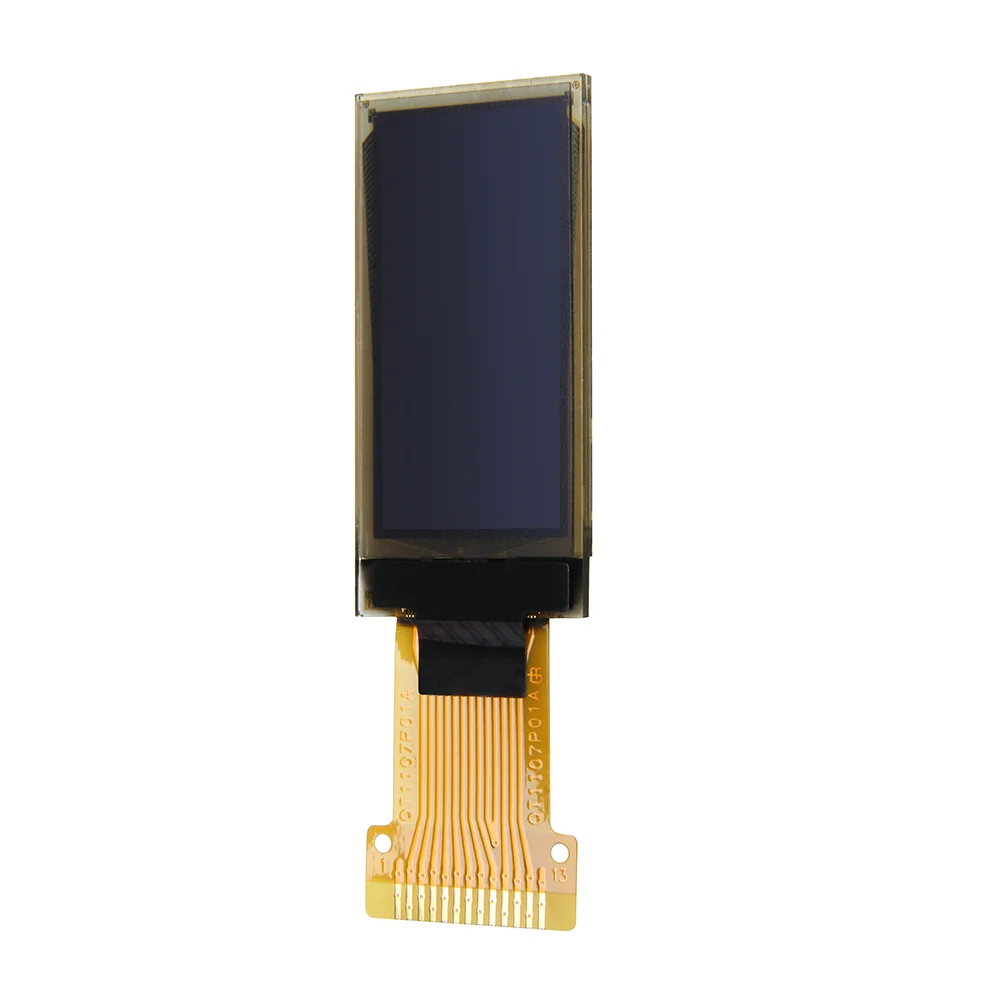

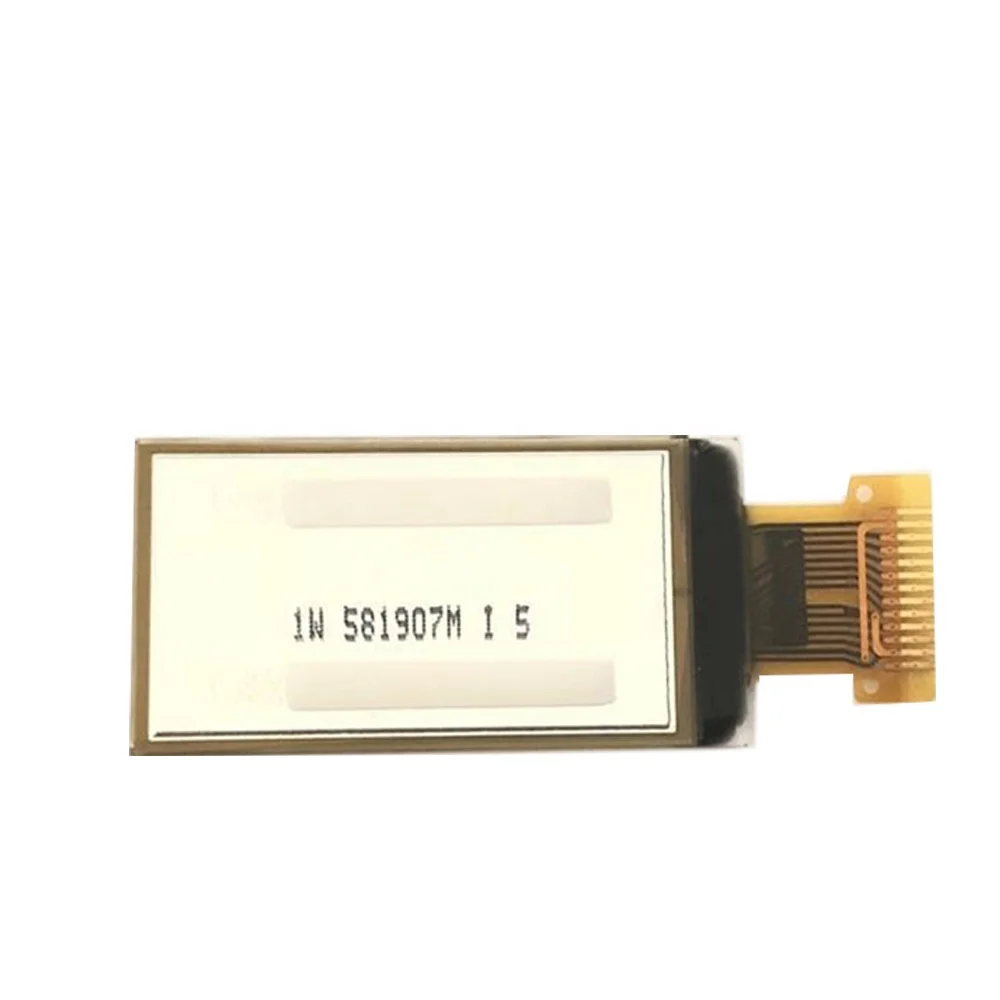

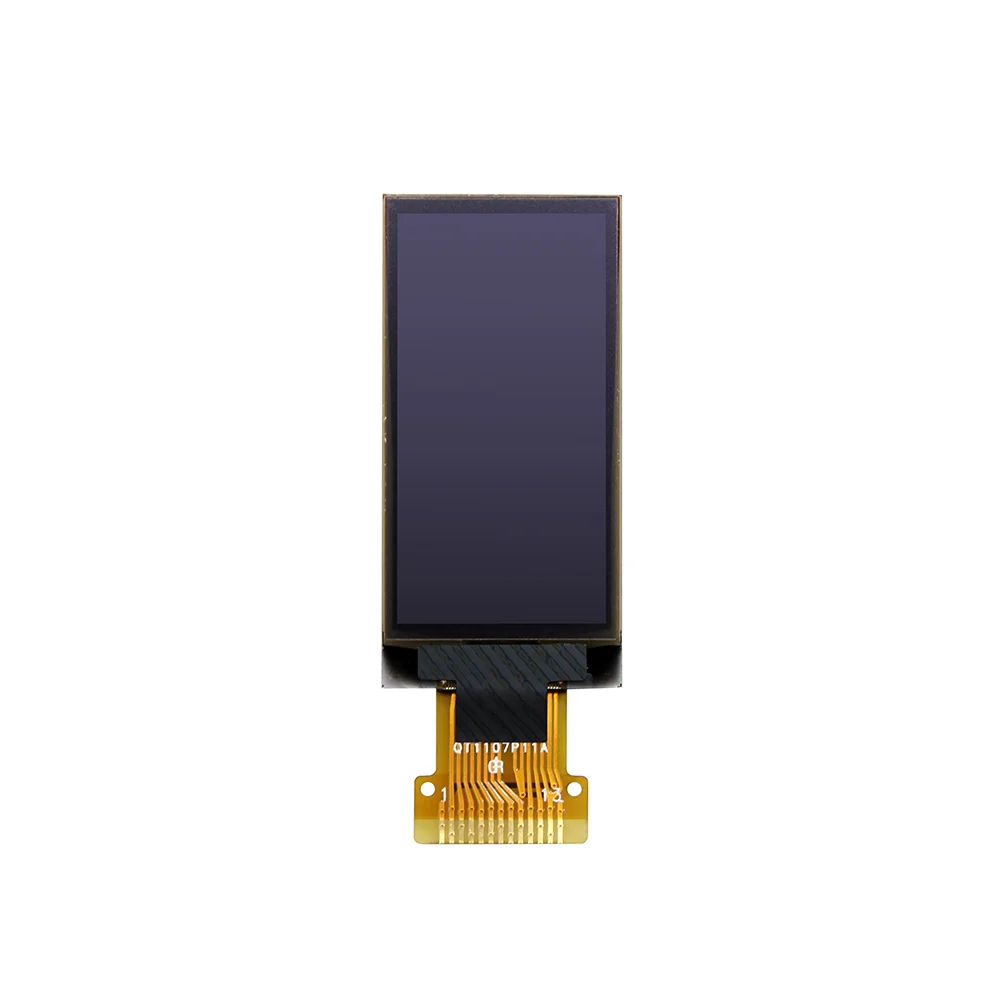

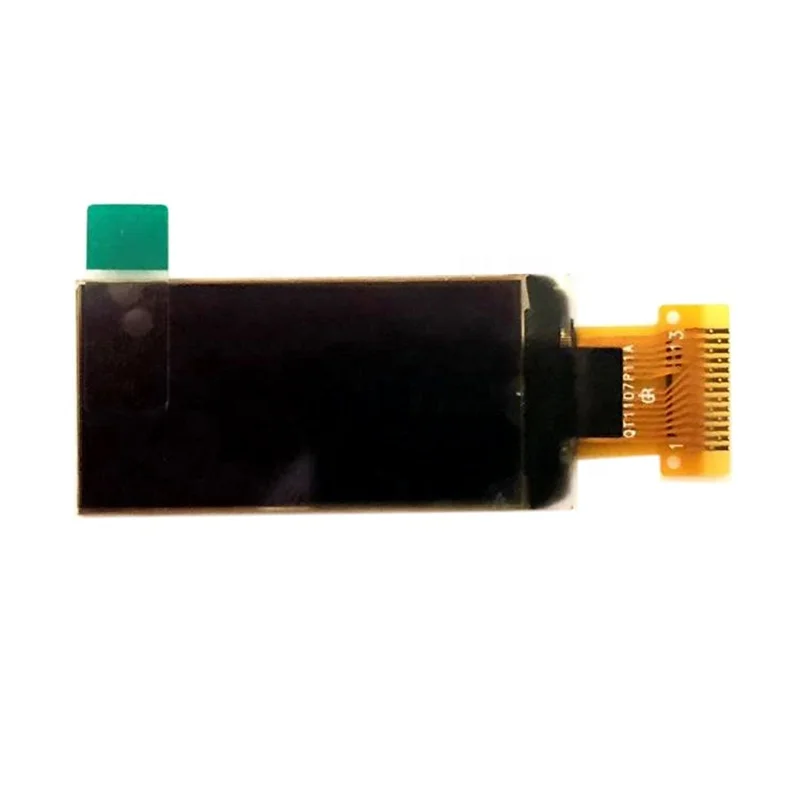

1.3 inch 64x128 OLED Display CH1116 lcd display
- Category: Used Monitors >>>
- Supplier: Dongguan Shineworld Innovations Co. Limited
Share on (62173054232):
Product Overview
Description
Product Description
Diagonal Screen Size | 1.29inch OLED | |||||||
Color | Monochrome(white) | |||||||
Module Construction | COG | |||||||
Number of Pixels | 64 x 128 | |||||||
Active Area（mm） | 14.7 (W) x 29.42 (H) | |||||||
Panel Size（mm） | 17.1 (W) x 35.8 (H)x1.22 | |||||||
Pins | 16 | |||||||
Drive IC | CH1115 | |||||||
Interface | SPI and I2C | |||||||

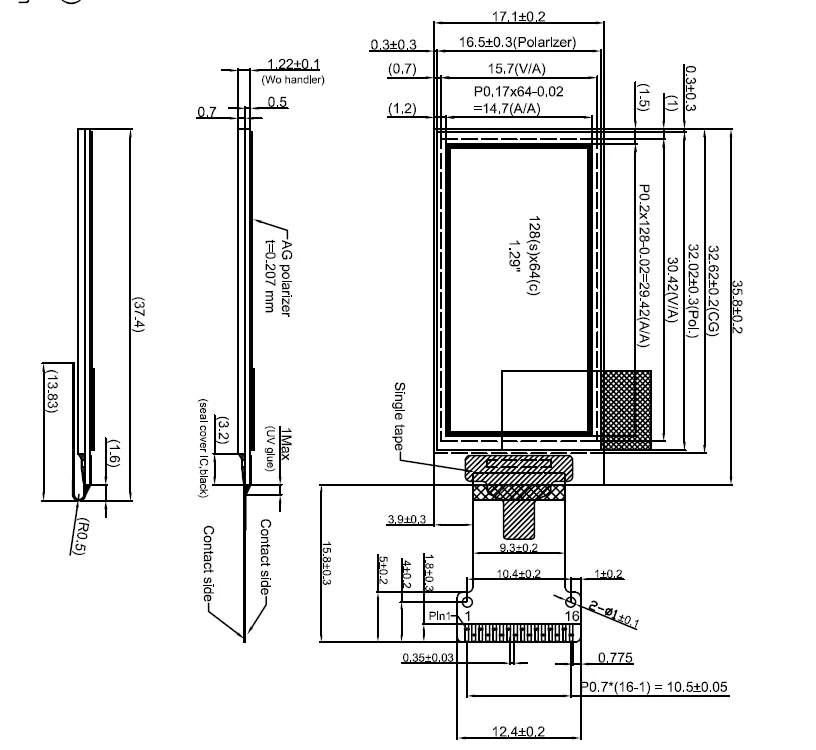

Drawing
About OLED
OLED displays offer ultra-thin designs (no need back light), wide viewing angles, clear bright display, and less power
consumption.
SWI provides standard small sizes as well as customized designs, including customized FPCs, integrated touch sensors and/or cover lenses, and flexible and/or transparent options.The OLED products SWI supplies are including Transparent OLED, Flexible OLED, Monochorme OLED, Chracter OLED, Segment OLED, Area Color OLED, Full Color OLED and Custom designed OLEDs etc. The sizes range from 0.42” to 5.5”. With the advantages of the OLED, the OLED products we supply are applied in the industries of Consumer, Medical, PC Peripheral, Automotive, Communication and Industrial.
0.42“-5.8” Sizes
Character | Graphic | Monochrome | Color | Bendable | Transparent
Dot Matrix: 48×64, 64×32, 64×48, 64×128, 72×32, 72×40, 96×16, 96×32, 96×64, 96×39, 96×96, 128×32, 128×64, 128×88, 128×96, 128×128, 160×128, 180×120, 256×32, 256×64, 320×360, 390×390, 400×400, 540×960, 720×1280, 1080×1200, 1080x1920
Display Sizes: 0.42”, 0.49”, 0.66”, 0.68”, 0.69”, 0.71”, 0.73”, 0.75”, 0.86”, 0.87”, 0.91”, 0.95”, 0.96”, 1.12”, 1.29”, 1.3”,
1.46”, 1.5”, 1.54”, 1.6”, 1.19”, 1.39”, 1.41”, 1.69”, 1.77”, 1.8”, 2.23”, 2.4”, 2.95”, 3.2”, 4.3”, 5.0”, 5.5”
Font Color: White, Blue, Yellow, Green, Full Color
consumption.
SWI provides standard small sizes as well as customized designs, including customized FPCs, integrated touch sensors and/or cover lenses, and flexible and/or transparent options.The OLED products SWI supplies are including Transparent OLED, Flexible OLED, Monochorme OLED, Chracter OLED, Segment OLED, Area Color OLED, Full Color OLED and Custom designed OLEDs etc. The sizes range from 0.42” to 5.5”. With the advantages of the OLED, the OLED products we supply are applied in the industries of Consumer, Medical, PC Peripheral, Automotive, Communication and Industrial.
0.42“-5.8” Sizes
Character | Graphic | Monochrome | Color | Bendable | Transparent
Dot Matrix: 48×64, 64×32, 64×48, 64×128, 72×32, 72×40, 96×16, 96×32, 96×64, 96×39, 96×96, 128×32, 128×64, 128×88, 128×96, 128×128, 160×128, 180×120, 256×32, 256×64, 320×360, 390×390, 400×400, 540×960, 720×1280, 1080×1200, 1080x1920
Display Sizes: 0.42”, 0.49”, 0.66”, 0.68”, 0.69”, 0.71”, 0.73”, 0.75”, 0.86”, 0.87”, 0.91”, 0.95”, 0.96”, 1.12”, 1.29”, 1.3”,
1.46”, 1.5”, 1.54”, 1.6”, 1.19”, 1.39”, 1.41”, 1.69”, 1.77”, 1.8”, 2.23”, 2.4”, 2.95”, 3.2”, 4.3”, 5.0”, 5.5”
Font Color: White, Blue, Yellow, Green, Full Color
333
Color | Brightness(cd/m2) | Hours | Color | Brightness(cd/m2) | Hours | |
Yellow | 120 | >80,000 | White | 100 | >50,000 | |
100 | >100,000 | 80 | >70,000 | |||
80 | >150,000 | Red | 100 | >50,000 | ||
Green | 120 | >40,000 | 80 | >80,000 | ||
100 | >50,000 | Blue | 100 | >20,000 | ||
80 | >80,000 | 80 | >30,000 |
OLED Benefits
High Contrast Ratio (10,000:1)
Free Viewing Angle
Fast Response Time (≤15μs)
Thinner & Lighter & Durable
Wide Operation Temperature (-40℃ - +85℃)
Self-emitting, No Need of Backlight
Applicable to Most Products from Any Segment
Free Viewing Angle
Fast Response Time (≤15μs)
Thinner & Lighter & Durable
Wide Operation Temperature (-40℃ - +85℃)
Self-emitting, No Need of Backlight
Applicable to Most Products from Any Segment
Industrial
Measuring & Meter
OA Equipment
POS & Server
Card Reader
Door Security
USB Key
Banking Device
Cryptocurrency Hardware Wallet
OA Equipment
POS & Server
Card Reader
Door Security
USB Key
Banking Device
Cryptocurrency Hardware Wallet
Communication
Mobile Phone
DECT Phone
Bluetooth Device
Router
Set-Top Box
DECT Phone
Bluetooth Device
Router
Set-Top Box
Automotive
Head Up Display
Car Audio
Speed Detector
ETC
Timer
Climate Control
Dashboard
Car Audio
Speed Detector
ETC
Timer
Climate Control
Dashboard
PC Peripheral
Keyboard
Mouse
Printer
Scanner
NAS
Digital Pen
Mouse
Printer
Scanner
NAS
Digital Pen
Medical
Glucose Meter
Oximeter
Blood-Pressure Meter
Thermometer
Beauty & Cosmetic Equipment
Oximeter
Blood-Pressure Meter
Thermometer
Beauty & Cosmetic Equipment
Consuming
IoT
Wearable Device
Remote Controller
Digital Camera
Game Machine
E-Cigarette
Audio Video Equipment
Wearable Device
Remote Controller
Digital Camera
Game Machine
E-Cigarette
Audio Video Equipment
\t\t\t\t\t\t\t\t\tMore Products \t\t\t\t\t\t\t
Size | Mono Color | Item No. | Pixels | Panel Size (HxVxD mm) | Interface |
0.42" | White/Blue | 72×40 | 12.0×11.0×1.25 | 4-wire SPI/I2C | |
0.48" | White | 72x32 | 14.9×11.29×1.2 | 4-wire SPI | |
0.49” | White/Blue | 64x32 | 14.5×11.6×1.2 | I2C | |
0.49” | White | 64x32 | 14.5×11.6×1.2 | 4-wire SPI | |
0.49” | White | 64x32 | 14.5×11.6×1.2 | I2C | |
0.49” | White | 64x32 | 14.5×11.6×1.2 | ||
0.5" | White | 48x88 | 8.928x17.1x1.227 | I2C | |
0.63" | White | 120x88 | 21.54x6.62x1.22 | I2C | |
0.66" | White/Blue | 64×48 | 18.46×18.1×1.45/1.23 | Paral/I2C/4-w SPI | |
0.66" | White | 64×48 | 18.46×18.1×1.45/1.23 | 4-wire SPI | |
0.66" | White | 64×48 | 18.46×18.1×1.23 | 4-wire SPI | |
0.66" | White | 64×48 | 18.46×18.1×1.23 | 4-wire SPI | |
0.69" | White | 96×16 | 26.3×8×1.3 | I2C | |
0.69" | White | GLO069-D-M2001 | 96×16 | 26.3×8×1.3 | I2C |
0.69" | White | GLO069-D-M2002 | 96×16 | 24×6.9×1.25 | I2C |
0.73" | White | 128x88 | 14.6x22.34x1.22 | 4-wire SPI | |
0.73" | White | 128x88 | 14.6x22.34x1.22 | 4-wire SPI | |
0.75" | White | 128x128 | 23.15×25.93×1.02 | I2C/4-wire SPI | |
0.78" | White | 128x80 | 12.13x23.6x1.22 | 4-wire SPI | |
0.86" | White/Blue | 96×32 | 29.1×9.2×1.2 | I2C | |
0.87" | White | 128×32 | 29.0×8.7×1.2 | 4-wire SPI | |
0.87" | White | GLO087-D-M2002 | 128×32 | 29.0×8.7×1.2 | I2C |
0.87" | White | GLO087-D-M2003 | 128×32 | 29.0×8.7×1.2 | 4-wire SPI |
0.87" | White | GLO087-D-M2004 | 128×32 | 29.0×8.7×1.2 | 4-wire SPI |
0.91" | White/Blue | 128×32 | 30.0×11.50×1.2 | I2C | |
0.91" | White/Blue | GLO091-D-M2008 | 128×32 | 30.0×11.50×1.2 | 4-wire SPI |
0.91" | White/Blue | GLO091-D-M2018 | 128×32 | 30.0×11.50×1.2 | I2C |
0.91" | White/Blue | GLO091-D-M2017 | 128×32 | 30.0×11.50×1.2 | 4-wire SPI |
0.91" | White | GLO091-D-M2020 | 128×32 | 30.0×11.50×1.2 | 4-wire SPI |
0.91" | White | GLO091-D-M2021 | 128×32 | 30.0×11.50×1.2 | 4-wire SPI |
0.91" | White/Blue | GLO091-D-M2022 | 128×32 | 30.0×11.50×1.2 | 4-wire SPI |
0.95" | White/Blue | 96x64 | 25.34x22.5x1.4 | Parallel/4-w SPI | |
0.96" | Y, Blu, W/Blu | 128x64 | 26.7×19.26×1.22 | I2C/4-wire SPI | |
0.96" | White/Blue | GLO096-D-M2011 | 128x64 | 24.74×16.6×1.28 | I2C/4-wire SPI |
0.96" | White/Blue | GLO096-D-M2013 | 128x64 | 24.74×16.6×1.28 | 4-wire SPI |
0.96" | White | GLO096-D-M2014 | 128x64 | 26.7x19.26x1.45 | 4-wire SPI |
0.96" | White | GLO096-D-M2001 | 64x128 | 14×28×1.22 | I2C/4-wire SPI |
0.96" | White | GLO096-D-M2003 | 96x96 | 24×25.7×1.2 | 4-wire SPI |
0.96" | White | GLO096-D-M2004 | 96x96 | 24×25.7×1.2 | 4-wire SPI |
1.09" | White | 64x128 | 14x31.96x1.22 | 4-wire SPI | |
1.1" | Yellow | 96x96 | 27x42.11x1.61 | Para/I2C/4-w SPI | |
1.29" | White | 128x64 | 32.42x21.36x1.427 | Para/I2C/4-w SPI | |
1.3" | White | 128x64 | 34.5×23.0×1.45 | Para/I2C/4-w SPI | |
1.3" | White | GLO13-D-M2002 | 128x96 | 32.5×29.2×1.61 | Para/I2C/4-w SPI |
1.3" | White | GLO13-D-M2003 | 64x128 | 17.1x35.8x1.43 | I2C/4-wire SPI |
1.3" | White | GLO13-D-M2007 | 64x128 | 17.1x35.8x1.43 | I2C/4-wire SPI |
1.3" | White | GLO13-D-M2004 | 128x64 | 34.5×23.0×1.45 | Para/I2C/4-w SPI |
1.32" | White | 128x96 | 33.8x36.5x1.41 | Para/I2C/4-w SPI | |
1.5" | Yellow | 128x128 | 33.8×36.5×1.41 | Para/I2C/4-w SPI | |
1.54" | White/Blue | 128x64 | 42.04×27.22×1.4 | Para/I2C/4-w SPI | |
1.54" | White/Blue | GLO154-D-M2005 | 128x64 | 42.04×27.22×1.45 | Para/I2C/4-w SPI |
1.54" | Yellow | GLO154-D-M2004 | 128x64 | 42.04×27.22×1.45 | Para/I2C/4-w SPI |
1.6" | Yellow | 128x64 | 41.9x28.0x1.61 | Parallel/4-w SPI | |
1.83" | White | 256×32 | 52×11.5×1.81 | Para/I2C/4-w SPI | |
1.92” | White | 128x160 | 32.9x118.4x1.22 | Para/I2C/4-w SPI | |
2.08" | White | 256×64 | 62.5x20.6 | Parallel, SPI, I2C | |
2.08" | 16 Gray Scal | GLO208-D-M2002 | 256×64 | 60.5x19x1.6 | Parallel, SPI, I2C |
2.08" | 16 Gray Scal | GLO208-D-M2003 | 256×64 | 60.5x19x1.73 | Parallel, SPI, I2C |
2.23" | White/Blue | 128x32 | 62x24x2 | Para/I2C/ 4-w SPI | |
2.4" | White/Yellow | 128×64 | 60.5×37.00×1.82 | Para/I2C/4-w SPI | |
2.4" | White | 128×64 | 60.5×37.00×1.82 | ||
2.42" | W/B/Y/G | 128×64 | 60.5x37x2 | Paral/I2C/4-w SPI | |
2.42" | W/B/Y/G | 128×64 | 60.5x37x2 | Paral/I2C/4-w SPI | |
2.7" | W/B/Y/G | 128×64 | 73x41.86x2 | Parallel/4-w SPI | |
3.12" | B/Y/W | GLO312-D-M2001 | 256x64 | 88x27.8x2 | Parallel/4-w SPI |
3.2" | 16 G S -W/Y | 256x64 | 88.00×27.80×2.0 | Parallel/4-w SPI | |
5.5" | Green | 256x64 | 146x45x2 | Parallel/4-w SPI |
Size | Color | Item No. | Pixels | Panel Size (HxVxD mm) | Interface |
1.36" | Flexible-White | 128X16 | 44.5x8.66x0.3 | 3-wire SPI | |
1.71" | Flexible-White | 128X32 | 50.50x15.75x2.0 | 3-wire SPI | |
1.81" | Flexible-White | GLO181-D-M2001 | 128X32 | 55.3x14.954x0.3 | 3/4-wire SPI |
1.51" | Transparent-Blue | 128x56 | 42.04x27.22x1.25 | Paral/I2C/4-SPI | |
4.1" | Transparent-RGB | 230 Icons | 106x37.9x1.4 | I2C | |
0.72" | White+Touch in Cell | 72X128 | 11.6x21.91 | I2C/SPI/Paralle | |
0.78" | White+Touch in Cell | CLO078-D-M2001 | 128x96 | 14.60x23.20x1.20 | I2C/ SPI |
0.96" | White+Touch in Cell | CLO096-D-M2002 | 64×128 | 14×28.46×1.22 | I2C/SPI |
0.96" | White+Touch in Cell | CO096-D-M2003 | 64×128 | 14×28×1.2 | I2C/SPI |
0.96" | White+Touch in Cell | CO096-D-M2004 | 96x96 | 20.50x23.80x1.20 | I2C/SPI |
1.71" | White+Touch in Cell | 128x32 | 15.75 x51.10x2.00 | I2C/SPI |
Size | Mode | Item No. | Pixels | Panel Size (HxVxD mm) | Interface |
0.95" | PM | GLO095-D-M2001 | 96RGBx64 | 25.7x22.2x1.40 | Parallel/4-w SPI |
0.95" | AM | 180RGB×120 | 22.23×18.24×0.77 | SPI | |
1.12” | PM | 96RGB×96 | 25.8×30.1×1.227 | Parallel/4-w SPI | |
1.19” | PM | 390RGB×390 | 33.22x34.72×0.68 | MIPI SPI | |
1.29” | PM | 128RGB×96 | 33×25.8×1.2 | Parallel/SPI | |
1.39” | AM | 454RGB×454 | 38.83x38.21x0.68 | SPI | |
1.41" | AM | 320RGB×360 | 26.04x31.78x0.77 | MIPI SPI | |
1.46" | PM | 128RGB×128 | 33.5×33.5×1.6 | Parallel/4-w SPI | |
1.5" | PM | 128RGB×128 | 33.8x34x1.6 | Parallel/4-w SPI | |
1.69" | PM | 160RGBx128 | 39.9x34x1.6 | Pa/4-w SPI/RGB | |
1.77" | PM | 160RGBx128 | 42.7×33.4×2.0 | Parallel/4-w SPI | |
2.95" | AM | 1080RGB×1200 | 52.91x62.58x0.65 | MIPI 4 lanes | |
4.3” | AM | 540RGB×960 | 57.26x1.3.87x0.77 | MIPI | |
5.0" | AM | 720RGB×1280 | 64.9x117.9×0.64 | MIPI 4 lanes | |
5.5” | AM | GLO55-D-M2001 | 1080RGB×1920 | 70.66x128.36×0.64 | MIPI 4 lanes |
OUR ADVANTAGES
CUSTOMER FOCUSED
We’re here to serve customers, and they receive our unwavering focus. We also continually communicate with those we serve, encouraging feedback on how we can better meet their needs and expectations. This helps guide our priorities and methodology.
EFFECTIVE TEAMWORK
We feel a team-based approach works best, for all engagements. Effective teamwork demands strong relationships, respect, and diversity of thought from all contributors, and we foster an environment where those are stimulated.

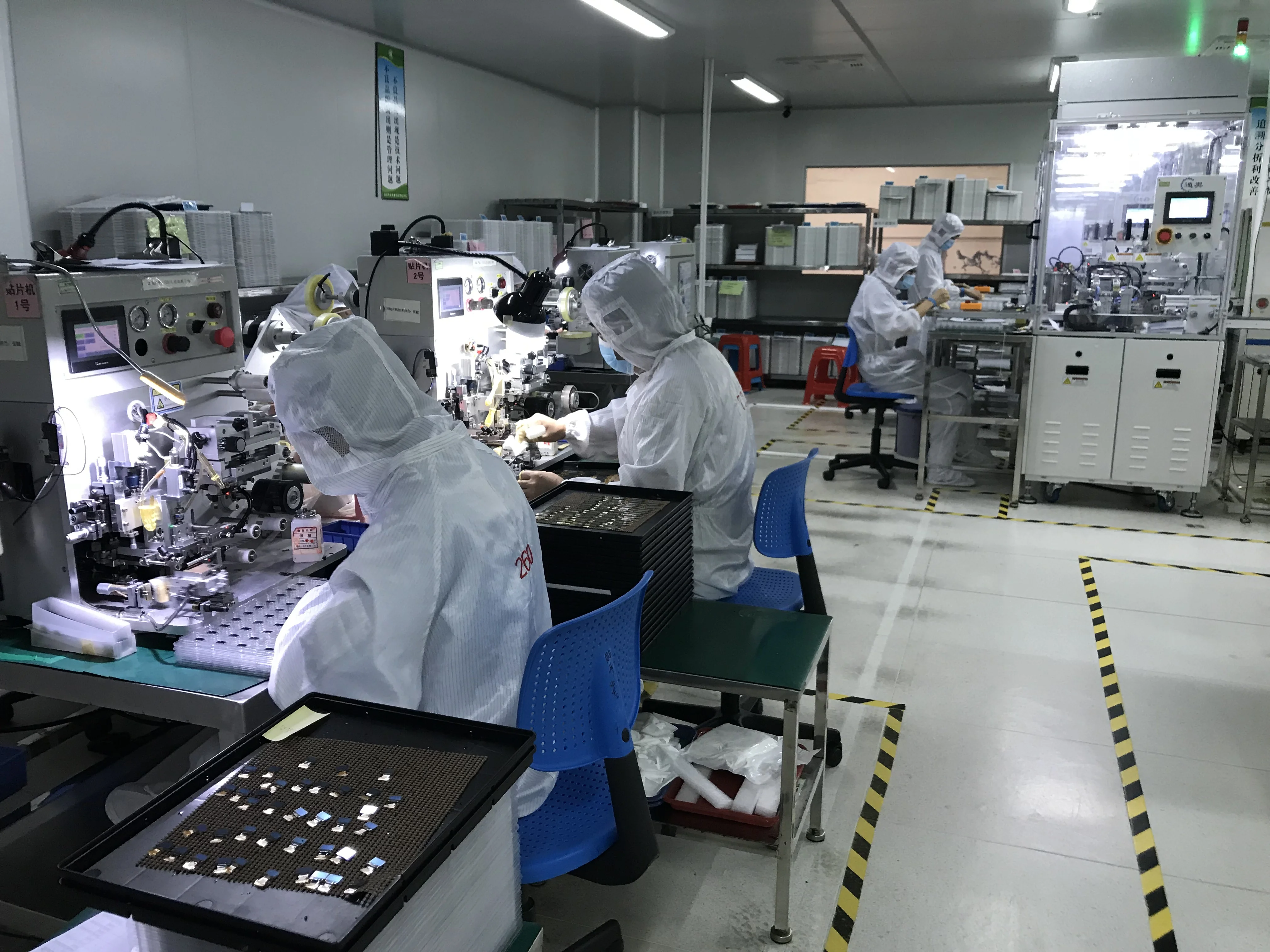

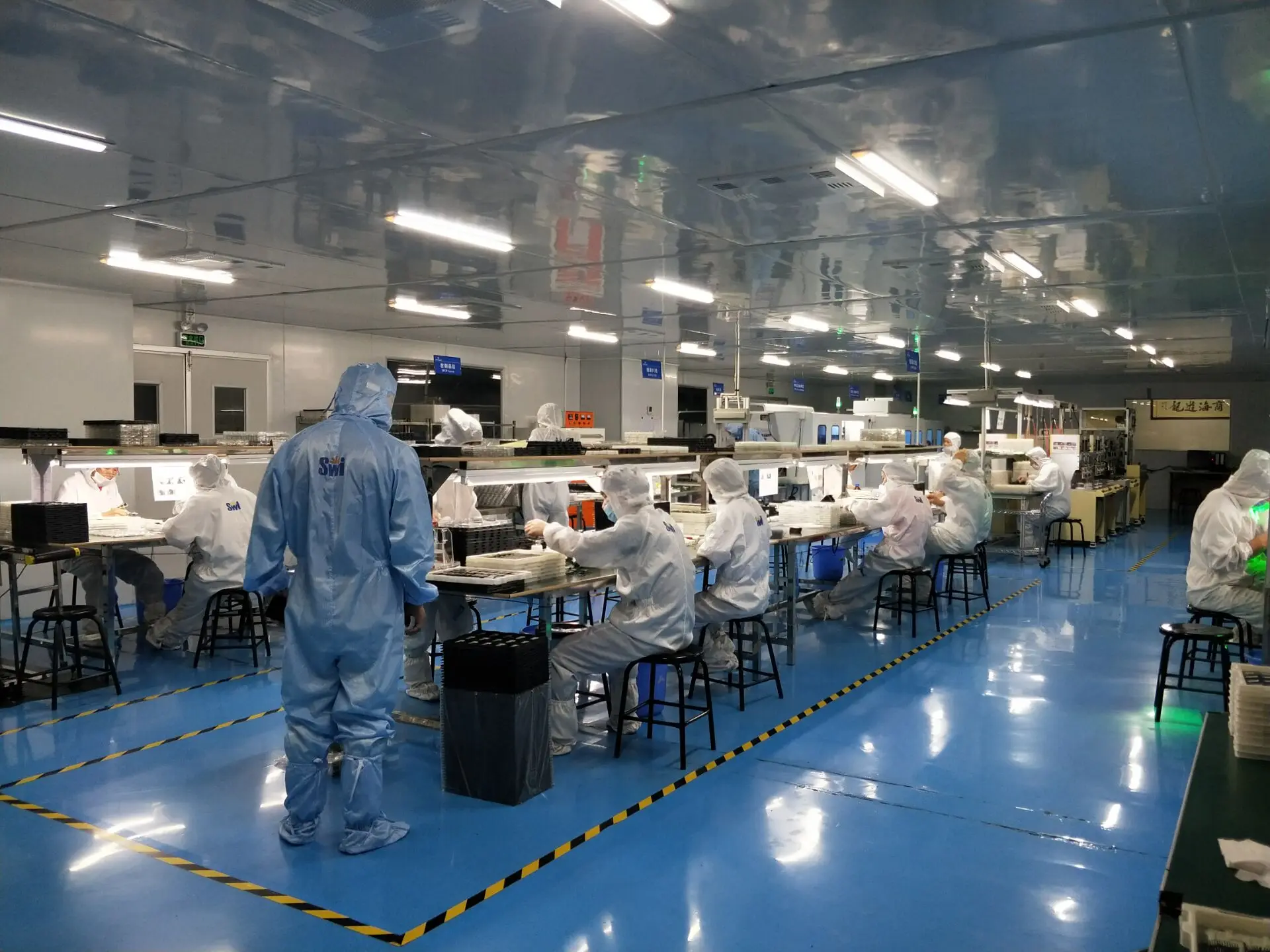

ADVANCED FACILITIES

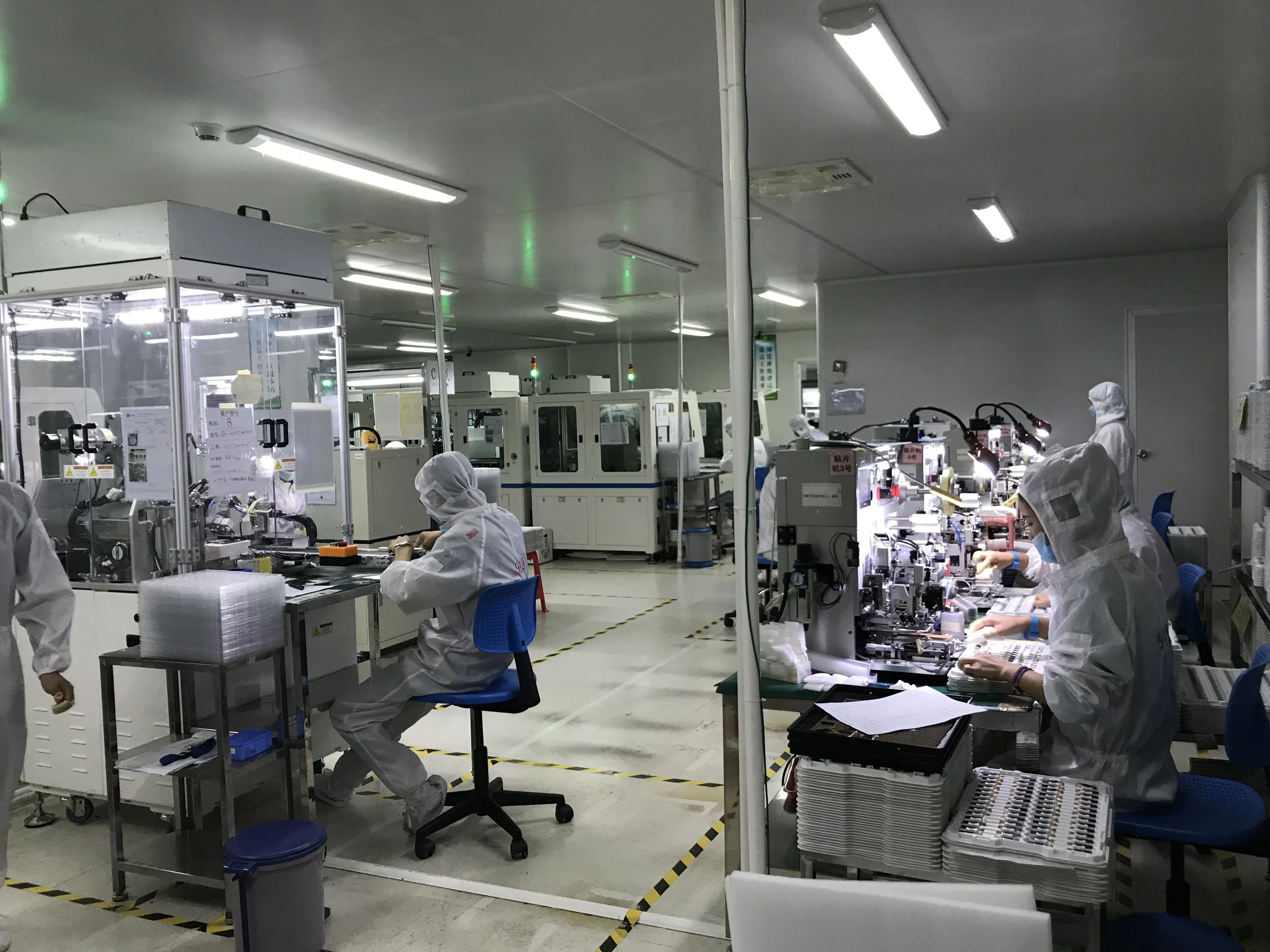

The advanced facilities and automated production lines in designated class 100 and class 1000 clean rooms ensure the product quality.
With the pioneering technical team and sophisticated manufacturing facilities, SWI’s products and services are both competitive and quality.
With the pioneering technical team and sophisticated manufacturing facilities, SWI’s products and services are both competitive and quality.
INTEGRATED SOLUTIONS
We propose most suitable display solutions to our customers integrated with capacitive touch functions and optical bonding solutions.
The wide selection and integrated solutions of display technologies in our company meet the customers' effective one-stop customization requirements. This includes LCM, TFT, OLED, EPD, CTP and optical bonding.
The wide selection and integrated solutions of display technologies in our company meet the customers' effective one-stop customization requirements. This includes LCM, TFT, OLED, EPD, CTP and optical bonding.
