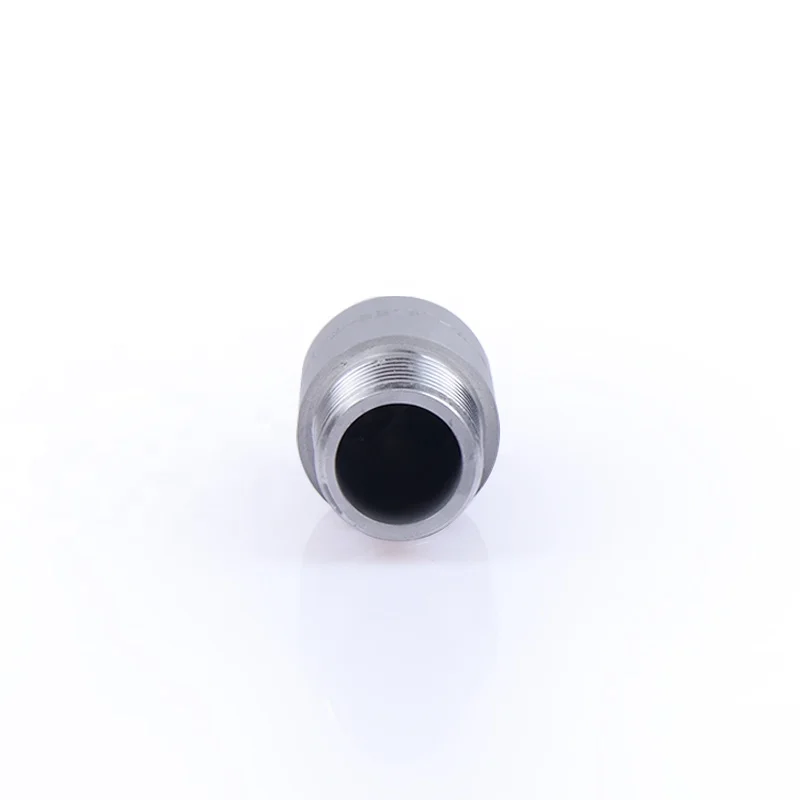

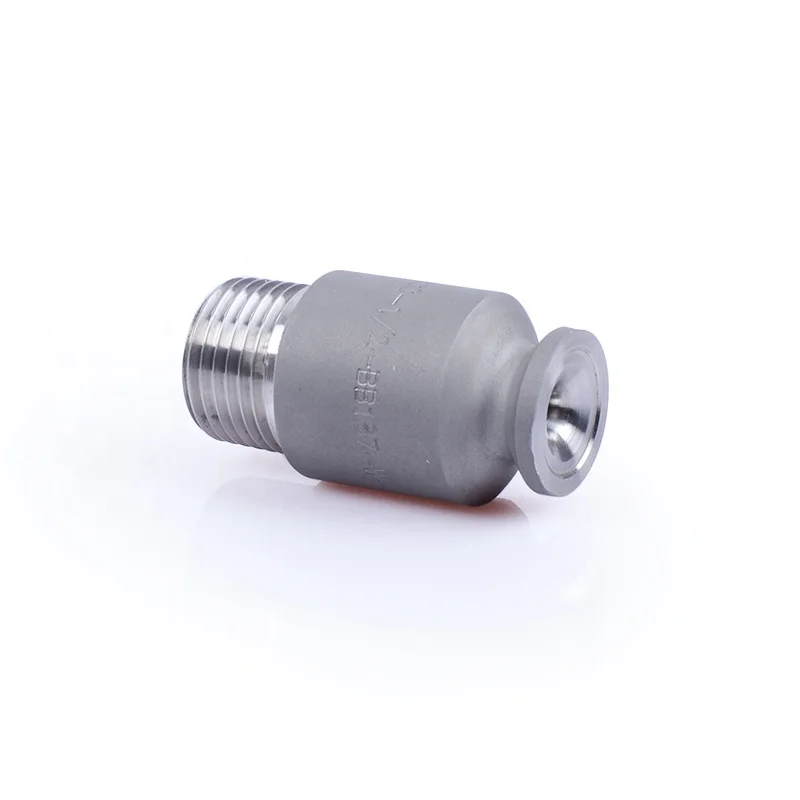

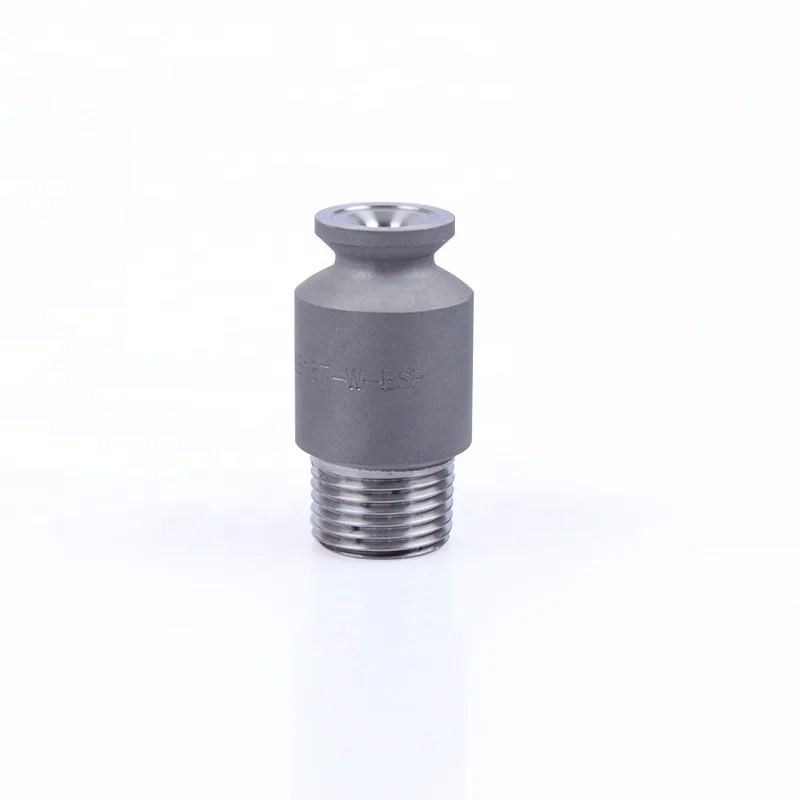

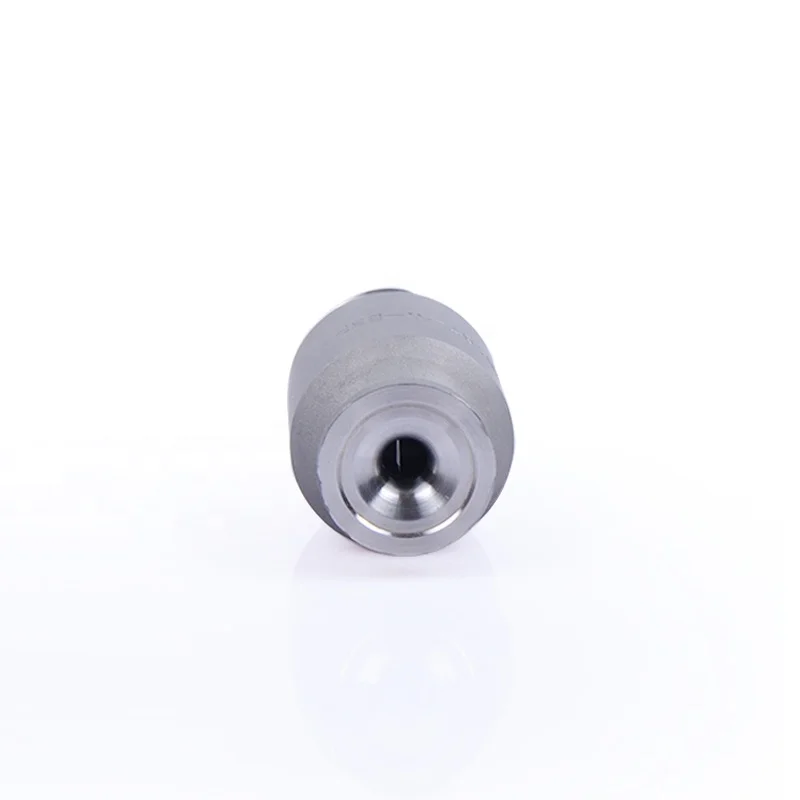

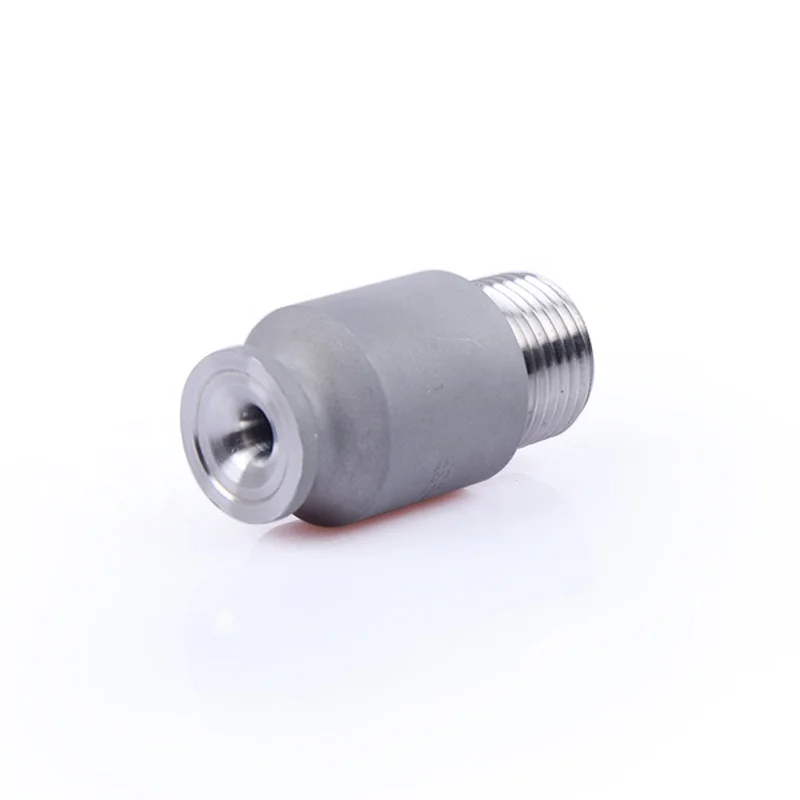

90 Degree 120 Degree Large Flow Free Passage Stainless Steel Full Cone Spray Nozzle For Scrubber Sulfur Removal
Product Description
Design features of BBS large flow full cone nozzle:
Liquid enters the nozzle and then proceeds through vane which causes the liquid to swirl.
The design of nozzles ensures the liquid continues to swirl as it enters the orifice. The liquid breaks up as it exits the nozzle orifice forming a well defined full cone pattern with round area.
It creates uniform and well-distributed drops. Large unobstructed flow passages achieve anti-clogging.

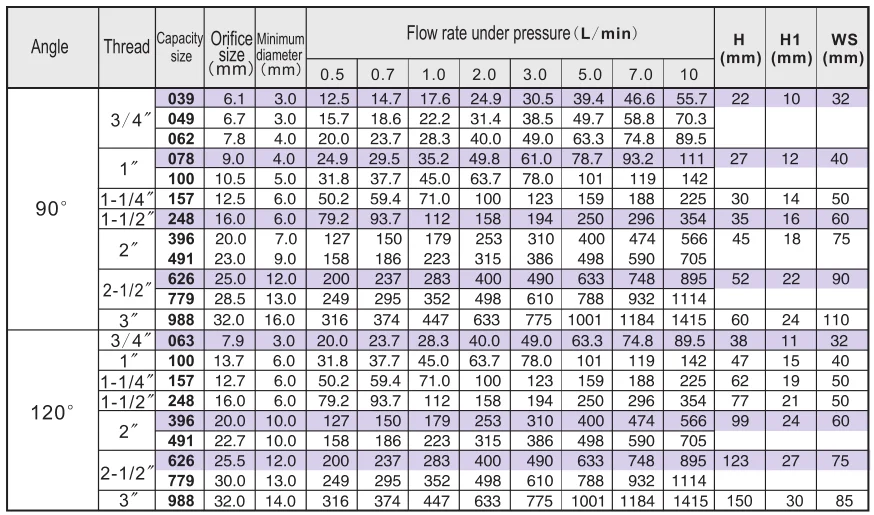

Technical Data Sheet :
Application
Coating, lubricating, chemical application;
Gas cooling, humidifying, moistening;
Cleaning, washing, rinsing;
Dust controling, fire fighting
Related Products
Pls Click the different nozzle pictures as below,
then you will go to the related nozzle page for more information.
Tank Washing Nozzle Hollow Cone Nozzle FD Mist Nozzle
Dry Fog Humidifier Fire Fighting Nozzle Air Atomizing Nozzle
Certification
CYCO passed the IS09001 and IATF16949 quality and enviromental certification.
Company Information
CYCO is the leading brand manufacturer in China specialized in various industries spray nozzles for more than 20 years since from 1997. We have more than 100pcs advanced CNC machines, including 10 Japan-made CNC automatic lathes,the precision can reach 2 micro or below, several five-axis machining lathes, the orifice can reach 0.1mm. 90% of CYCO's stainless steel is imported from Janpan. CYCO passed the ISO9001 and IATF16949 quality and enviroment certificates. We have won great reputation and trust among thousands of valuable clients all over the world over the passed years.

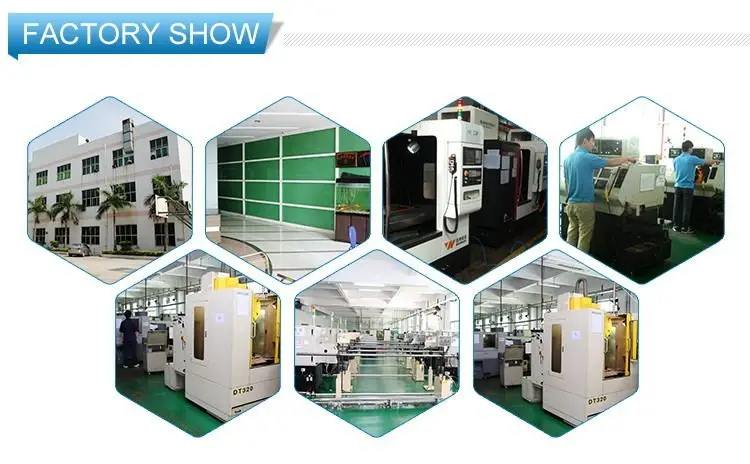

Production Process
Packaging & Shipping
After strict testing, all the spray nozzles will be packed in a transparent plastic box, then nozzles will be packed into carton, and large quantity will be packed in wooden cartons.
Shipping Terms: EXW, FOB, CIF, International Express such as DHL, UPS, FedEx, TNT, etc.
By air and by sea, both are OK.
Delivery Time: Normally within 5 -10 working days. Bulk order and OEM order within 10 - 25 working days.
Our Services
1. OEM and ODM are always welcomed. 2. Trial order and sample testing first are also welcomed. 3. Your inquires will be replied within 24 hours ASAP.
4. Every spare parts and all spray nozzles are strictly tested before packing and shipping.
5. Complete and professional QA assurance system.
6. Warmly welcome to visit our factory to check our facilities and full range.
