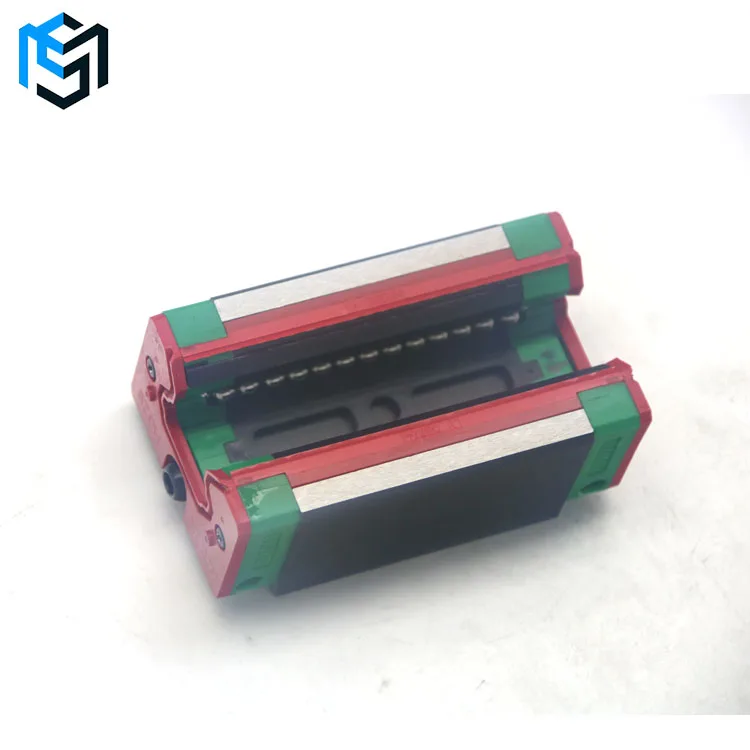

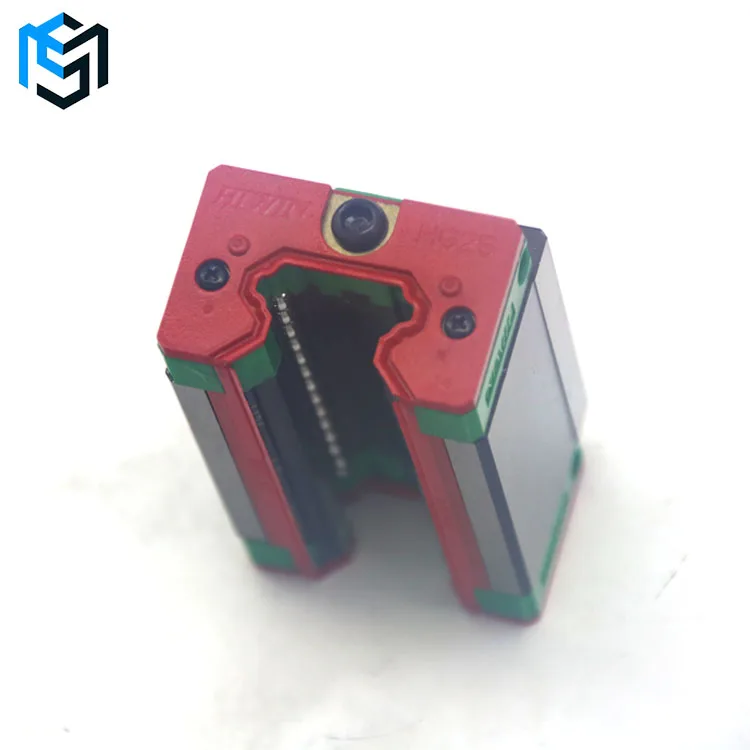

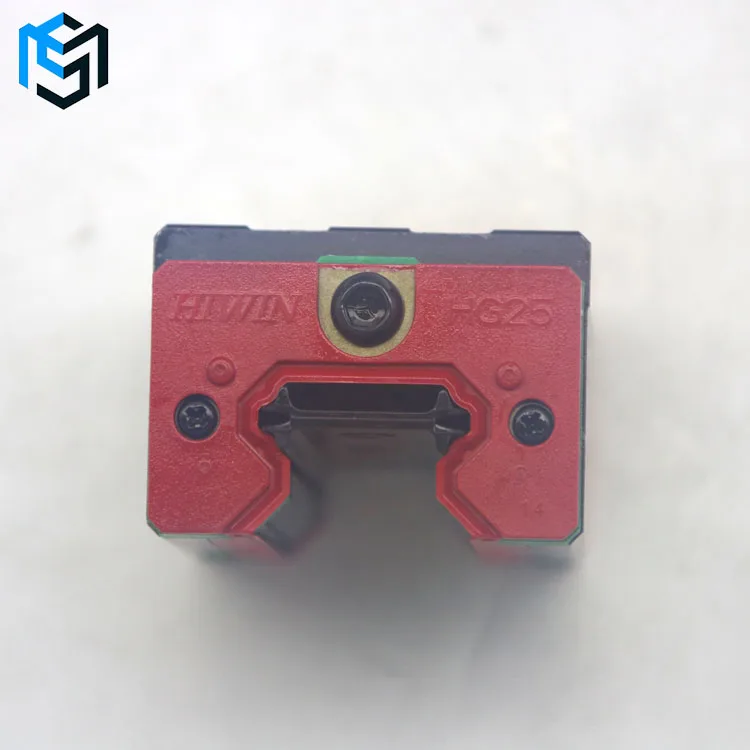

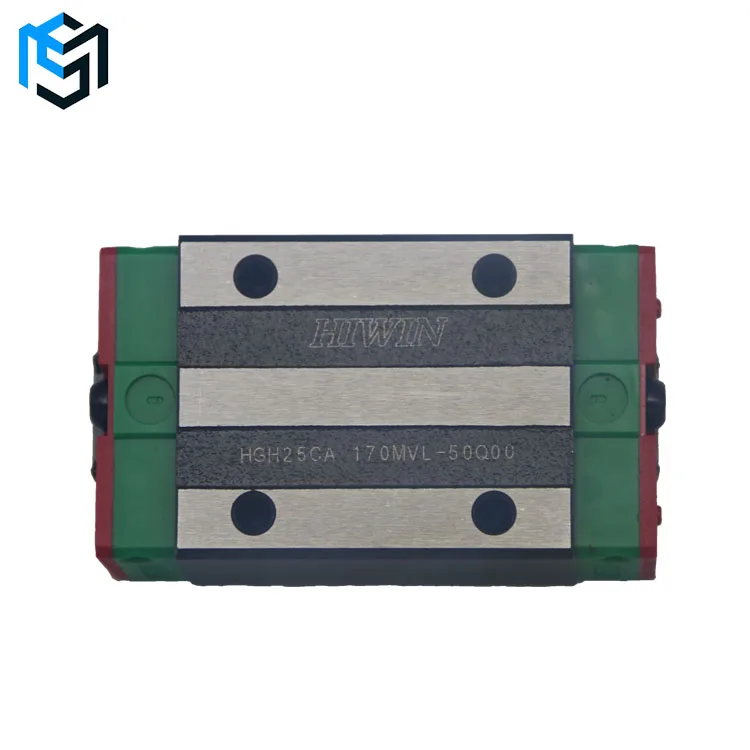

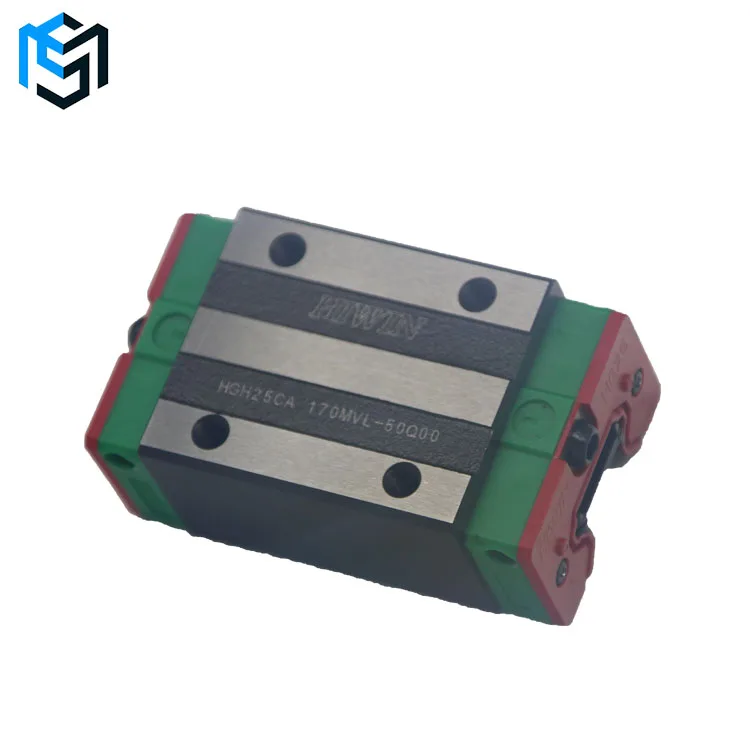

Big Linear Sliding Parts Cnc Hgw Linear Guide Shenzhen Hiwin HGH25CA H25C Block

Product Overview

Description

Big Linear Sliding Parts Cnc Hgw Linear Guide Shenzhen Hiwin H25C Block





Product Name	Taiwan HIWIN
Material	Bearing Steel
Advantage	High Precision, Large Load Capacity, Low Noise, High Rigidity
Delivery Details	5-15 Days After Order
Applications	The HIWIN linear guide rail slider is widely used in machinery processing centers, tool machines, precision processing machines, heavy cutting machines, marble cutting machines, grinding machines, injection beds, punching machines, automation equipment, transportation equipment, measurement instruments and other industries.





Product Description

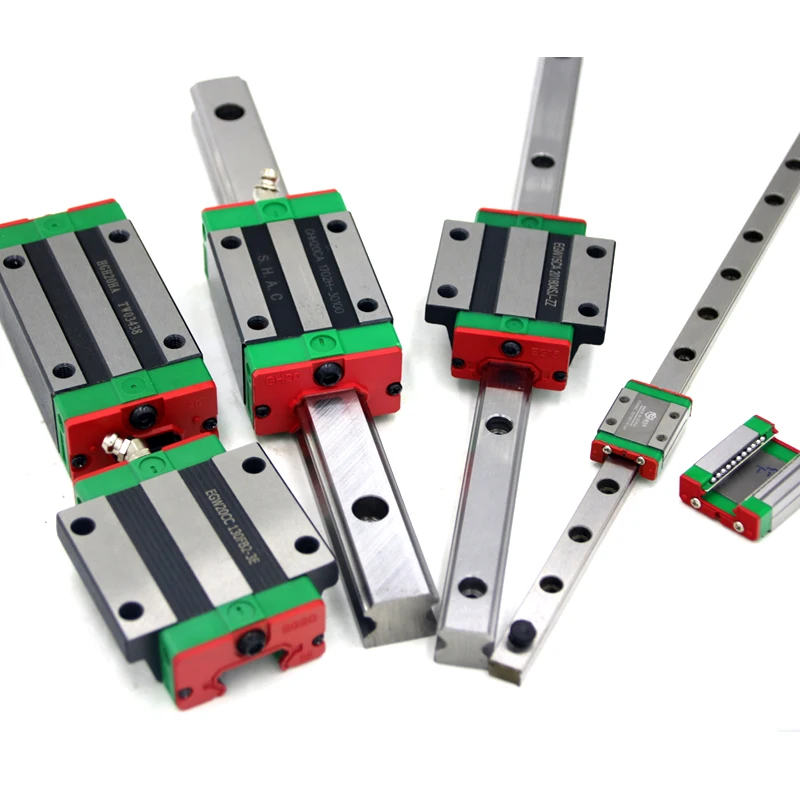

A linear guideway allows a type of linear motion that utilizes rolling elements such as balls or rollers. By using recirculating rolling elements between the rail and the block, a linear guideway can achieve high precision linear motion, Compared to a traditional slide, the coefficient of friction for a linear guideway is only 1/50 , Because of the restraint effent between the rails and the blocks, linear guideways can take up loads in both the up/down and the left/right directions, With these features, linear guideways can greatly enhance moving accuracy,especially, when allompanied with precise ball screws.











1.Q: What is the HIWIN HG/EG/RG series linear guide material? What is the material of the steel ball?

A: Rail material: S55C (55 steel)
Slider material: SNCM220
Steel ball material: GCr15 (bearing steel)



2.Q: What is the minimum temperature of the HIWIN linear guide?

A: Self-lubricating/silent linear slides are -10 degrees, metal end-capped linear slides are -40 degrees



3.Q: What effect does chrome-plated nickel-plated galvanizing have on HIWIN rails?

A: Surface plating treatment can improve the rust resistance, wear resistance and surface hardness of the guide rail.



4.Q: How long does the HIWIN slider and nut lubricate once?

A: Linear guide grease; lubrication frequency is 100km per run, or 1 time every 3 to 6 months; lubricating oil; oil supply rate is not the same due to different slider specifications, it is recommended to supply oil frequency 0.3cm3/h

 Ball screw grease; lubrication frequency is 100km per run, or 1 time every 2 to 3 months; 1/2 capacity of weight nut; lubricating oil; oil supply per 15 minutes = screw outer diameter due to screw specification difference (mm)/56-60---unit (CC)



5.Q: Can HIWIN silent and standard dustproof accessories be used?

A: QH25, 30, 35 and HG series are not the same as the oil scraper and fuel tank.
