Multifunction storage AC power bank 100000mah 300W support DC 12V 24V 10a AC 300W portable powerpacks
- Category: >>>
- Supplier: Shenzhen Volpower Technology Co. Ltd.
Share on (62173396950):
Product Overview
Description
Multifunction storage AC power bank 100000mah 300W support DC 12V 24V 10a AC 300W portable powerpacks
| Model No. | P320 |
| Capacity | Standard: 93,600mah/337WH (cell, 2600mah*36pcs) |
| Size | L242*W160*H186(MM) |
| N.W | About 3.7KG |
| Cell type | lithium battery ICR18650 |
| Input | DC: 14V-20V/60w DC: 12-24V/60w Type-C PD: 5V-20V/50W(max) artomatic identification Solar panel:15-20V/100W(MAX) |
| Output |
1, USB*2: QC3.0 3.8V-12V/18W MAX 2, Type-C*1: 3.8V-12V/18W MAX, support PD 3, Type-C*1: 3.8V-20V/60W MAX, support PD 4, DC*1: 12V-24V/80 MAX; voltage is optional 12V, 16.5V, 19V, 20V, 24V 5, DC*2: 9V-12.6V/5A MAX 6, TX30*1: 9V-12.6V/10A max 7, AC*2: Pure wave 110V-120V/ 220V-240V(300W max) (The AC output voltage is customized according to different countries, please prevail in kind)
|

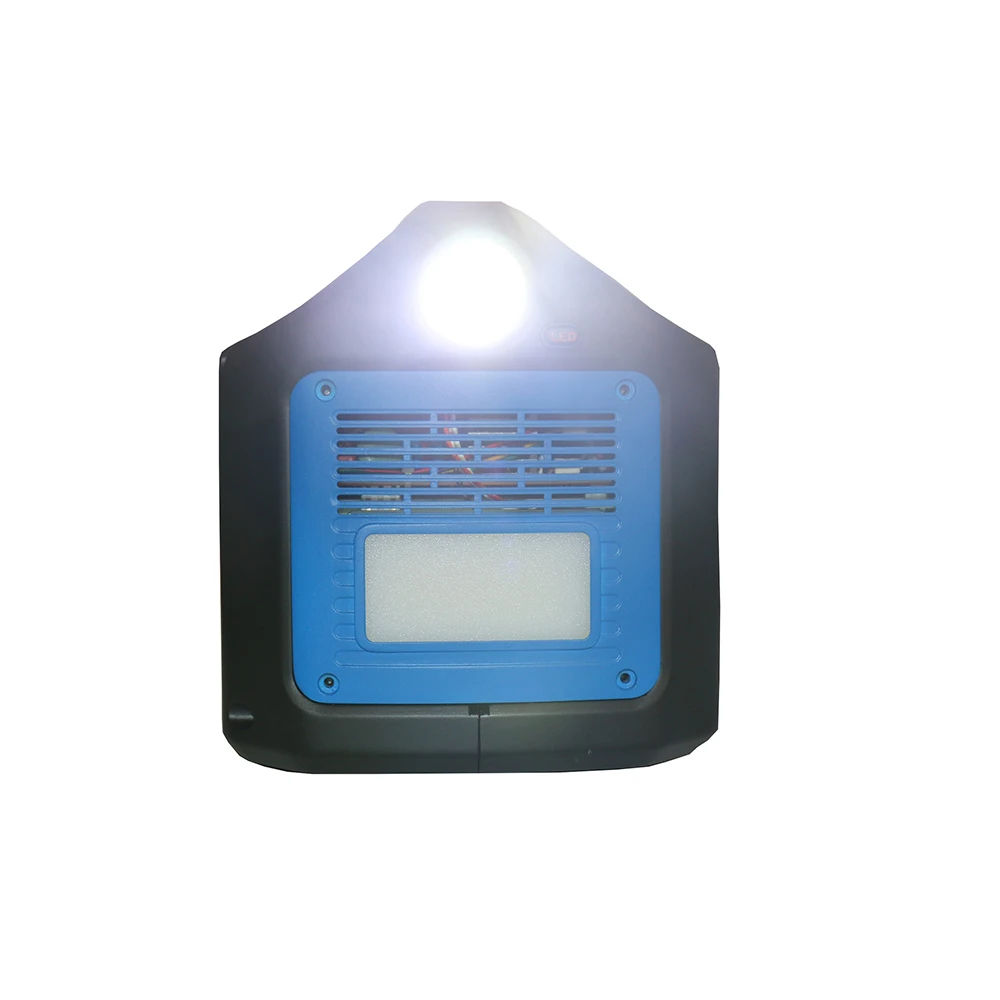

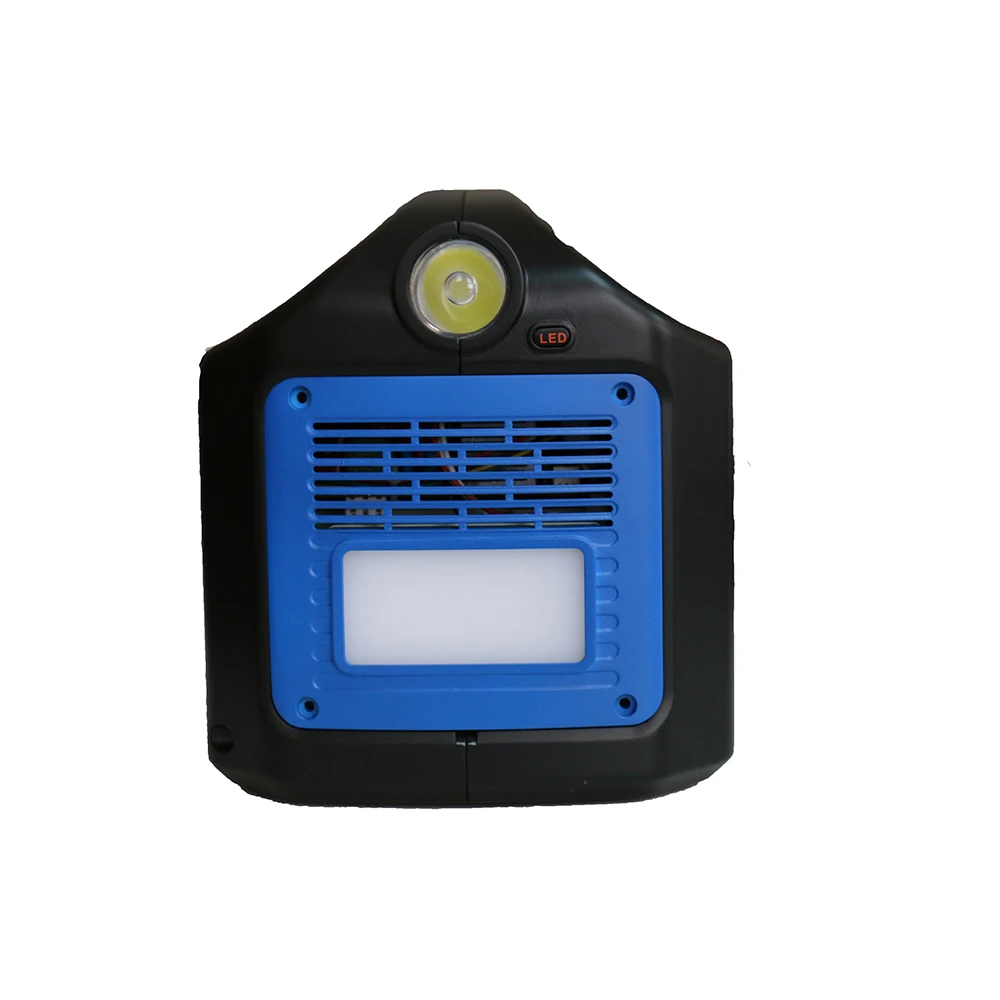

| Lighting | Low Beam light: 3W High beam light:3W |
| Charge and discharge | Yes |
| Circuit protection | Over voltage protection, over current protection, under-voltage protection, over temperature protection, short circuit protection. |
| Full charge time | Adapter/car adapter: 8 hours
100w solar panel: 10 hours
Simultaneous charging by 3,8,15 ports:3 hours |
| Cycle times | ≥500times |
| Charge temperature range | 0℃ ~+50℃ |
| Discharge temperature range | -10℃~+65℃ |
| Storage temperature range | 0℃ ~45℃,within 30 days |
| Long-term Storage temperature range | 0℃~40℃,within 180 days |
| Storage humidity | 45% ~85%RH |
| Long-term storage time | Advise charging it if it is not used within 90 days |
| Certification | CE/FCC/ROHS |
| OEM/ODM | Yes, we can do your brand on the product. |

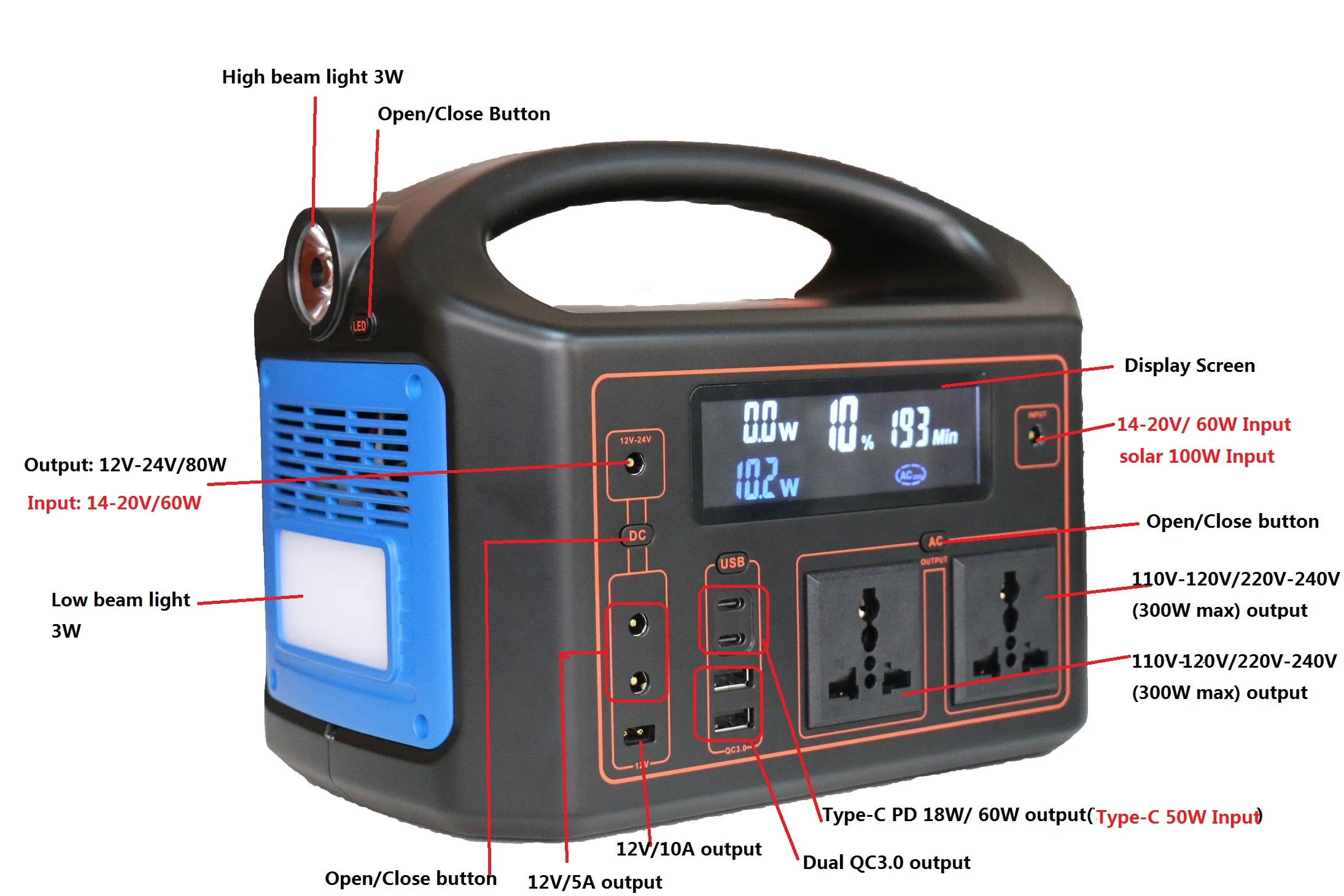

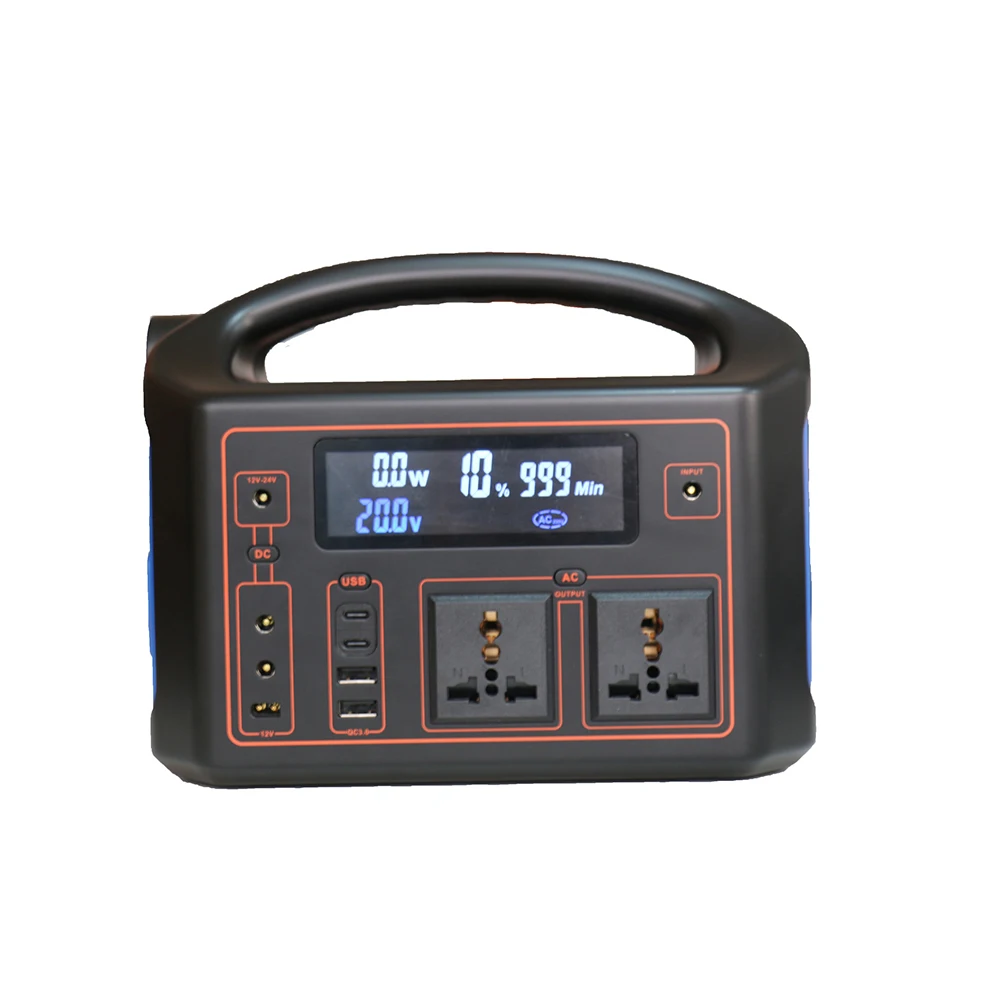

P320 AC Energy Storage Power Supply(300W)
Summary
The product USB port support charge cellphone, tablets, mp3/4, digital camera and most digital mobile devices. 12V DC port support charge lamps, car adapter and 12V high power devices. 12-24V DC port support charge laptop, POS machine, led light, mini water pump(charge/power-up),etc. We also provide 12-24V range voltage regulation customization service, PB gear support most car/SUV car jump starter function. 18W USB C port support quick charge for most USB C smart phones. 60W USB C port support charge/power-up for most laptops. AC port(pure sine wave)support power up 300W devices max. LED light support 3W high/low beam lighting.
1, High capacity 93,600mAh(337WH), support all electronic products which 300W or under 300W;
2, Dual AC output, 100% pure sine wave;
3, Have Type-C PD 60W charge MacBook and Type-C PD 18W for Type-C mobile phones;
4, DC 12V, 16.5V, 19V, 20V, 24V/80W stabilivolt output(optional voltage), TX3.0 output12V/10A high current charge;
5, When three input port is work togehter (DC1, DC2 and Type-C input), it just need about 3 hours to charge full;
6, support 100W solar input.
Functions instructio
1, The AC 110-120V/ 220V-240V output, support TV, laptop, refrigerator, fan, and all electronic products with 300W or under 300W;
2, The DC 12-24V output, support all DC 12V, 16.5V, 19V, 20V, 24V charge electronics.
3, The TX30 output port support high current 12V/10A charging;
4, Type-C PD 60W output for MacBook and other Type-C laptop;
5, Type-C PD 18W is for Type-C mobile phoens;
6, Double USB QC3.0 fast charge, fit for common mobile phones and QC3.0 phoens, such as Samsung fast charge.
7, Support solar chargeing, 100W.
Size
Version Differentiate
No. | Model | Version differentiate instruction | |
1 | P320 Standard | One DC 12-24V stabilivolt multi-voltage Port, the maximum power is 80W DC, long time working 80W; PD 1 port is 80W, PD2 port is 18W. USB*2 is QC3.0; AC is 300W, support High/low beam lighting | |
2 | P320 Plus | One DC 12-24V stabilivolt multi-voltage Port, the maximum power is 200W DC, long time working 200W; PD 1 port is 60W, PD2 port is | |
3 | P320 simplified | All DC port is fixed voltage 12V, DC port Total power is 200W, PD1 is 18W, PD2 is 18W. | |
Above all version are support Blue-tooth Operation, cell quantity(support up to 48pcs), capacity, DC voltage, DC power, PD power is optional, The AC port power and voltage can customized as requirements. | |||
Accessories
Packing list
1, P320 portable power station *1 pieces
2, Manual & Warranty Card *1 piece
3, AC charge adapter*1 pieces
4, AC charge cable&1 pieces;
5, In car charging cable(Male car charger to 5525 DC male) *1pieces
6, In car charging cable(Female car charger to 5525 DC male) *1pieces
7.DC connector cable *1pieces (it’s optional)
8.USB-A to USB-C cable *1 pieces (it’s optional)
9.Type-C to Type-C cable *1 pieces (it’s optional)
10. laptop power tips*1set(8 pieces) (it’s optional)
Company information
Volpower established in 2005, is a professional manufacturer which specialized in the research and manufacturer of SUPER POWER BANK. We have powerful R&D team 9 pople and our advantage is the technolgoy. All our power banks is own ourself private mould, from the PCBA to power bank case. So, we also support ODM, do the customized power bank as your requirement.
For the production, we have 5 working line, about 200 workers. Our monthly production capacity is about one hundred thousand. We offer our clients with high quality products and one-station services. Our products have CE, FCC, ROHS, MSDS, UN38.3 certification and company have ISO9001 certification. We always follow the idea that quality is the first to sale our power banks to the worldwide.
Certifications
CE/FCC/ ROHS/ UN38.3
FAQ
Q1 Are you a factory or trading company?
A We are factory, we support OEM&ODM service.
Q2 For the product, if there are full 15600mAh?
A Yes, Single 2600mAh, all 6 batteries, so 2600*6=15600mAh;
Q3 What’s the battery you used?
A We use AAA class Forster battery 2600mAh, or import LG battery 3350mah depend on customers;
Q4 What certification do you have?
A we have CE/FCC/ROHS certification for this power bank;
Q5 If there are any testing before delivery?
A Yes, all the products we will do aging test charge-discharge over 24 hours;
Q6 Can we have larger capacity than 15600mAh?
A Yes, we can do 20100mAh, use LG battery, single 3350mAh;
Q7 Can we print our logo on the product?
A Yes, sure. We support OEM service.
Q8 What’s your conversion rate? It’s real 93%-97%?
A Yes, we use our self high quality PCBA board, do real testing for it.
Q9 How long it can charge my laptop?
A It Can charge Mac book 3.5 hours, Iphone7 5.4 times, Ipad Mini 2.6 times
