HDR200 Support openWRT waterproof outside router IP67 with sim card slot CPE 4g LTE wifi router (62173454563)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

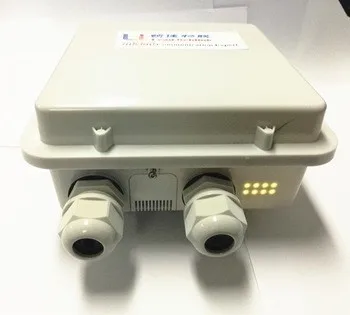

HDR200 Support openWRT waterproof outside router IP67 with sim card slot CPE 4g LTE wifi router

High light

 1). Waterproof and dustproof level. IP67

  2). Lightning protection.

  3). Dual LAN ports.

  4). Provide Openwrt and SDK fireware version.

Frequency bands

* 4G LTE router.

 HDR100 V2/4G Series

  Version A

   LTE FDD. B2,4,5,17


   UMTS. 850/1900MHz

  Version E


  LTE FDD. B1,3,7,8,20

  LTE TDD B38, B40


  UMTS. 900/2100MHz


  GSM. 900/1800MHz

  Version C


  LTE FDD. B1,3,7,8


  LTE TDD B38, B39, B40, B41


  UMTS. 900/2100MHz


  TD-SCDMA. 1880~1920MHz & 2010~2025MHz

  GSM. 900/1800MHz


  Version JC

  LTE FDD. B1,B3,B8,B18,B19

  LTE TDD. B41


  UMTS. B1,B6,B8

  GSM. 900/1800MHz

  Version JE


  LTE FDD. B1,B8


 UMTS. B1,B8


GSM. 900/1800MHz

* 3G router.

HDR100 V2/3G (WCDMA)

WCDMA. 850/1900MHz & 900/2100MHz

GSM. 850/900/1800/1900MHz


HDR100 V2/3G (EVDO).


EVDO 800MHz & 800/1900MHz

*Note.


We can provide customized frequency bands for customers.


 Data rate

4G LTE router.

HDR100 V2/4G


FDD LTE. DL,100Mbps UL,50Mbps


TDD LTE. DL,50Mbps UL,25Mbps


WCDMA. DL 42Mbps UL5.76Mbps


TD-SCDMA. DL 2.8Mbps UL 2.2Mbps

Or

LTE Category 4 - 150 Mbps (DL)

LTE Category 4 - 50 Mbps (UL)

3G router.

1). HDR100 V2/3G (WCDMA)


 WCDMA. DL 14.4Mbps, UL 5.76Mbps

2).HDR100 V2/3G (EVDO)

EVDO. DL 3.1Mbps, UL 1.8Mbps

Powerful function.


1. Supports multiple WAN connection mode, including static IP, DHCP,L2TP, PPTP, PPPOE, 3G/LTE.

2. Supports VPN client (PPTP, L2TP, VPN, IPSEC &GRE).

3. Supports remote management, SYSLOG, SNMP, TELNET, SSH, HTTPS and so on.

4. Supports APN/VPDN.

5. DHCP server and DHCP client, DHCP binding MAC address, DDNS, firewall and NAT DMZ host, QoS, traffic statistics, real-time display data transmission rate functions and so on.

6. Supports TCP/IP, UDP, FTP, HTTP network protocol.

Power supply

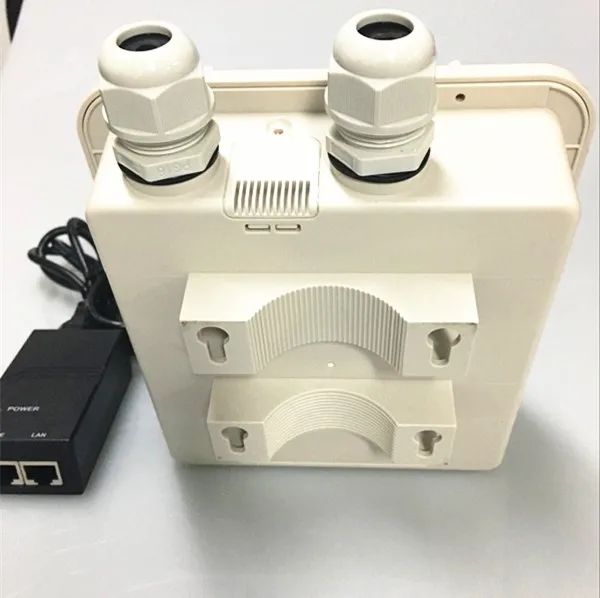

POE supply


Input. 100V~240V,50Hz~60Hz

Output. +12~+24V,1000mA

Conditions


Operating Temperature. -30℃ -- +70℃


Operating humidity. 5%--95%


Any question you can contact me directly:


Skype/WhatsApp: +86 13510402091






Certifications




Detailed Images





CeBIT Show

Germany CeBIT Show In 2016

NETCOM Show in Brazil in Y2017



Our Service


Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.



Packing & Delivery


Packaging
Size
166 (L) * 163 (W) * 97 (D) mm
Weight
498g



Packaging Details


Can design base on customer's special request.



Related Products


HDR100 L1 3G/4G


HDRM1003G/4G


HDM200 4G LTE dual band(2.4G&4.8G) with dual sim card slot

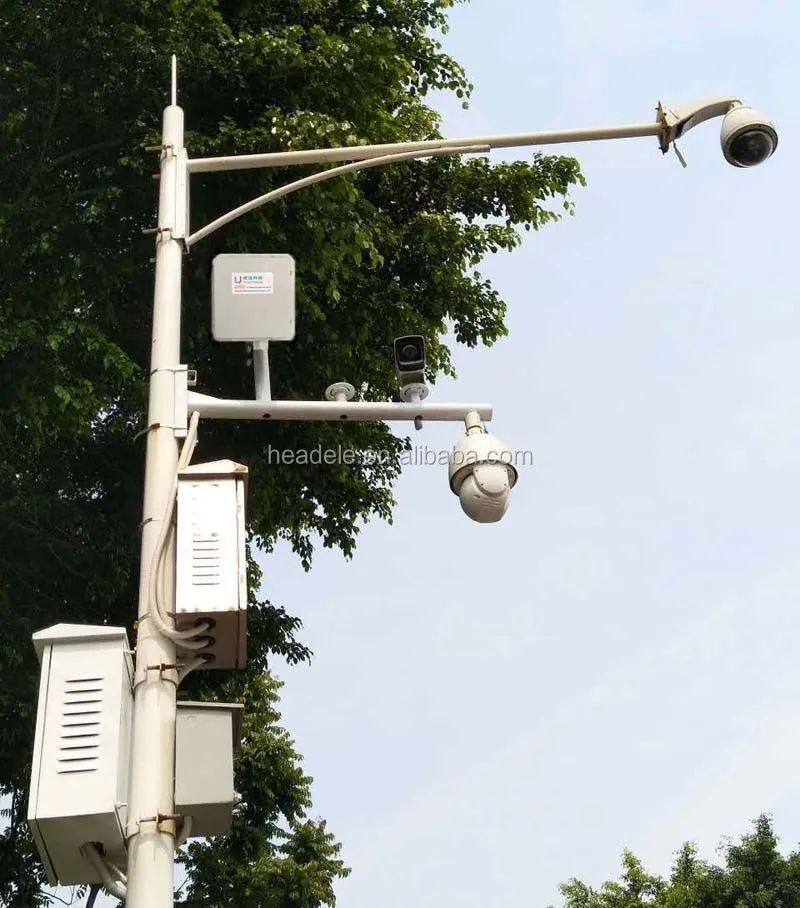

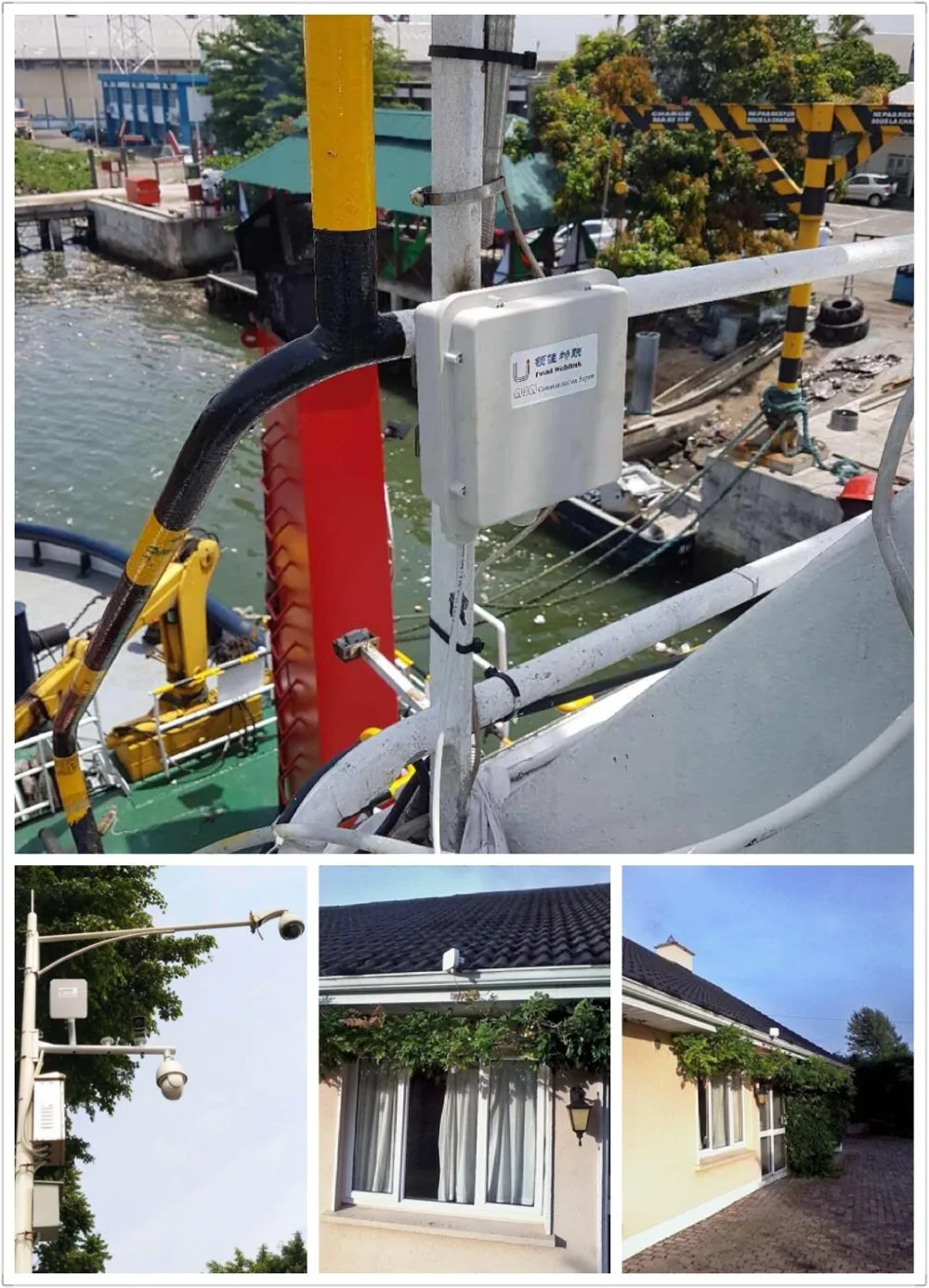

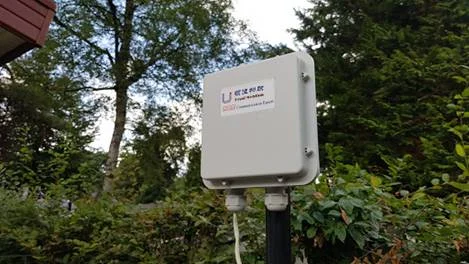

Application

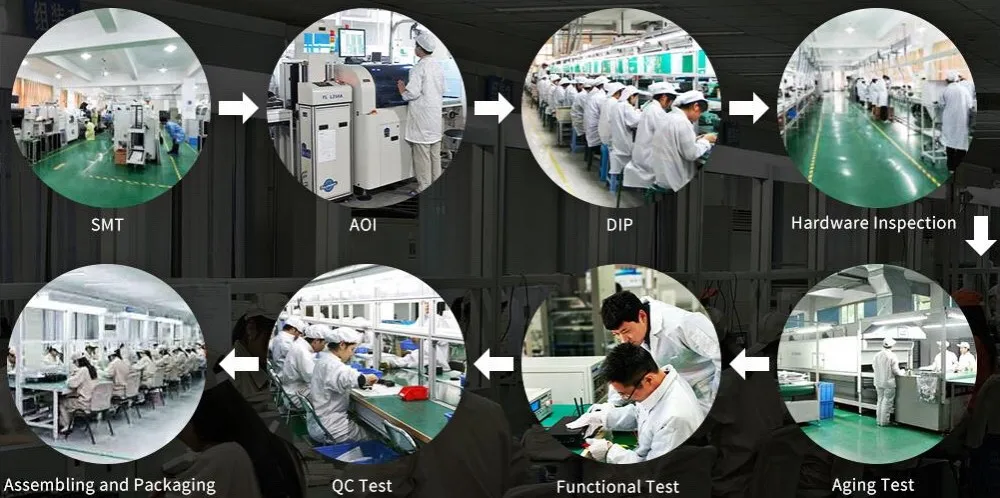

Factory
