auto slip ring 6 circuit 0.5A ultra miniature Long life,Can be used for monitoring miniature capsule slip rings

Bargain Price Only in Alibaba

Description

The LPMS-LPMS-06A super miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. To simplify electrical connections, color-coded lead wires are used on both the stator and rotor.

The LPMS-06A allows tremendous flexibility in dealing with system size restriction when larger versions are not an option. It is available in 1 to 6 circuit configurations.

Features

•  6 circuits


•  10.5amp per circuit, 240 VAC/DC


•  Precision assembly to provide exceptional rotational life


•  Speed up to 300 rpm continuous


•  Precious metal


•  Flexible, color-coded, silver-plated lead wires


•  Superior handling of low-level control signals


•  Metal housing optional

Advantages

•  Low torque minimizes system torque budget


•  Compact design to fit into the most demanding space.


•  Compact package


•  Low electrical noise


•  Quick shipment per your urgent requirement


•  360°continuous rotation


•  Addition of special components

Main Application

•  Electrical Test Equipment


•  Manufacturing and Processing Control Equipment


•  Indexing Tables.


•  CCTV Pan / Tilt Camera Mounts


•  Robotics, Rotary Sensors, Urgent Illumination Equipment


•  Exhibit/Display Equipment.


•  Mini-type Coiling Machine


•  Closed-circuit Control

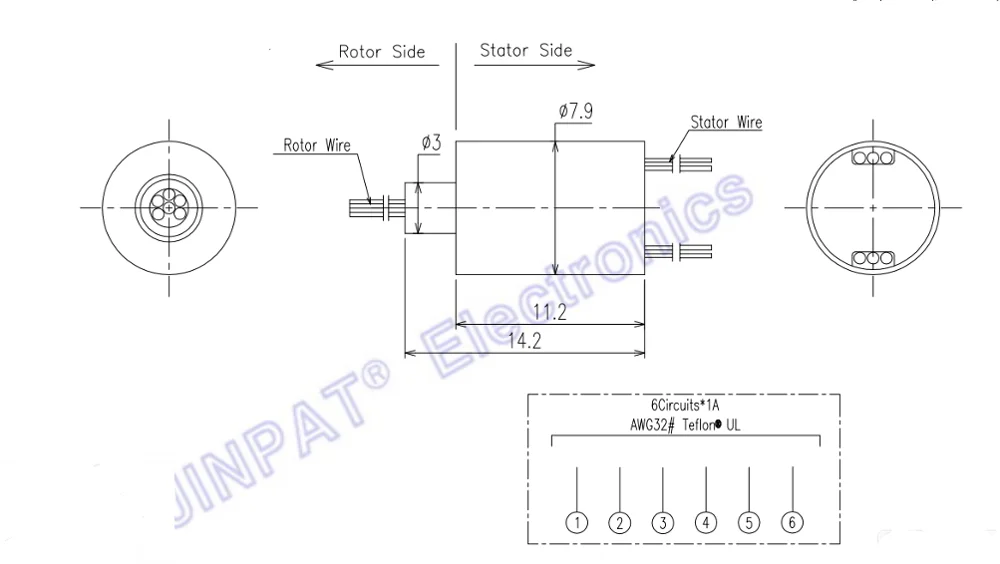

Outline drawing

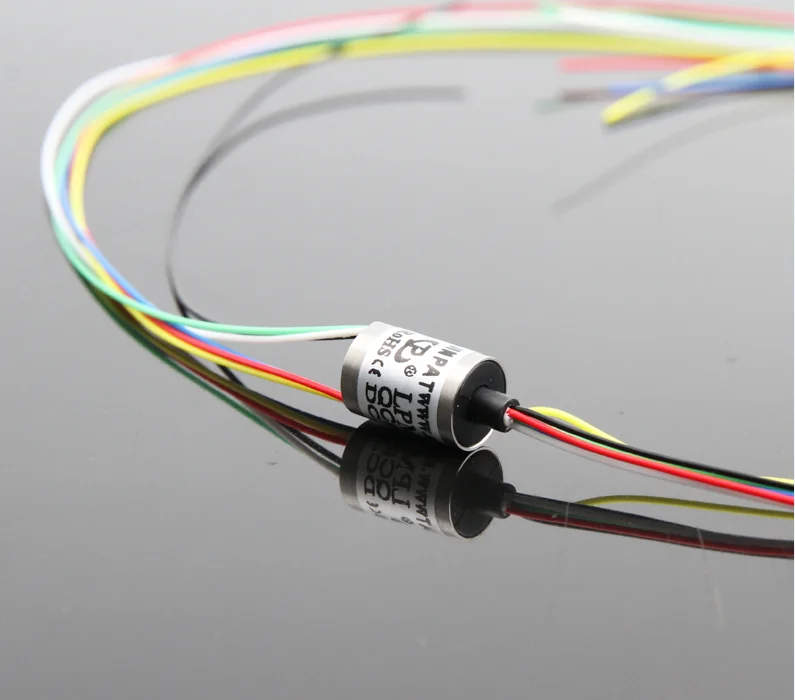

Product Image
