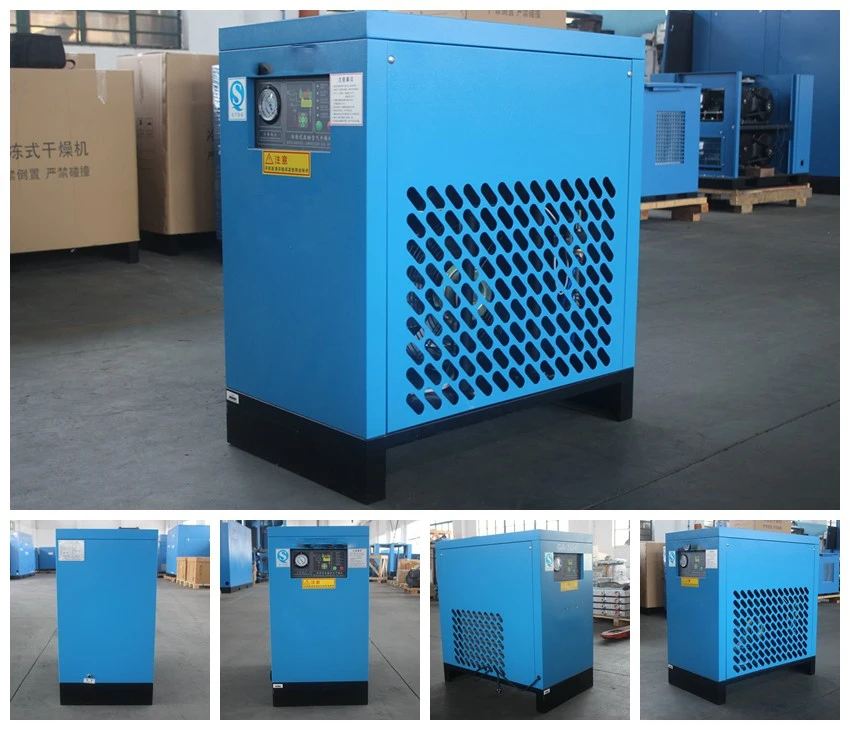

Normal inlet temperature air cooling refrigerated air dryer
- Category: >>>
- Supplier: Langair Compressor Machinery (shanghai) Co. Ltd.
Share on (62173685530):
Product Overview
Description
Product Description
Screw Air Compressor With Air Dryer Compressor Spare Parts

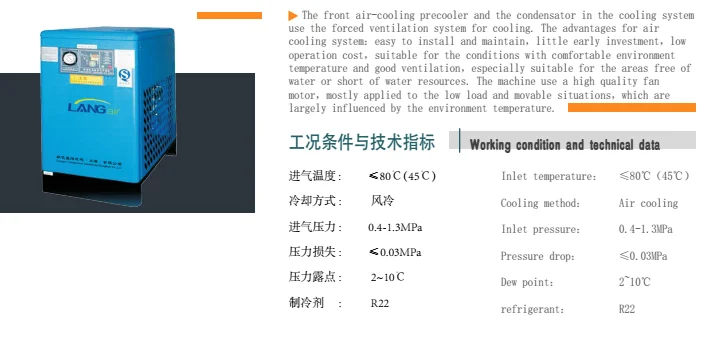

2.1Specifications:
Power Source | 220 Volts, 50 Hz, Single Phase |
Coolingpower | 1.6KW |
Working Pressure | 4-10 Bar |
Flow Capacity | 3.8Nm³/min |
Refrigeranting fluid | R22 |
Inlet Air emperative | 45℃ |
2.2 Featuring
- Advanced 3-in-1 compressed air dryer system features modes for pre-refrigeration, evaporation, and air moisture separation
- Remove moisture from your compressed air lines. Prevent too much moisture in compressed air, avoid problems like corrosion of equipment and freezing of outdoor compressor air lines.
- High efficiency pre-refrigeration system, Accommodates compressors up to 45Nm³/min, 13 Bar max pressure
| Model | Amount of treatment | Voltage | Cooling power | Fan power | Caliber | Shape dimension(mm) | Weight | ||
| Nm³/min | V/HZ | HP/KW | W | L | W | H | Kg | ||
| LAD-1F | 1.2 | 220/50 | 1/0.85 | 90 | ZG1 | 630 | 450 | 640 | 50 |
| LAD-2F | 2.4 | 220/50 | 1/0.85 | 90 | ZG1 | 700 | 450 | 830 | 80 |
| LAD-3F | 3.8 | 220/50 | 1.25/1.25 | 140 | ZG1 1/2 | 850 | 500 | 920 | 105 |
| LAD-6F | 6.5 | 220/50 | 1.5/1.5 | 180 | ZG1 1/2 | 880 | 550 | 1020 | 150 |
| LAD-8F | 8.5 | 220/50 | 2.5/1.8 | 180 | ZG1 1/2 | 880 | 550 | 1020 | 160 |
| LAD-10F | 10.7 | 220/50 | 3/2.5 | 2×140 | ZG2 | 1180 | 670 | 1080 | 240 |
| LAD-13F | 13.5 | 220/50 | 3/2.5 | 2×140 | ZG2 | 1180 | 670 | 1080 | 260 |
| LAD-18F | 18 | 220/50 | 3.6/3 | 2×140 | DN65 | 1360 | 710 | 1220 | 310 |
| LAD-23F | 23 | 220/50 | 5.0/4.0 | 2×140 | DN80 | 1360 | 710 | 1220 | 400 |
| LAD-28F | 28 | 220/50 | 6.0/4.5 | 2×140 | DN80 | 1650 | 750 | 1290 | 450 |
| LAD-33F | 33 | 220/50 | 7.5/6.5 | 6(3)×180 | DN100 | 1840 | 850 | 1620 | 780 |
| LAD-45F | 45 | 220/50 | 10.5/8.8 | 6(3)×180 | DN125 | 2000 | 950 | 1740 | 820 |

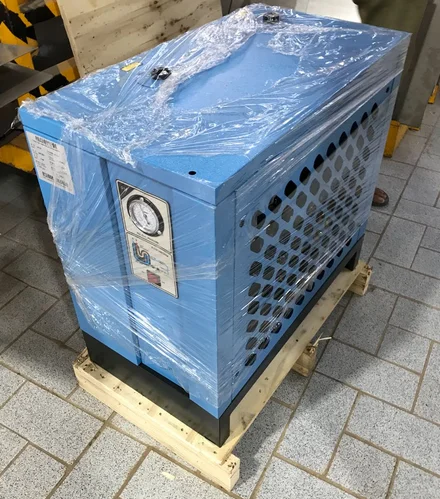

Packaging & Shipping
Packing Details:standard exporting packing
Delivery time:7 working days after receiving the prepayment.
