KOK POWER 21S(48V) 100A LTO PCM PCB Protection Circuit BMS Customized
- Category: >>>
- Supplier: Shenzhen Kokpower Investment And Development Co. Ltd.
Share on (62173735423):
Product Overview
Description
Product Description
Product Item:KOK POWER 21S(48V) 100A LTO PCM PCB Protection Circuit BMS Customized
1. Features:
1. with brand high quality IC & MOSFET;
2 Designed for high current;
3 Double-sided heat-dissipation design;
4 Full sealing design for waterproof, dust-proof, shockproof and anti-extrusion protection;u
5 Completed protection functions including overcharge, over-discharge, over- current, short circuit, and equalization.
2. Electrical Parameter
ITEM | PARAMETERS | TYPICAL |
Current | Continuous Discharging Current | 100A(MAX) |
Continuous Charging current | 100A (MAX) | |
Peak Discharge Current | 300±50A | |
Over- Current Protection | Over-Current Detection | 300±50A |
Over-Current Delay | 9mS | |
Over-Current Release Condition | Load Cutoff | |
Over- Charge Protection | Charge Voltage | 2.8V each cell |
Over-voltage Protection for Charging | 2.8V+/-0.05V each cell | |
Over-voltage Delay Time | 0.5S | |
Over-voltage Protection Release | 2.6V+/-0.05V each cell | |
Over- Discharge Protection | Under-voltage Protection for Discharging | 1.6V+/-0.1V each cell |
Under-voltage Delay Time | 0.5S | |
Under-voltage Protection Release | 1.8V+/-0.05V each cell | |
Balancing | Balancing Voltage | 2.65V |
Balancing Current | 40+/5mA | |
Short Circuit Protection | Short Circuit Protection Delay | 250μS |
Short Circuit Protection Release Condition | Load Cutoff | |
Impedance | Main Circuit Internal Resistance | <=10mΩ |
Self- Consumption | Working Power Consumption | <=60μA |
Static Power Consumption | <=20μA | |
Working Temperature Range | -20~70℃ | |
Working Temperature Range | -40~80℃ | |

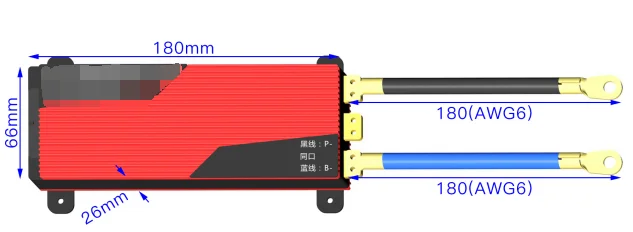

Dimensions | 66*180*26mm | |

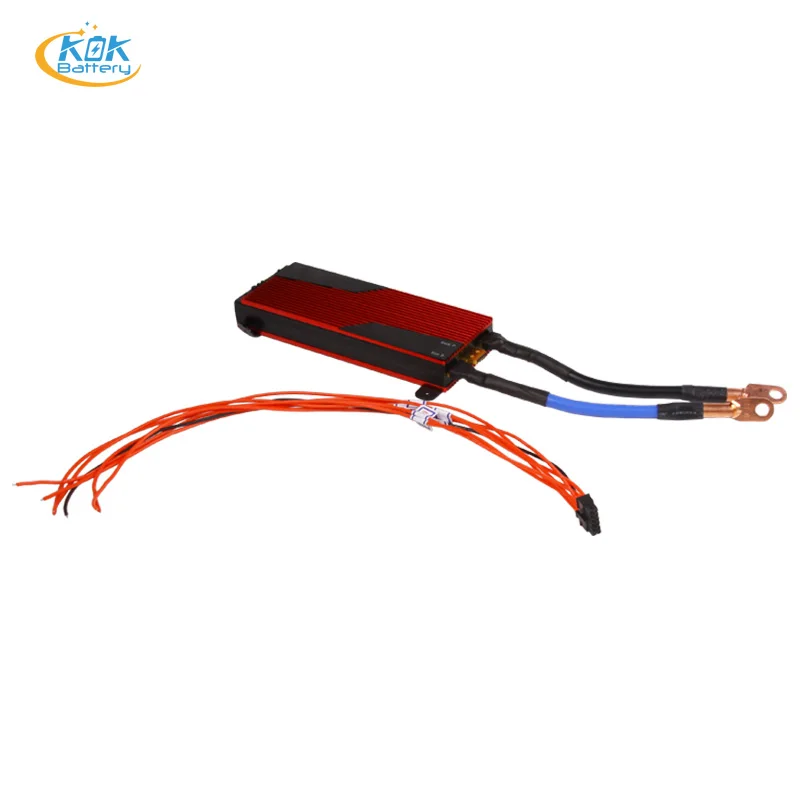

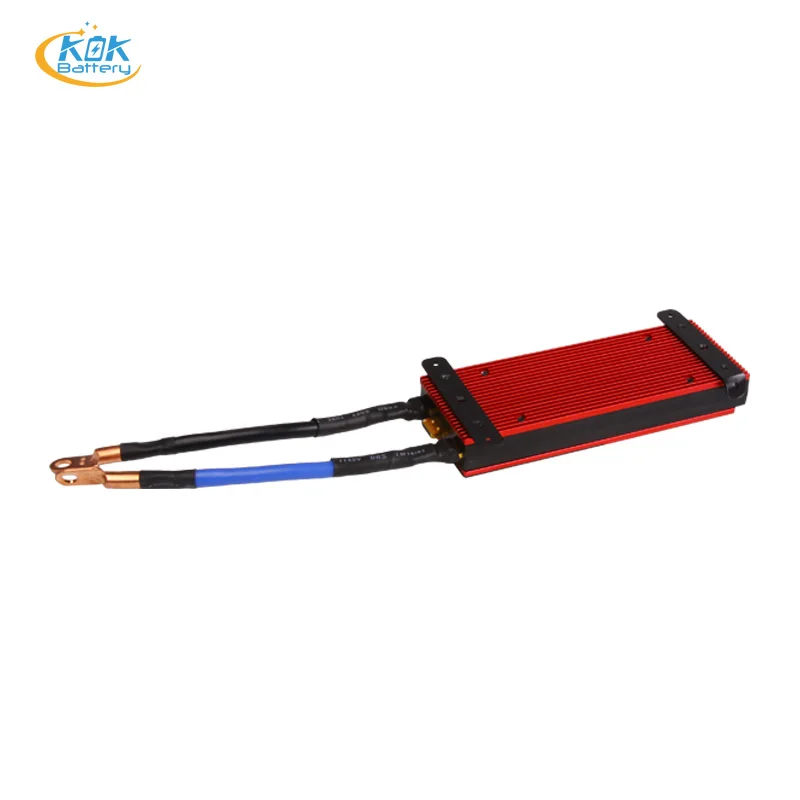

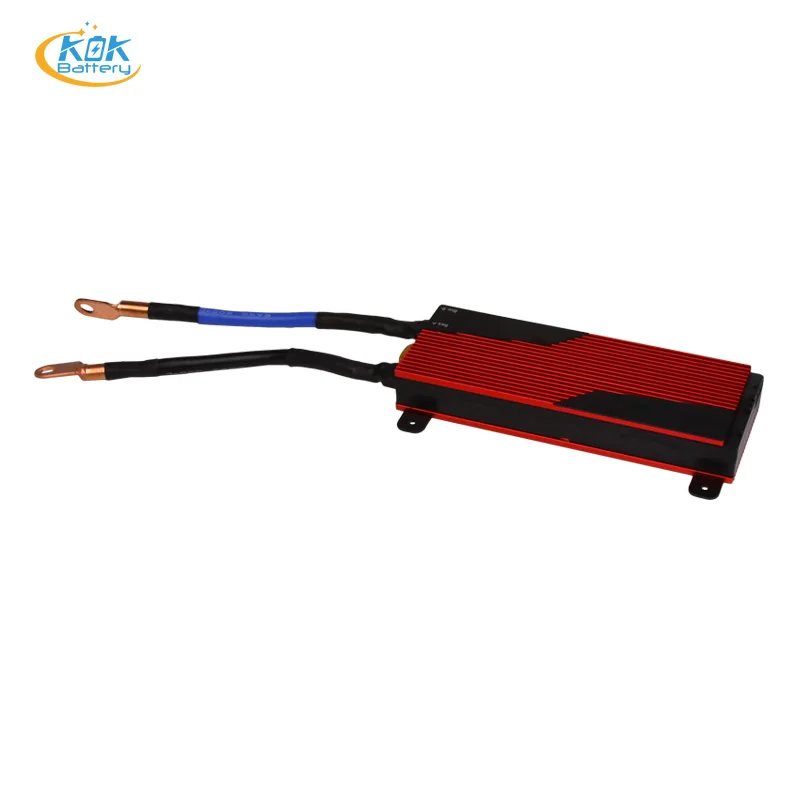

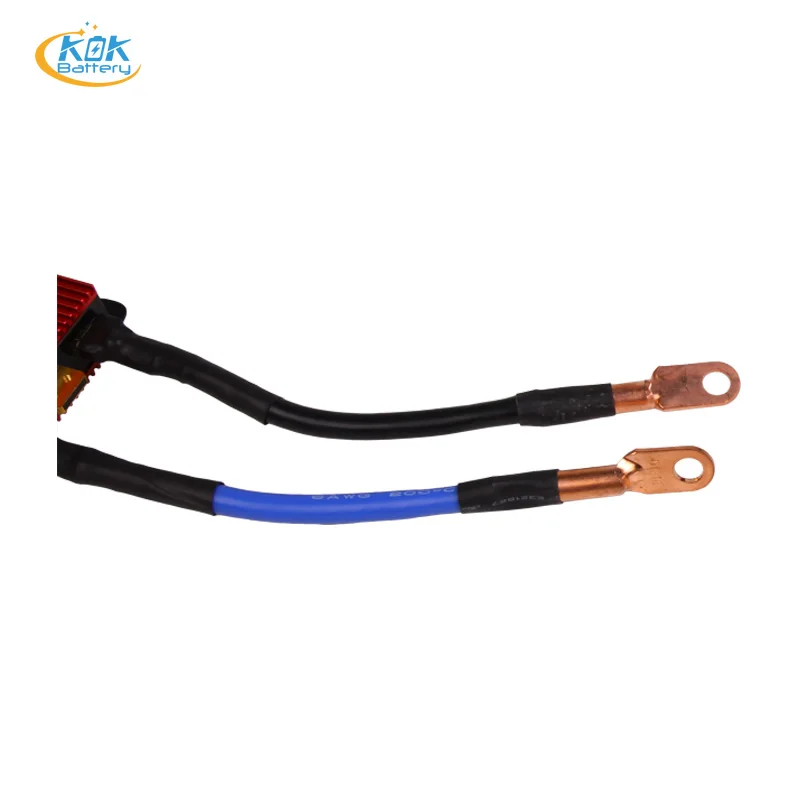

1. Product Picture

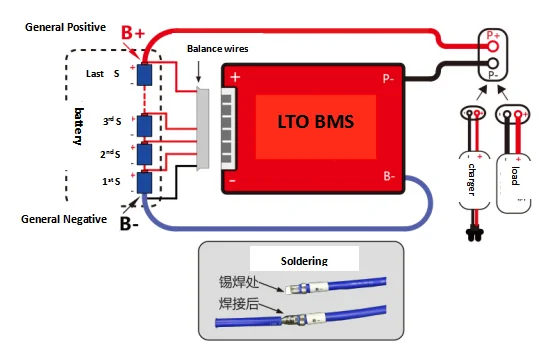

2. Wiring Instruction
Note:
B-: Connect to the negative of the battery pack
P-:Connect to the negative of the load and charger
CN1: Connect to each series of the battery pack
- Product veview
|  |  |  |
| 12V Battery Pack Customized | 24V Battery Pack Customized | 36V Battery Pack Customized | 48V Battery Pack Customized |
 |  |  |  |
| 60V Battery Pack Customized | 72V Battery Pack Customized | 82V Battery Pack Customized | 96V Battery Pack Customized |
Customized Solutions
Battery Customization Acceptable-We are experienced in designing various lithium battery packs for motorcycle, automotive, car audio, energy storage system(ESS) ,ebike, scooter, golf cart and any other applications to your requirements.
