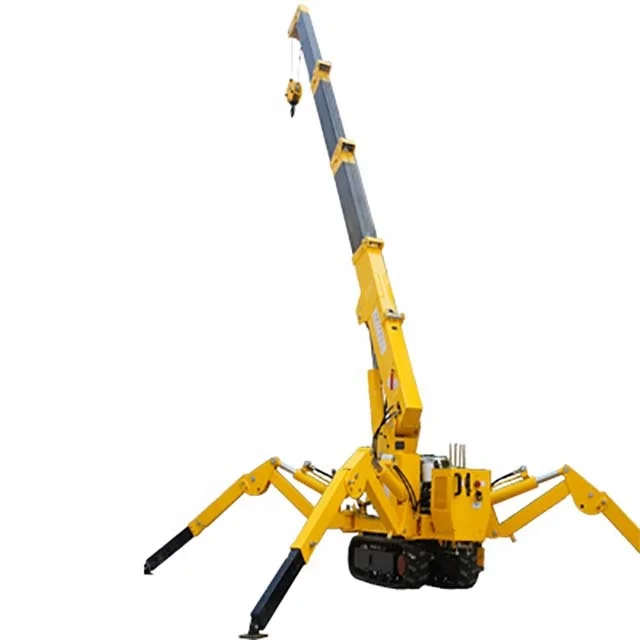

KB1.0 1 ton 3ton 5 ton Mini Crawler Spider Crane Price

model

KB1.0 mini crawler crane

specifications

0.995T*1.5M

Maximum radius of homework

5.07M*0.2T

The largest ground lift

5.5M

The largest underground head

18M

Winding device

Hook up speed:

10 m/min (2 strands)

Steel wire rope

Diameter of 7.7 mm * 48 m

Telescopic device

Crane jib form

Five Angle automatic four segments

Crane arm length

2.08m-5.5m

Telescopic crane boom length/time

3.42m / 12sec

Rolling device

Boom Angle/time

0°-75°/ 14sec

Rotary device

Turning Angle/time

Continuous / 0 ° ~ 360 ° 40 SEC

leg

Leg action form

The first paragraph automatically, high-centralized section of the manual regulation

Maximum out of range

3600mm*3200mm

Walking device

Walk way

Hydraulic motor drive, two speed

Walking speed

0-3.2Km / h

Climbing ability

20°

Crane earthing length * width * 2

960mm*180mm*2

Ground pressure

35.6kpa(0.356kgf / cm2)

he engine

model

GX270

displacement

270ml

The rated power output

5.1Kw / 1800rpm

Start the way

Motor start

Use fuel/volume

Gasoline / 6 l

Safety device

Level, alarm device, abrupt stop button

System voltage

DC12V

The vehicle size

Length * width * height

2140mm*600mm*1413mm

The weight of the

The vehicle weight

1230Kg
