Full Automatic Double Wires/Single wire Barbed Wire Making Machine Manufacturer

Share on (62173997115):


Price:

Quantity:


Product Overview

Description


Product Description

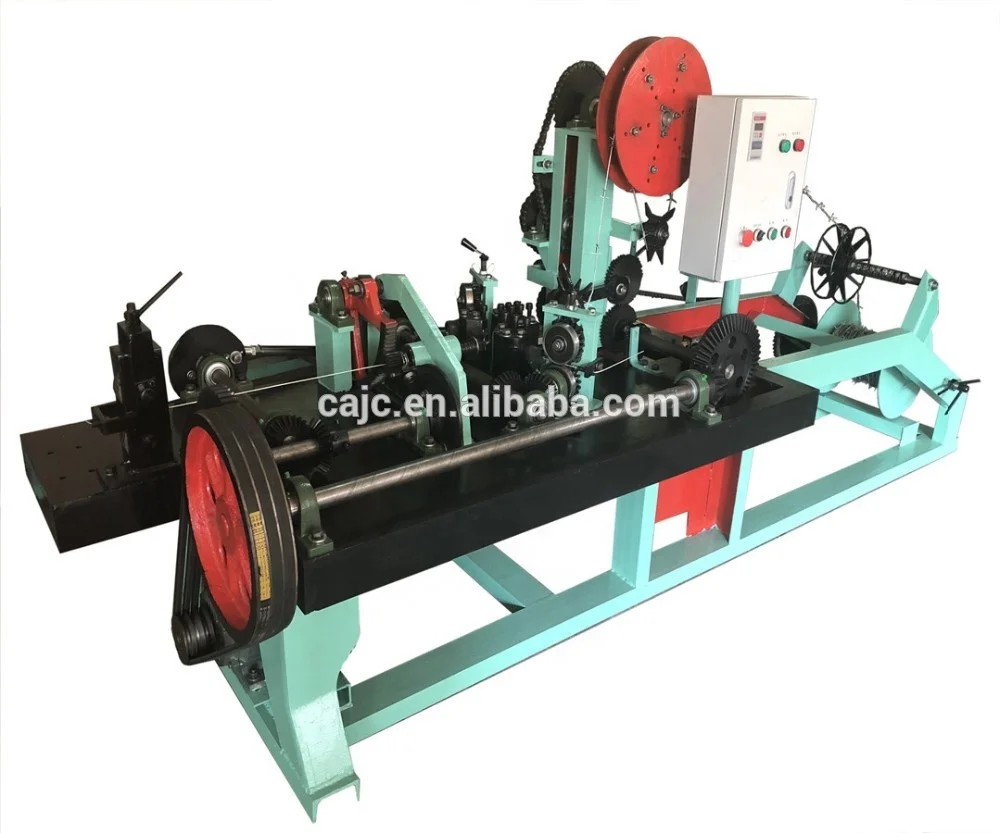

Full-Automatic Double Wires/Single wire Barbed Wire Making Machine Manufacturer

1.High output,70kg/h
2.24 months warranty after sale
3. Have a professional technical team
4.24 hours on line
5.More than 15 years Professional Factory

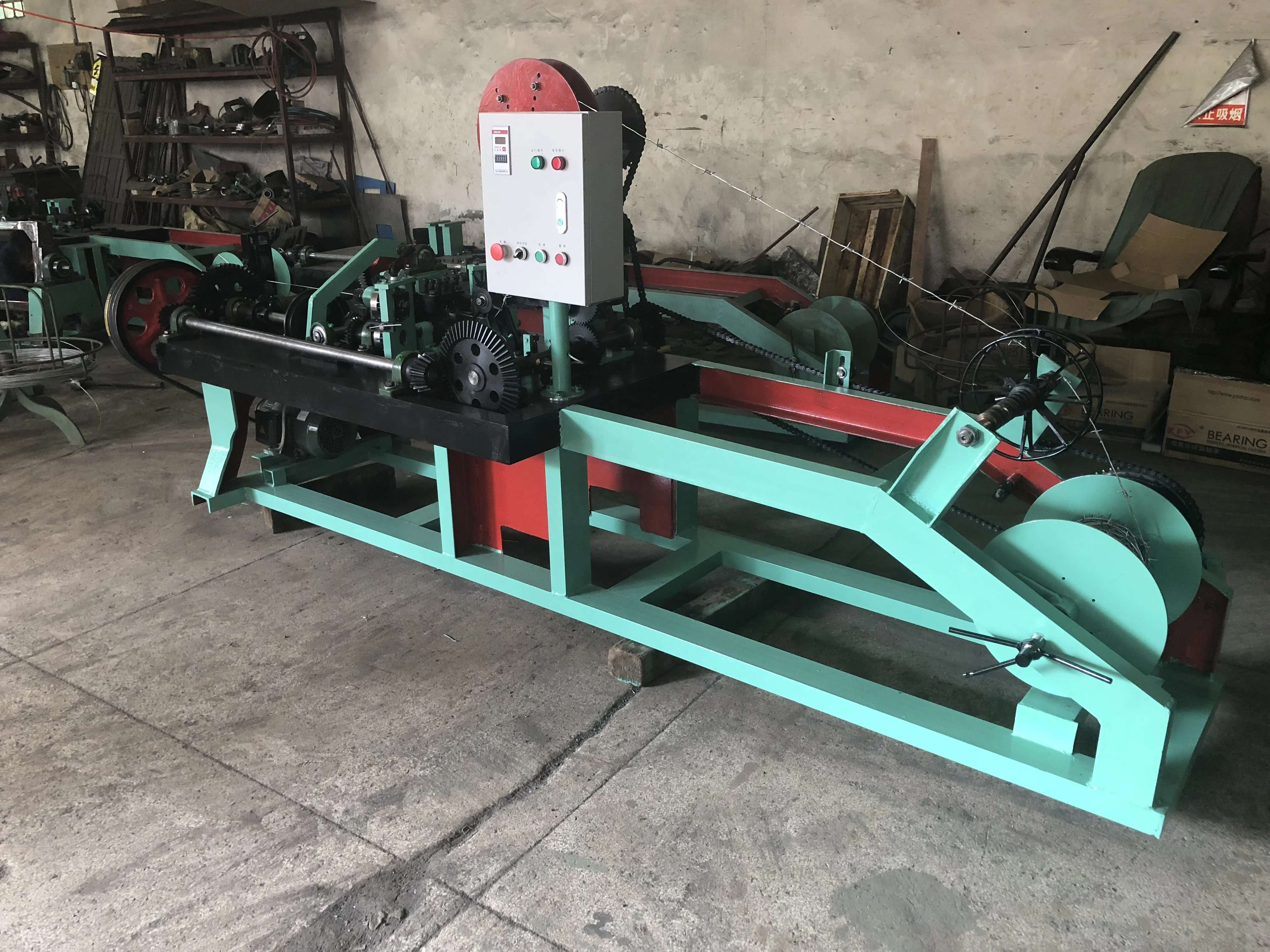

CS-B Single Wire Barbed Wire Machine

1.It could produce both single strand and double strands barbed wire.
2.This way is easy to operate and install .

\t
Items
\t
Units
\t
Parameters
\t
Motor
\t
kw
\t
2.2
\t
Main drive shaft speed
\t
r/min
\t
400
\t
wire diameter
\t
mm
\t
1.3-3.2
\t
Barbed wire diameter
\t
mm
\t
1.3-2.4
\t
Barb Space
\t
mm
\t
75-150
\t
Theoretical yield
\t
m/h
\t
450-900
\t
Total weight
\t
kg
\t
800
\t
Dimension
\t
mm
\t
2700*1200*1500

Note: Special types can be made according to customer requirements.

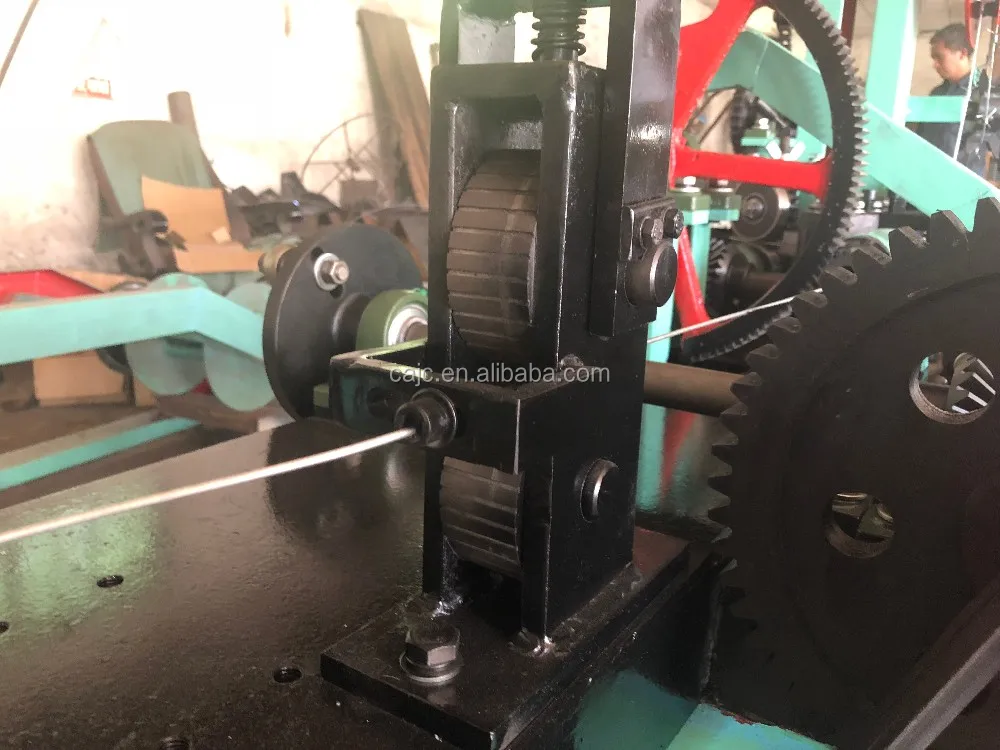

Wire pressing device

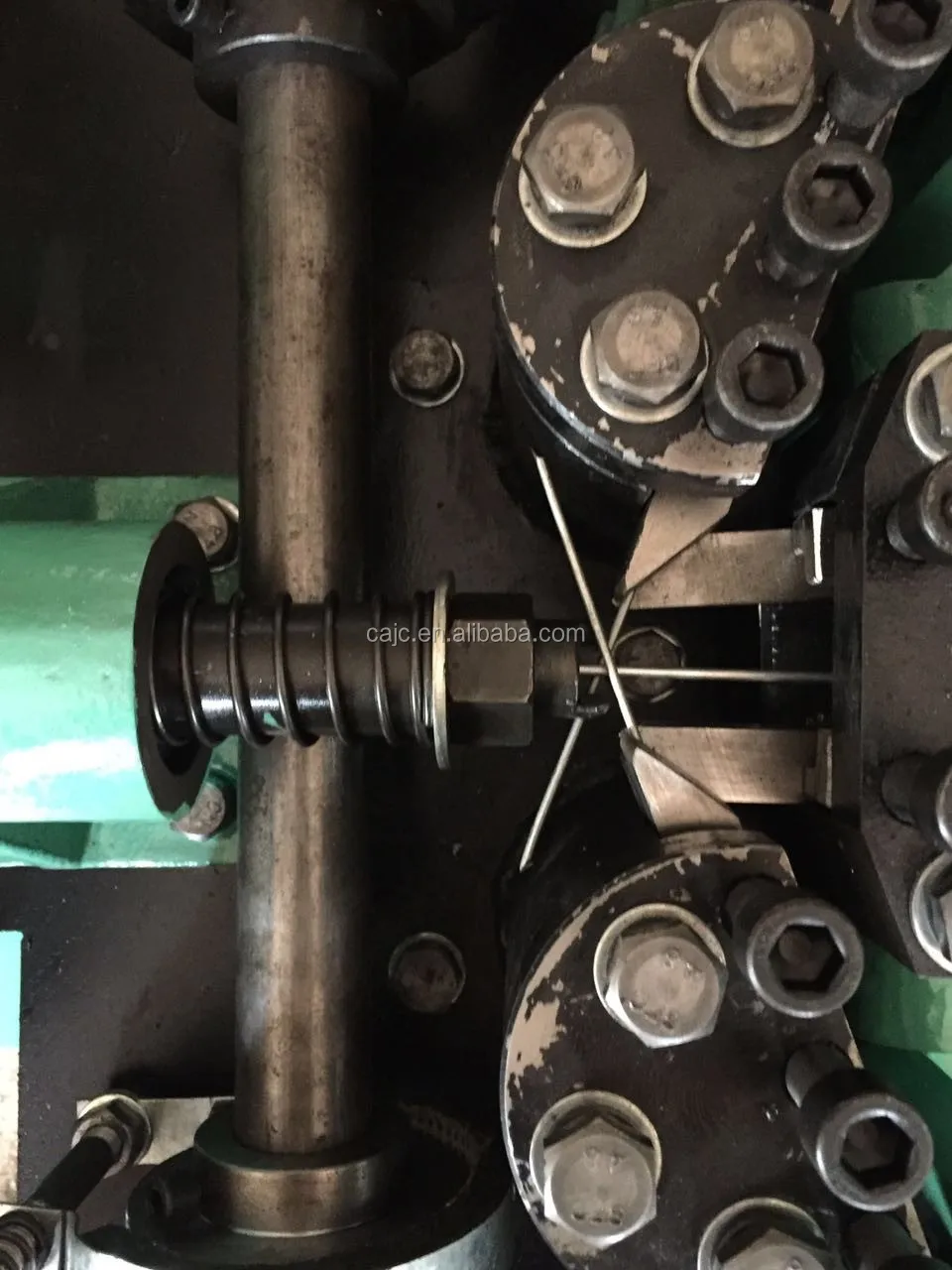

Wire twisting device

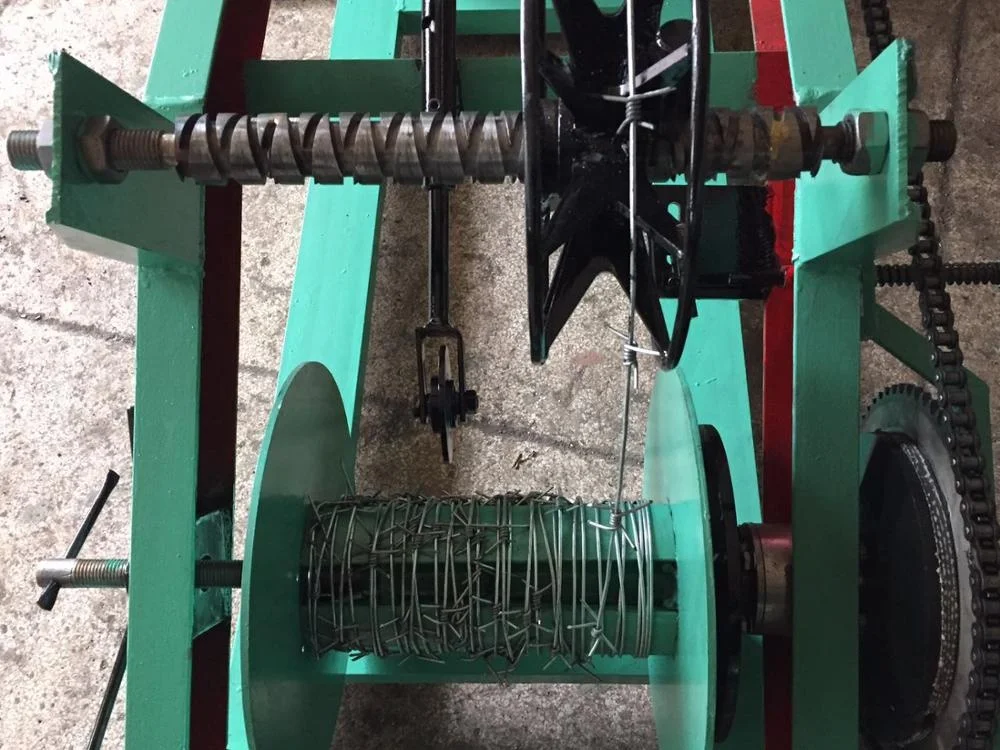

Take-up wire

The size can be made as your needs

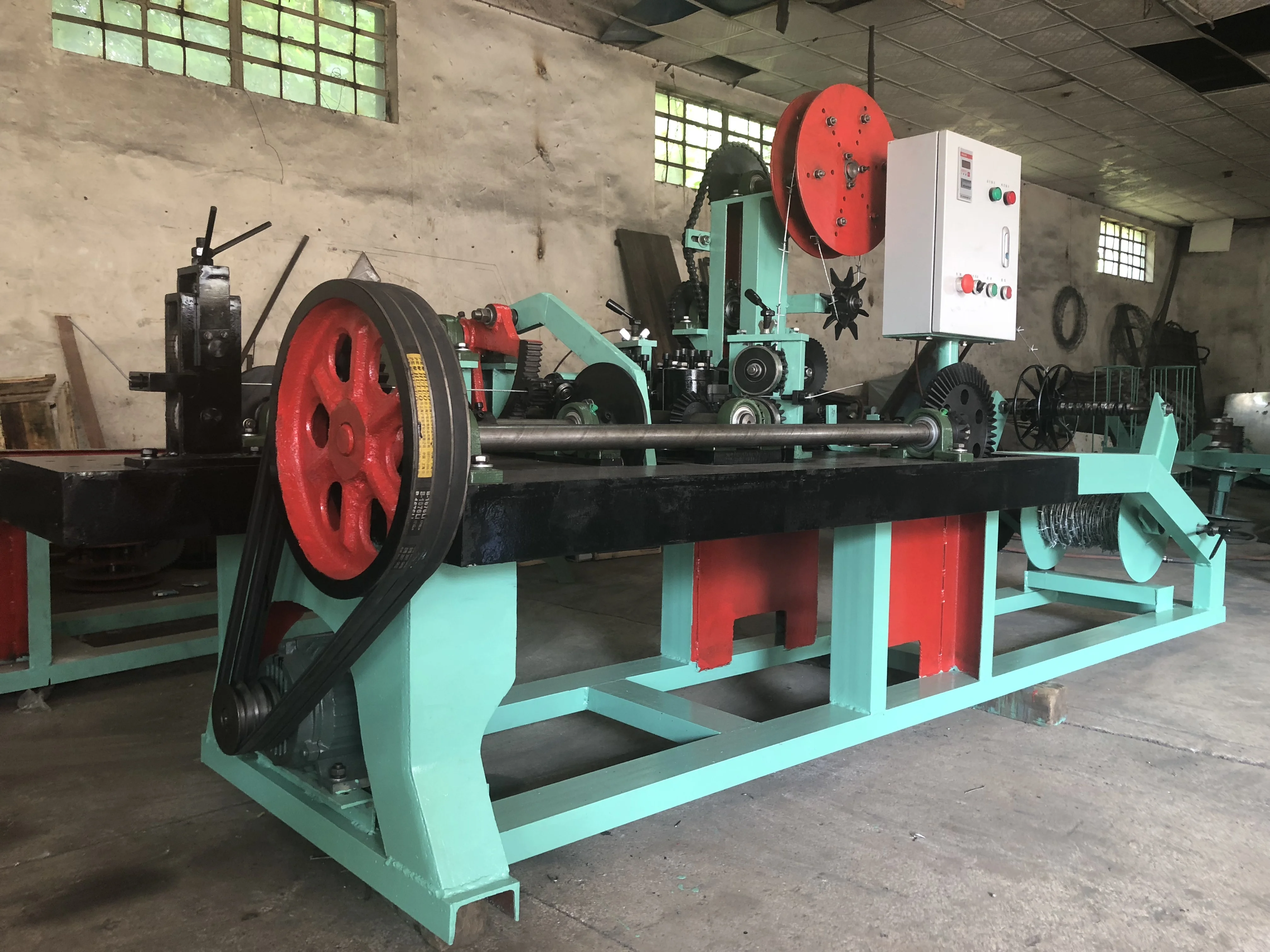

CS-A High Speed Double Twiste Barbed Wire Machine

1.It produces  double-strand barbed steel wire.

2.It is safe to operate and produces high quality products.

\t
Items
\t
Units
\t
Parameters
\t
Motor
\t
kw
\t
3
\t
Main drive shaft speed
\t
r/min
\t
480
\t
wire diameter
\t
mm
\t
1.6-2.8
\t
Barbed wire diameter
\t
mm
\t
1.6-2.3
\t
Barb Space
\t
mm
\t
75-150
\t
Theoretical yield
\t
m/h
\t
680-1400
\t
Total weight
\t
kg
\t
1000
\t
Dimension
\t
mm
\t
Main :2000*1200*1400
Auxiliary:2000*650*800

Packing & Delivery

Packaging: with wooden pallets, in plastic film or as  customers' requirements.
Shipping: within 15 days after receiving the prepayment .

Our Service

Guarantee and After-sale Service
1.Warranty: 12 Months.

2.Enough spare parts of machine could be supplied.
3.24 hours technical support by e-mail or calling service.
4.All machines were tested and adjusted before delivery.
5.We can send technician to buyer's factory for installation, debugging and training.

FAQ

1.MOQ: One Set.
2.Payment: 30%  in advance and 70% before shipment
3. Machine Specifications could be made as per your requirements.
4.Apply to:
1)CS-A Double Barbed Wire Machine could only produce the double strands barbed wire;
2)The Reverse Barbed Wire Machine could produce both single strand and double strands barbed wire.
5.Standard accessory:  4 UNITS/Set
6.All  Barbed Distance could be adjustable.
