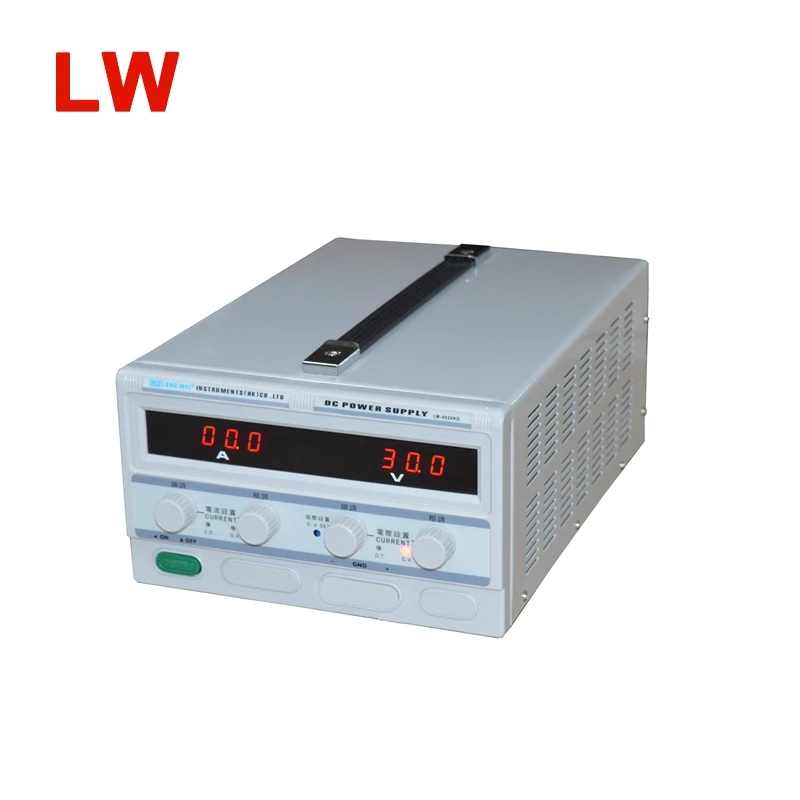

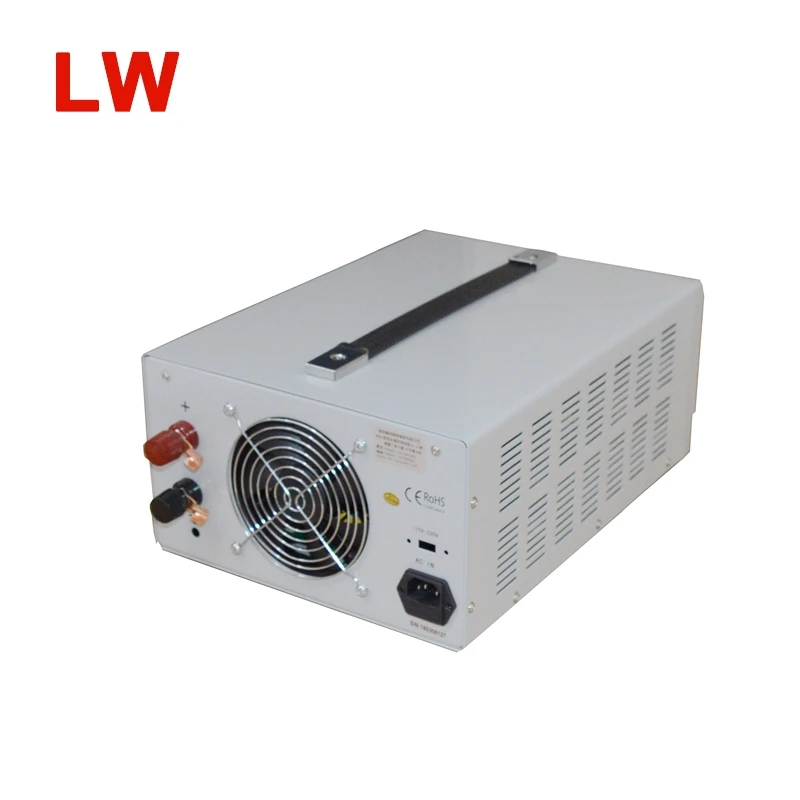

50 volt 100 amps dc power supply

Product Overview

Description



SWITCHING DC POWER SUPPLY

Model:LW-50100KD

0-50V/0-100A variable/5000 watts

Big power

Input:220V



Features:

1.Constant voltage and constant current operation (C.C and C.V. automatic conversion)

2.Both current and voltage can be adjusted from 0 to rated value

3.Perfect protection,Current limit,OV,Over load,Over temperature

4.Built-in EMI filter.(have anti-interference circuit)

5.Intelligent temperature control fan to help power supply cooling fast

Specifications:

Model No: LW50100KD

Input voltage: single-phase 220V±10% 50Hz or 110V±10% 60Hz

Working conditions: -10℃ -40℃;Storage conditions: -20℃-80℃

Output voltage: 0-50V /Output current: 0-100A

Voltage stabilization: ≤0.2% ; Current stabilization: ≤0.5%

Load stabilization: ≤0.3% ;Ripples and noises: ≤1 %( RMS)

Surge Current: 30A/115V, 60A/230V (cold-start)

Input Leakage Current: <0.7mA/230V

Withstanding voltage test:

From input voltage to output voltage: 1.5KVAC/min

From input voltage to case: 1.5KVAC/min

From output voltage to case: 500VAC/min

Size:530*320*220mm / Weight about: 10-12kg

Packing:1pcs/carton/47*32*22cm

Model	Voltage	Current	Display	Accuracy
LW1550KD	0-15V	0-50A	3LED display	±1%±1 digit
LW3050KD	0-30V	0-50A	3LED display	±1%±1 digit
LW30100KD	0-30V	0-100A	3LED display	±1%±1 digit
LW6030KD	0-60V	0-30A	3LED display	±1%±1 digit
LW10010KD	0-100V	0-10A	3LED display	±1%±1 digit
LW20010KD	0-200V	0-10A	3LED display	±1%±1 digit
Mark:the model /output voltage /current can be customized
