low price 10000 cfm packaging plant electric ac exhaust fan for workshop

Product Overview

Description

low price 10000 cfm packaging plant electric ac exhaust fan for workshop

Specification

1. 33years factory history

2.Guaranteed quality with CE

3.Fine performance

4. Larger wind output

5.Low power & low price

6. 10 years housing lifetime



Main Parameter of Electric AC Exhaust Fan

Product No.	FW-WT66FH3P	FW-WT85FH6P	FW-WT116FH6P
Diameter of fan	500mm	710mm	900mm
Material of blade	composite fiberglass	composite fiberglass	composite fiberglass
Rotation speed	680RPM	520RPM	520RPM
Air volume	13500 m³/h	23500 m³/h	28000 m³/h
Noise	≤68dB	≤65dB	≤68dB
Motor	0.37KW IP54 4pole	0.37KW IP54 4pole	0.55KW  IP54 8pole
Voltage/Frequency	220/380/415V 50/60Hz	220/380/415V 50/60Hz	220/380/415V 50/60Hz
Product Size	66*66*46cm	85*85*46cm	116*116*56cm

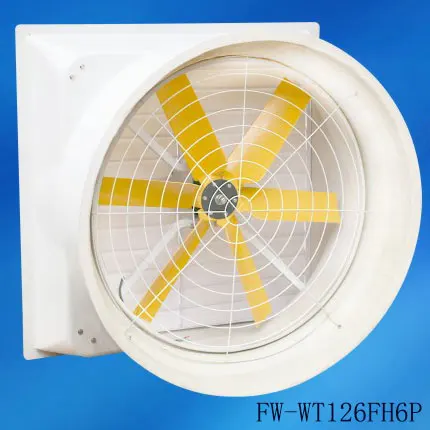

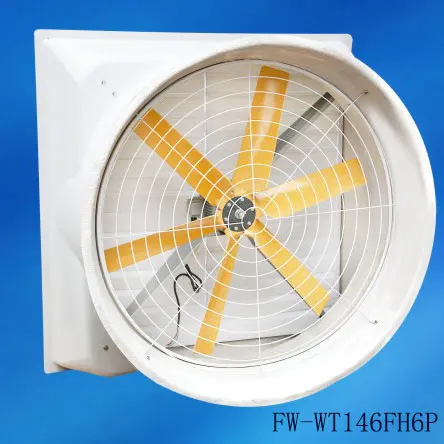

Product No.	FW-WT126FH6P	FW-WT146FH6A	FW-WT158FH6P
Diameter of fan	1000mm	1220mm	1445mm
Material of blade	composite fiberglass	composite fiberglass	composite fiberglass
Rotation speed	480RPM	430RPM	430RPM
Air volume	38000 m³/h	44000 m³/h	50000 m³/h
Noise	≤70dB	≤70dB	≤70dB
Motor	0.75KW IP54 10pole	0.75KW IP54 12pole	1.5KW IP54 12pole
Voltage/Frequency	220/380/415V 50/60Hz	220/380/415V 50/60Hz	220/380/415V 50/60Hz
Product Size	126*126*87cm	146*146*87cm	158*158*64cm



Product No.	FW-WT170FH6P	FW-WT207FH6A	FW-WT207FH3P/6P
Diameter of fan	1560mm	1830mm	1830mm
Material of blade	composite fiberglass	aluminum alloy	composite fiberglass
Rotation speed	430RPM	300RPM	420RPM
Air volume	80000 m³/h	100000 m³/h	110000 m³/h
Noise	≤72dB	≤75dB	≤76dB
Motor	2.0KW IP54 12pole	2.2KW IP54 10pole	2.2KW IP54 12pole
Voltage/Frequency	220/380/415V 50/60Hz	220/380/415V 50/60Hz	220/380/415V 50/60Hz
Product Size	170*170*64cm	2073*2064*1090mm	2073*2064*1090mm



Advantage of Electric AC Exhaust Fan

1.Huge airflow, low noise, high efficiency.Good looking, surface smoothness & gloss without rough edges.

2.Be introduced the advanced technology from Europe, suitable for various environment.

3.Fan Housing: strength fiberglass.

4.Shutters: good plastic

5.Fan Propeller: 6pcs blades of propeller made by mould pressing.

6.Motor: die casting aluminum body & Die casting iron body for options, good for heat transfer and l Low noise. With over-load     protection inside.

7.Bearing: imported auto bearing to ensure stable operation for the fan propeller and low noise.

8.Cable outlet: cable outlet is on the back of the fan, it makes the fan with more convenience for installation.



Main Parts of Electric AC Exhaust Fan

Exhaust Fan's Housing

corrosion resistant fiberglass housing impact resistant with U.V. protection for better durability, and life

extra liner FRP resin inside for easy cleaning, minimal dirt, disease build-up and maximum air flow flush, eliminates

any protrusions or obstructions in the inside area, self draining sloped housing

Exhaust Fan's Motor

motor is 0.75KW

standard motors are totally enclosed, high efficiency

all motors are designed and rated for years of trouble free operation

each motor is individually tested for 100% quality control

heavy duty casting pulley and hub

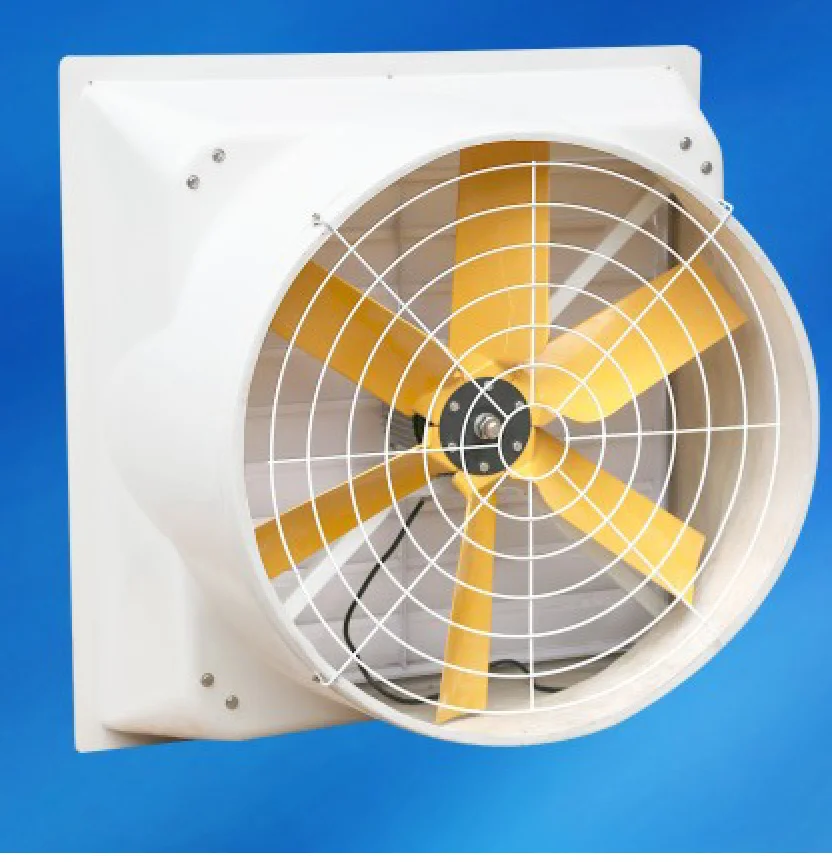

Exhaust Fan's Propeller

3-8mm die-casting aluminium alloy blade

6-blade

special designed

nylon fiberglass blades



Exhaut Fan's Motor Bracket

stamped 3mm iron plate bracket, all corners are polished

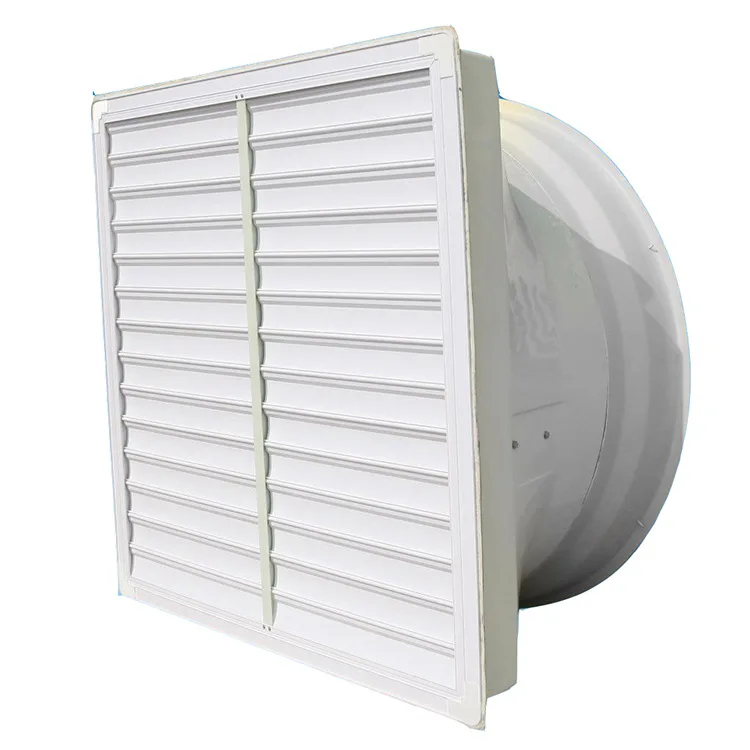

Exhust Fan's Shutter

shutter with PVC extrusion frame

all corner are weld and have extra stainless steel corner

PVC louver with T bar

wire by pass

easy clip to remove shutter

guard; powder coat and cold zinc galvanise for better protection



Exhaust Fan and Cooling Pad Cool Schematic Diagram



Application of FRP Exhaust Fan

This fiberglass exhaust fan are widely used in agriculture, industry and other busy or closed places for cooling, such as greenhouse (flower, vegetable and plant), poultry house(animal husbandry, livestock breeding, cow/chicken/sheep house),factory workshop(textile, chemical, medicine, tea, vegetable storage)restaurant and supermarket



CE certificate of Wall Mounted Exhaust Fan



Our Markets



FAQ

1 .Q: May I get free sample?

    A:Normally, our samples for charger are not free. However, the sample fee will be refunded when customer    place bulk orders for that item.



2 .Q:How to got the order?

 3. Q: Can you supply OEM or ODM service?

     A:We can supply OEM/ODM service of any charger or cable, power bank absolutely!



4. Q: Which shipment available?

    A:Normally, we ship goods by sea, air and express. Special requirement also acceptable.

       By sea to your nearest sea port

       By air to your nearest air port

       By express(UPS,DHL.FEDEX,TNT...) to your door



5. Q : How to guarantee after sale ?

    A : We supply 1 year products warranty. If the item is found to be defective in warranty,please contact                       us as soon sa possible, so that we can help to solve the problem at fastest rate : send back to our                         factory for repairing, or we send new one for you.
