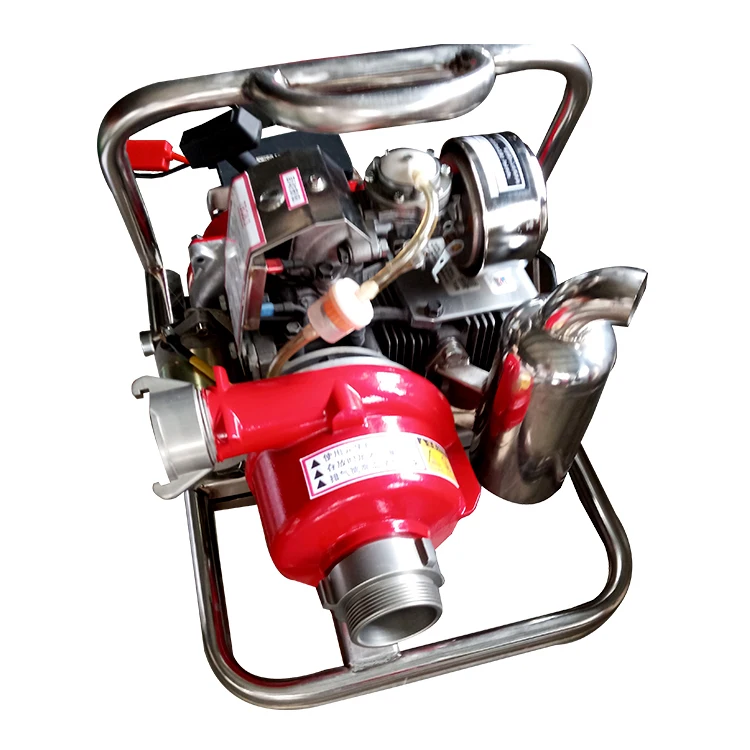

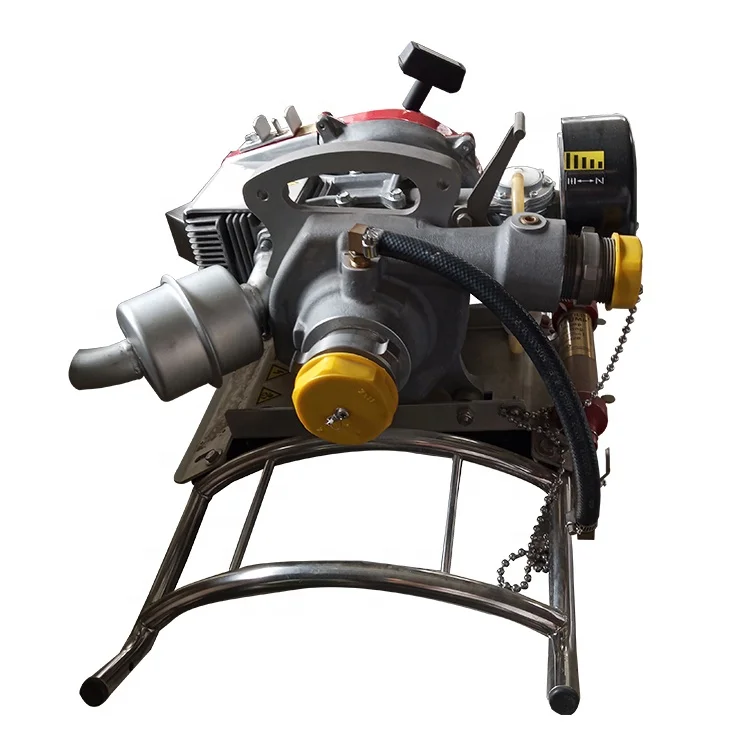

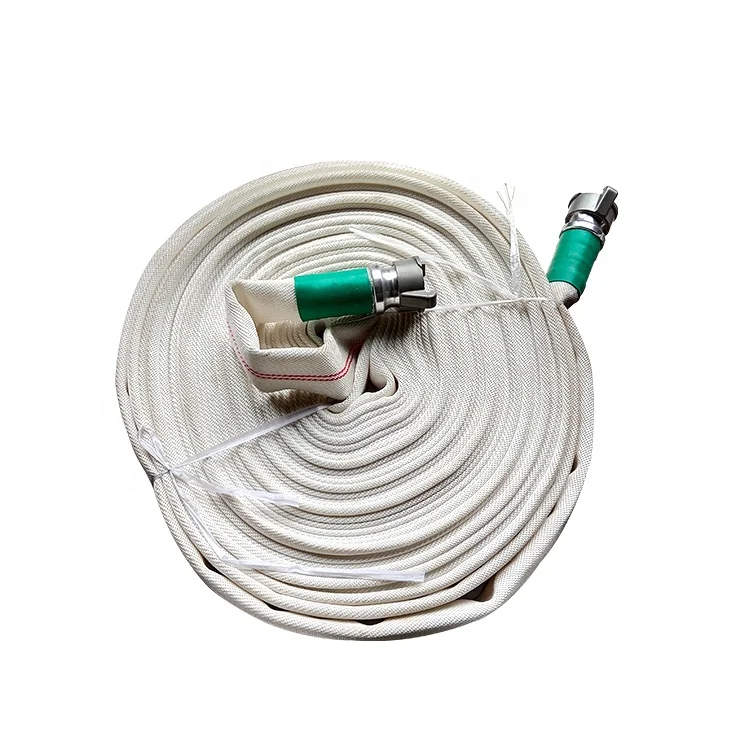

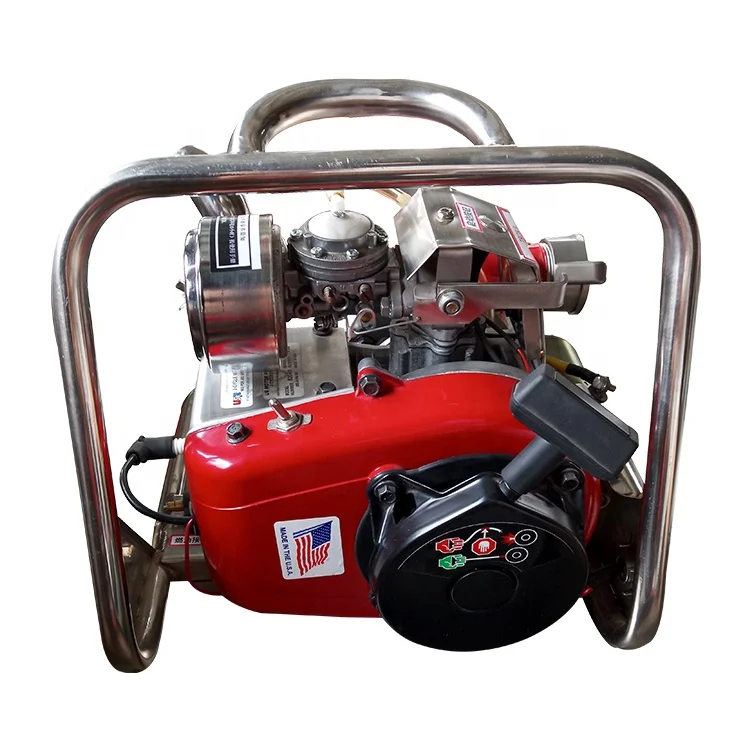

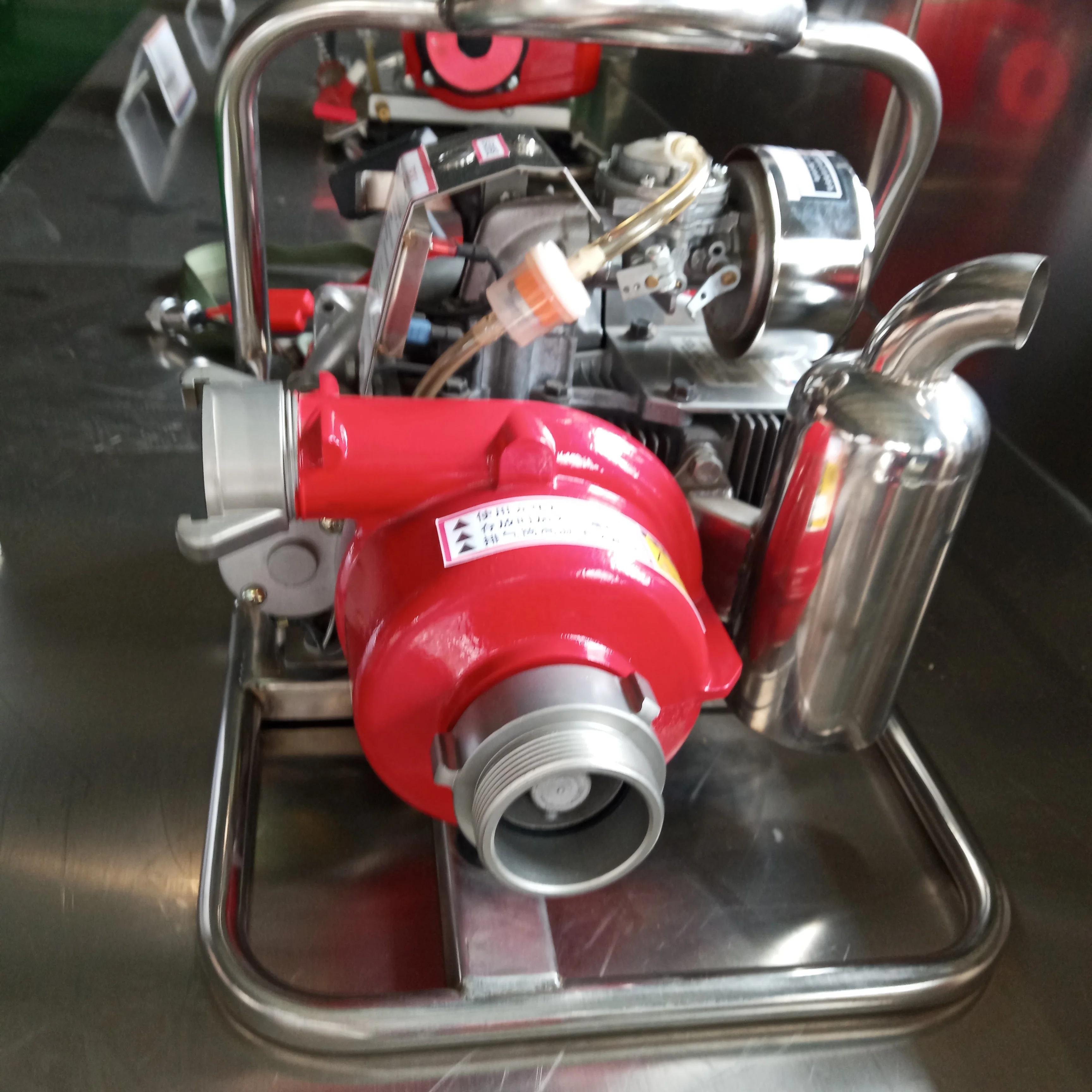

The whole device includes an engine, a water pump, a spray gun, a water inlet pipe, a high pressure hose and accessories. It adopts a two-stroke engine and brass single-machine impeller design. The pump head is made of ultra-light high-strength anti-corrosion aluminum alloy. It has the characteristics of compact structure, convenience in carrying, stable performance and long conveying distance and the like. It has two different starting methods which can be arbitrarily selected, and are starting by a hand line and electric starting respectively. Different starting modes can be selected according to the actual situation.
Model
TBQ8/3
Engine type
Single cylinder, two strokes, forced air cooling
Power
8HP
Flow
340L/min
Suction lift
7m
Maximum lift
165m
Maximum range
25m
Fuel tank volume
25L
Net weight of the complete machine
15kg
Starting mode

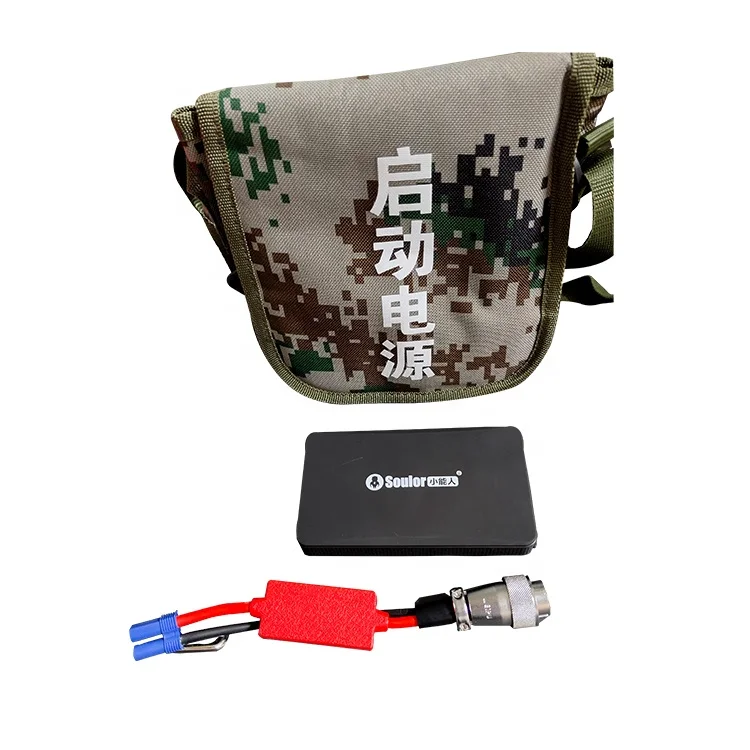

Starting by a hand line or electric starting
high quality fire fighting water pump
Application
More Products
Company Information
Packaging & Shipping
FAQ
1. How to buy:
2.How about ODM?
Our company have an R&D team, they can learned how to make the pump according to the drawing you offer.
3.How about sample policy?
We can give you a competitive price for the sample, the shipping fee will be at the client’s side.
4.What’s the guarantee period?
One year after the shipping date. But except the wearing parts(shaft, impeller, seal), meanwhile we will send some wearing parts for your convenience.
5. Common Failures and methods?
Failure: Pumps have abnormal vibration and noise
Methods: A: Repair water piping
B: Increasing the water piping
C: Irrigation fluid, to exclude air
D: Improve the system or re-section
E: Maintenance pump(the user will be allowed to overall
6. After-sale Service:
supplied professional technical guide free of charge at anytime.
