Beverage bottle shrink labeling machine

Product Overview

Description

Capsule bottle shrink labeling machine

This series thermal tunnel sleeve label shrink packing machine are mainly used to shrink label of product in bottle shape, can shape or barrel shape with glass bottle, plastic bottle or paper cup. The label either on the top, in the middle, at bottom of bottle or wrapping the whole bottle is able to be shrank with different type model. The thermal tunnel sleeve label shrink packing machine is widely applied in the industry of food, cosmetic and pesticide, etc.



Intelligent shrink temperature control

Conveyor speed of pvc label shrink tunnel is adjusted by stepless adjustor

Unique conveyor device to ensure stable transmission



Model	BSS-1538B
Voltage	220V /50-60HZ
Power	8KW
Tunnel size (L x W x H)mm	1000x150x380
Max.Packing size(mm)	105 x 350H
Conveyor motor	AC90W/220V
Conveyor speed	0-10m/min
Max.loading	15KGS
Shrink film	POF,PVC,PP
Weight	90KGS
Dimension (mm)	1500x350x1500



Shrink film and shrinking time to match with thermal tunnel sleeve label shrink packing machine

Film	Thickness (mm)	Heating time (S)	Tunnel temp (℃)
PVC	0.02-0.06	5-10	110-130
PP	0.02-0.04	6-12	130-170
PE	0.06-0.20	10-60	150-180
POF	0.03-0.10	8-16	130-170

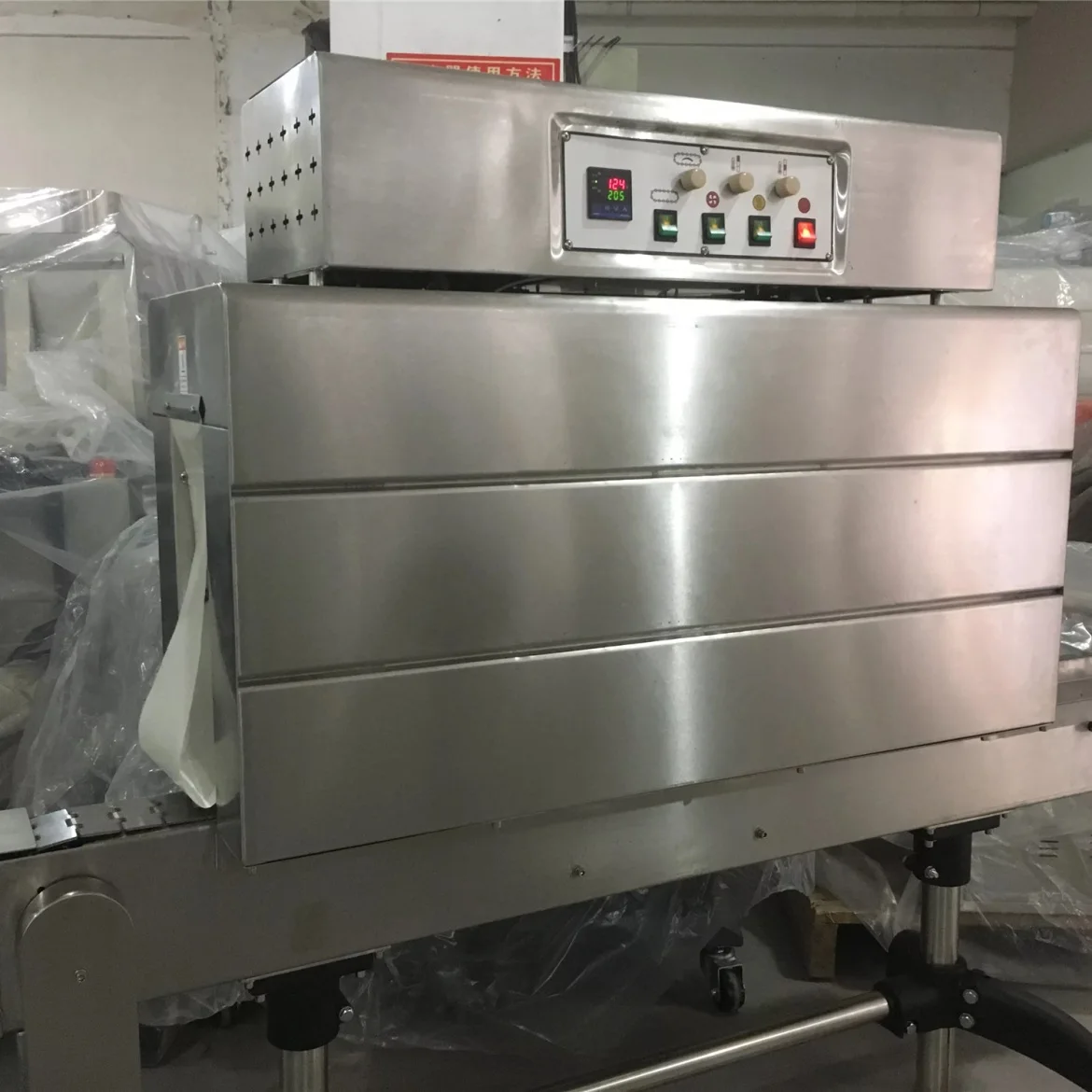

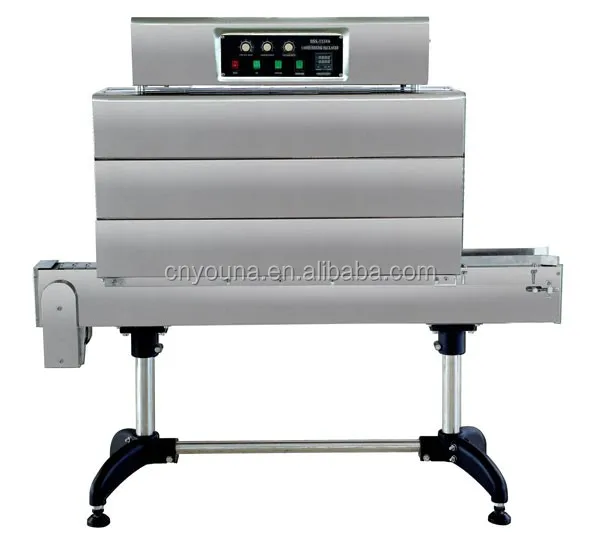

bottle thermal tunnel sleeve label shrink packing machine

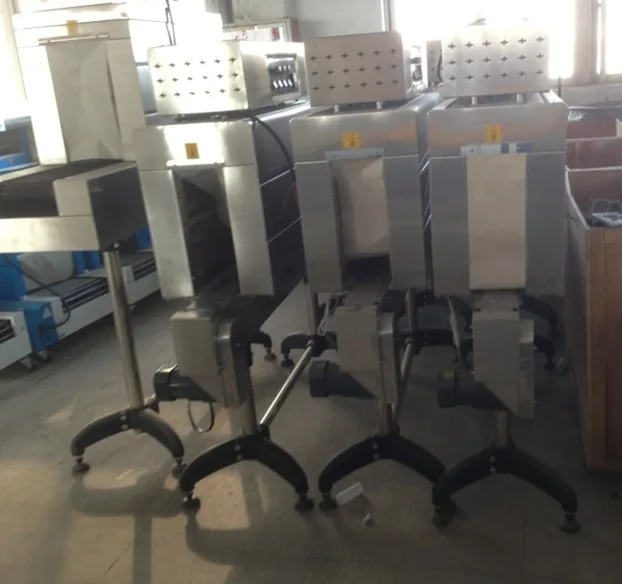

thermal tunnel sleeve label shrink packing machine storage house





packing effect by bottle thermal tunnel sleeve label shrink packing machine

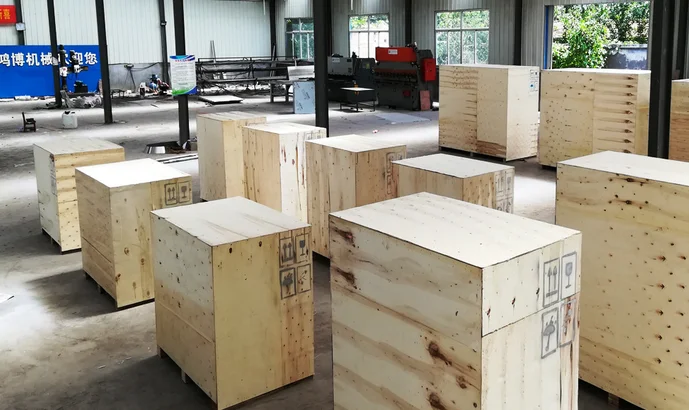

thermal tunnel sleeve label shrink packing machine package and delivery



Any question about the thermal tunnel sleeve label shrink packing machine, pls contact
