Product Overview
Description
Product introduction:
Industrial chillers are mainly used in the production of lower than normal temperature water equipment, the
minimum temperature of -35 degrees, the standard machine is adjustable between 5-30 degrees, can also be
called ice water machine, freezing machine, chiller, Widely used in modern industry.
Water-cooled chiller features:
1. Ergonomics panel, fully automated control, precision temperature controller, long-term stable operation.
2. The use of high-efficiency heat transfer heat exchanger, less loss of cold, easy to return oil, heat transfer
tubes will not have the advantage of frost cracking.
3. Japan and the United States imported high-performance compressors, high EER value, low noise, stable
3. Japan and the United States imported high-performance compressors, high EER value, low noise, stable
operation
air-cooled chiller BST-25AC Technical Data Sheet:
| Model | BST-25AC |
| Rated Cooling Capacity (50HZ) | (240346 Btu/h) (70.4 kw) (60544 Kcal/h) (20 USRT) |
| Power input | 380V/3PHASE/50HZ |
| Compressor work | 25HP |
| Compressor Type | Closed cycle scroll/piston |
| Flow regulator | Capillary tube/Thermostaic expension valve |
| Refrigerant | R22/R407C |
| Condenser Style | Shell tude type |
| Condenser Diameter | 65DN |
| Evaporator Style | Water tank type/shell tude type/stainless steel plate heat exchanger |
| Evaporator water | 348L |
| Standard freezing water flow | 12.11m3/h |
| Diameter of standard nipple | 65DN |
| Built-in pump | 3HP |
| Machine weight | 1200KG |
| Measure(L*W*H) | 2800*940*1800MM |

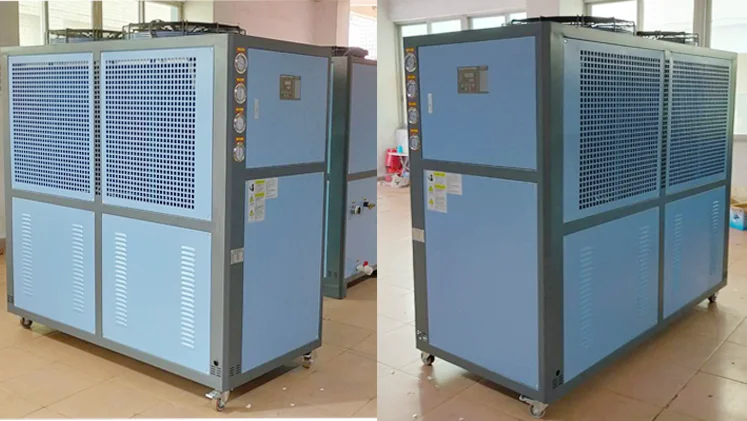

product details:
air-cooled chiller other models technical parameters:

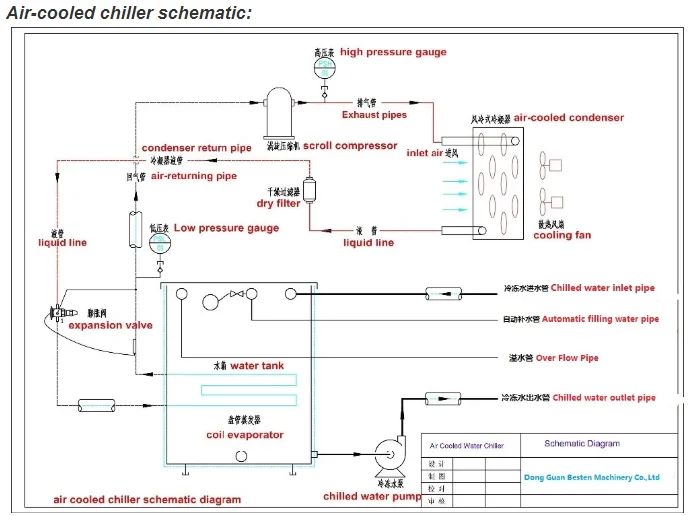

air cooled chiller schematic:
Our Services:
1.Free maintenance within 1 year, operating the machine in the right way,
Does not include daily maintenance, also does not undertake pearl river delta travel expense.
2.Our factory provides machine testing when customers come to our factory to see this machine.
3.We provide detailed machine specifications, electrical drawings, installation books, operation manuals, drawings.
4.If the customer needs, we can provide engineers to help install and train the workers.
Our company and customers:
Chiller, Plastic Crusher, Plastic Color Mixer, Mould Heater, Cooling Tower
Suppliers & Manufacturers China - Wholesale Factory - Besten Mechanics
In 2002, Dongguan BESTEN Machinery Co., Ltd. invested in Dongguan City Hengli Town,which is a sub
company under HongKong BESTEN group, which is a modern high-tech Corporation with research and
development, production, sales and service.The company inherits the enterprise spirit of BESTEN group.
"human oriented, quality first, service first, excellence pursue" is the tenet and goal that company is founded
on. The company takes "continuous improve and advance with the times" as its main principle to stimulate
itself, and join in the competition domestically and abroad with excellent products in good faith. Through
continuous improvement and improve product quality, BEST Machinery accumulated many years of design and
production of experience, and finally laid a solid foundation of quality products.
Our Workflow
Our Workshop
Packaging and Transportation:
--------------------------------------------------------------------------------------------------------------------
FAQ:
1. Payment Terms:
T/T - 30% deposit before production,70% balance before delivery, or other terms
2. Delivery Detail:
About 10 workdays after payments.
3.Pacage Terms:
International Standard Wooden Case for Export
4.How about the quality of your product?
-- Our products manufactured strictly according to national and international standard.
-- We have CE ,ISO certification
-- We take a test on every product before delivery.
5.How about price of this product?
-- We can give the lowest price than market one.
-- We do quotation as soon as possible for any customer.
-- Discount can be given according to quantity.
6.What is the MOQ?
-- 1 set.
7.If you can be custom-made?
-- We can make products according to customer's requirements.
8.What is the voltage?
-- 380V 50hz 3 phase or any other voltage according to client's requirement.
