Gasoline Engine Portable Fire Fighting Water Pump with high quality

Product Overview

Description

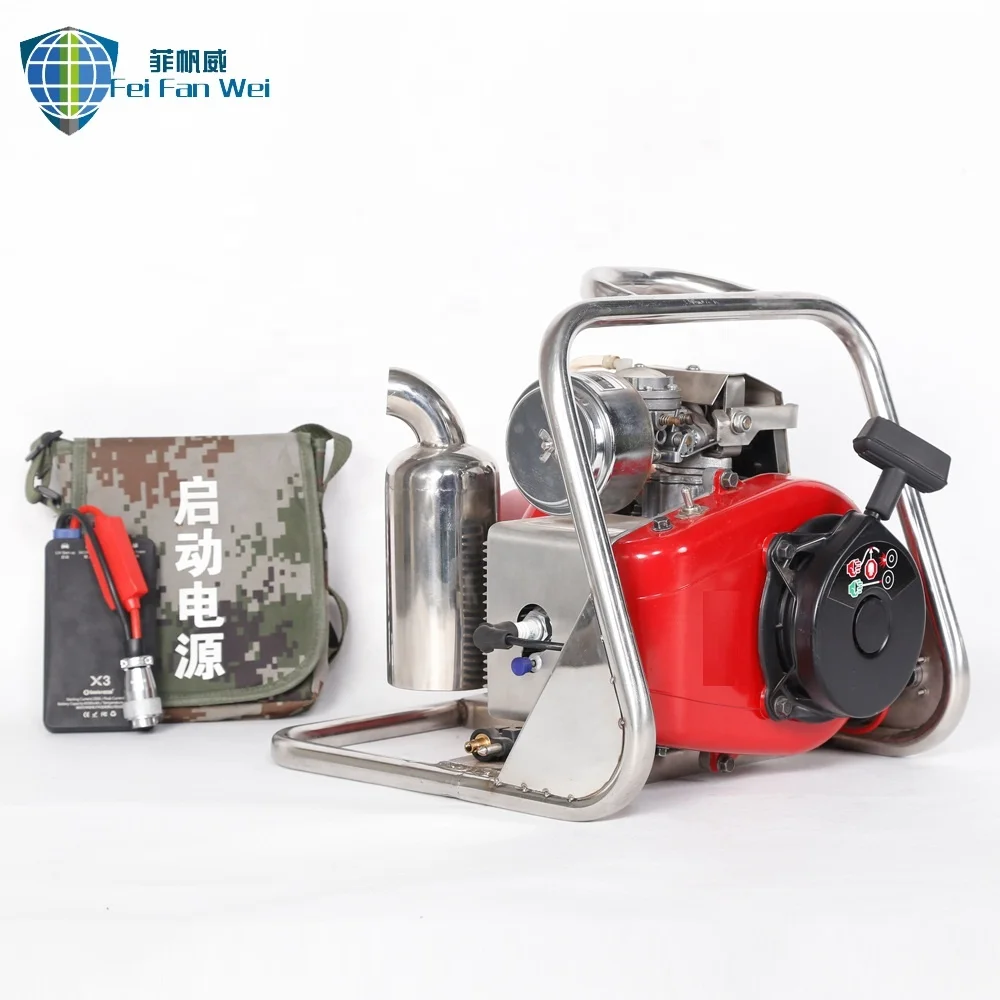

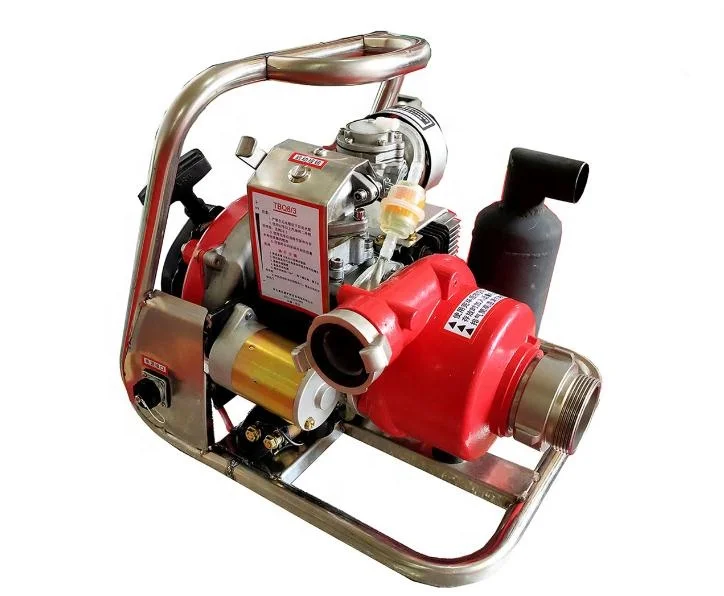

  The whole device includes an engine, a water pump, a spray gun, a water inlet pipe, a high pressure hose and accessories.
  It adopts a two-stroke engine and brass single-machine impeller design.
  The pump head is made of ultra-light high-strength anti-corrosion aluminum alloy.
  It has the characteristics of compact structure, convenience in carrying, stable performance and long conveying distance and the like.
  It has two different starting methods which can be arbitrarily selected, and are starting by a hand line and electric starting respectively. Different starting modes can be selected according to the actual situation.



Model	TBQ8/3
Engine type	Single cylinder, two strokes, forced air cooling
Power	8HP
Flow	340L/min
Suction lift	7m
Maximum lift	165m
Maximum range	25m
Fuel tank volume	25L
Net weight of the complete machine	15kg
Starting mode	Starting by a hand line or electric starting

Low price fire fighting water pump

1. How to buy:

2.How about ODM?

Our company have an R&D team, they can learned how to make the pump according to the drawing you offer.



3.How about sample policy?

We can give you a competitive price for the sample, the shipping fee will be at the client’s side.



4.What’s the guarantee period?

One year after the shipping date. But except the wearing parts(shaft, impeller, seal), meanwhile we will send some wearing parts for your convenience.



5. Common Failures and methods?

Failure: Pumps have abnormal vibration and noise

Methods: A: Repair water piping

               B: Increasing the water piping

               C: Irrigation fluid, to exclude air

               D: Improve the system or re-section

               E: Maintenance pump(the user will be allowed to overall



6. After-sale Service:

supplied professional technical guide free of charge at anytime.
