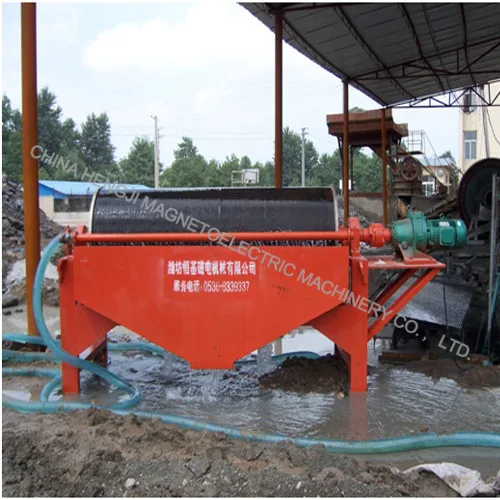

Downstream wet magnetic drum separator

CTS Downstream wet magnetic drum separator is suitable for the preconcentration and separation of coarse-grained strong magnetic materials with a particle size of 6-0 mm in wet separation, or for the removal of mixed strong magnetic minerals from non-magnetic minerals. The machine can continuously feed and discharge ore, with high magnetic field intensity, high magnetic field gradient, large working gap, and high processing capacity. It can also work in series.

Downstream wet magnetic drum separator


Downstream wet magnetic drum separator

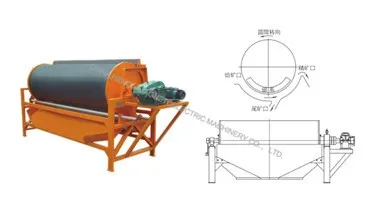

sketch map

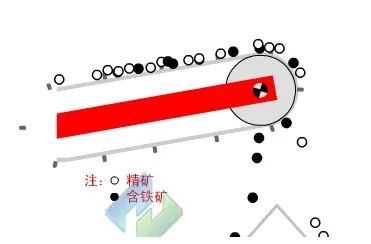

Downstream wet magnetic drum separator of working principle

The principle is that when the pulp enters the magnetic field area, the strong magnetic minerals are adsorbed on the surface of the cylinder, the weak magnetic and non-magnetic minerals are washed out by water flow, and the magnetic minerals adsorbed on the surface of the cylinder rotate with the cylinder, are taken out of the magnetic field area, and washed into the concentrate trough with the washing water to complete the separation operation.

Detailed Images

Detailed

Name: Downstream wet magnetic drum separator

Brand: HENGJI

Original: China

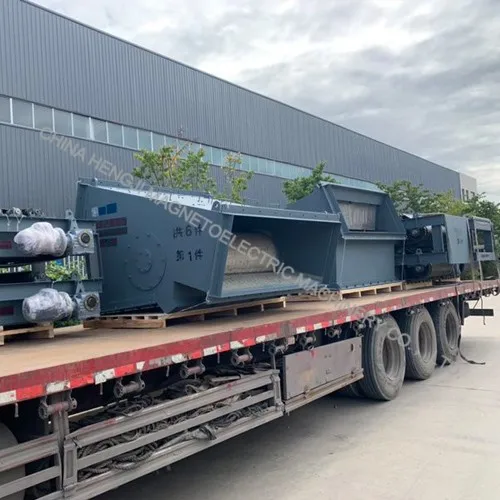

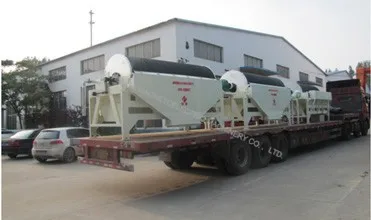

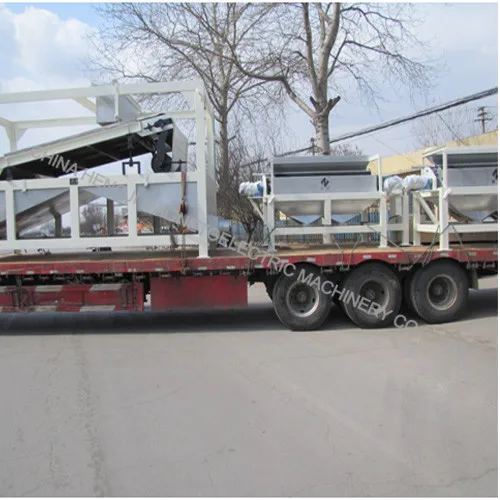

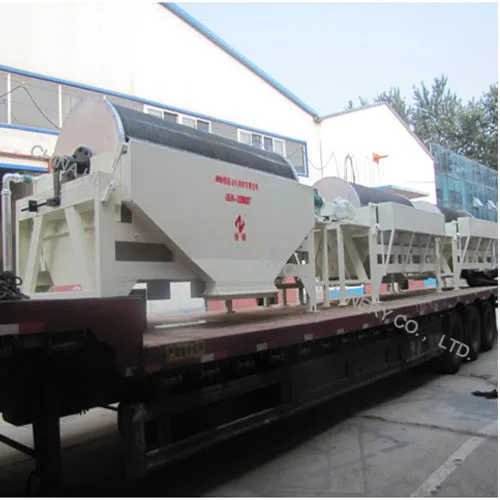

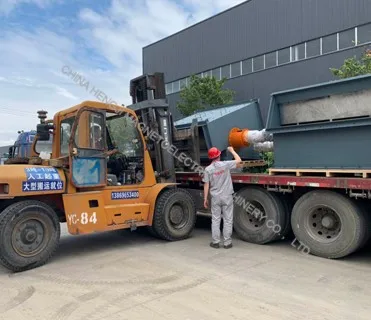

Downstream wet magnetic drum separator Loading and ship

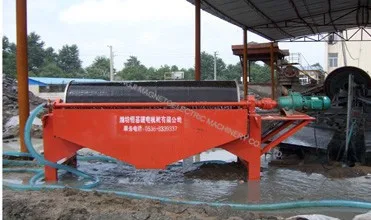

Application Fields

Name: Downstream wet magnetic drum separator
Brand: HENGJI
Original: China
According to the installation orientation, there are two kinds of left and right structures.

The average value and maximum magnetic induction intensity of the Magnetic separation area in the magnetic induction intensity of the barrel surface are determined according to the iron content of different minerals and different separation requirements.

The magnetic field intensity range from 1000GS to 7000GS can be fabricated.


Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Raw material testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* We will provide one-year warranty to make sure your machine work well. .

Packing & Delivery
Packaging
Size
According to the rcyb magnets  Model
Weight
According to the rcyb magnets Model



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
According to the rcyb magnets Model
Weight
According to the rcyb magnets Model



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
