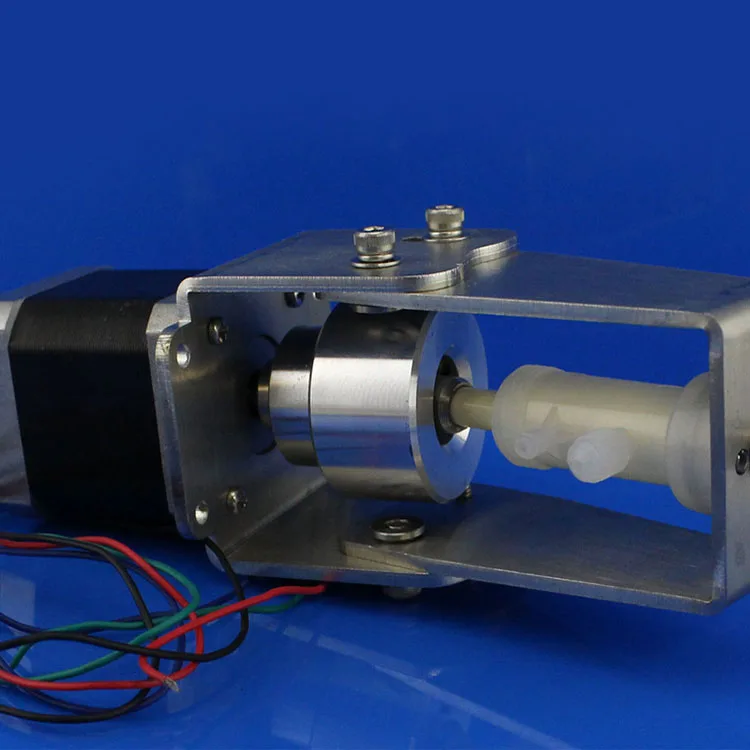

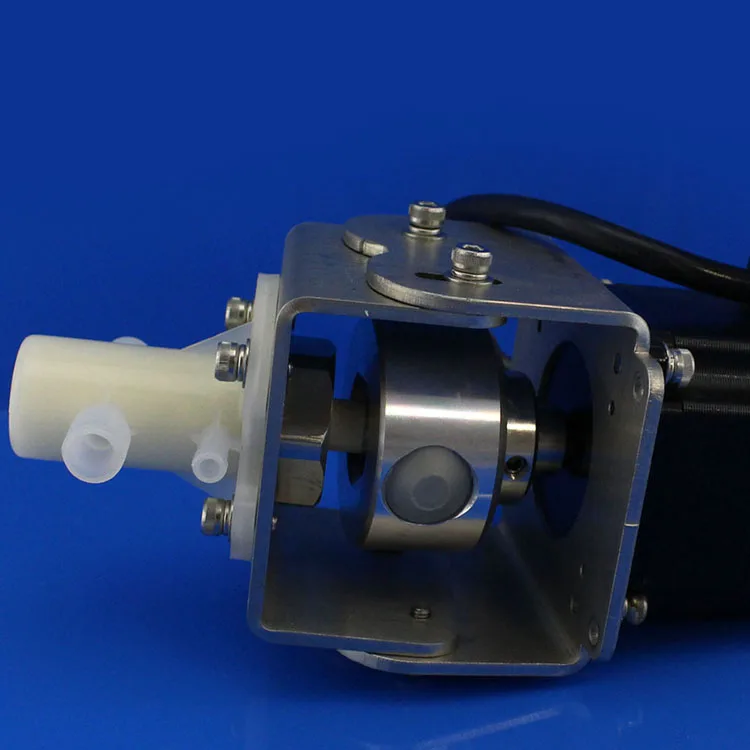

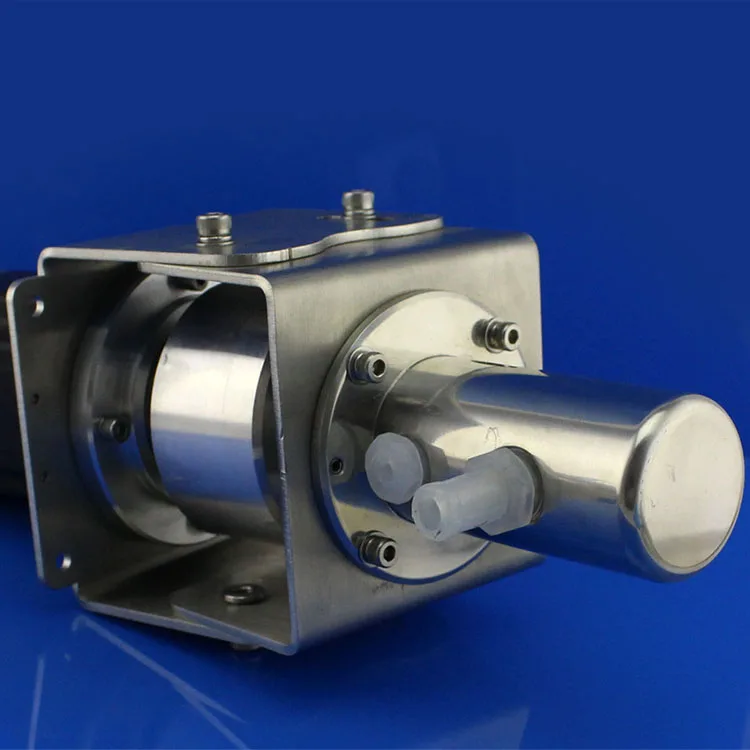

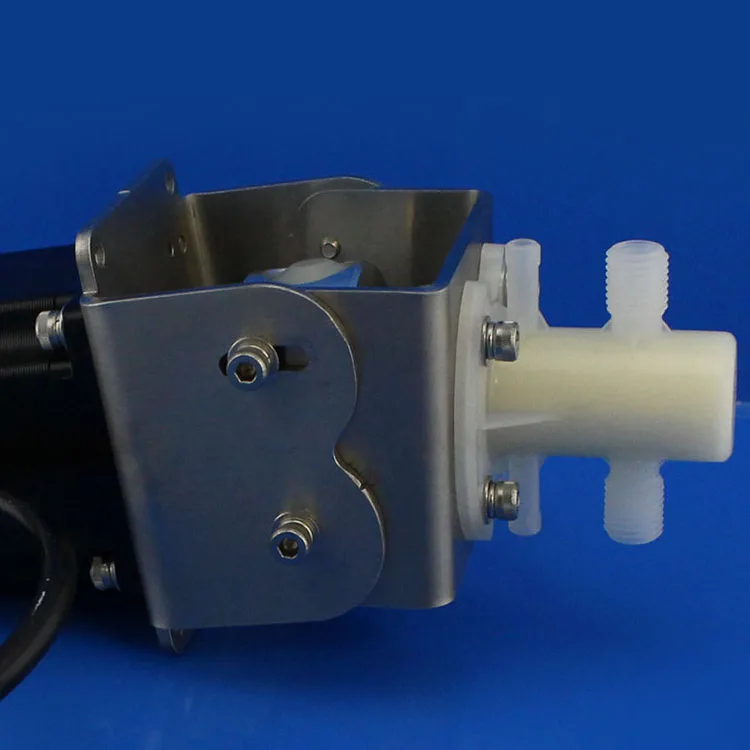

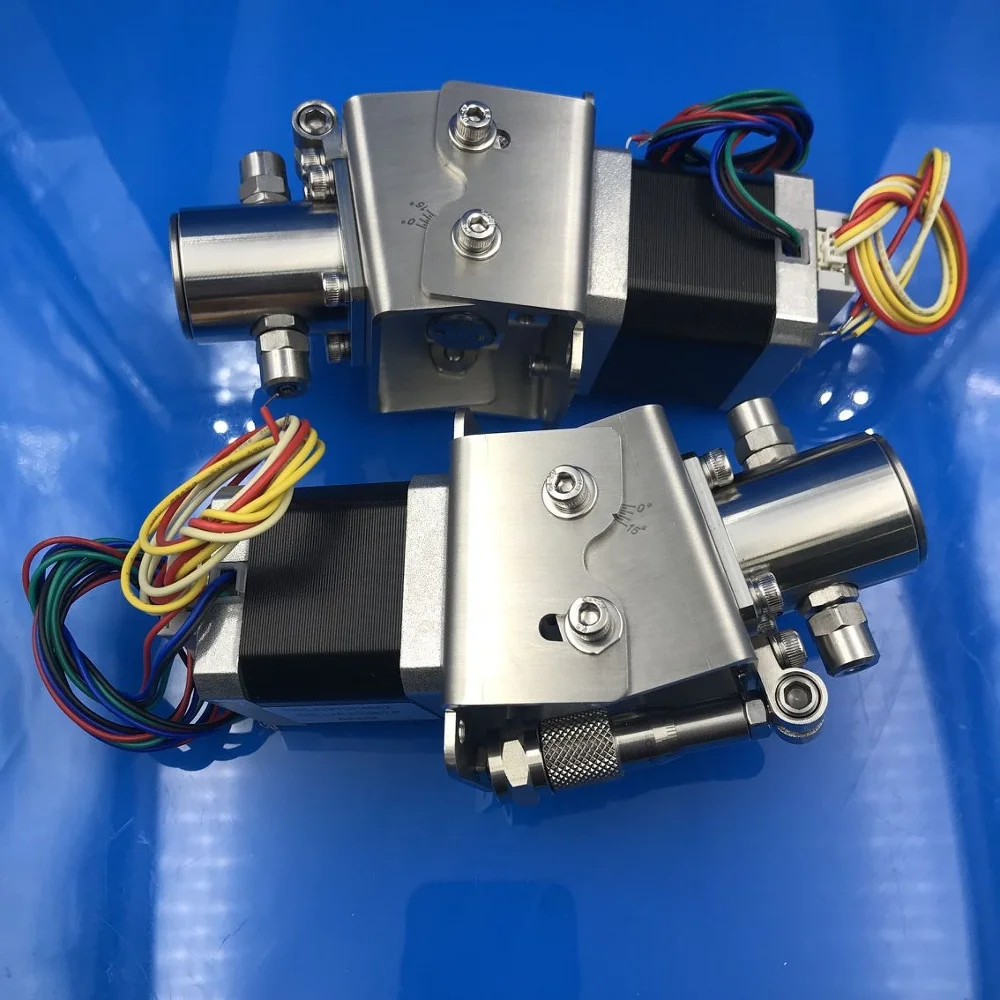

Methanol And Water High Precision 36MM Metering Ceramic Dosing Pump
- Category: >>>
- Supplier: Xiamen Innovacera Advanced Materials Co. Ltd.
Share on (62174877898):
Product Overview
Description
Welcome
Alumina or zirconia Ceramic Plunger Piston Pump
Ceramic metering pump module incorporates a ceramic piston/valve/cylinder set with housing. The
housing forpiston/valve/cylinder sets are typically comprised of 316 Stainless Steel and Tefzel. Custom
materials can be used and are available upon request. The piston/valve/cylinder set is sealed by the fit of
the piston into the cylinder.Ceramic pump modules are positive displacement mechanisms that do not
contain external valves and can run for hundreds of millions of cycles without measurable wear.
There are three types of pump modules: Rotary, Linear and Multiplex which are used for different
applications depending upon the customer's fluidic needs.
* Made of high-purity alumina powder imported from Australia, the pumps enjoy the superior properties of
* Advanced polishing and forming method to get beteter micro porosity, which can play an important role in
* Good surface polish to form a smooth entocoel to easier the disinfecting and washing operation;
* we can produce customized pumps according to different requirements.
Product Advantages:
* Made of high-purity alumina powder imported from Australia, the pumps enjoy the superior properties of
high hardness, wear-resistance, heat-resistance, corrosion-resistance;
* Advanced polishing and forming method to get beteter micro porosity, which can play an important role in
self lubricating;
* Good surface polish to form a smooth entocoel to easier the disinfecting and washing operation;
* we can produce customized pumps according to different requirements.
Type | INV-05 | INV-07 | INV-10 | INV-13 | ||||
Plunger | ZrO2, Al2O3 | Al2O3, Sic | ||||||
Cylinder | Al2O3, Sic | |||||||
Pump Head | PTFE or SUS316 | SUS316 | ||||||
Pump Head Seal Seat | PTFE or SUS316 | PTFE | ||||||
Pump Head Seal | Dingqing rubber, slica gel, fluorine rubber | |||||||
Liquid Nozzle and Cleaning Nozzle | PEEK,PTFE,PP,SUS316 | PEEK,PTFE,PP,SUS316 | ||||||
Liquid Nozzle Sea | Dingqing rubber, slica gel, fluorine rubber | |||||||
Lip Seal | Lip Seal | |||||||
Technical Parameters | ||||||||

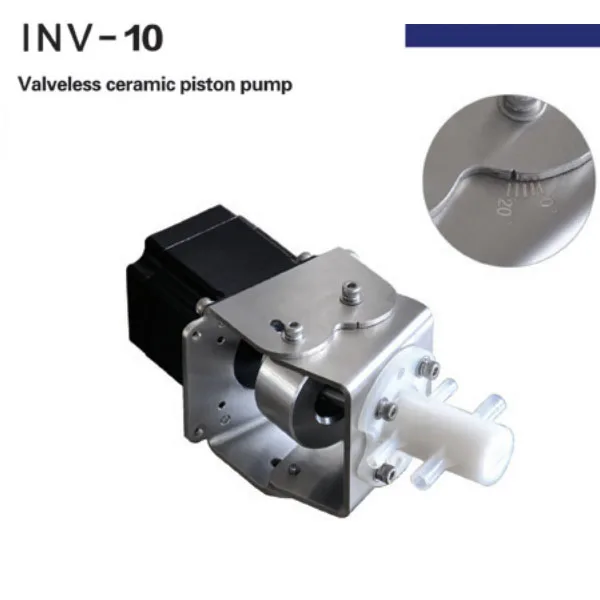

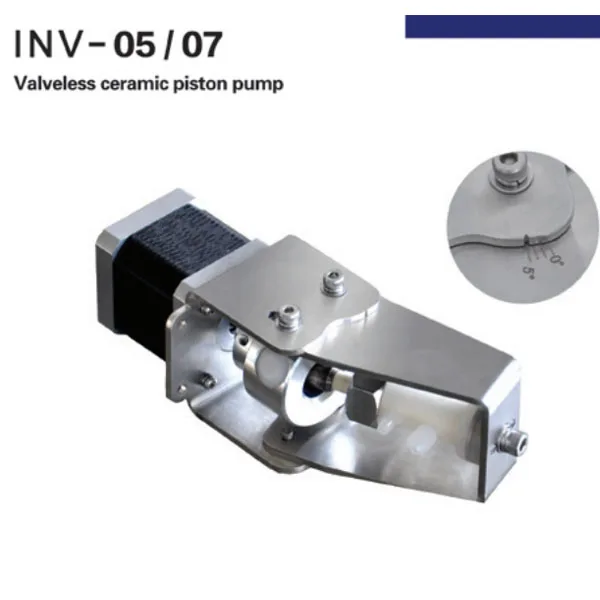

Model | INV-05 | INV-07 | INV-10 | INV-13 | ||||
Plunger diameter | 5mm | 7mm | 10mm | 13mm | ||||
Material | Plunger,Pump cavity set (alumina zirconia) | Plunger,Pump cavity set (alumina zirconia) | ||||||
Discharge volume per revolution | 0.17ml/rev | 0.3ml/rev | 0.7ml/rev | 1.6ml/rev | ||||
Filing accuracy/ spinning speed | +/-0.5~1%/0~600RPM | +/-0.5%/0~500RPM | ||||||
Placement angle/ throughput pressure | 15°/0.6MPA | 20°/0.6MPA | ||||||
Maximum suction height | 4m( the product data is measured with water as the medium) | |||||||
Weight | 0.8kg | 1.3kg | ||||||

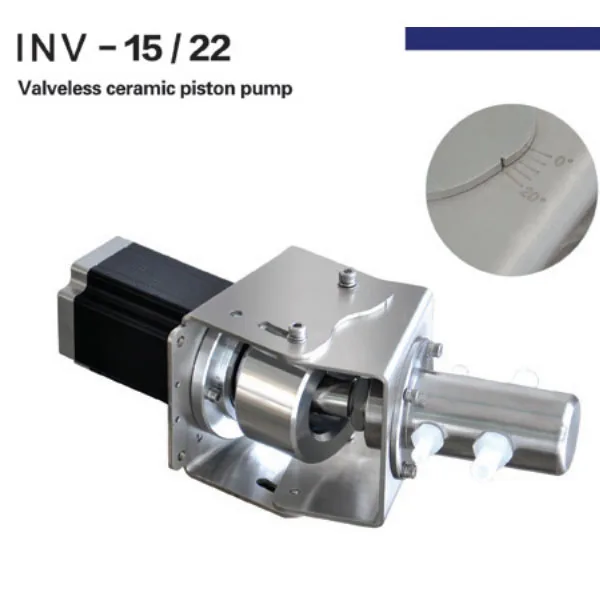

Model | INV-15 | INV-22 | INV-25 | INV-36 | |||
Plunger diameter | 15mm | 22mm | 25mm | 36mm | |||
Material | Plunger,Pump cavity set (alumina zirconia) | ||||||
Discharge volume per revolution | 2.9ml/rev | 6ml/rev | 12ml/rev | 26ml/rev | |||
Filing accuracy/ spinning speed | +/-0.5%/0-300RPM | +/-0.5%/0-200RPM | +/-0.5%/0-150RPM | +/-0.5%/0-120RPM | |||
Placement angle/ throughput pressure | 20°/0.5MPA | 20°/0.4MPA | |||||
Maximum suction height | 4m(the product data is measure with water as the medium) | ||||||
Weight | 3.5kg | 3.8kg | 7.4kg | 7.9kg | |||
Ceramic Pump Materials Properties | ||||||||
ZRO2 | ZTA | 99% AL2O3 | ||||||
Density | O(20℃)g/cm3 | 5.9 ~ 6.1 | 4.18 | 3.87 | ||||
Flexural Strength | (20℃)Mpa | 1150 | 550 | 450 | ||||
Compressive Strength | (20℃)Mpa | 4500 | 4200 | 3800 | ||||
Fracture Toughness | KiC(Mpa.m1/2) | 9 | 6 | 6 | ||||
Coefficient of Thermal | (200~500)℃ 1/℃ | 10.0*10-6 | 6.9*10-6 | 6.9*10-6 | ||||
Expansion | ||||||||
Thermal Shock Resistance | (20-800)℃ Water | ≥7 Circles | ≥6 Circles | ≥5 Circles | ||||
Cooler | ||||||||
Chemical Stability | 10% HCL mg/cm2 | 5.5 | 5.3 | 5.3 | ||||
1:9 NaOH mg/cm2 | 0.16 | 0.14 | 0.12 | |||||

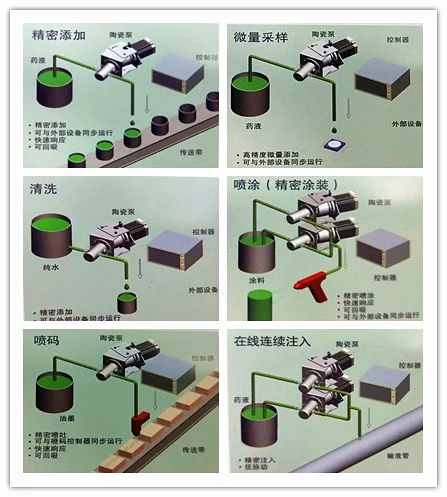

* Research institutes, laboratories, universities, laboratories, hospitals, factories and other cosmetics.
* Widely used in medicine, pharmaceutical, food, chemcial, cosmetics and other industries precise
* For blood, biological reagents, oral, injection, senior cosmetics, fragrances, fungicides and other liquid quantitative filling precision.
* Various chemical corrosive liquid quantitative filling precision
* Widely used in medicine, pharmaceutical, food, chemcial, cosmetics and other industries precise
* For blood, biological reagents, oral, injection, senior cosmetics, fragrances, fungicides and other liquid quantitative filling precision.
* Various chemical corrosive liquid quantitative filling precision
Pump over-current part material
