Yinlong LTO Batteries 5S Lithium Titanate Battery 12v100Ah with 100A BMS
- Category: >>>
- Supplier: Shenzhen OSN Power Tech Co. Ltd.
Share on (62175029530):
Product Overview
Description
Product Description

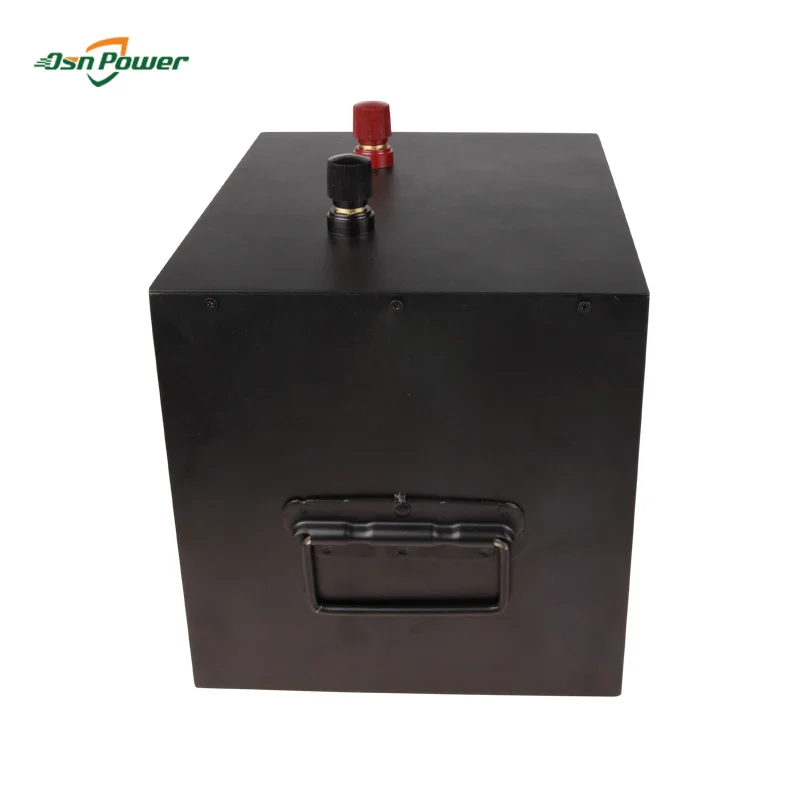

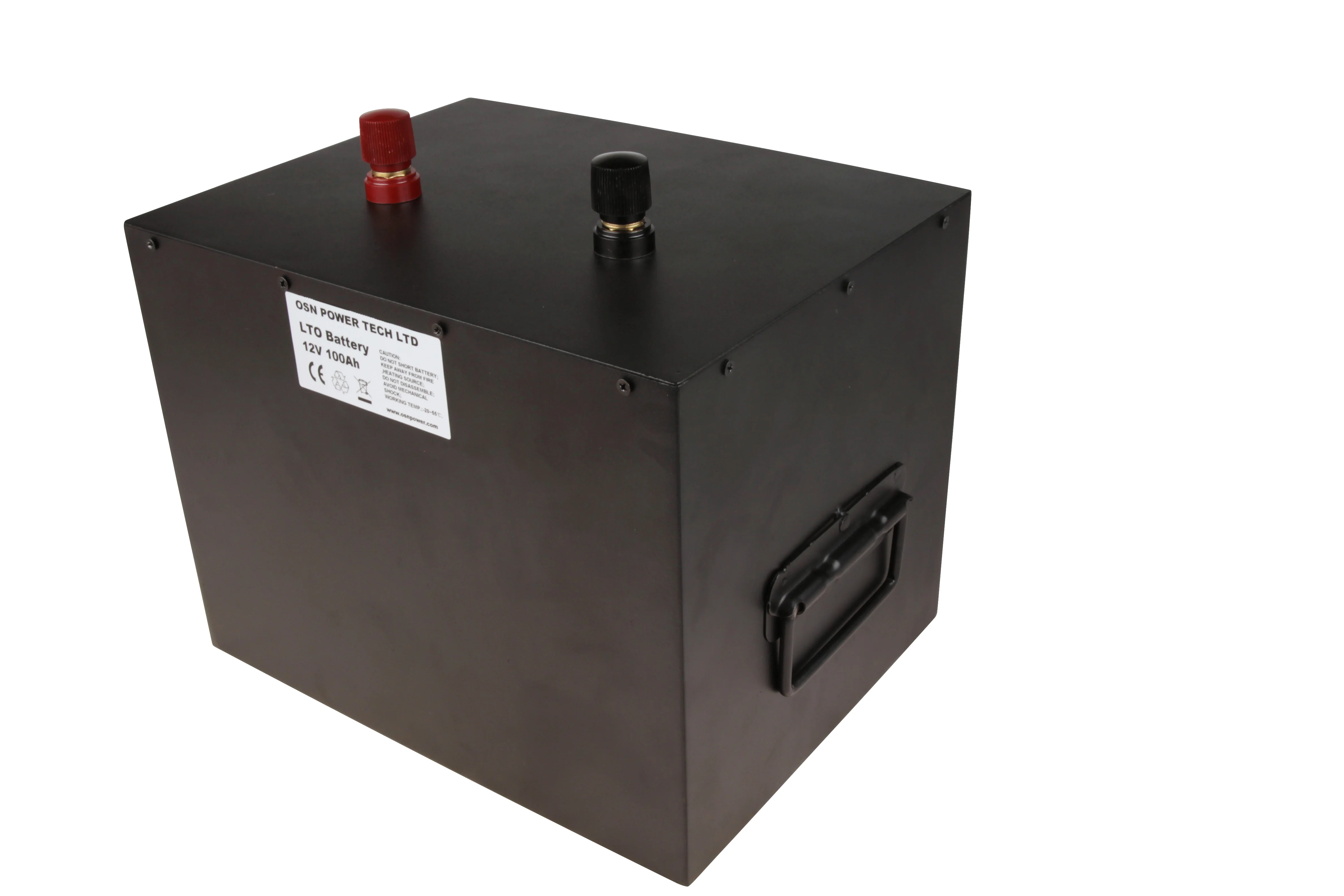

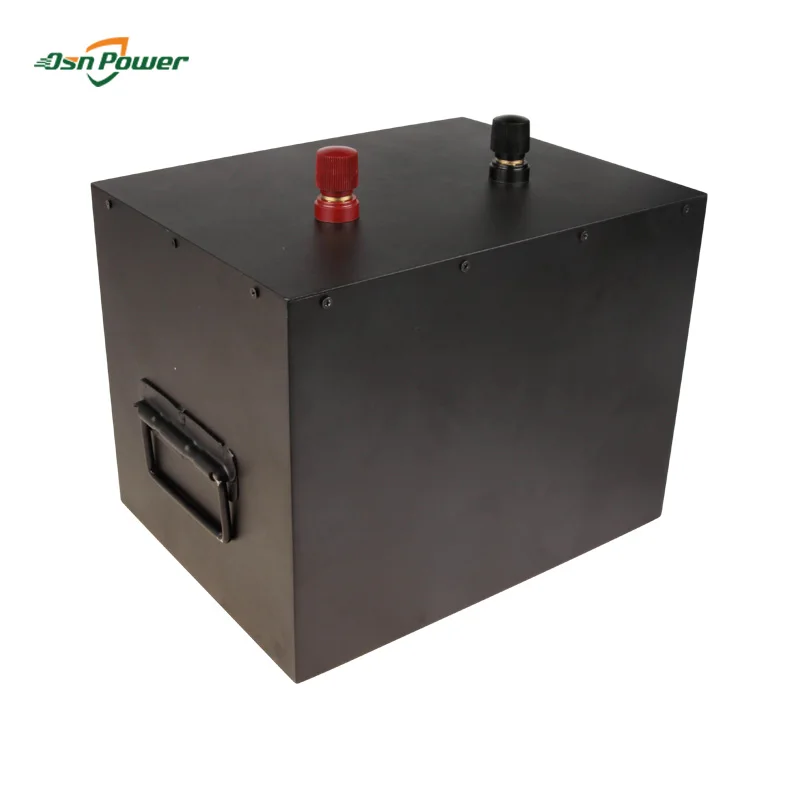

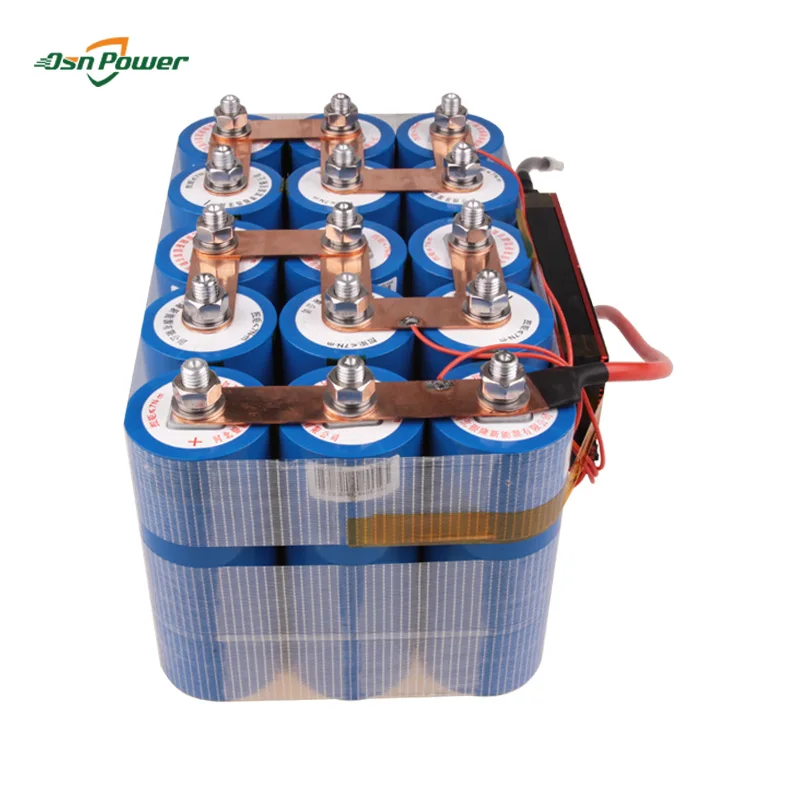

Yinlong LTO Batteries 5S Lithium Titanate Battery 12v100Ah with 100A BMS
LTO Advantages
- Faster charge: 10mins fully charged
- Higher discharge rate: Up to 10C
Wide working temperature range: -50°C ~ 65°C
Super long cycle life: over 30,000 times
Specification
No. | Items | Specifications |
1 | Nominal Voltage | 12V |
2 | Nominal Capacity | 100Ah |
3 | Chemistry | Lithium Titanate battery(LTO) |
4 | Max. Charge Current | 100A |
5 | Continuous DischargeCurrent | 100A |
6 | Peak Discharge Current | 200A |
7 | Full Charged Voltage | 12V(2.4V per cell) |
8 | Charge Cut-off Voltage | 14V (2.8V per cell) |
9 | Discharge Cut-off Voltage | 7.5V (1.5V per cell) |
10 | Net Weight | 23.5kg |
11 | Dimensions | can be customized |
Other LTO Batteries
We supply full range of LTO Batteries :
Yinlong Cylindrical 66160 30Ah ,35Ah and 40Ah ;66260 55Ah
Yinlong Prismatic LTO 2,3V 30Ah and 33Ah
Toshiba LTO 2.9Ah ,10Ah and 20Ah
![]W$2T6KHD~X1]3HD~B_7M[S.png](http://sc01.alicdn.com/kf/HTB1k87XLOrpK1RjSZFh760SdXXaY/200643089/HTB1k87XLOrpK1RjSZFh760SdXXaY.png)
Applications
· Passenger and commercial plug-in hybrid electric vehicles (PHEVs)
· Passenger and commercial battery electric vehicles (BEVs)
· Mild and micro hybrid vehicles
· Long-Duration (LD) grid energy storage systems
1) Electric vehicles and charging stations, tourist coaches, yachts, wind and solar energy storage power, traffic signals
2) Solar hybrid street lighting, UPS power supply, home storage
3) Coal, disaster relief emergency, weather radar, electricity, smart grid, communication base stations
4) Hospitals, finance, telecommunications , system critical backup power systems
