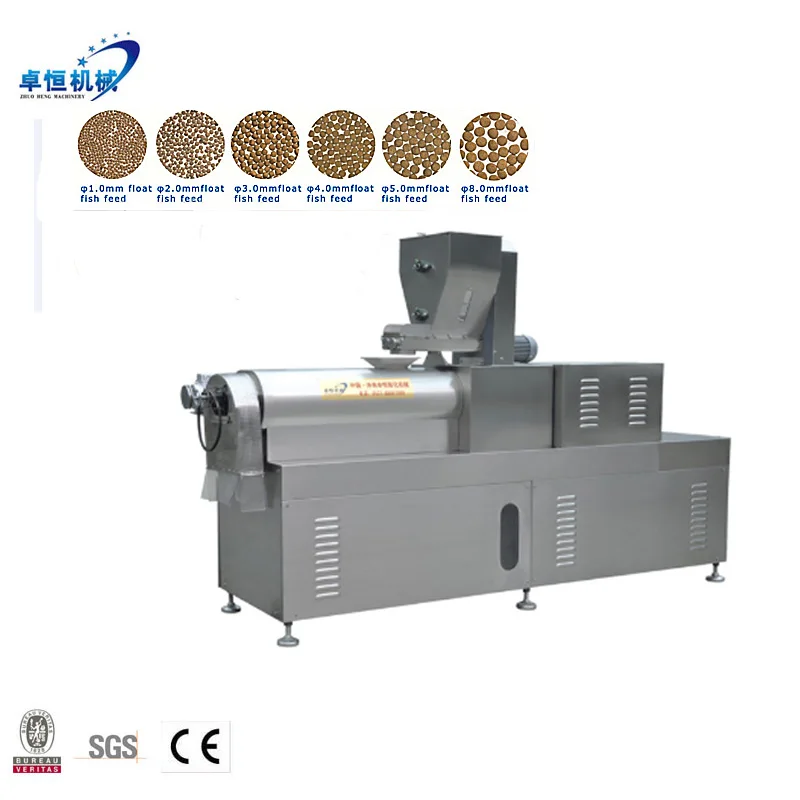

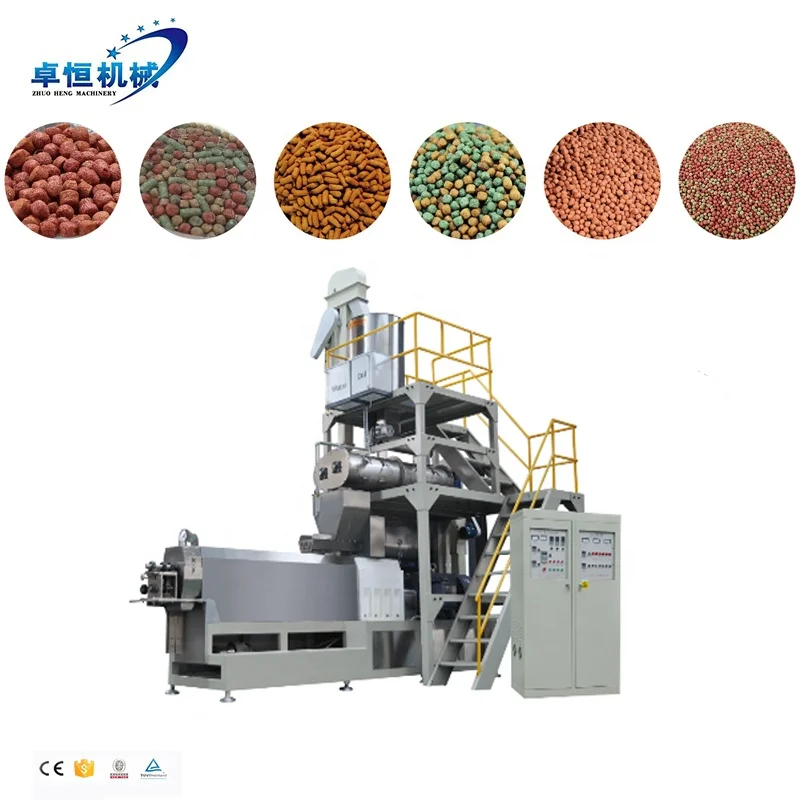

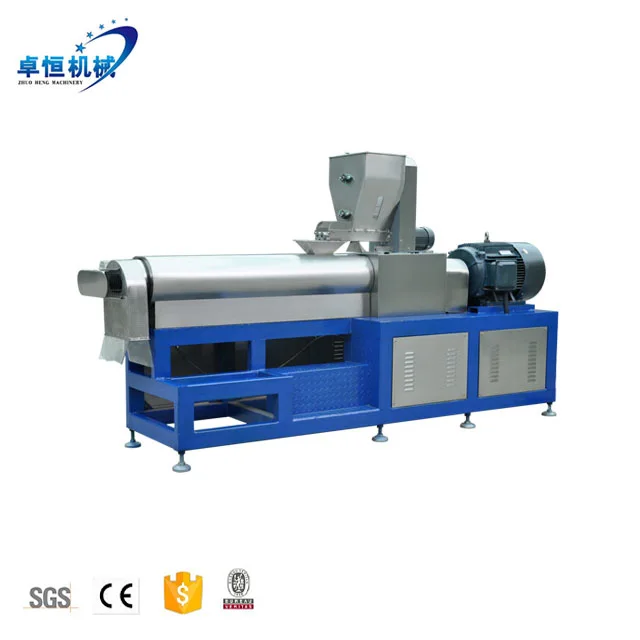

Top Quality Floating Fish Feed Extruder Processing Plants Feed Pellet Machine Fish Meal.corn Flour,soya Bean Meal.etc 1500 CE/BV

Product Overview

Description

Product Description

Our pet food & fish feed extrusion production line are designed to process a wide range of recipes.

Manufacturers can produce any number of textures, shapes, sizes, flavors and colors.

Our goal is to provide flexible and scalable production tools to produce high-quality, tasty and nutritional pet foods and fish feed.

ContactsProduction line details

Capacity	120kg-4000kg
Power Supply	Based on 380V 50 Hz 3 phase. Customized according to your local power.
Machine details	1.Stainless steel,:201, 304, 316, on request 2. Electric parts can be ABB, Delta, Fuji, Omron, Siemens;  Famous brand as your demand.
Certificate	CE,GOST,TUV,BV
Raw Material	Corn meal, flour, soy meal, peanut meal. Bone /meat/fish/shrimp powder, etc.

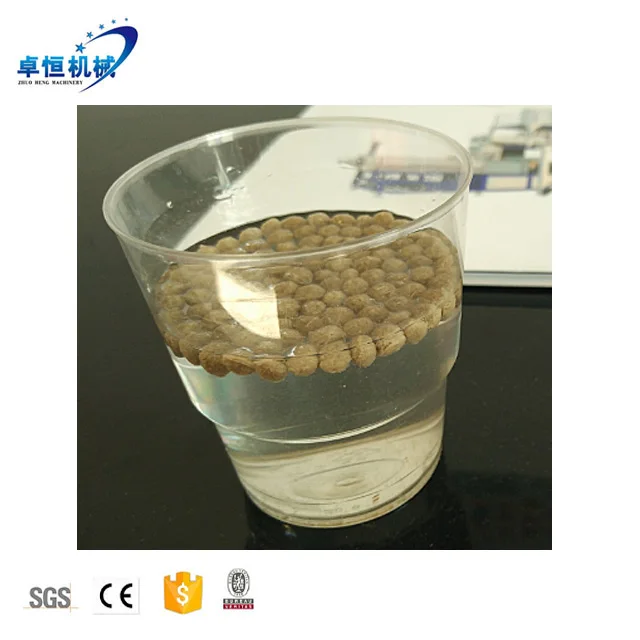

Product type	dog food, cat food, livestock feed; floating fish feed & sinking fish feed
Product shape	Pet food: Pellet Fish feed: Granule, Pellet, stick, tablet
Product size	Minimum Diameter: 1.5mm



Advantages

1. We specialize in high capacity extruder which can reach 4000kg/h

2. The screw material: Alloy steel (38CrMoAL) by nitriding process. High strength and wear-resting.

       a) With good self-cleaning ability, it’s unnecessary to remove the barrel and screws for cleaning.

3. SIMENS (China) Motor

4. It adopts speed-adjusted converter on feeding system, extrusion system and cutting system.

a) Food grade stainless steel twin screw feeding device guarantees stable materials feeding in the whole food process.

5. Adopted the Delta inverters, ensure the extruder better running.

6. The gearbox has automatic lubrication function, which prolong service life of gears.

7. Cutting knife is fixed in the die head seat, rotary cutting driven by V-belt.

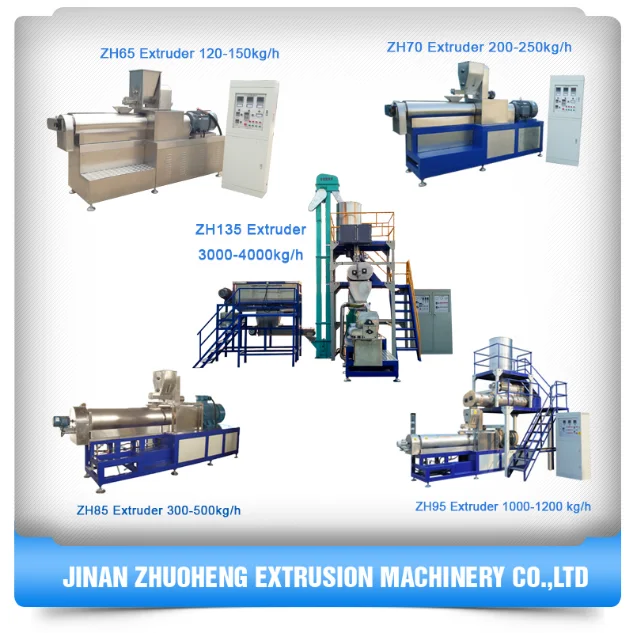

Technical Parameters

Model	Installed power	Real power	Capacity	Dimension
ZH65	35 KW	22kw	120-150kg/h	39000x1200x2200mm
ZH70	50kw	37kw	200-250kg/h	41000x1500x2200mm
ZH85	110kw	75kw	300-500kg/h	43000x3500x4300mm
ZH95	151kw	110kw	1-1.2 ton/h	4700x1900x4800mm
ZH135	425kw	335kw	3-4 ton/h	5200*2000*4200mm

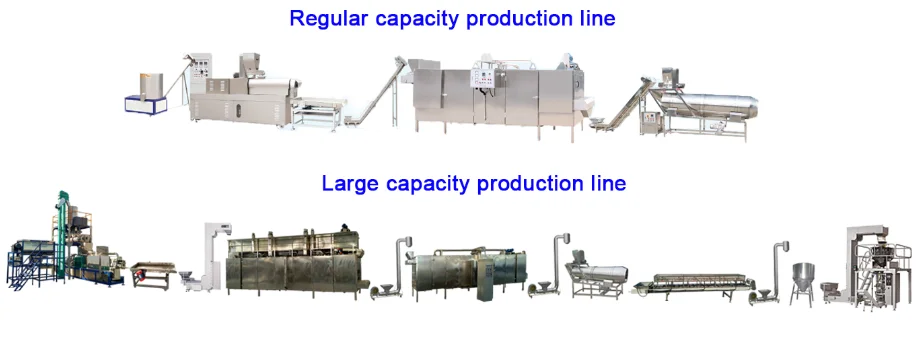

Production process

Flour raw material mixing-extruding and shaping-drying-flavoring-cooling-packing

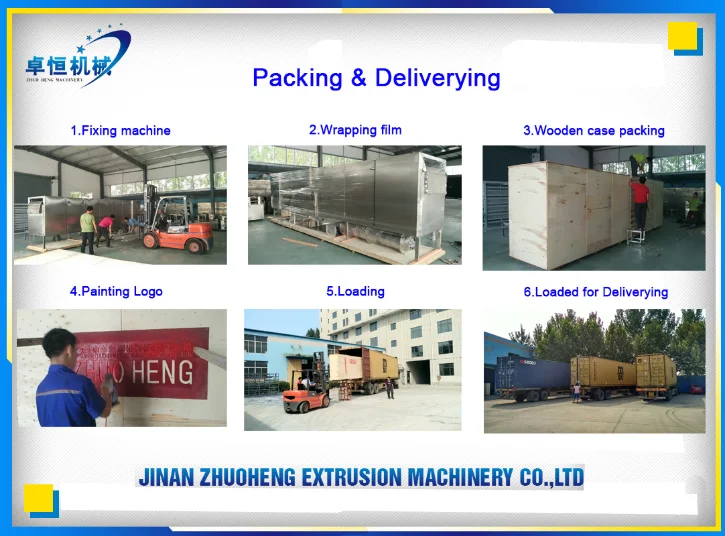

Packaging & Shipping

Packing: Machines are always wrapped by film completely and safely and then packed in strong fumigation-free case or 20'/40' container for delivery.

               We take good care of each machine for you

Delivery: 20-30 days after receiving advance payment.



Our customer

Our Services

Pre-sale service	Communicating with customers and learn your requirement
	Providing professional advisory services
	Providing solutions according to customers’ requirement, And offer the quotation
	Providing on-site visit to our factory
	Providing samples
Selling service	Confirm every terms and details and sign contract with customers
	Manufacturing machines according to contract.
	Trial running after production.
	Packing machines and delivery on time
	Providing relevant documents for Custom clearance (If necessary)
After-sale service	Send engineers for installation, trial running and training workers.
	Handling the problems occurred during use.
	Supply spare and wearing parts on discount.
	Help customers to solve any other problems



Certificates

FAQ

1. Are you a manufacturer or a trading company?

       We are a professional manufacturer of food & feed extrusion machine

2. What's the price of your machines?

       You can inquiry to us directly

3. What is your payment terms?

      Recommend to use Alibaba’s Trade Assurance.

     T/T or L/C; by T/T 30% as down payment, 70% by T/T before delivery, L/C before shipment.

4. Can we provide the formula to you?

     We can provide basic formula for producing the food etc.

     And help customer to produce good quality food according customer’s detailed formula.

5. What is the workshop size required?

    The production line can be put in straight line and also can change the direction according to your factory size.

     we can design the layout according to your factory size.
